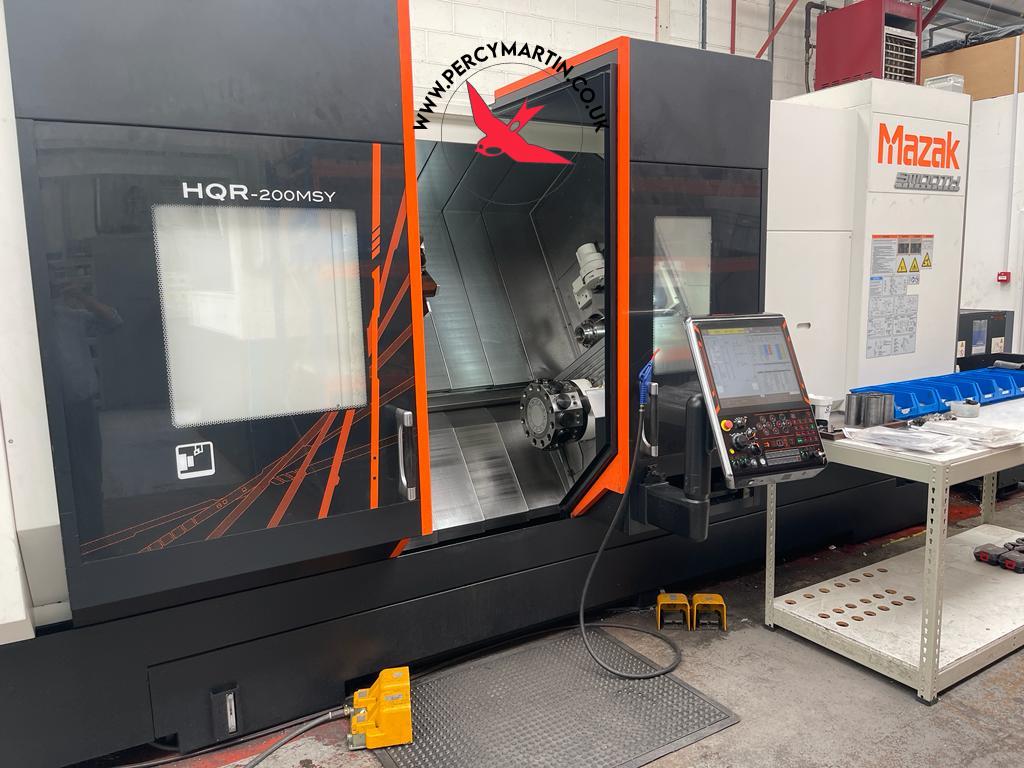

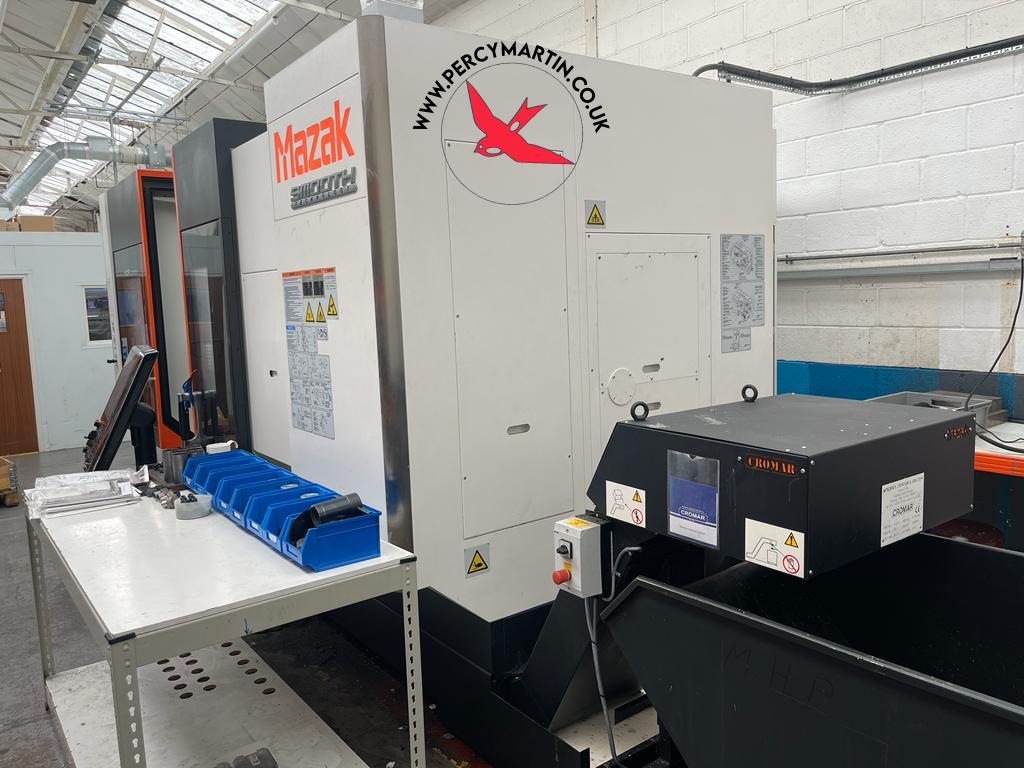

Mazak HQR-200MSY 2017

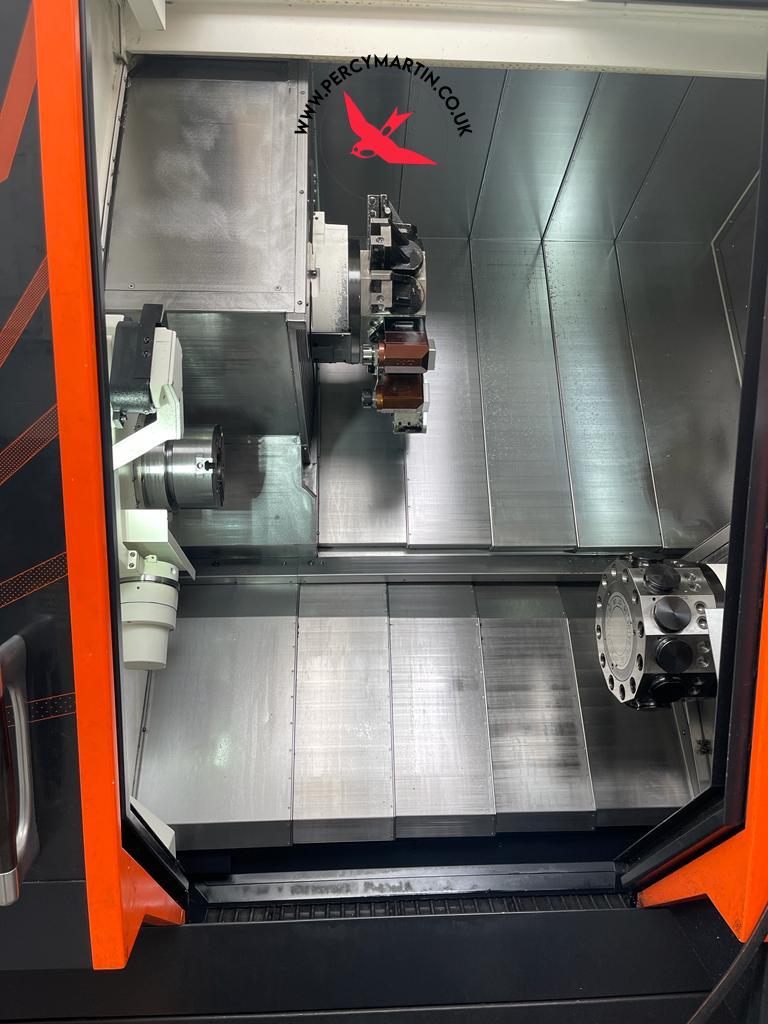

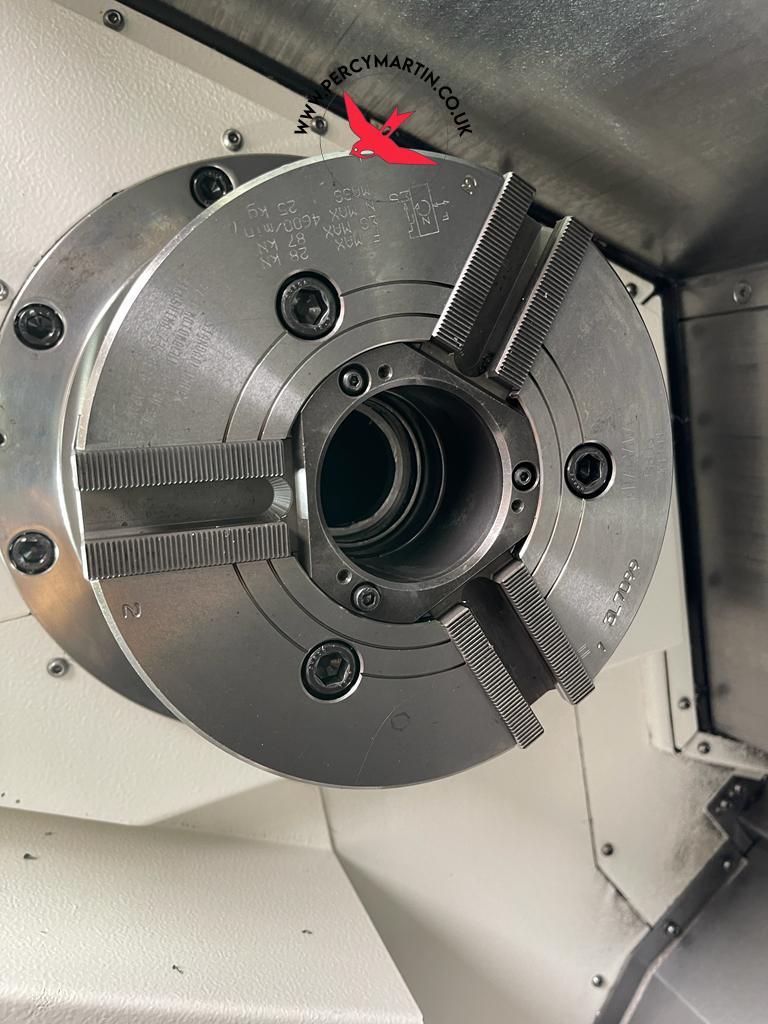

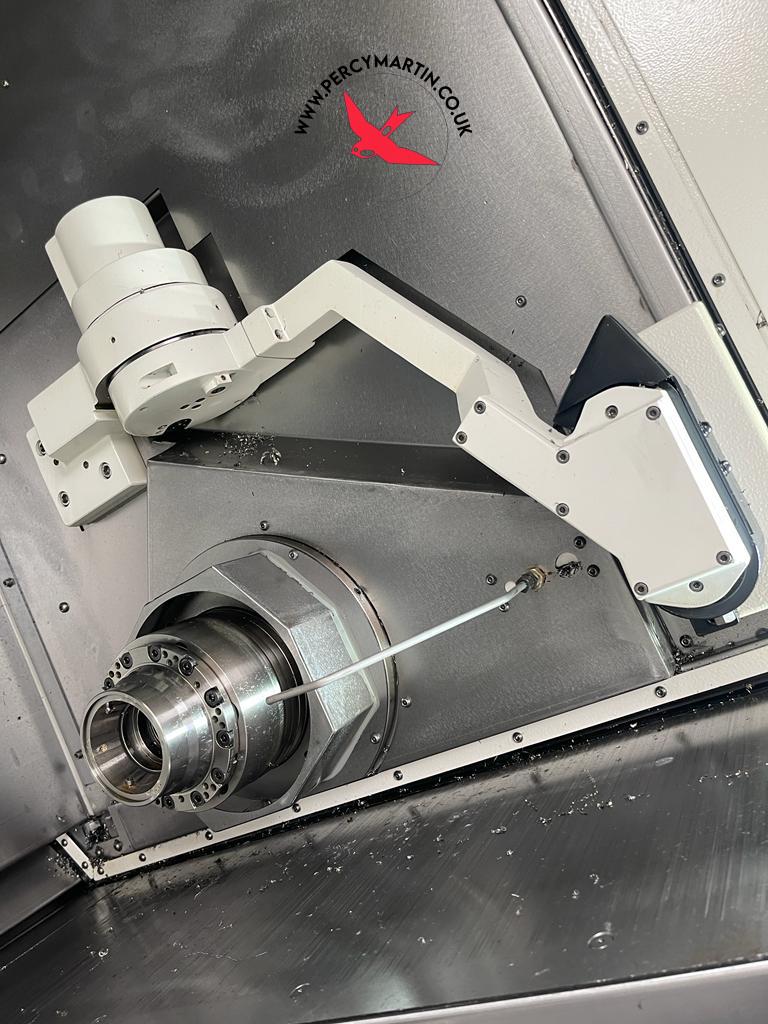

3 Jaw Chuck , C axis & Milling , C axis on Sub Spindle , Collet Chuck , Coolant , Interlocked guards , Low Volt Light , Magazine Barfeed , Manuals , Sub Spindle , Swarf Conveyor , Tool setter , Twin Turret , Y-axis
Mazak HQR-200MSY 2017
Key Features
Type:
All Products
Model:
HQR-200MSY
Make:
Mazak
Year:
2017
Serial No
287798
Price
£POA
Our Reference
PM8782a
Location
Leicester
Mazak HQR-200MSY 2017
Specifications
Bar Capacity
65mm

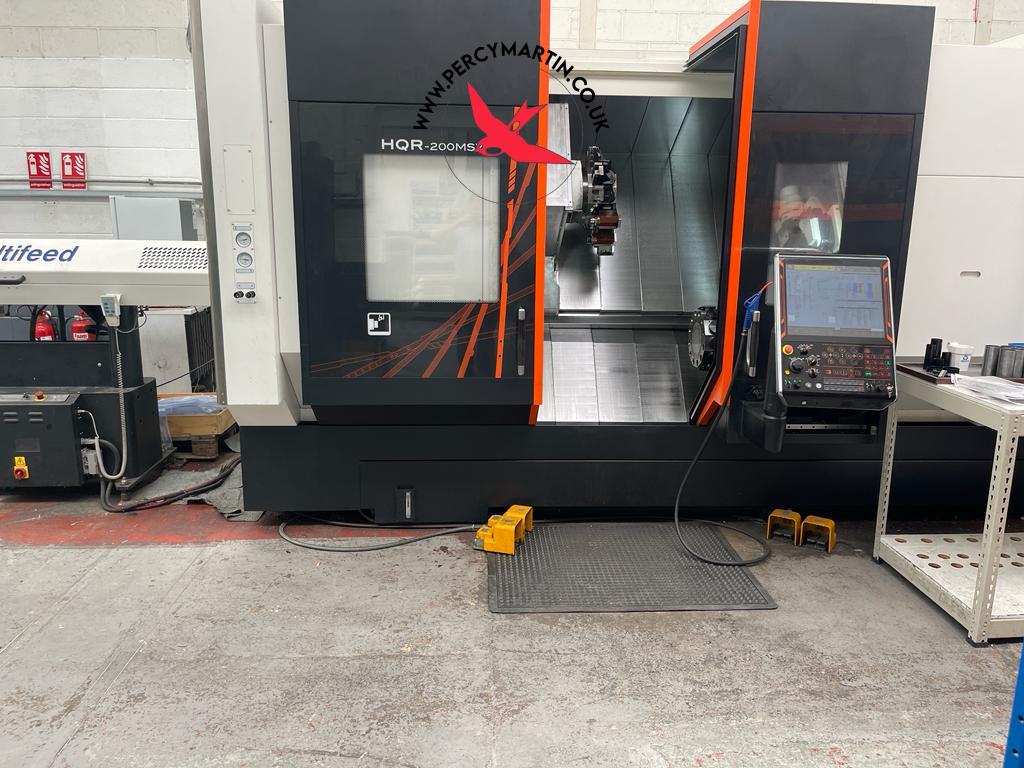

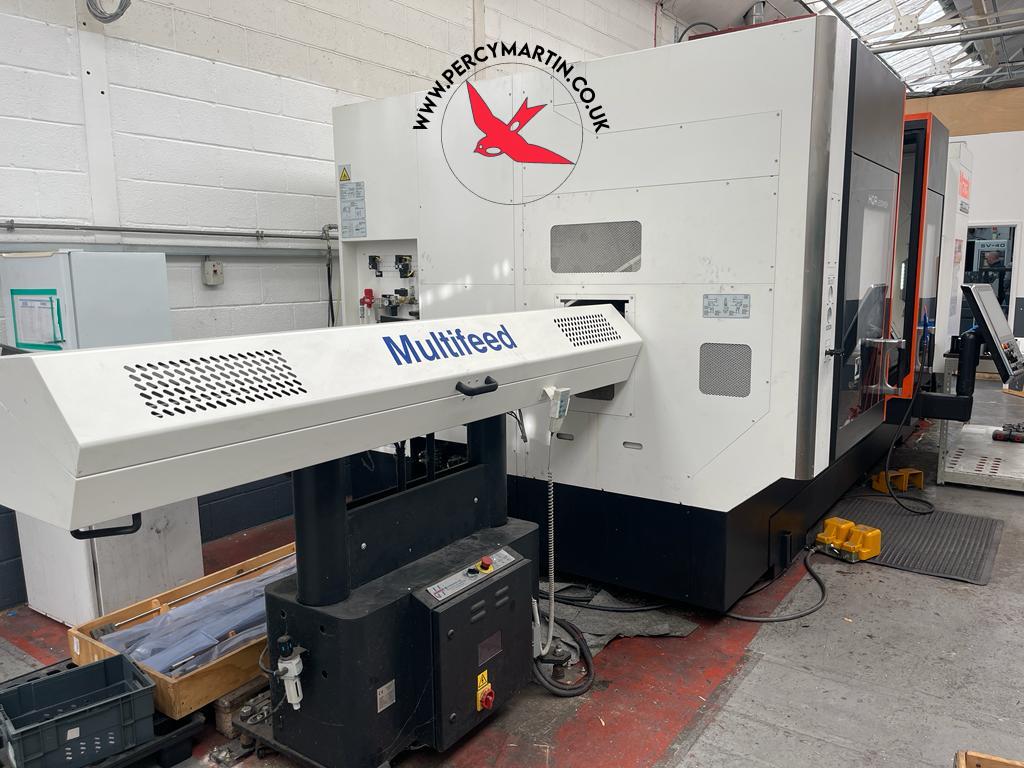

Barfeed
Hydrafeed Multifeed
Boring Bar Holder Diameter
40mm
C axis
0.0001 degree

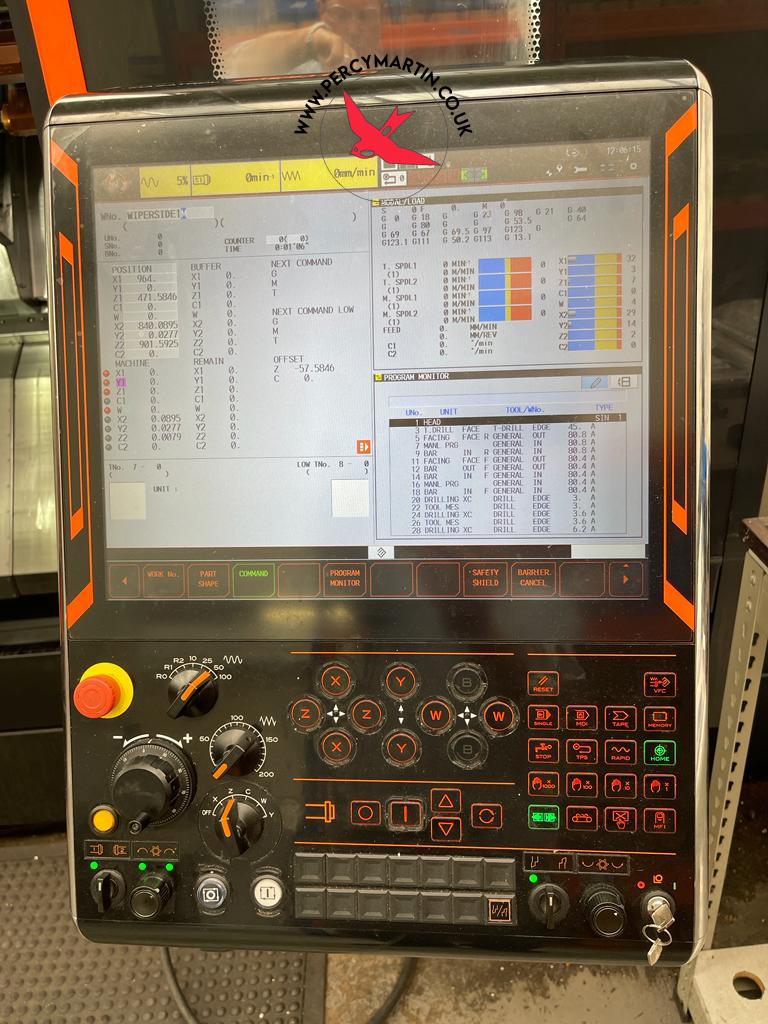

Control
MAZATROL Smooth G
Distance Between Spindles
1325mm

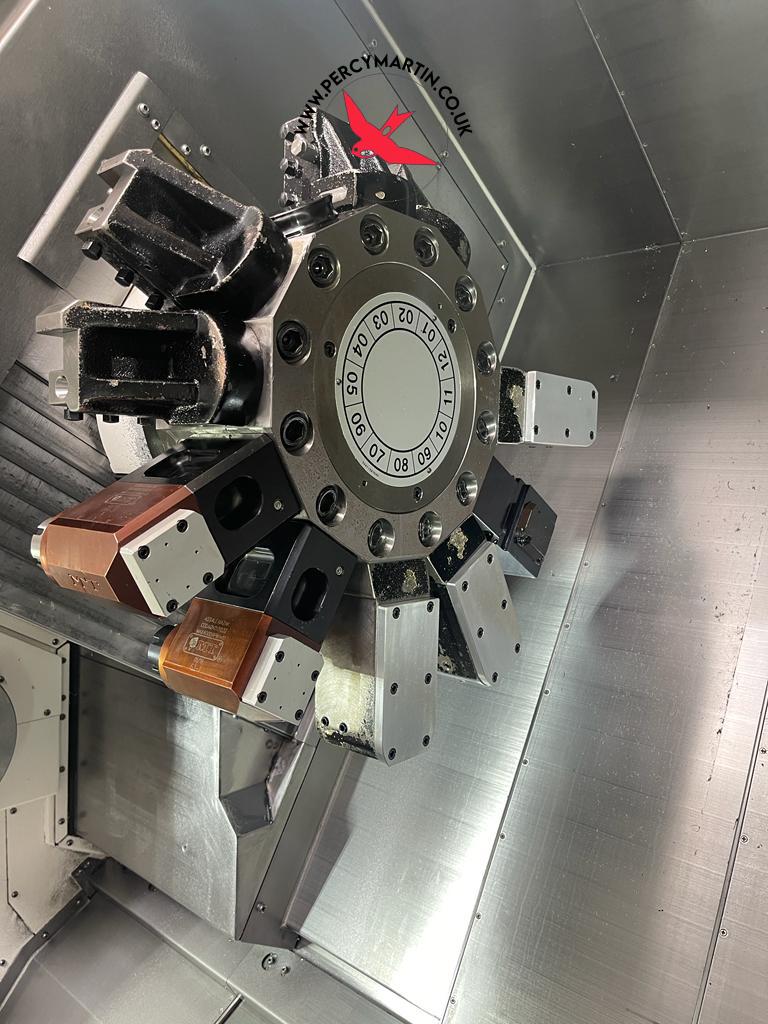

Lower Turret
12 Station
Lower Turret Milling Motor
5.5kW
Lower Turret Milling Speed
6000rpm
Machine Dimensions
4670 x 2701 x 2497mm
Machine Weight
14700kg
Maximum Cutting Diameter
344mm
Rapid Feedrates
X1,X2,Y1,Y2,Z1,Z2: 30 x 24 x 26 x 20 x 36 x 36m/minute
Spindle Motor Power
22/15kW
Spindle Nose
A2-6
Spindle Speed
5000rpm

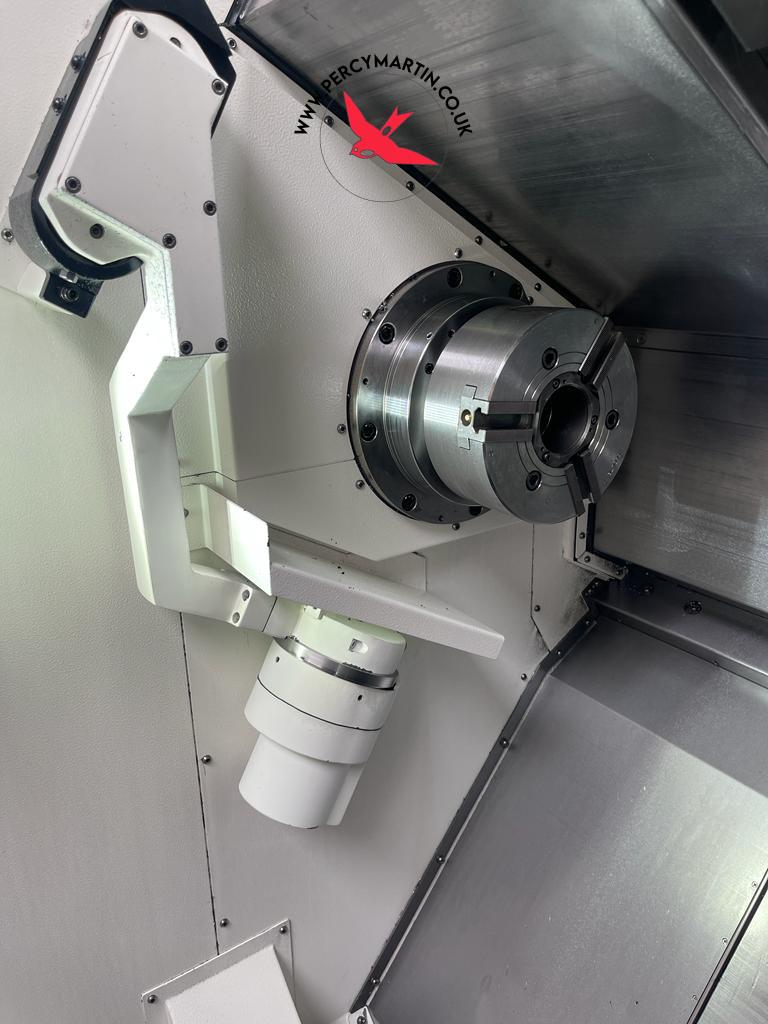

Sub Spindle Bore
76mm
Sub Spindle C axis
0.0001 degree
Sub Spindle Motor
22/15kW
Sub Spindle Nose
A2-6
Sub Spindle Speed
5000rpm
Sub Spindle Stroke
1330mm
Swing
370mm
Tool Size
25 x 25mm

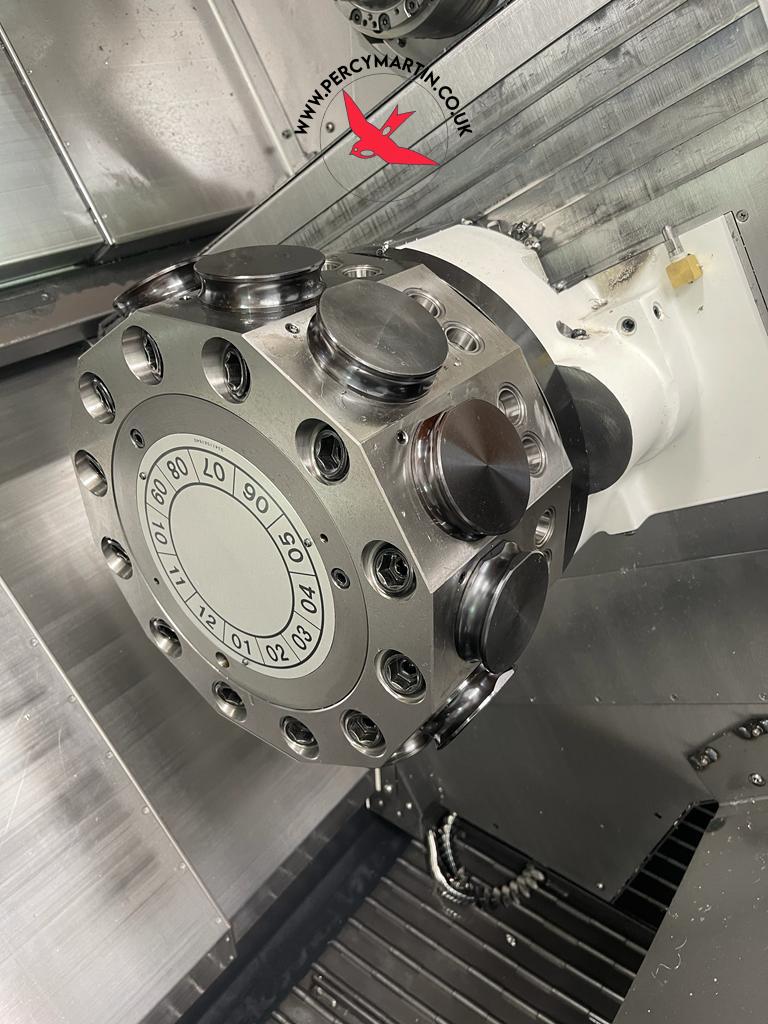

Upper Turret
12 Station
Upper Turret Milling Motor
5.5kW
Upper Turret Milling Speed
6000rpm
X axis Travel
207mm
X2 axis Travel
141mm
Y axis Travel
+/-50mm
Y2 Axis Travel
+/-35mm
Z axis Travel
1225mm
Z2 axis Travel
1280mm
