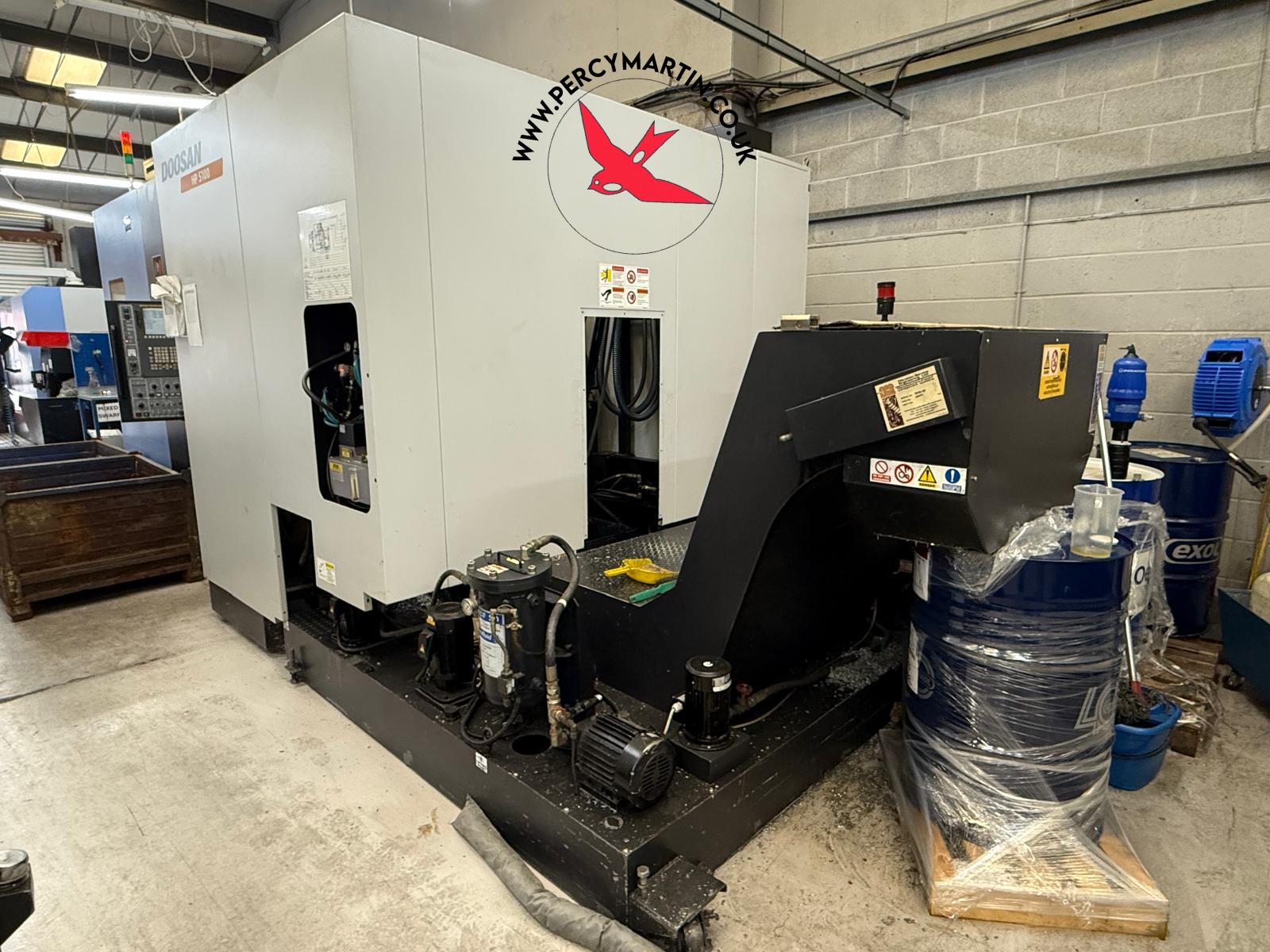

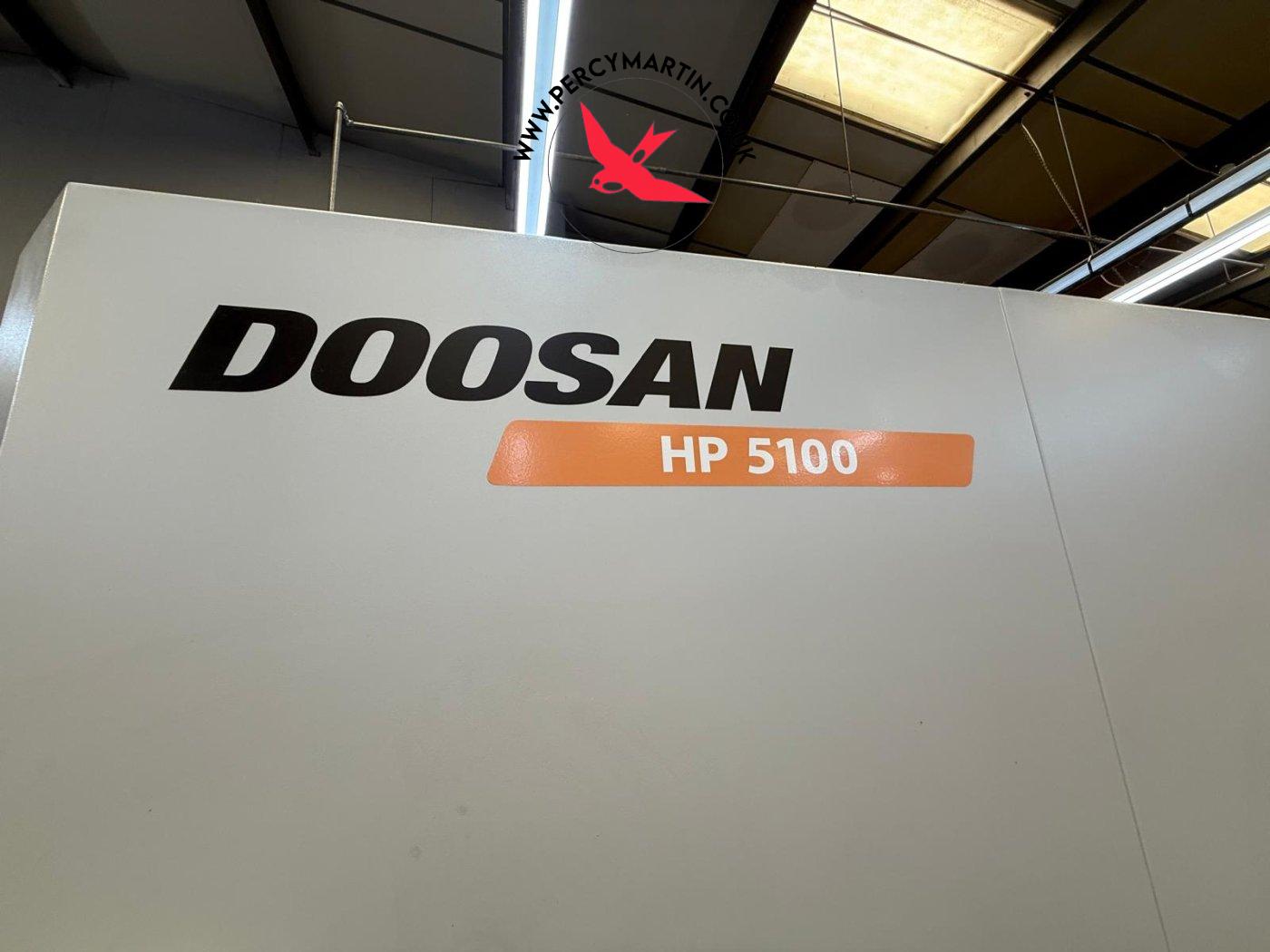

Doosan HP-5100 2009
B axis , Coolant , Interlocked guards , Low Volt Light , Manuals , Swarf Conveyor , Through Spindle Coolant , Tool setter , Twin Pallet
Doosan HP-5100 2009
Key Features
Type:
All Products
Model:
HP-5100
Make:
Doosan
Year:
2009

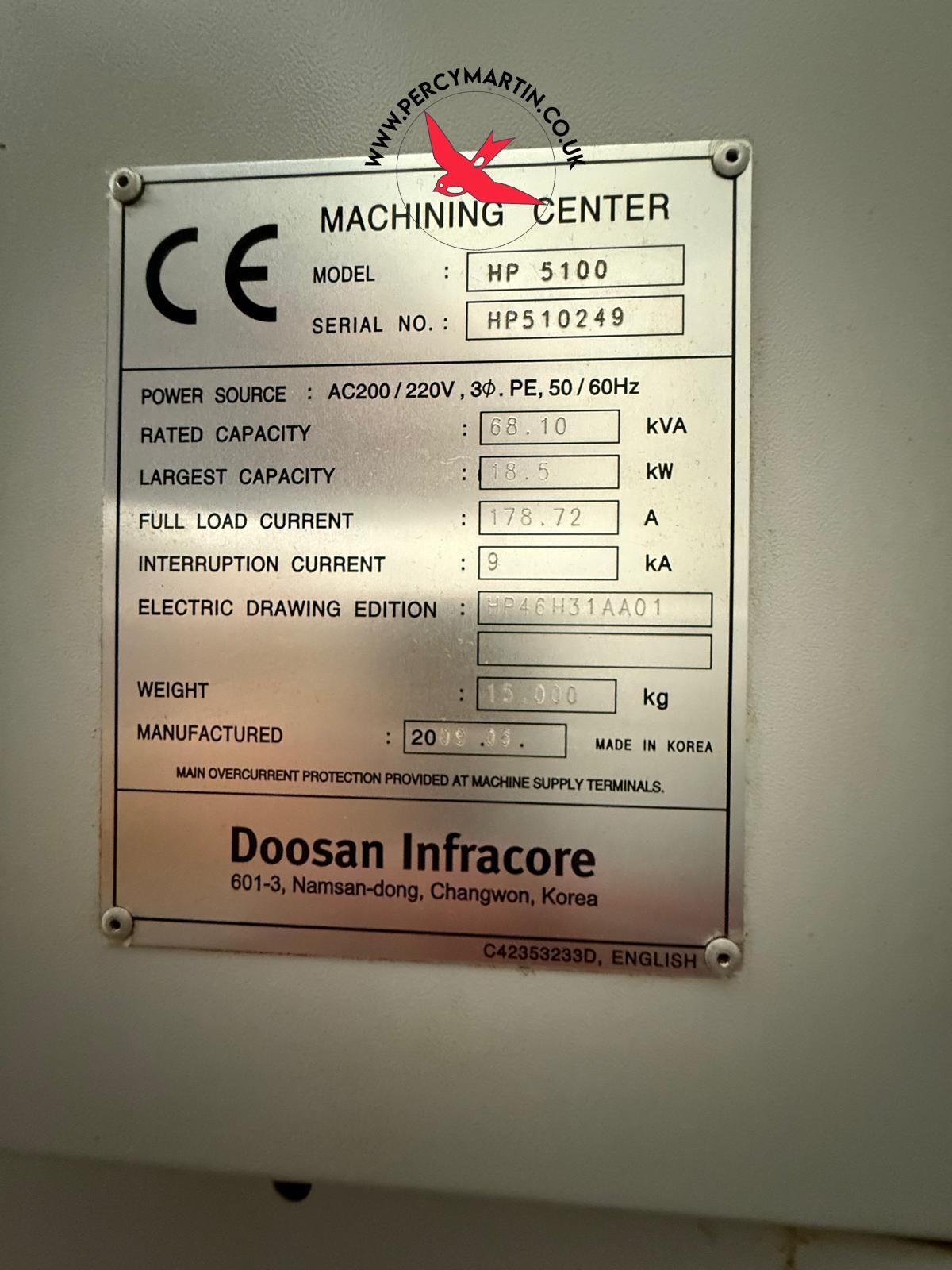

Serial No
HP510249
Price
£POA
Our Reference
PM9553
Location
Leicester
Doosan HP-5100 2009
Specifications
B Axis
0.001 degree

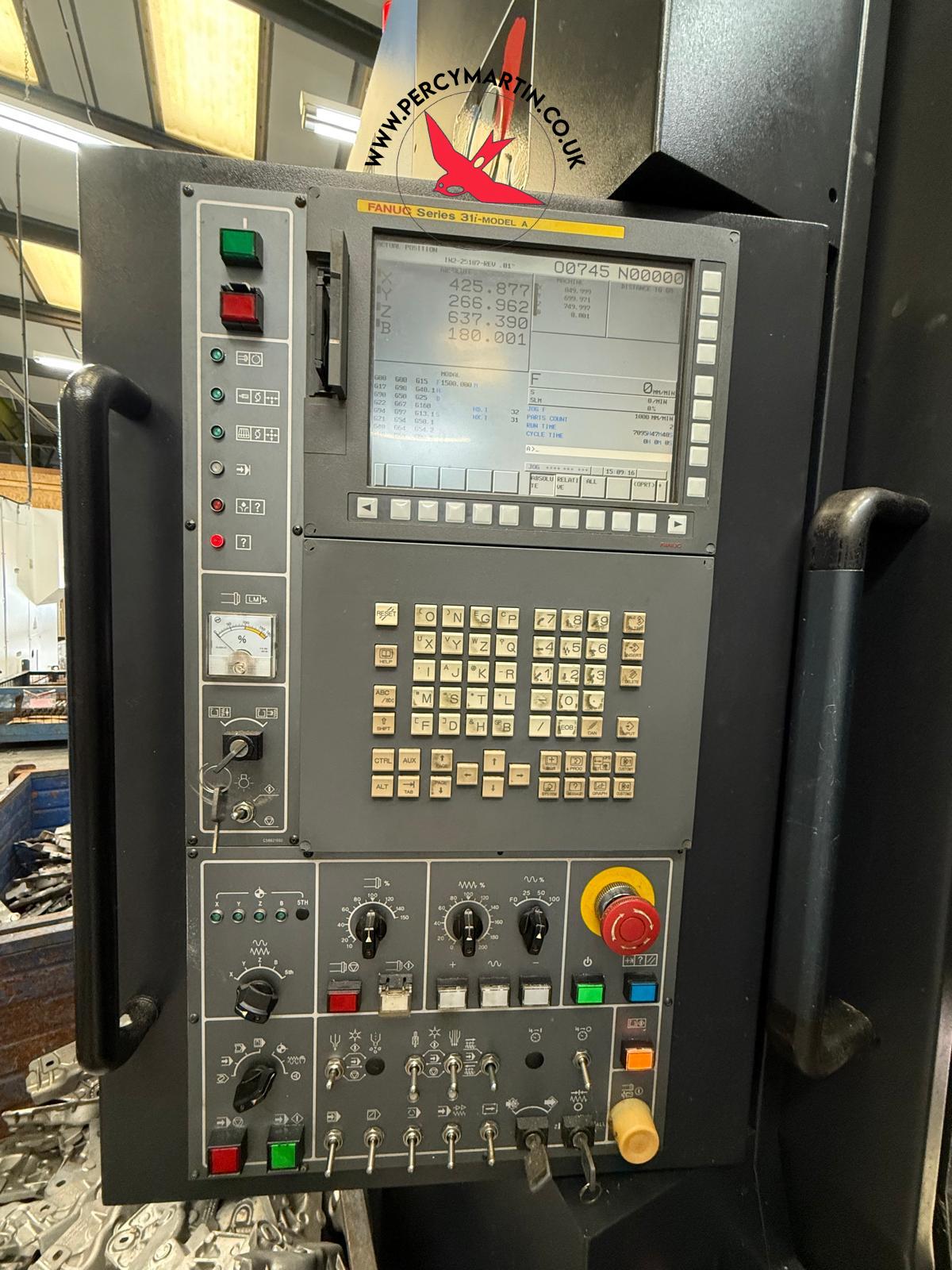

Control

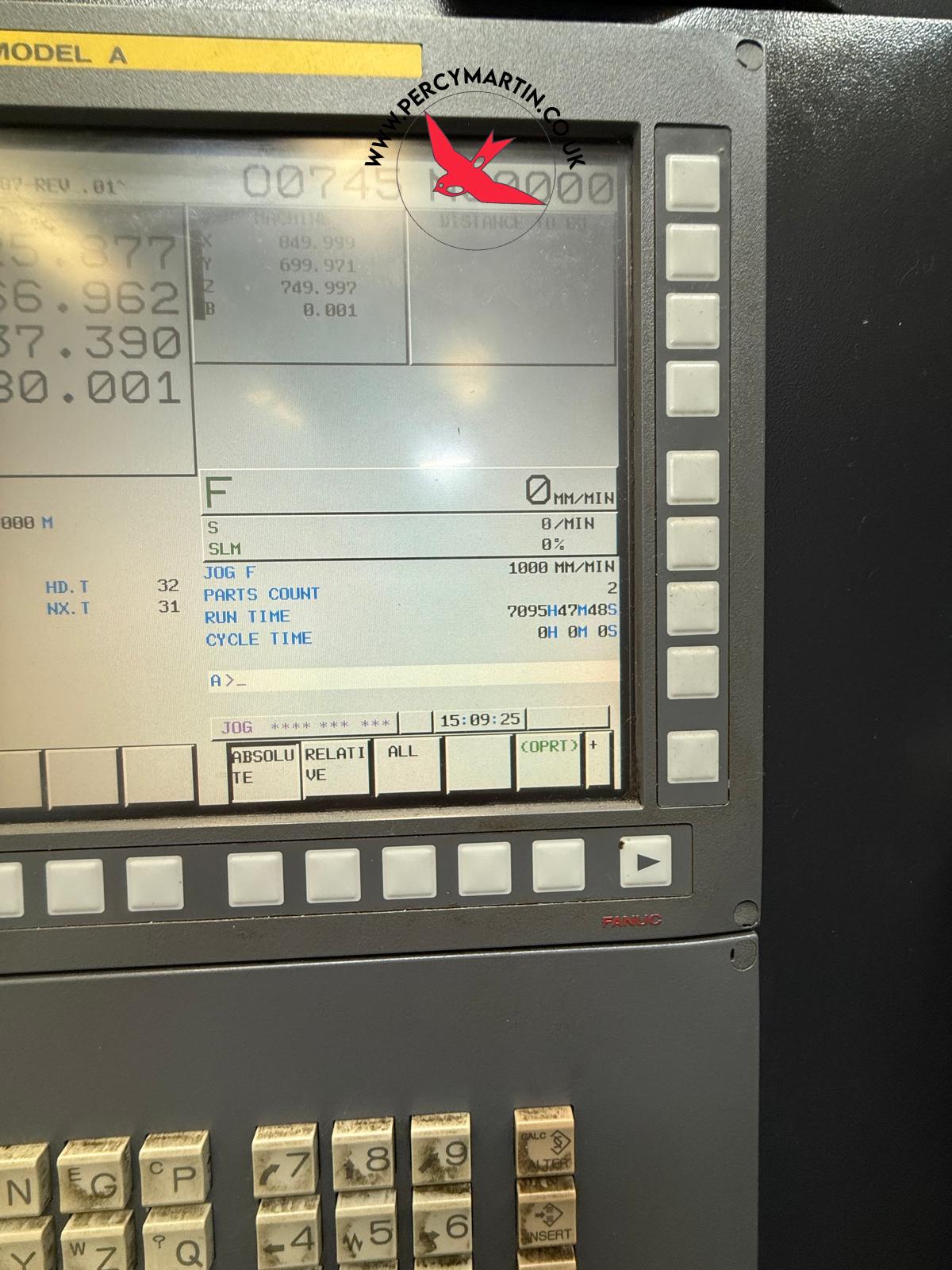

Fanuc 31i
Machine Dimensions
4928 x 2795 x 3024mm
Machine Weight
15031kg
Maximum Tool Length
75mm (140mm without Adjacent Tools)
Maximum Tool Length
400mm
Maximum Tool Weight
10kg
Maximum Workpiece Size
800 x 800 x 929mm
Maximum workpiece weight
500kg

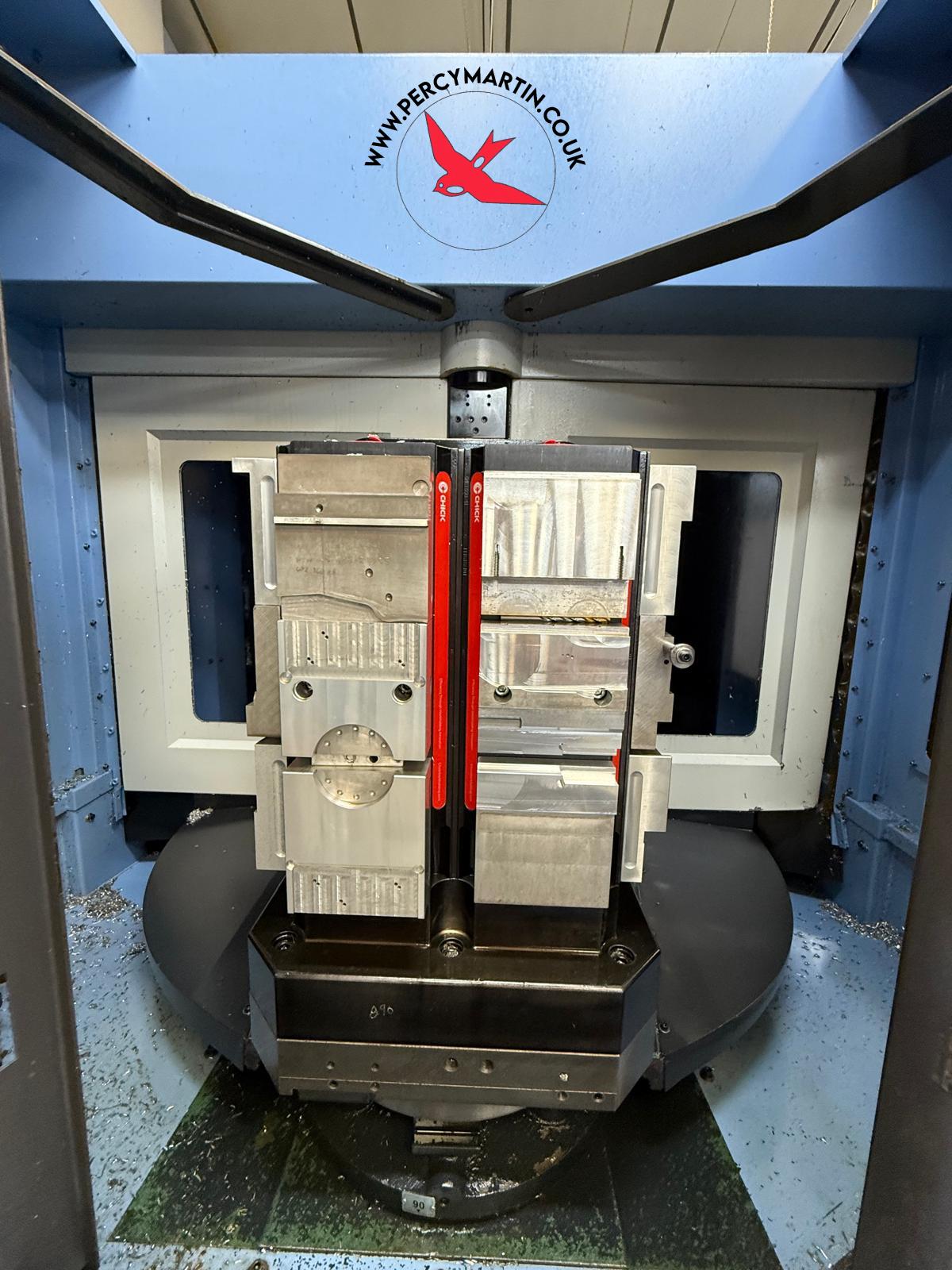

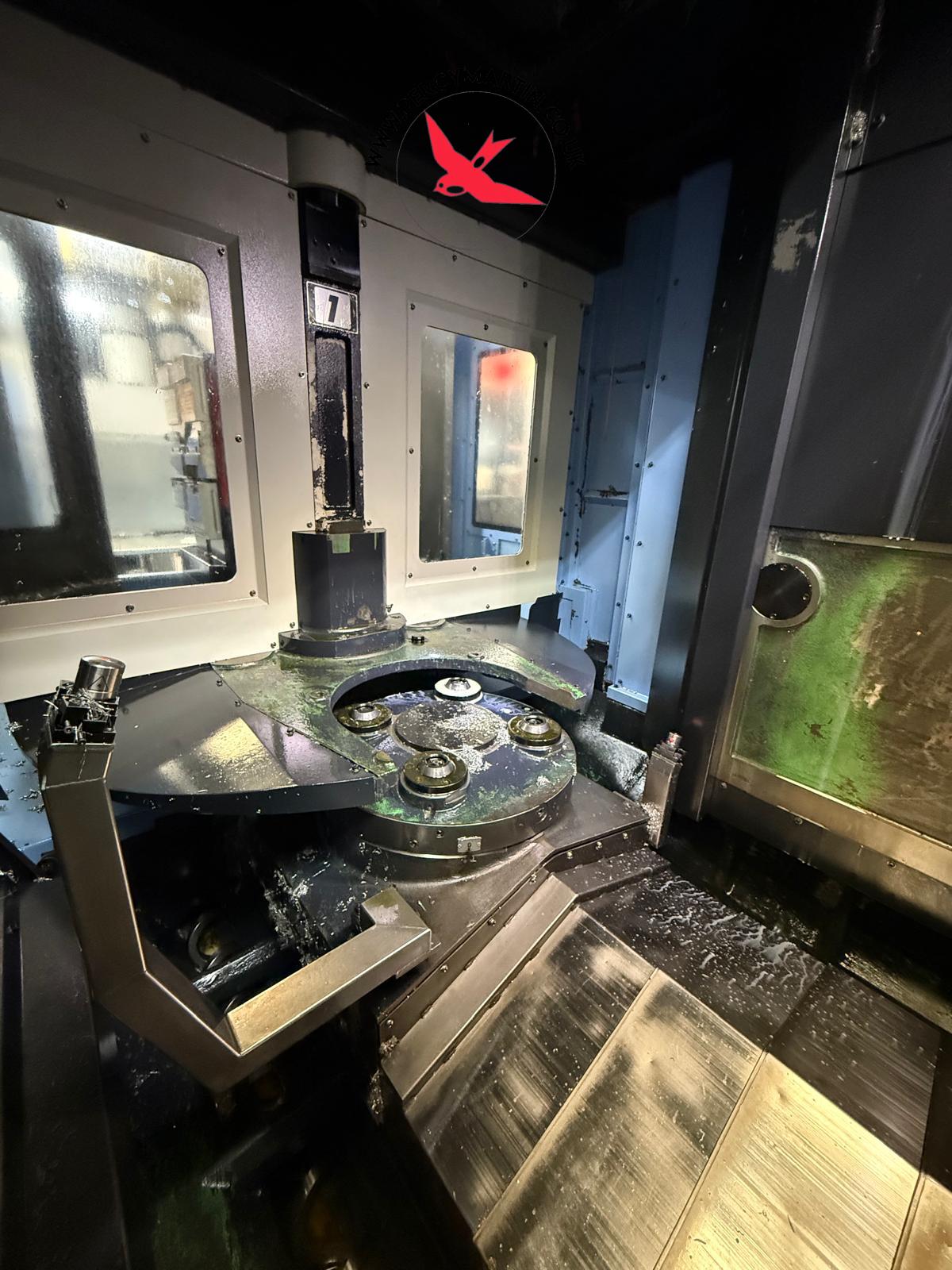

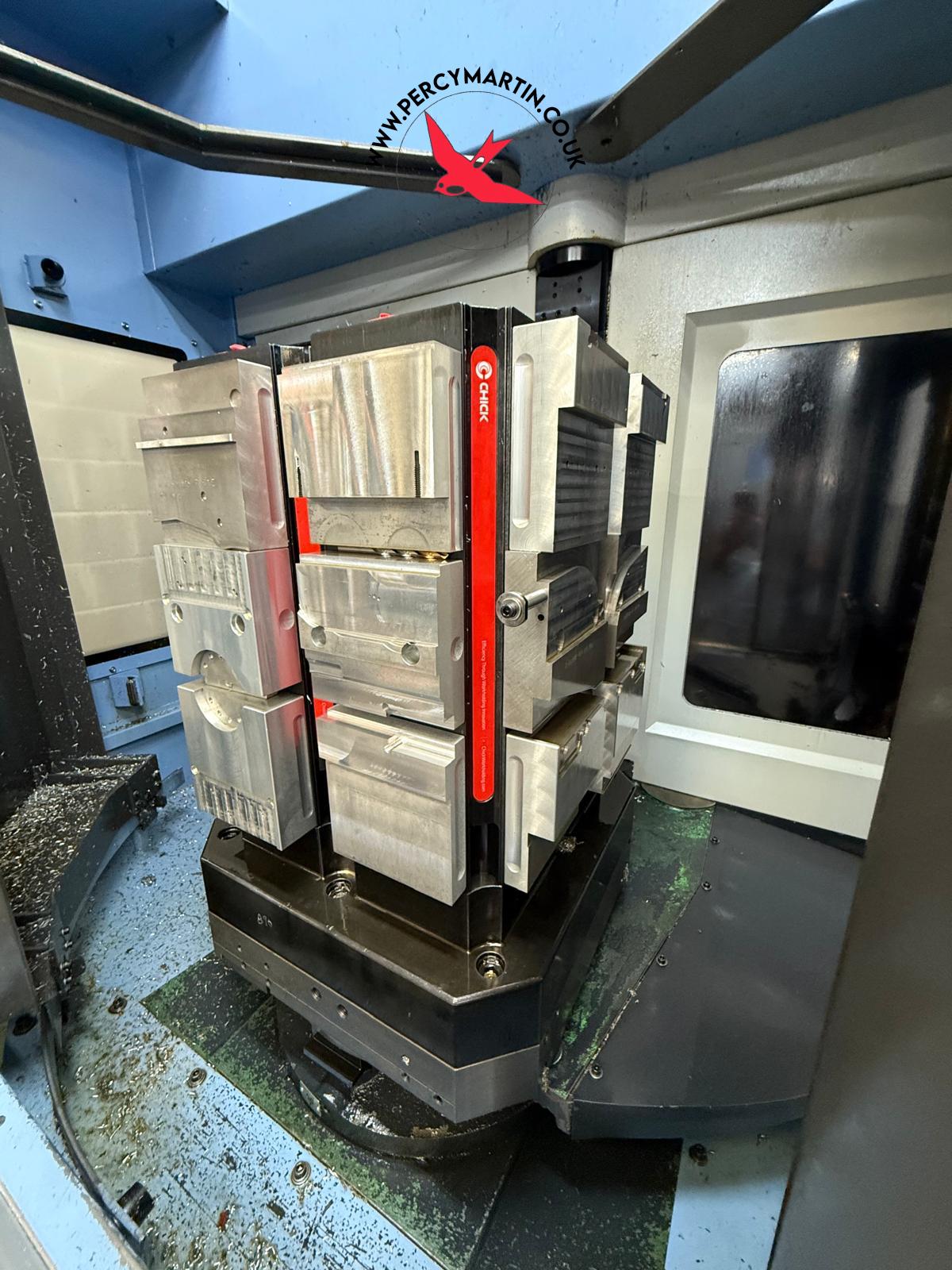

Number of Pallets
2
Pallet Change Time
7.5 Seconds
Pallet Size
500 x 500 mm
Rapid Feedrates
60m/minute
Spindle Centre to Table Top
50 ~ 750mm
Spindle Motor Power
22.4kW
Spindle Nose to Table Centre
150 ~ 900mm
Spindle Speed
14000rpm
Spindle Torque
93Nm

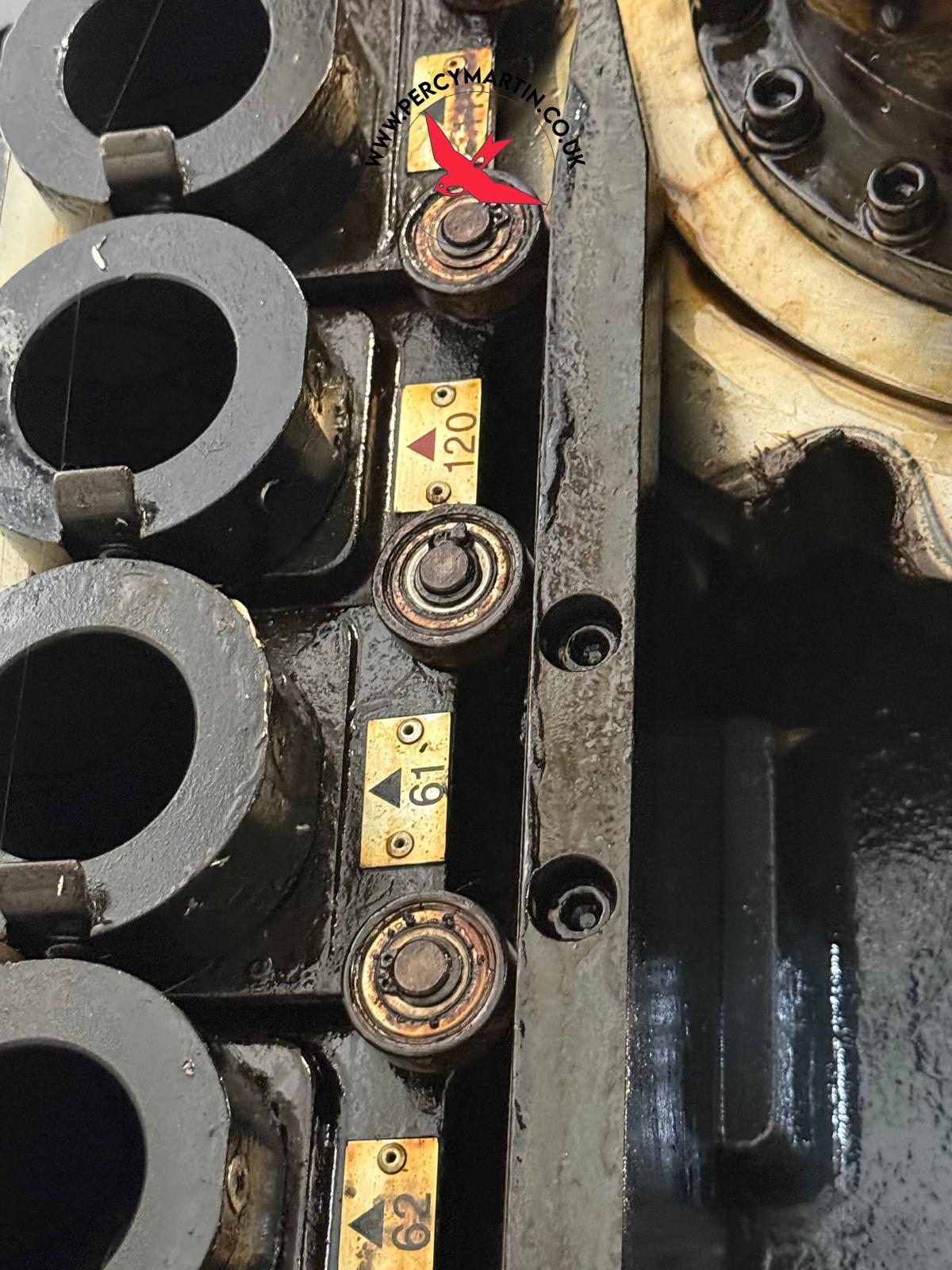

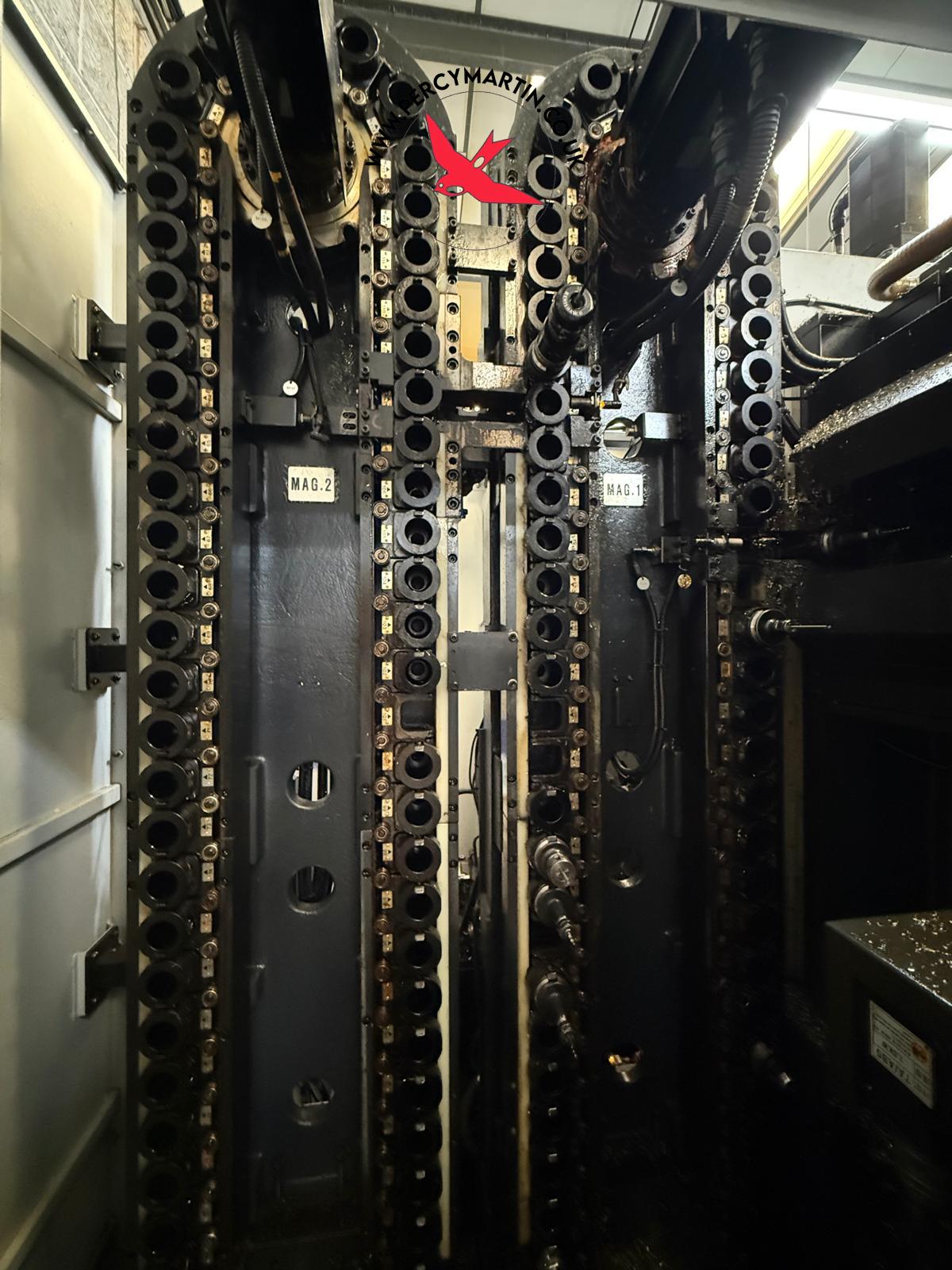

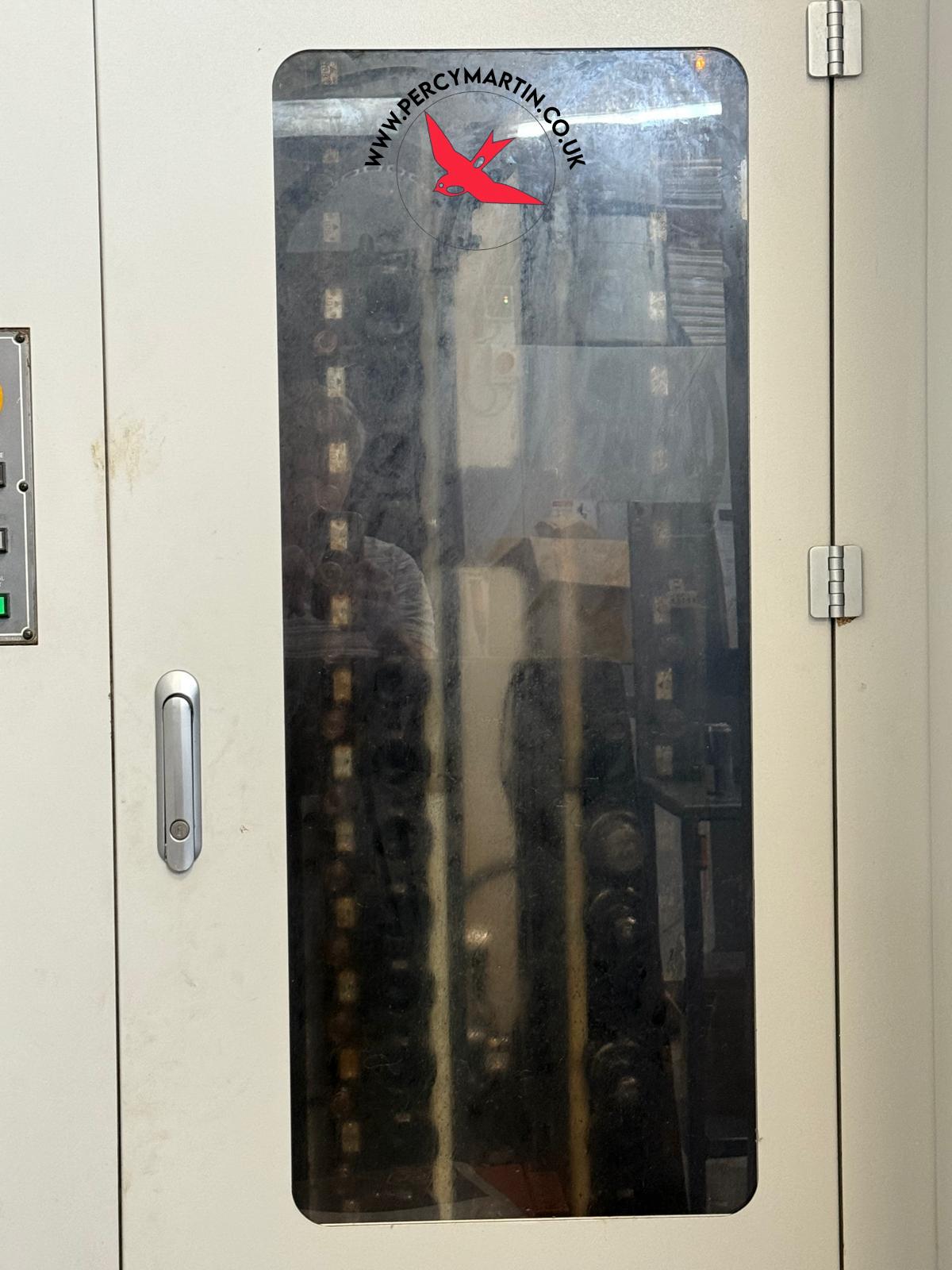

Tool Change Capacity
120 Station
Tool Change Time (Chip to Chip)
4 Seconds
Tool Size
BT40
Traverses XYZ
850 x 700 x 750 mm
