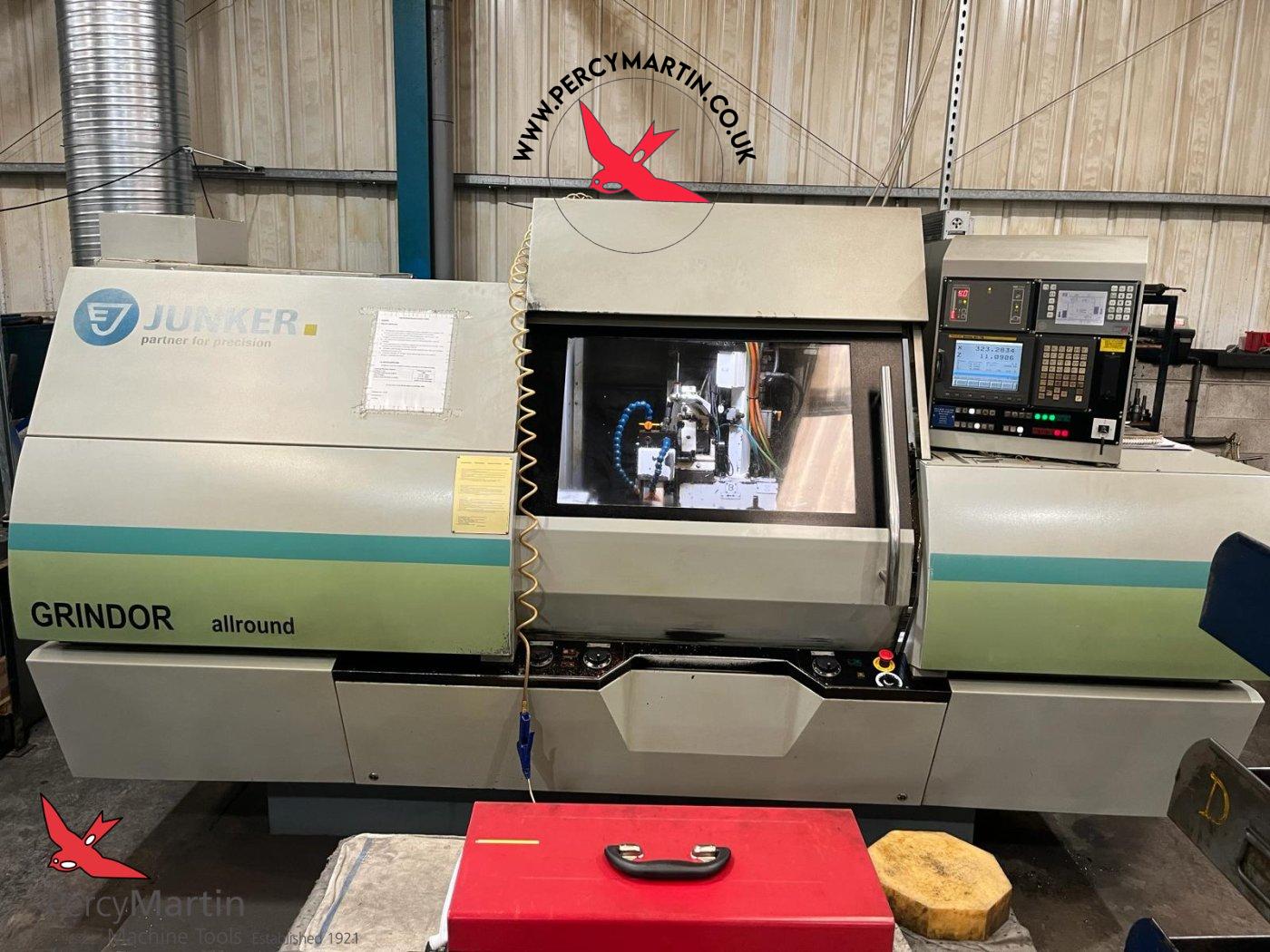

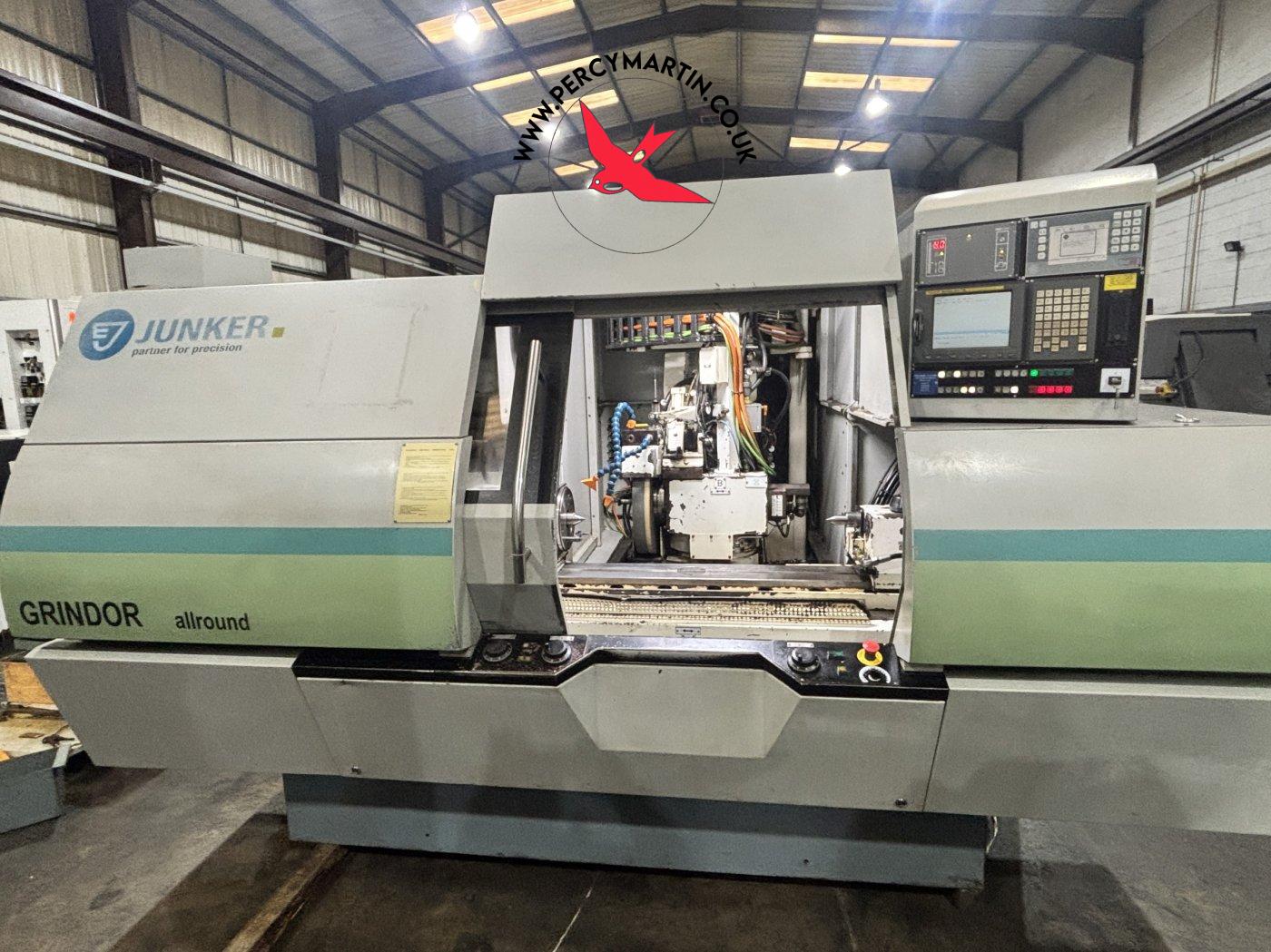

Junker GRINDOR allround 2011

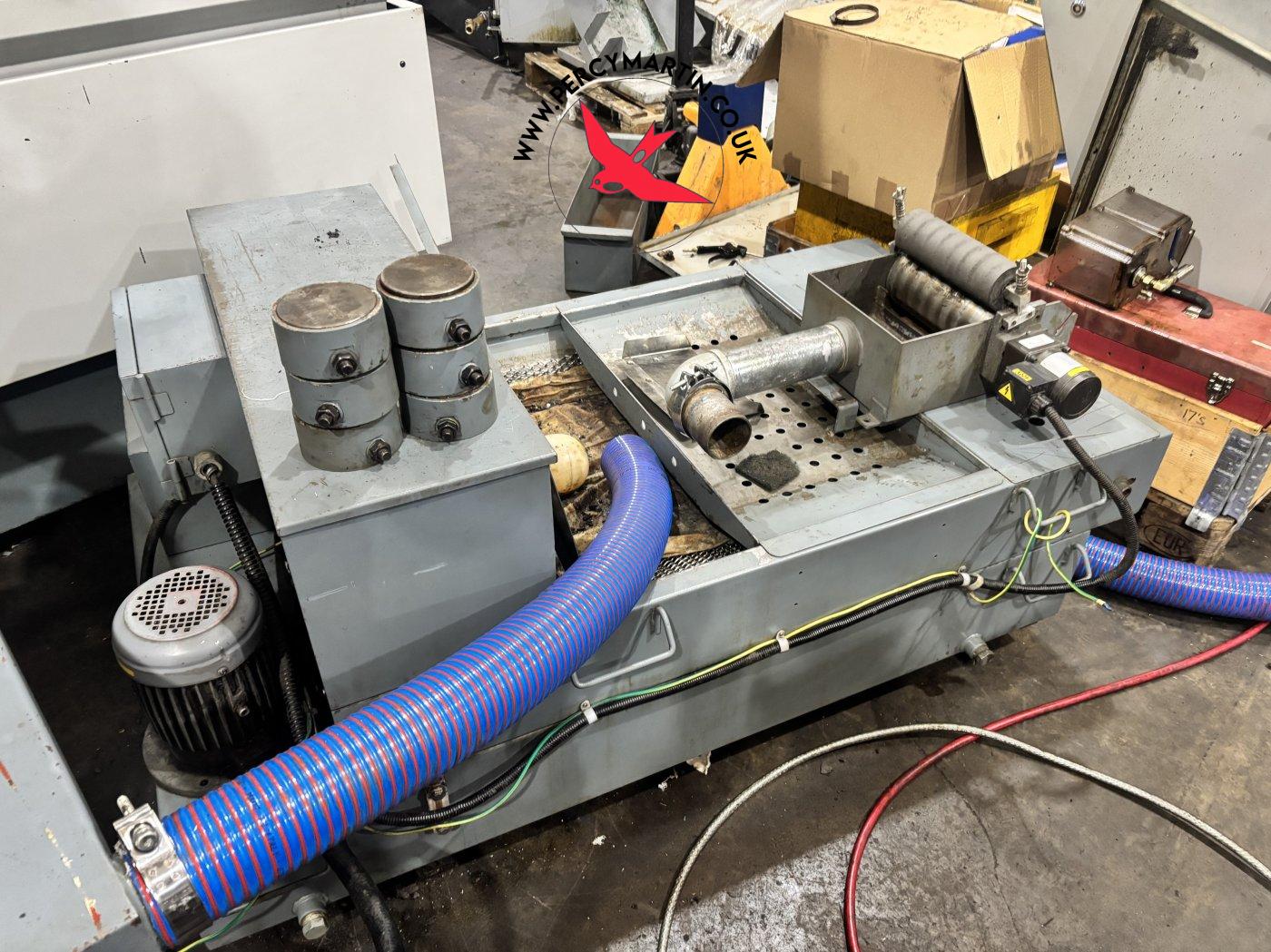

Coolant , Interlocked guards , Internal Spindle , Low Volt Light , Swivelling Universal Head , Tailstock
Key Features Gallery Specifications More in Stock Register Interest
Junker GRINDOR allround 2011

Key Features

Type:

All Products

Model:

GRINDOR allround

Make:

Junker

Year:

2011

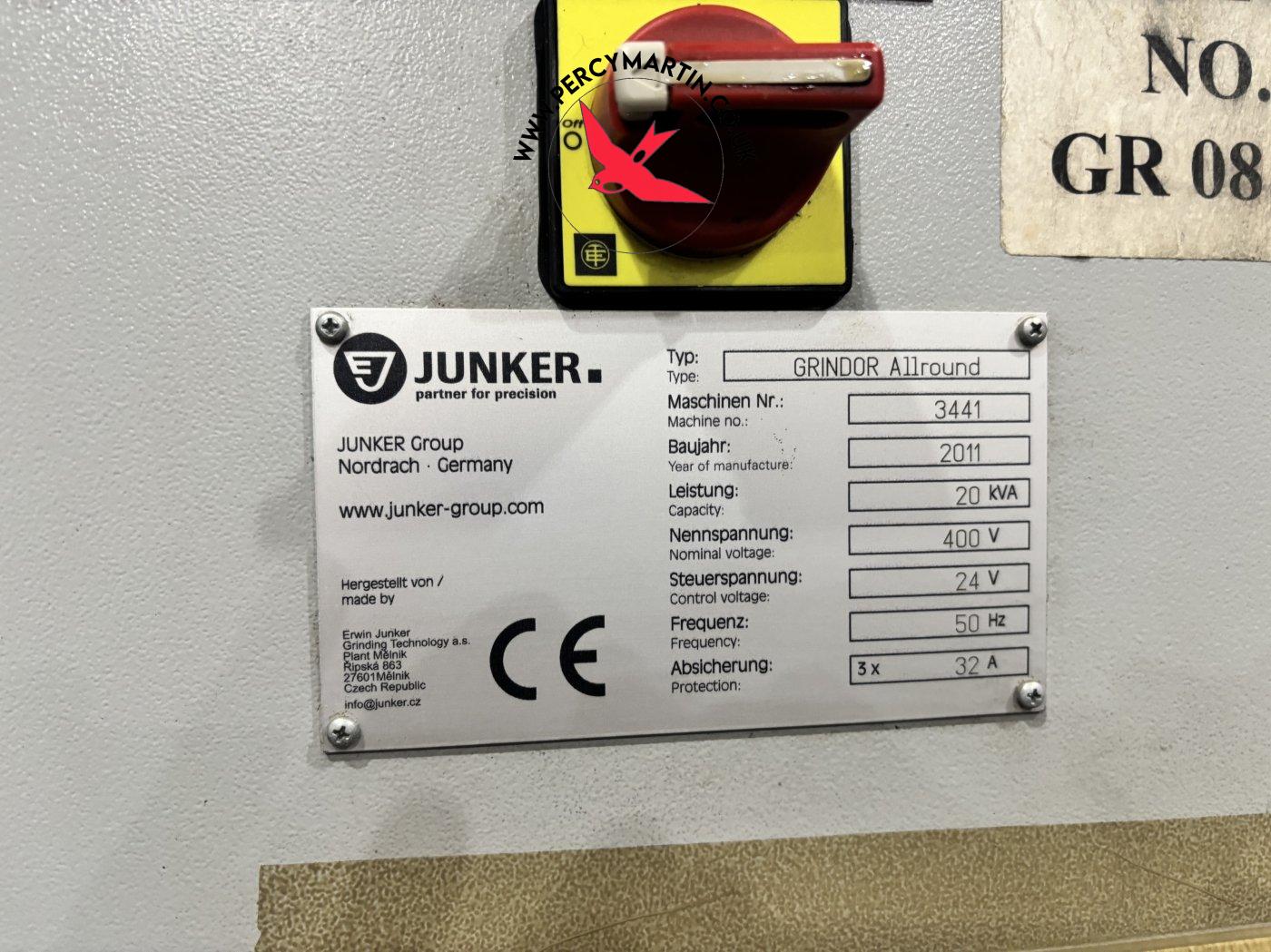

Serial No

3441

Price

£POA

Our Reference

PM9314

Location

Leicester

Junker GRINDOR allround 2011

Specifications

Accessories

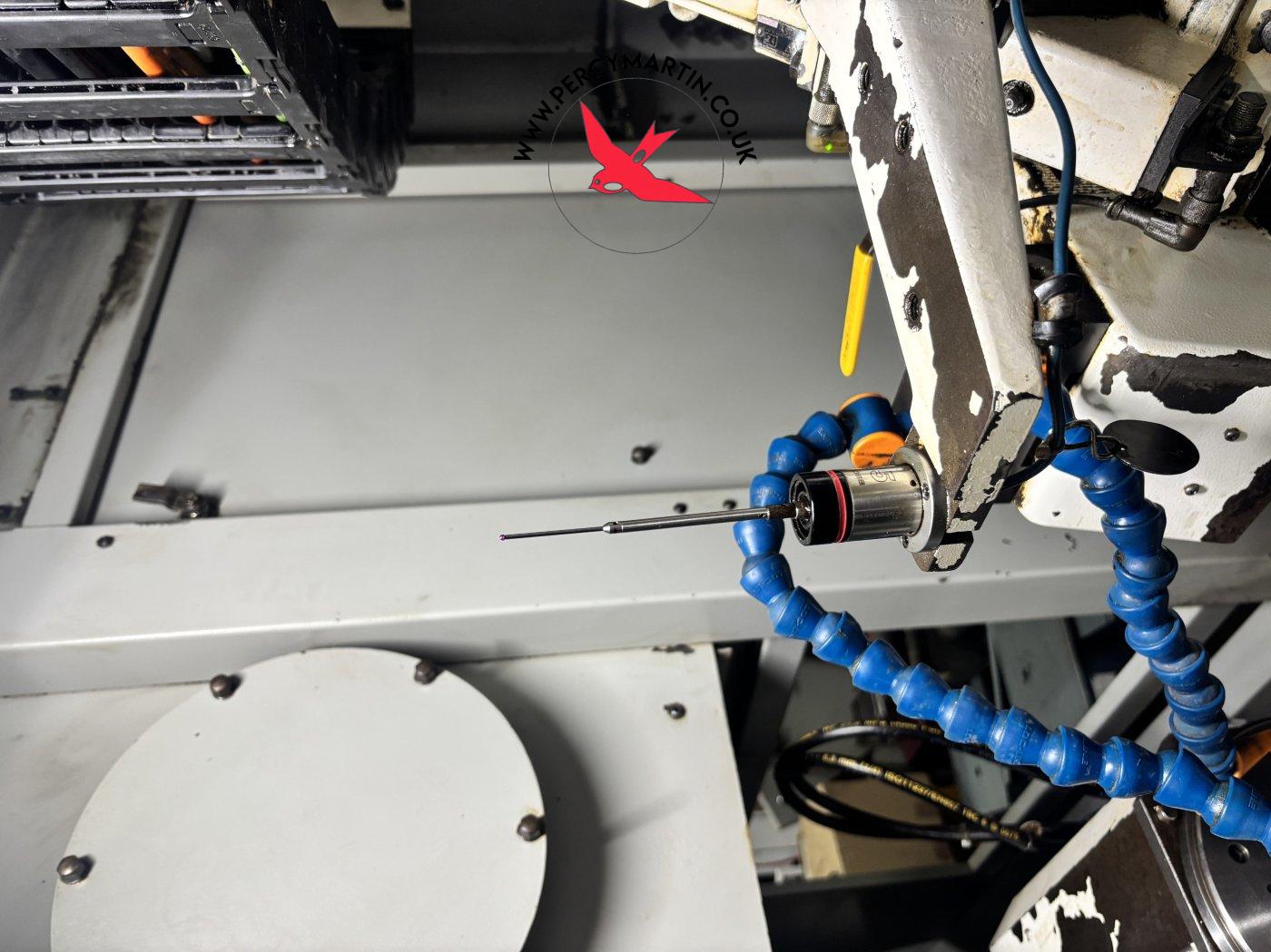

Marposs Gauging System

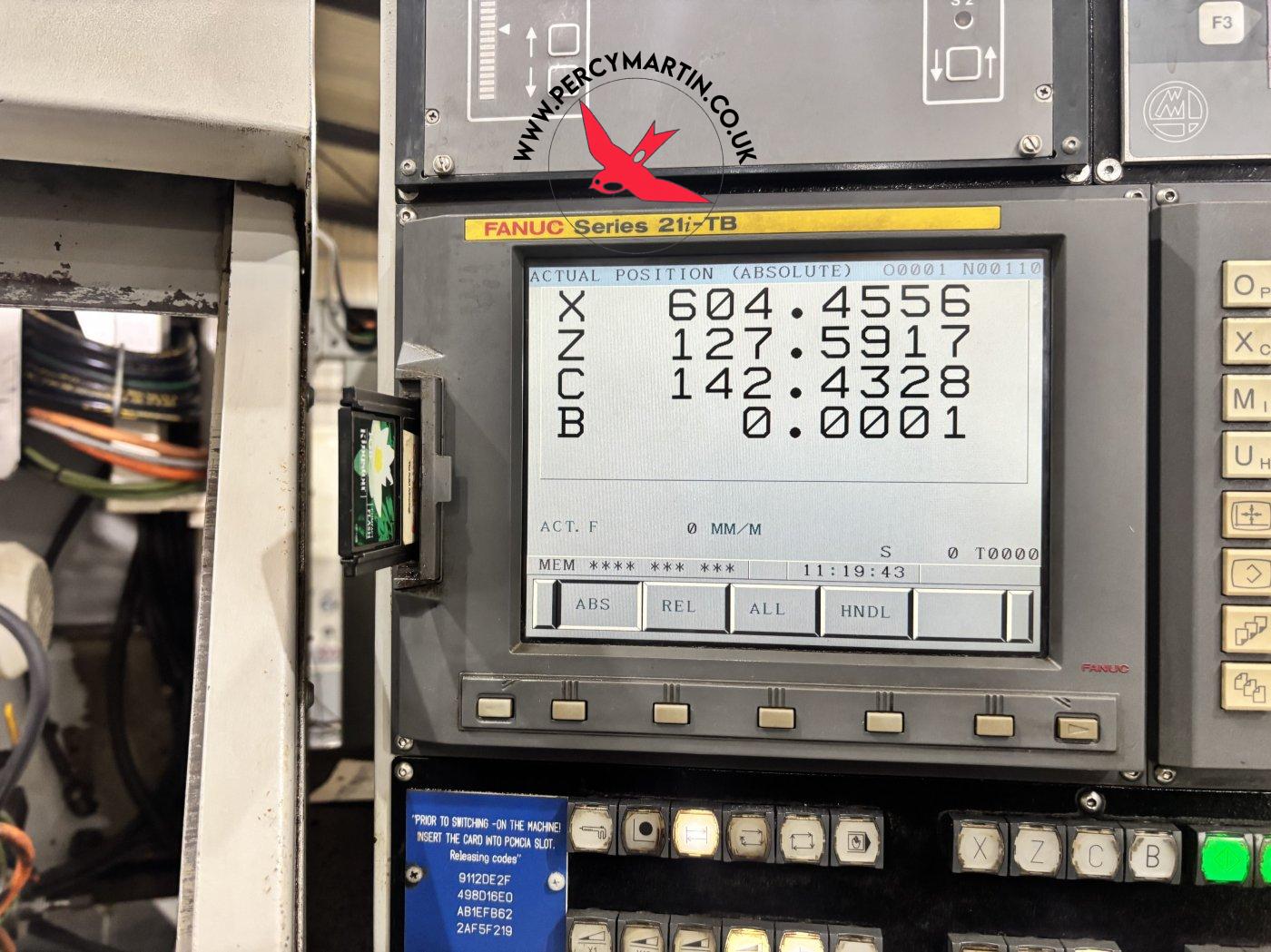

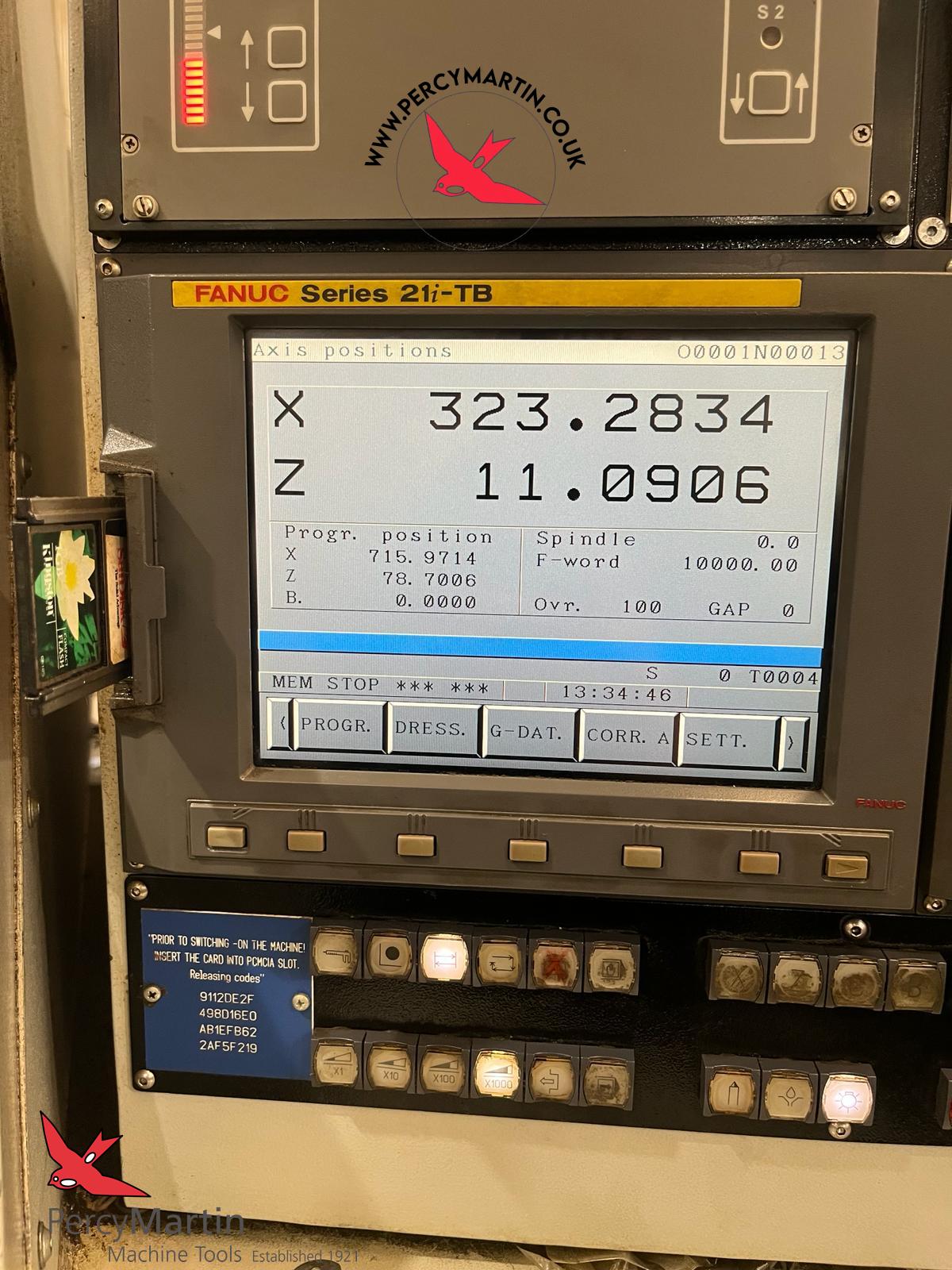

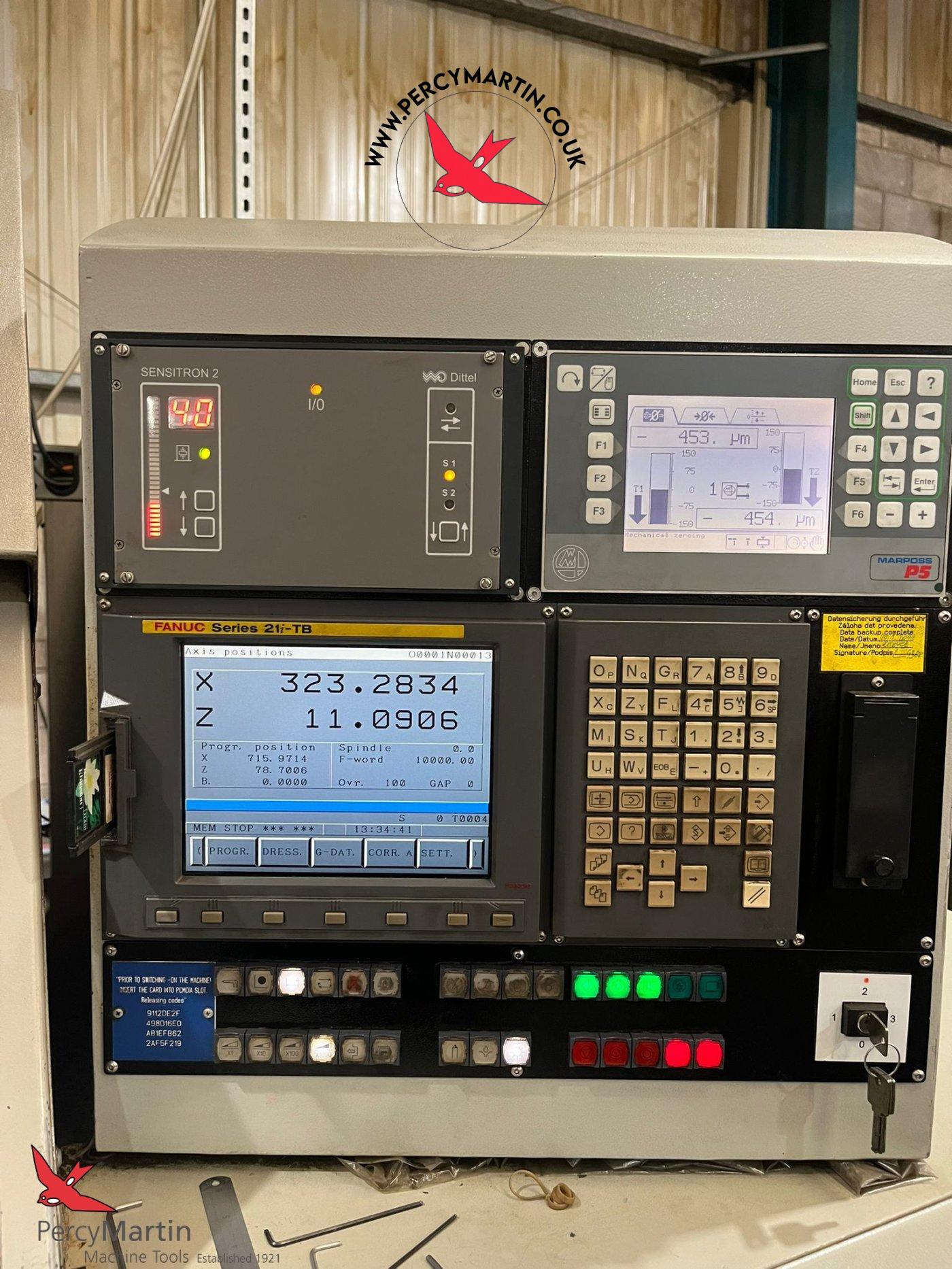

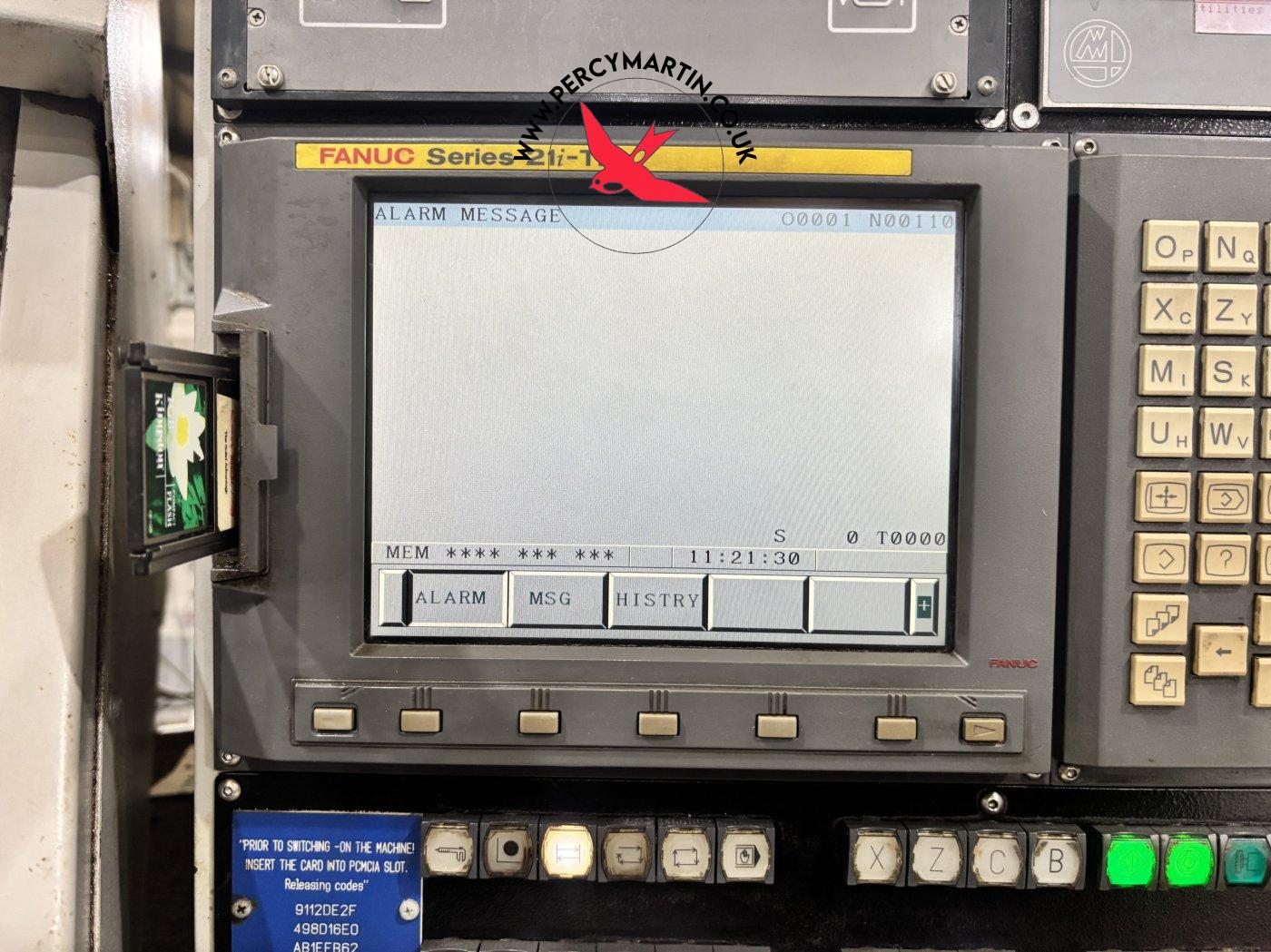

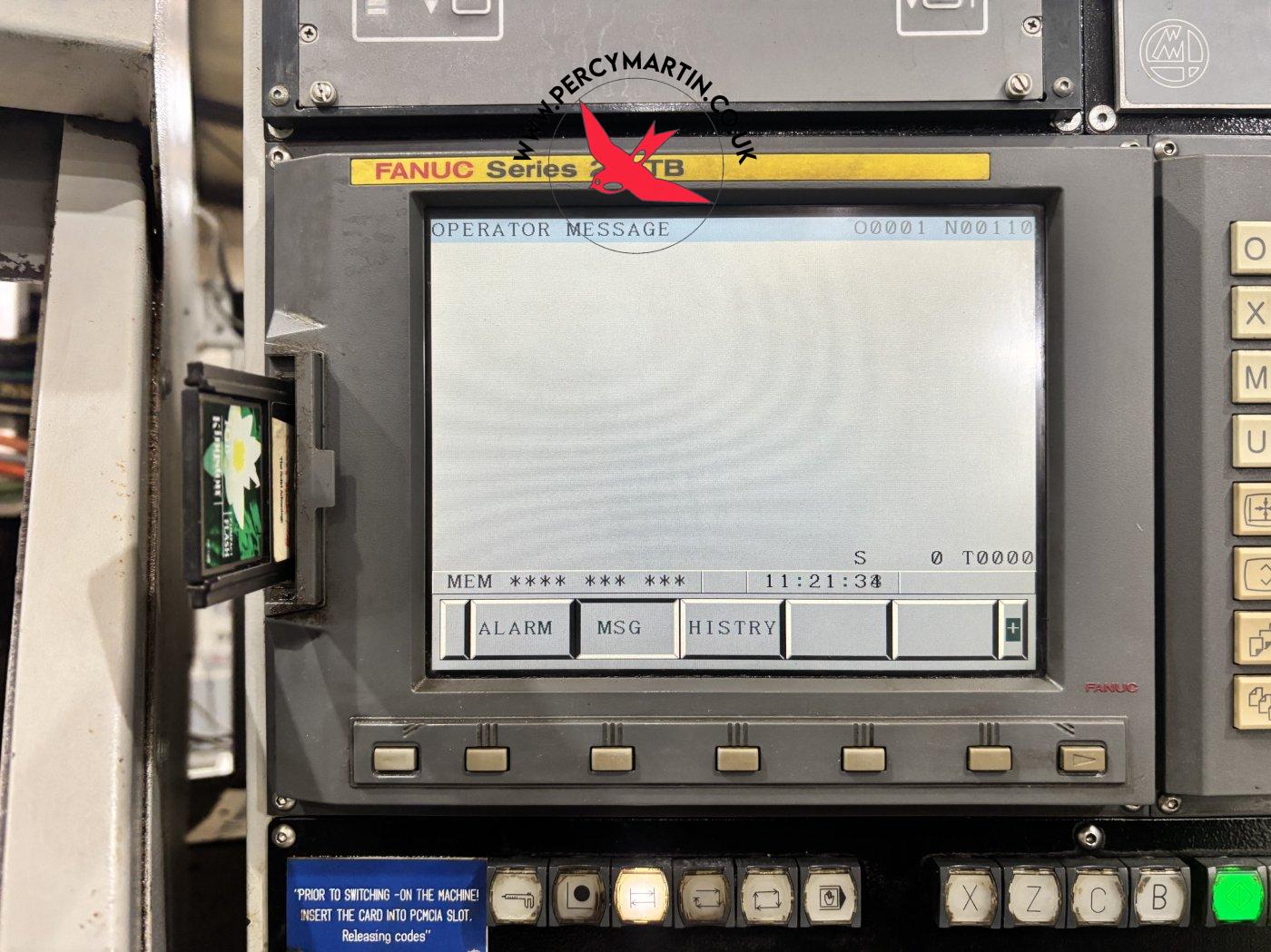

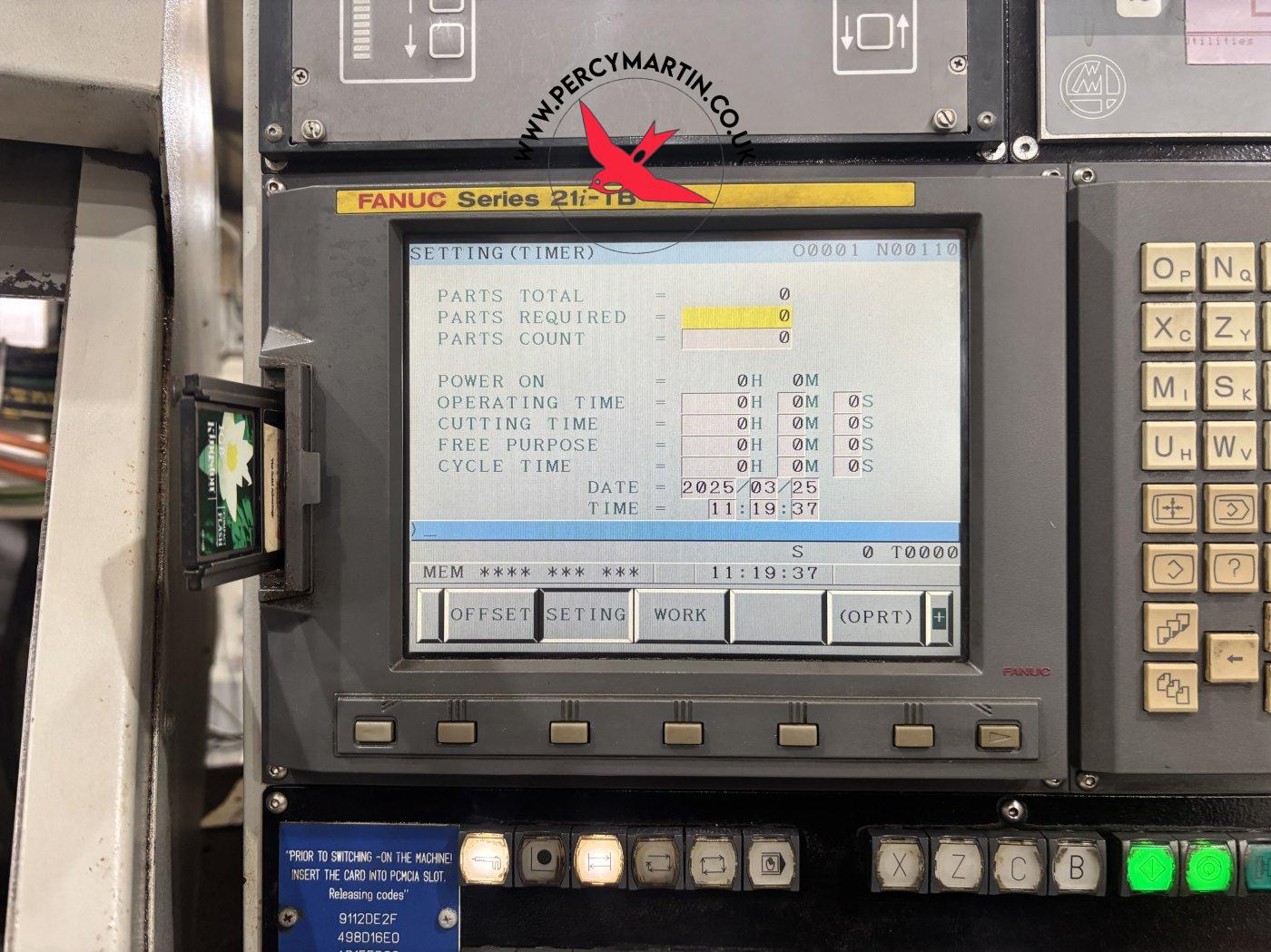

Control

FANUC 21i-TB

Grinding Wheel Size (Dia x Width x Bore)

290 x 63mm

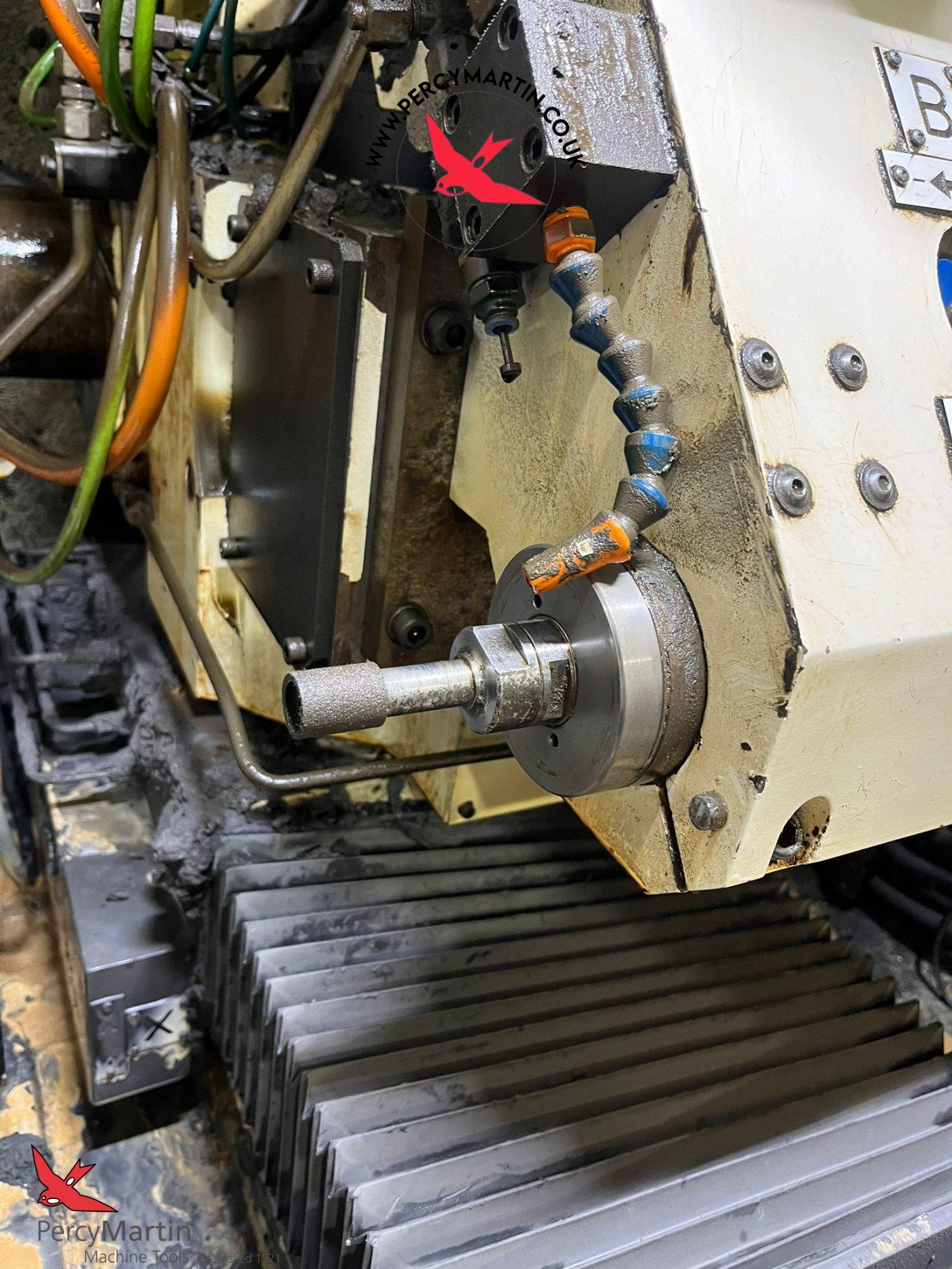

Internal Spindle Motor

1.5kW

Internal Spindle Speed

25000/42000/55000rpm

Machine Weight

5000kg

Maximum Grinding Length

800mm

Maximum Grinding diameter

290mm

Maximum workpiece weight

80kg

Spindle Motor Power

5kW

Table Swivel Angle

+6° / -3,5°

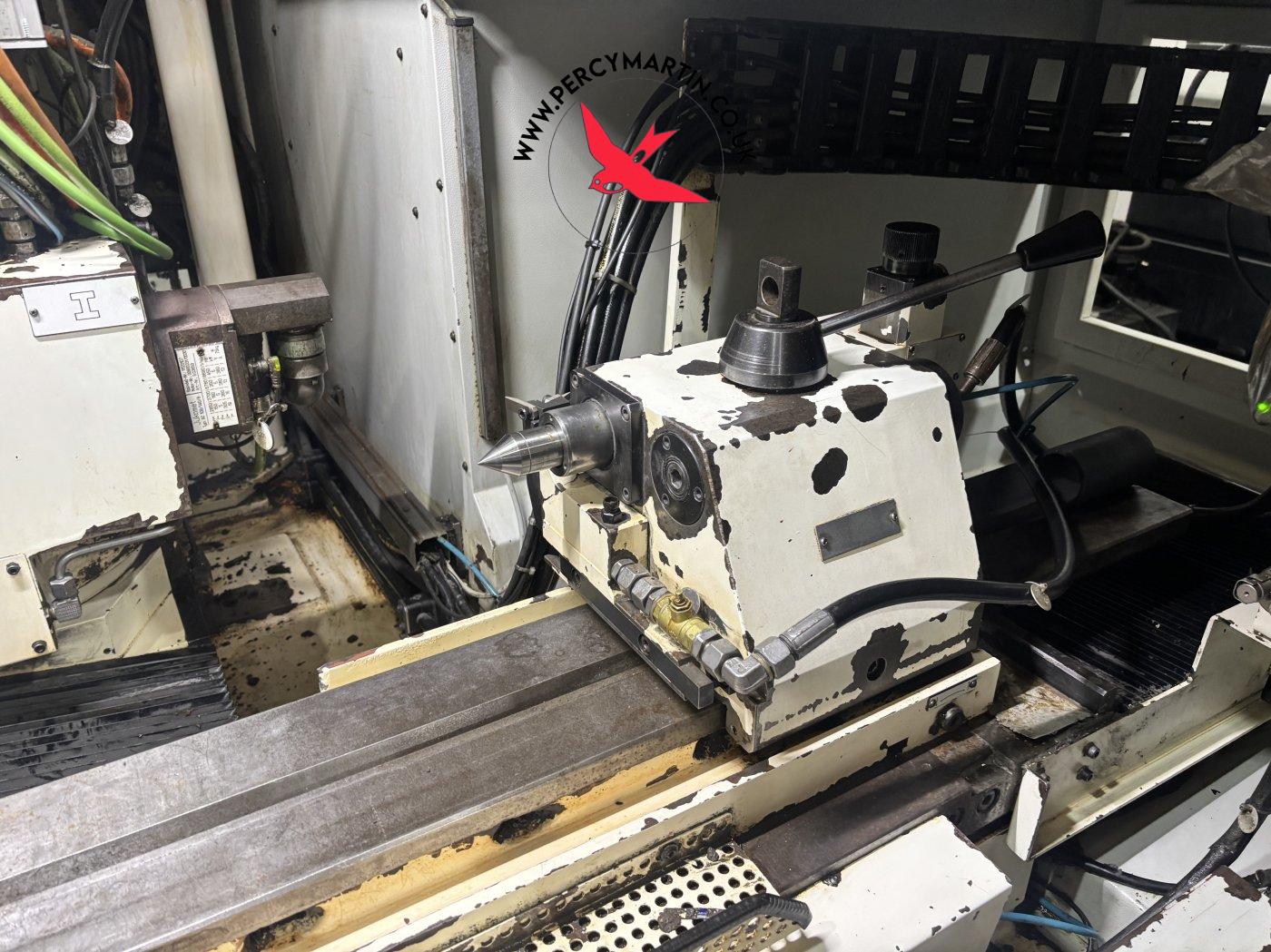

Tailstock Quill Stroke

30mm

Tailstock Taper

MT #4

Workhead Dead Spindle Taper

MT #5

Workhead Speed

1000rpm

Workhead Swivel Angle

0 ~ 90 degrees

X axis Travel

350mm

Z axis Travel

1000mm
