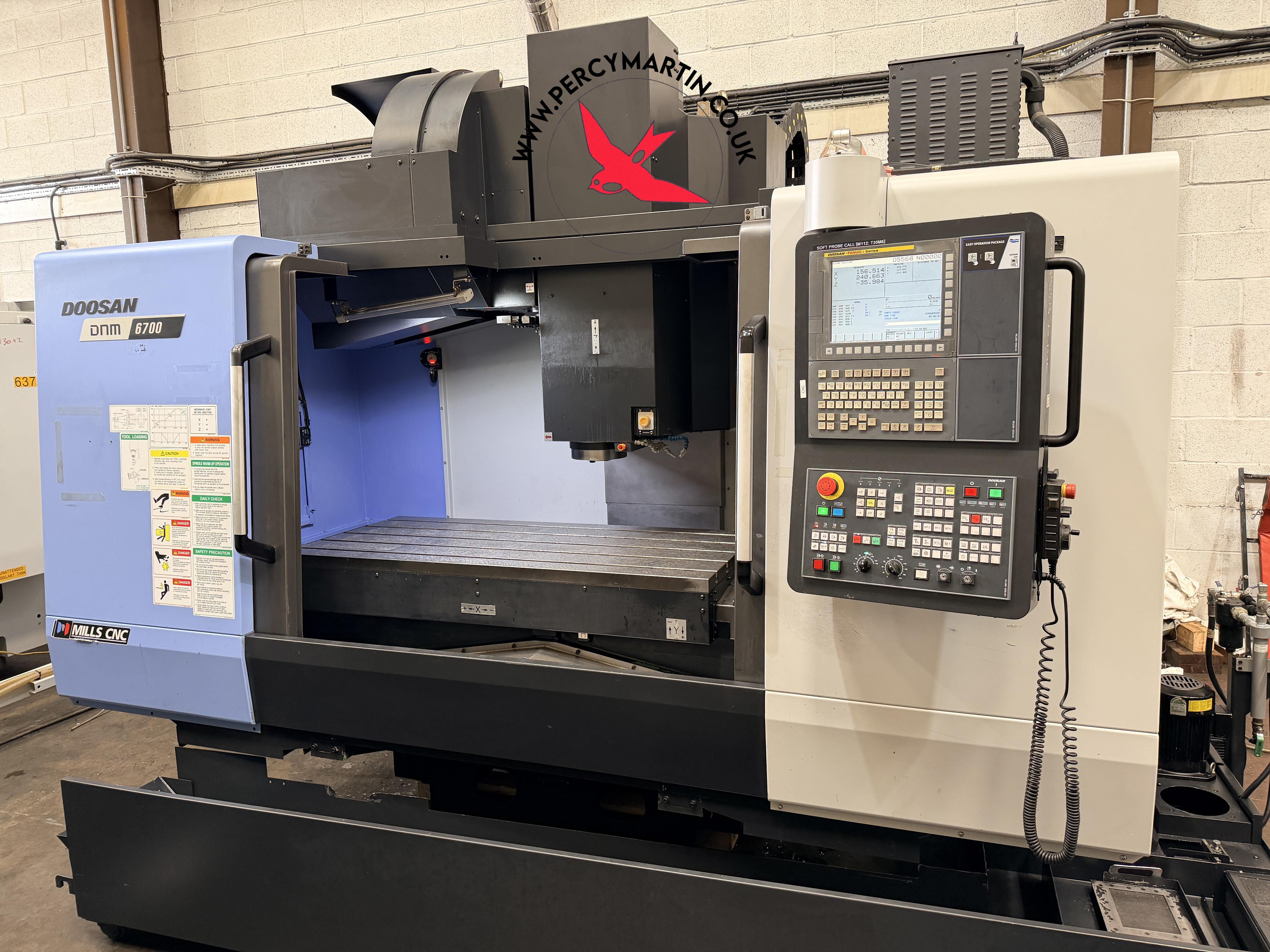

Doosan DNM6700 2017

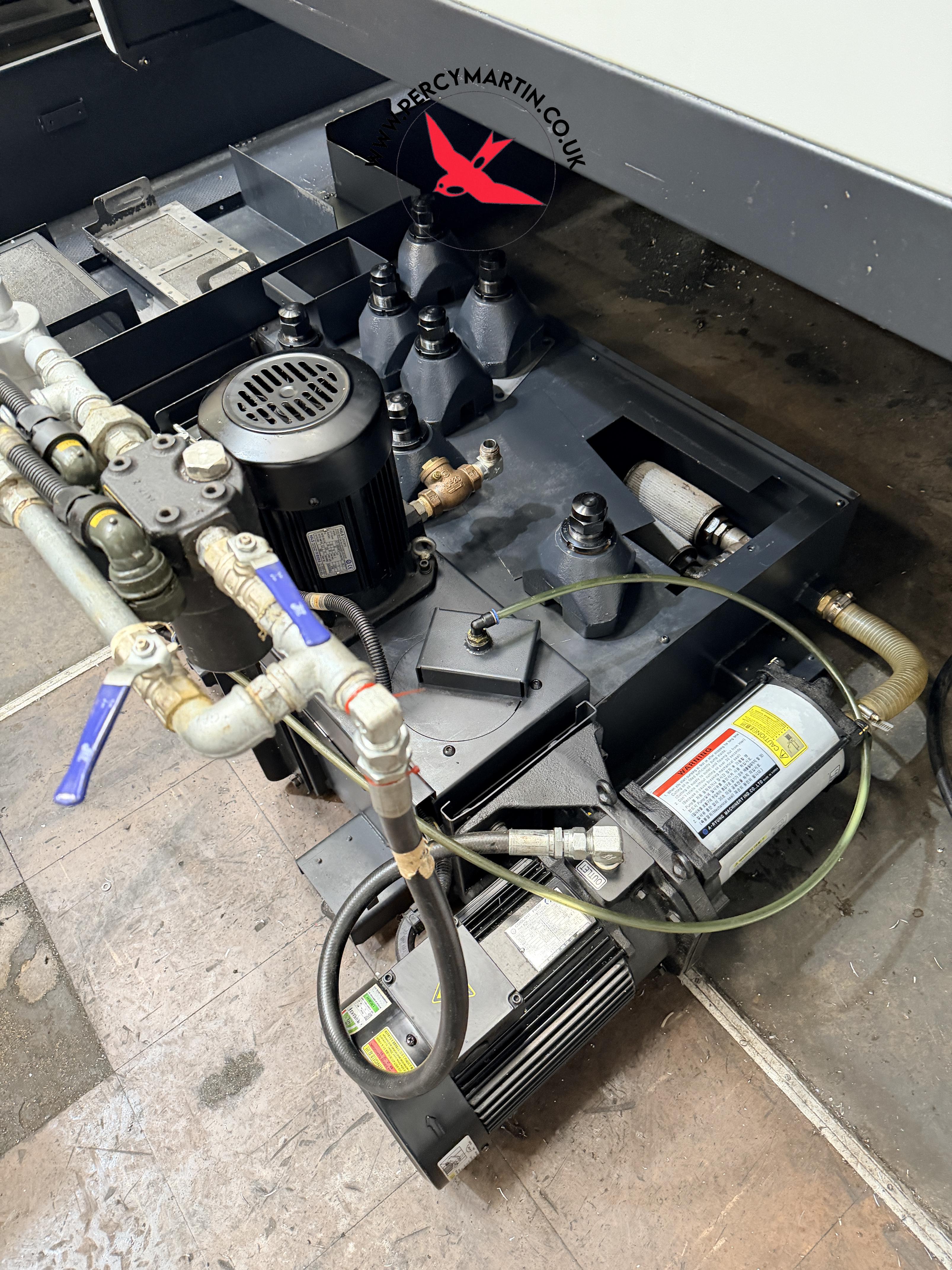

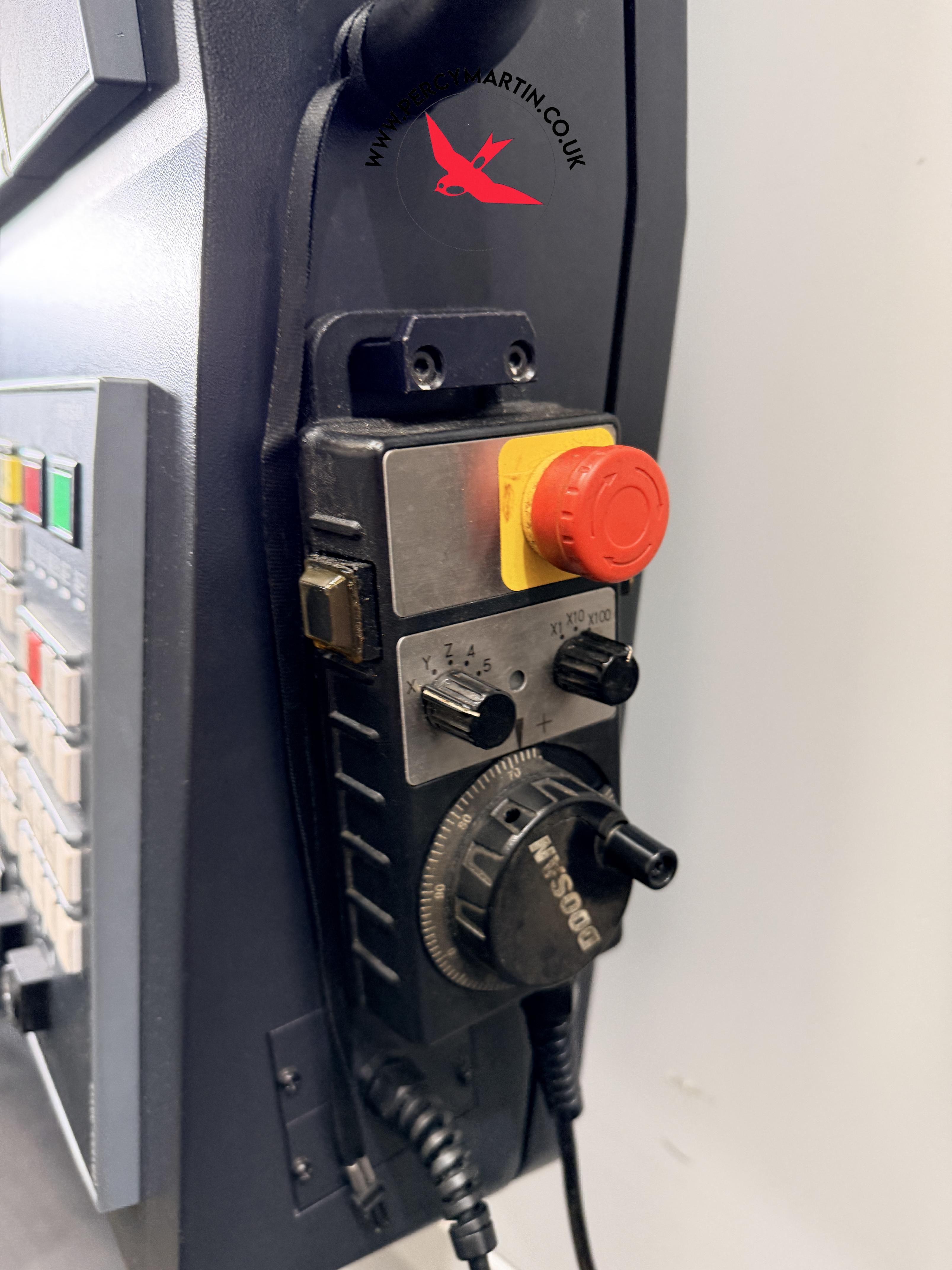

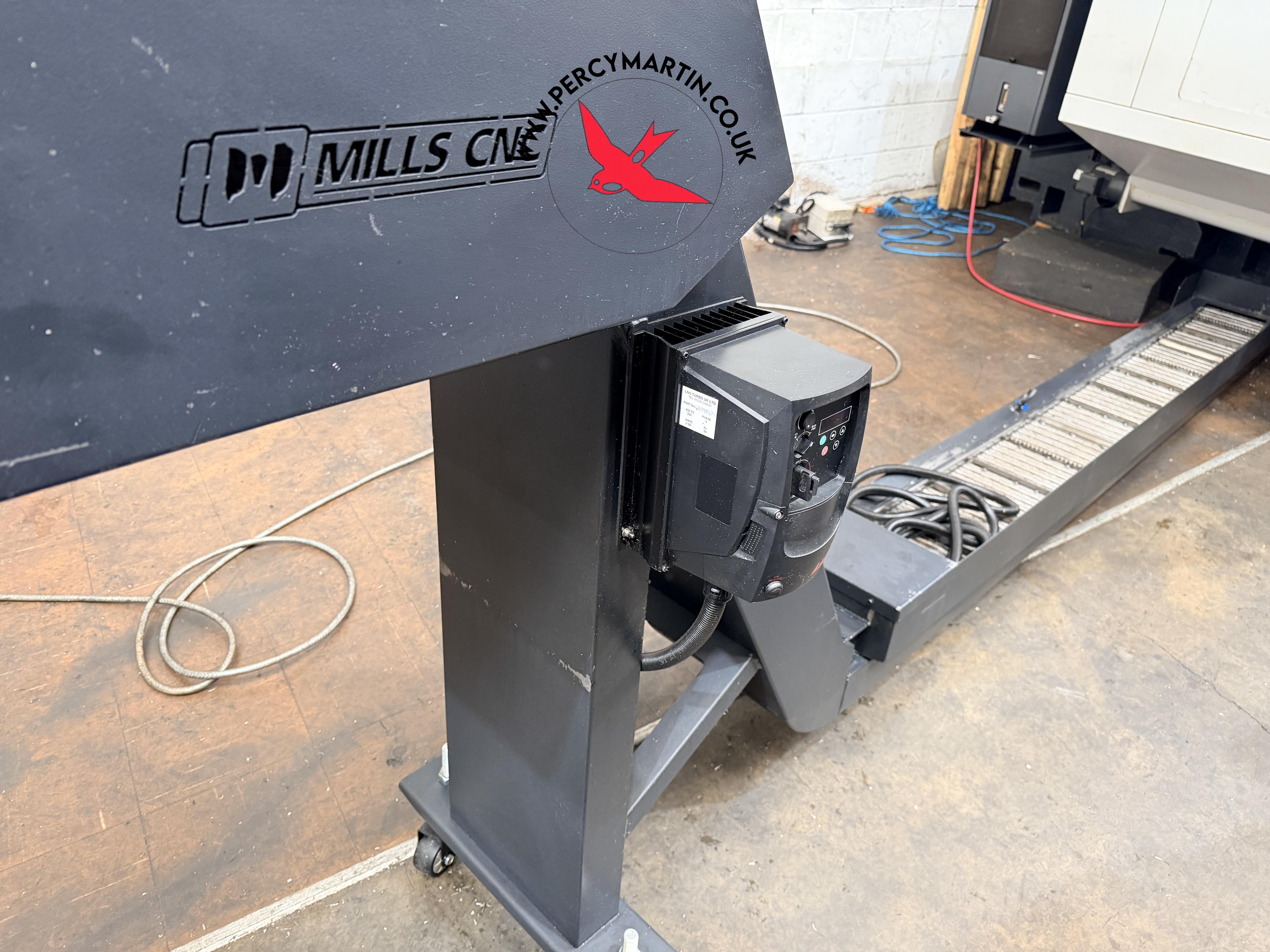

Coolant , Fume Extractor , Interlocked guards , Low Volt Light , Remote Hand Wheel , Swarf Conveyor , Through Spindle Coolant , Tool setter , USB Port
Key Features Gallery Specifications More in Stock Register Interest
Doosan DNM6700 2017

Key Features

Type:

All Products

Model:

DNM6700

Make:

Doosan

Year:

2017

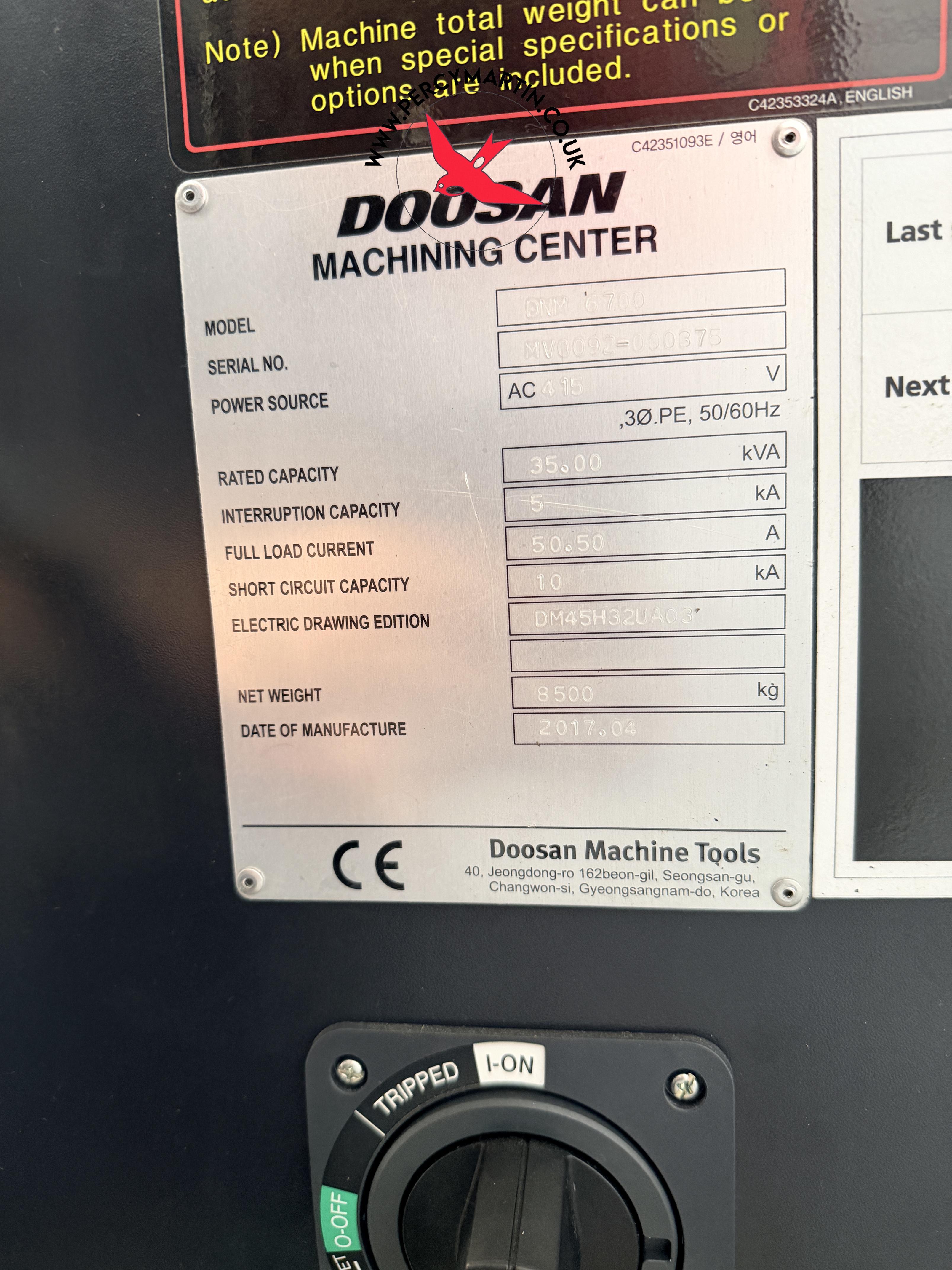

Serial No

MV0092-000375

Price

£POA

Our Reference

PM9818

Location

Leicester

Doosan DNM6700 2017

Specifications

Control

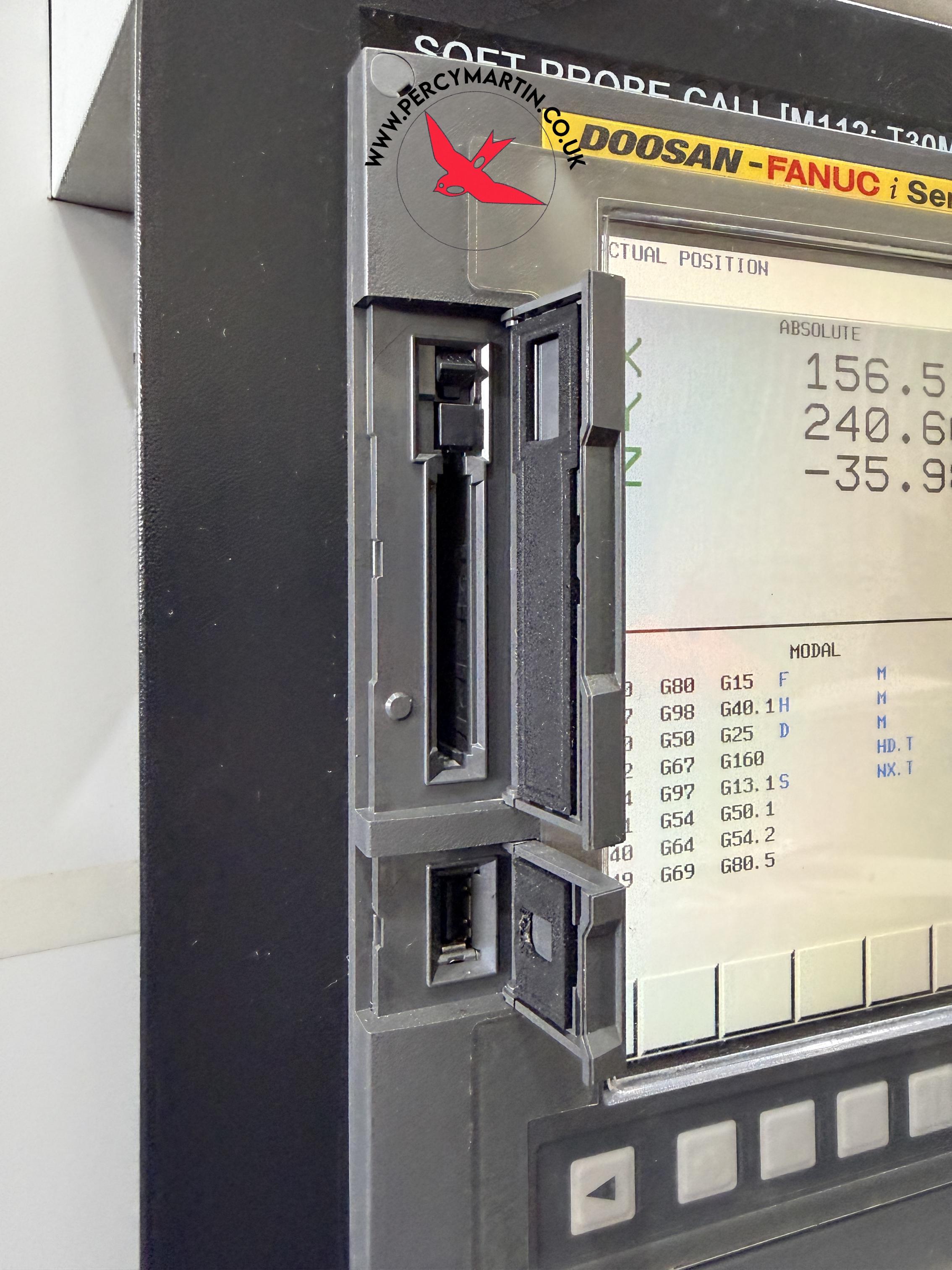

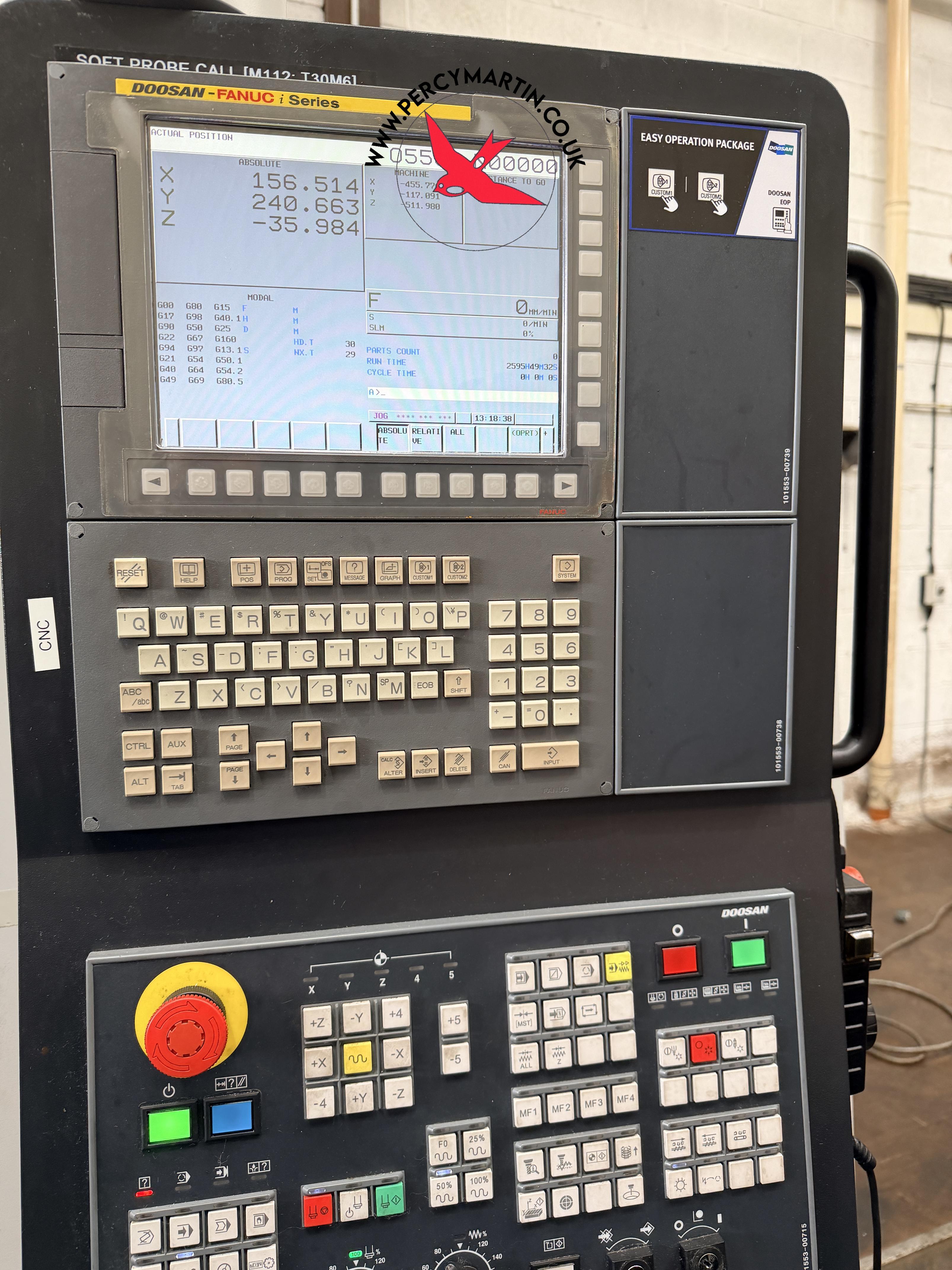

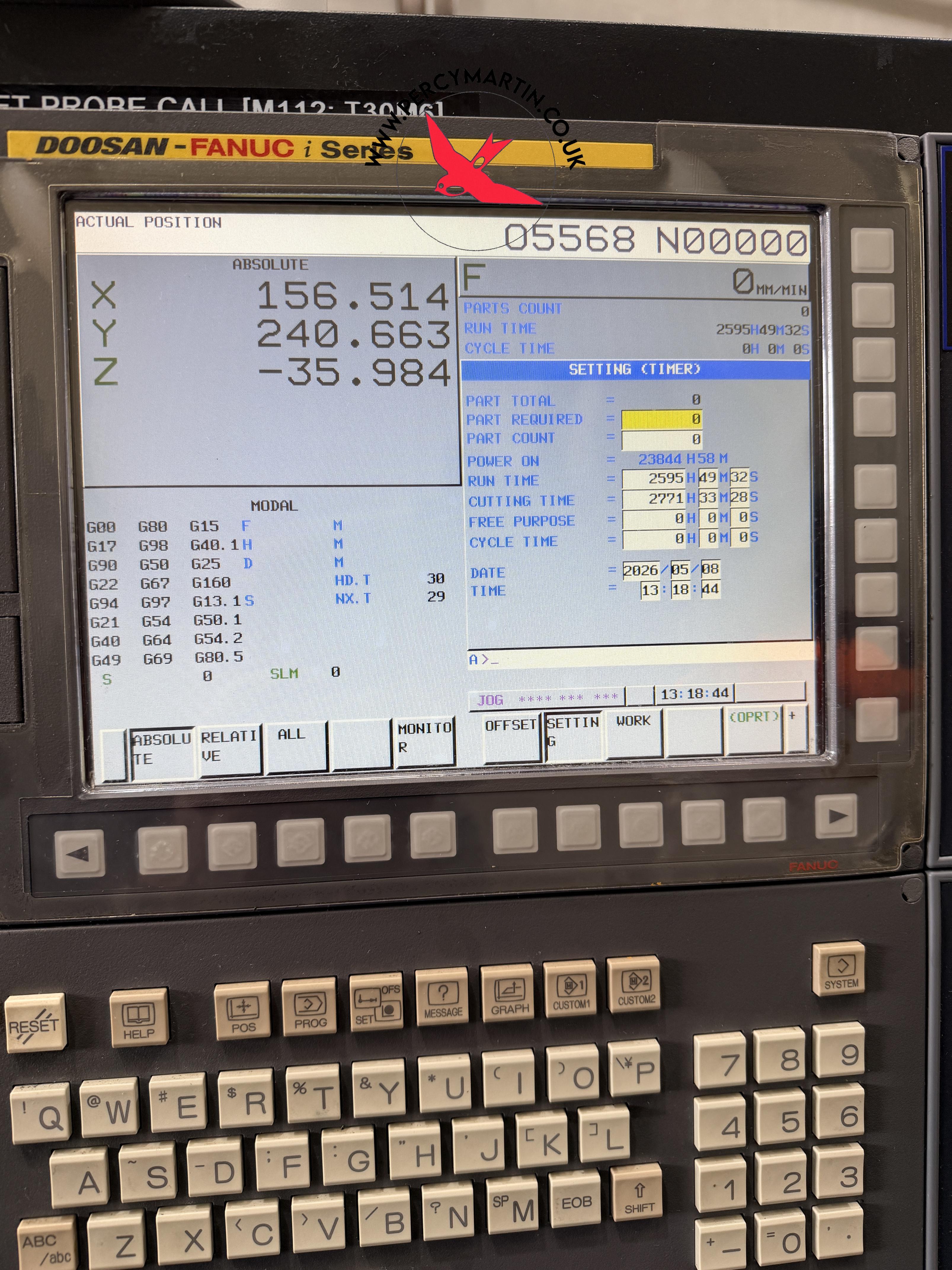

FANUC Oi

Machine Dimensions

4342 x 2415 x 3100mm

Machine Weight

8500kg

Maximum Tool Diameter

80mm

Maximum Tool Diameter with Empty Adjacent Pockets

125mm

Maximum Tool Length

300mm

Maximum Tool Weight

8kg

Maximum workpiece weight

1300mm

Min - Max Height under Spindle

150 ~ 775mm

Rapid Feedrates

XYZ: 36 x 36 x 30m/minute

Spindle Motor Power

18.5kW

Spindle Speed

12000rpm

T- Slots

5 x 18mm

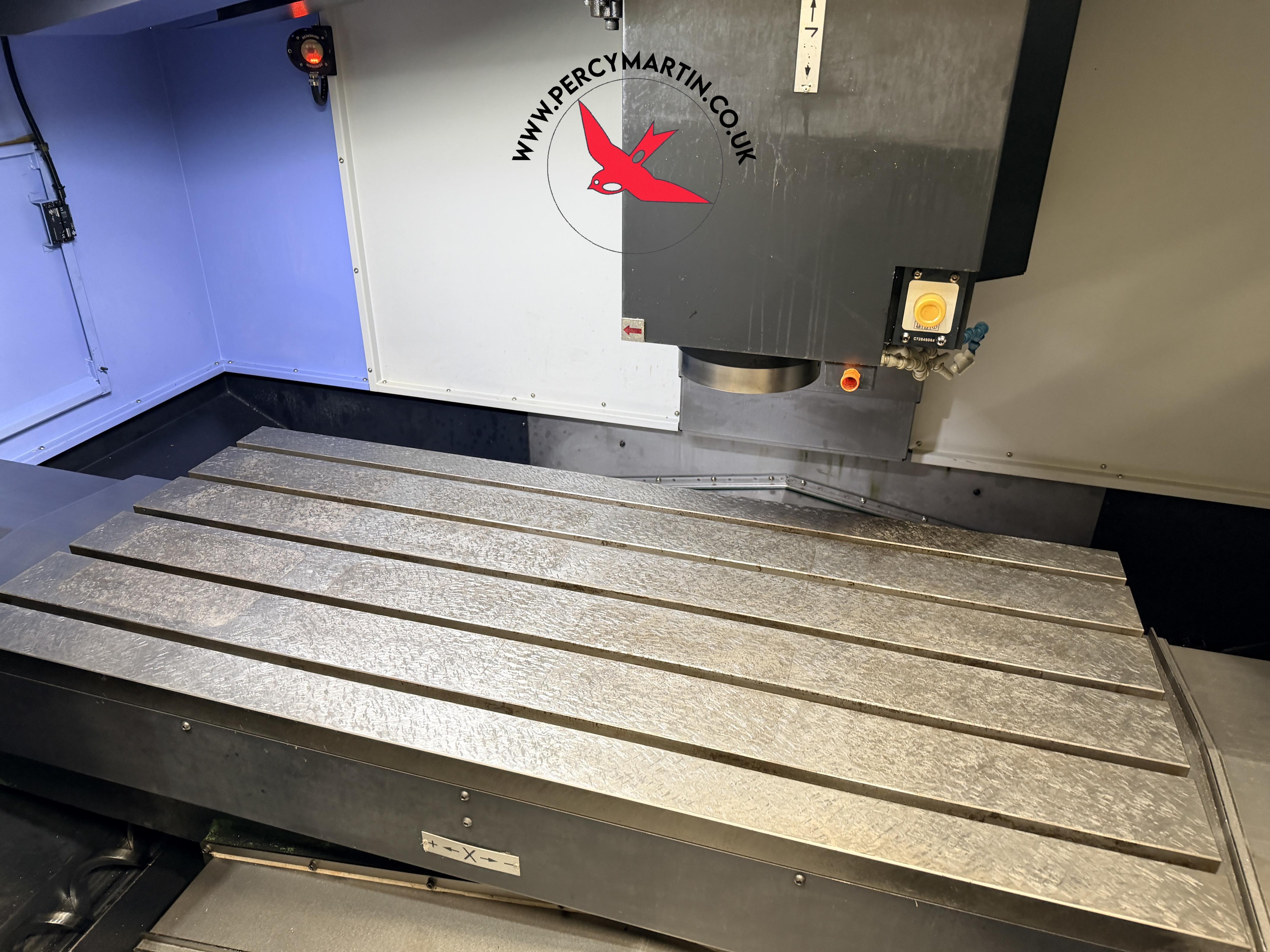

Table Size

1500 x 670mm

Tool Change Capacity

30 Station

Tool Change Time (Chip to Chip)

3.2 seconds

Tool Size

ISO40

Traverses XYZ

1300 x 670 x 625mm
