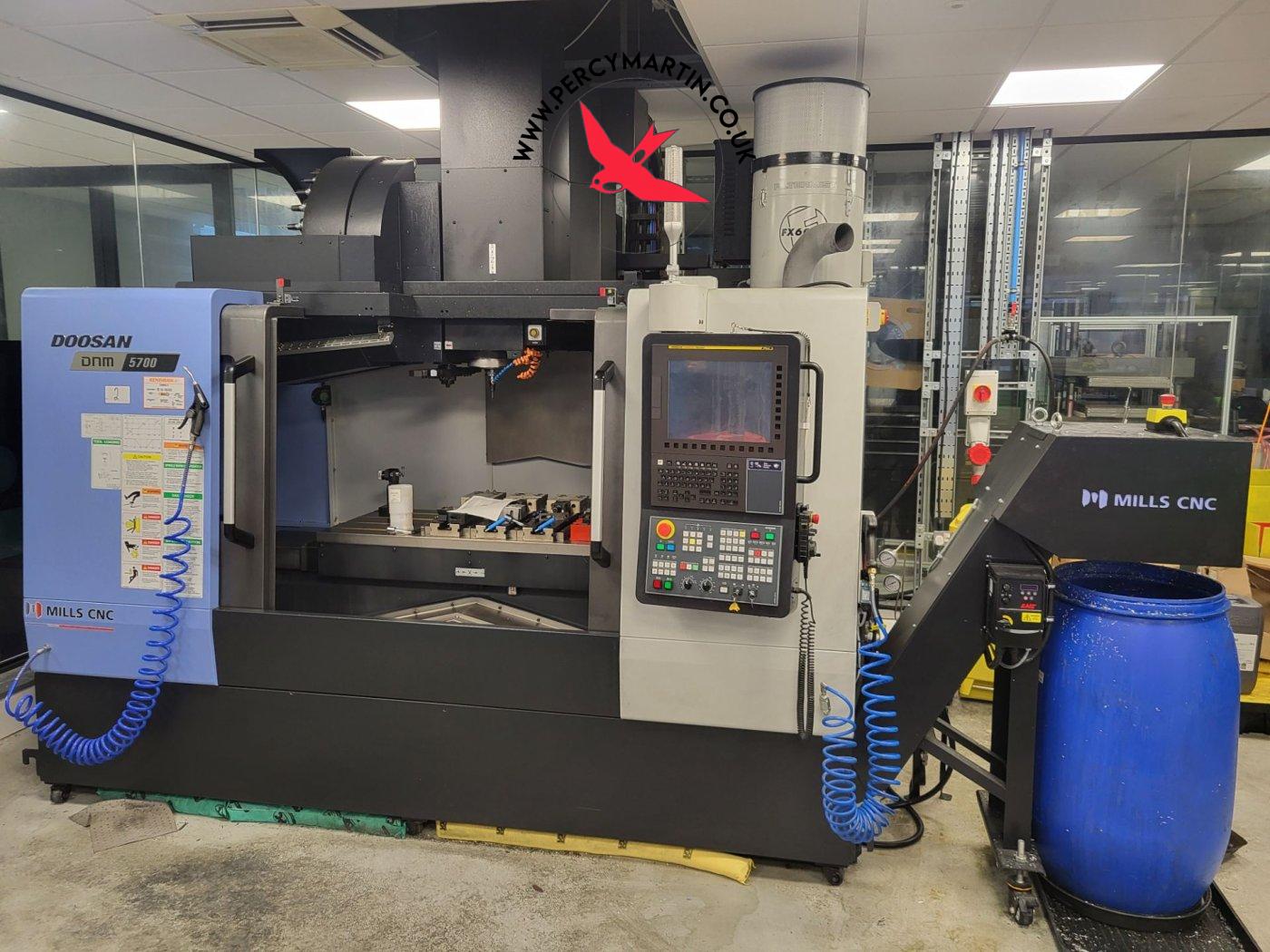

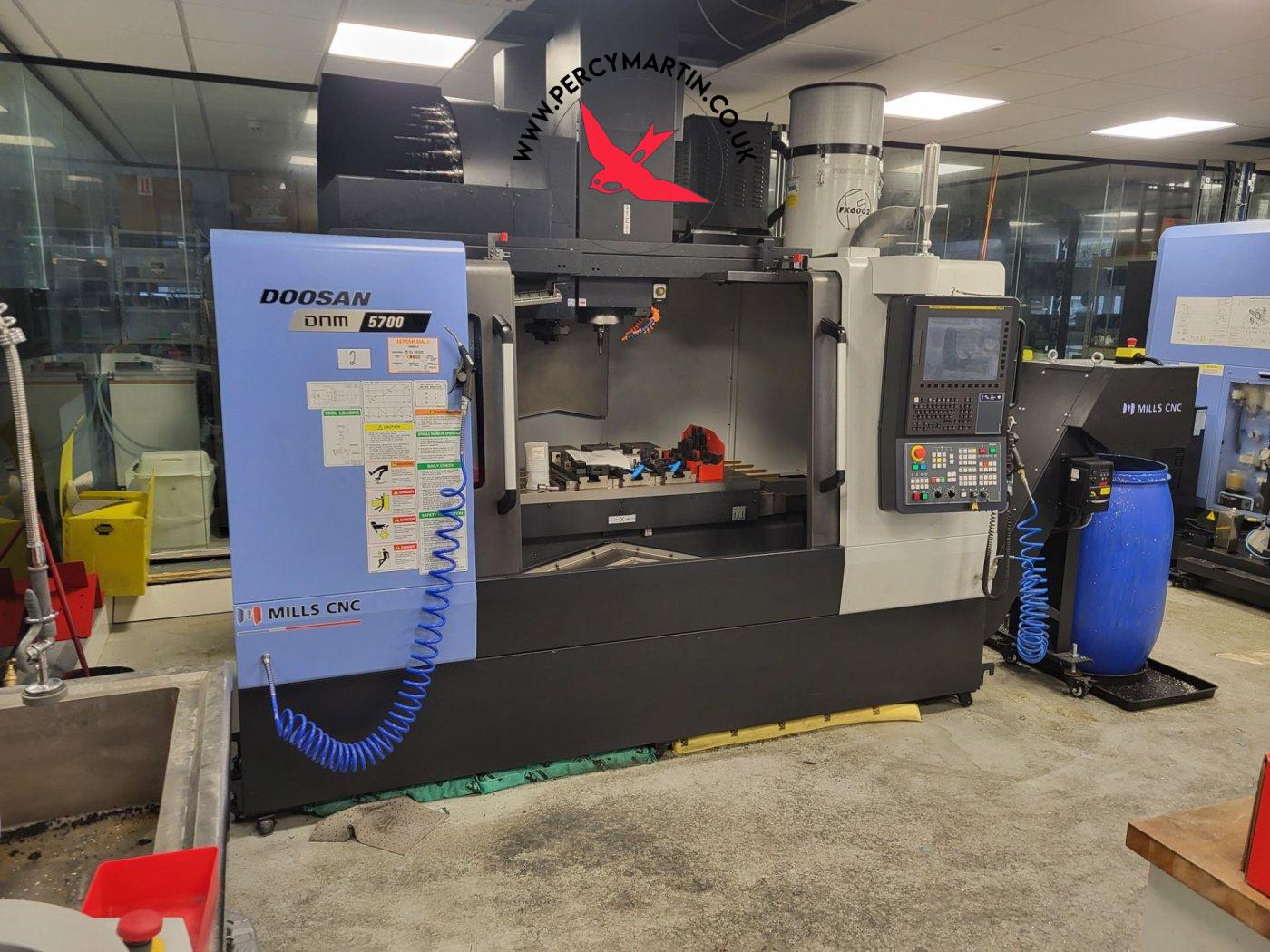

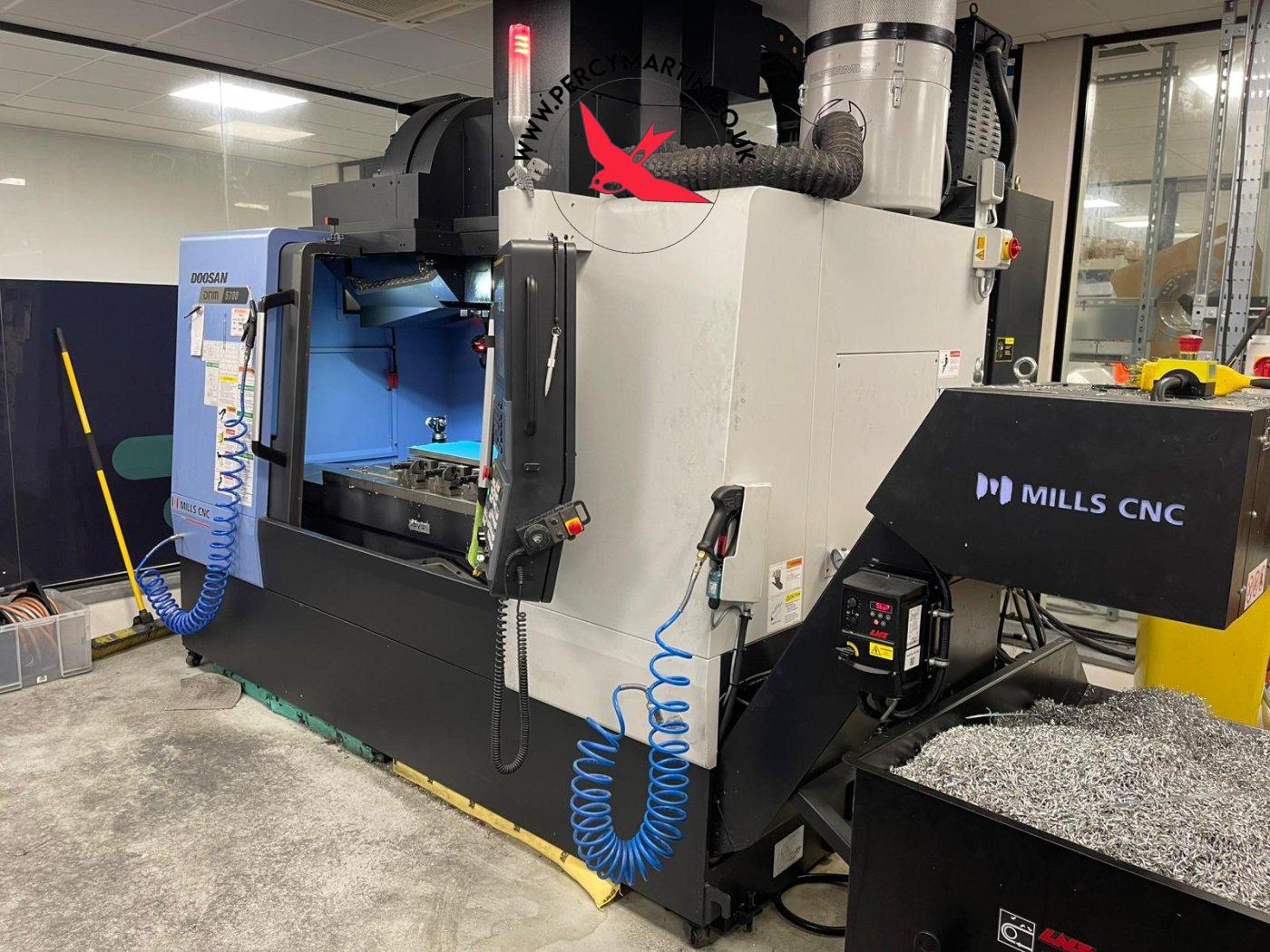

Doosan DNM5700 2021

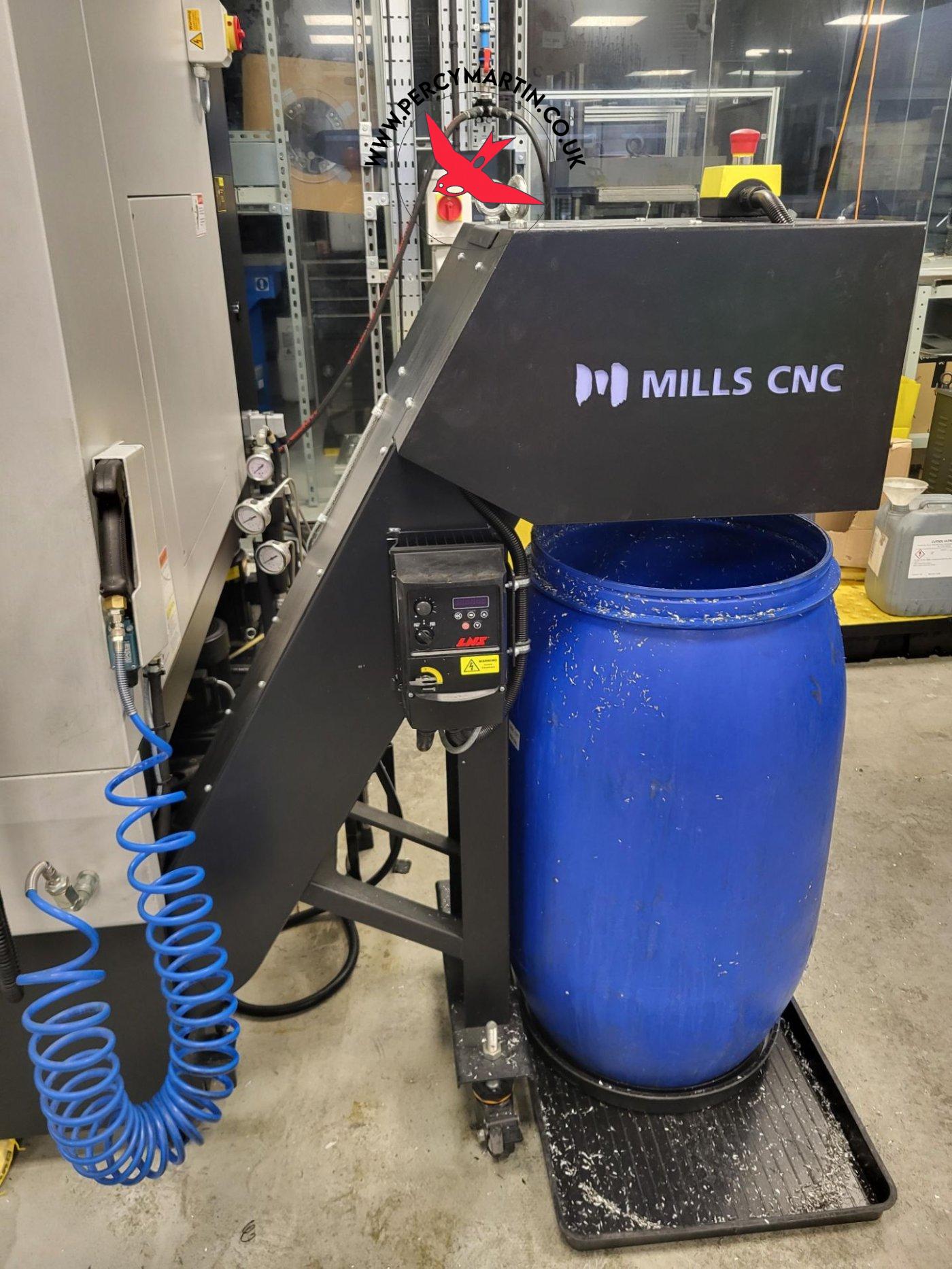

Coolant , Interlocked guards , Low Volt Light , Remote Hand Wheel , Swarf Conveyor , Through Spindle Coolant , Tool setter , USB Port
Doosan DNM5700 2021
Key Features
Type:
All Products
Model:
DNM5700
Make:
Doosan
Year:
2021

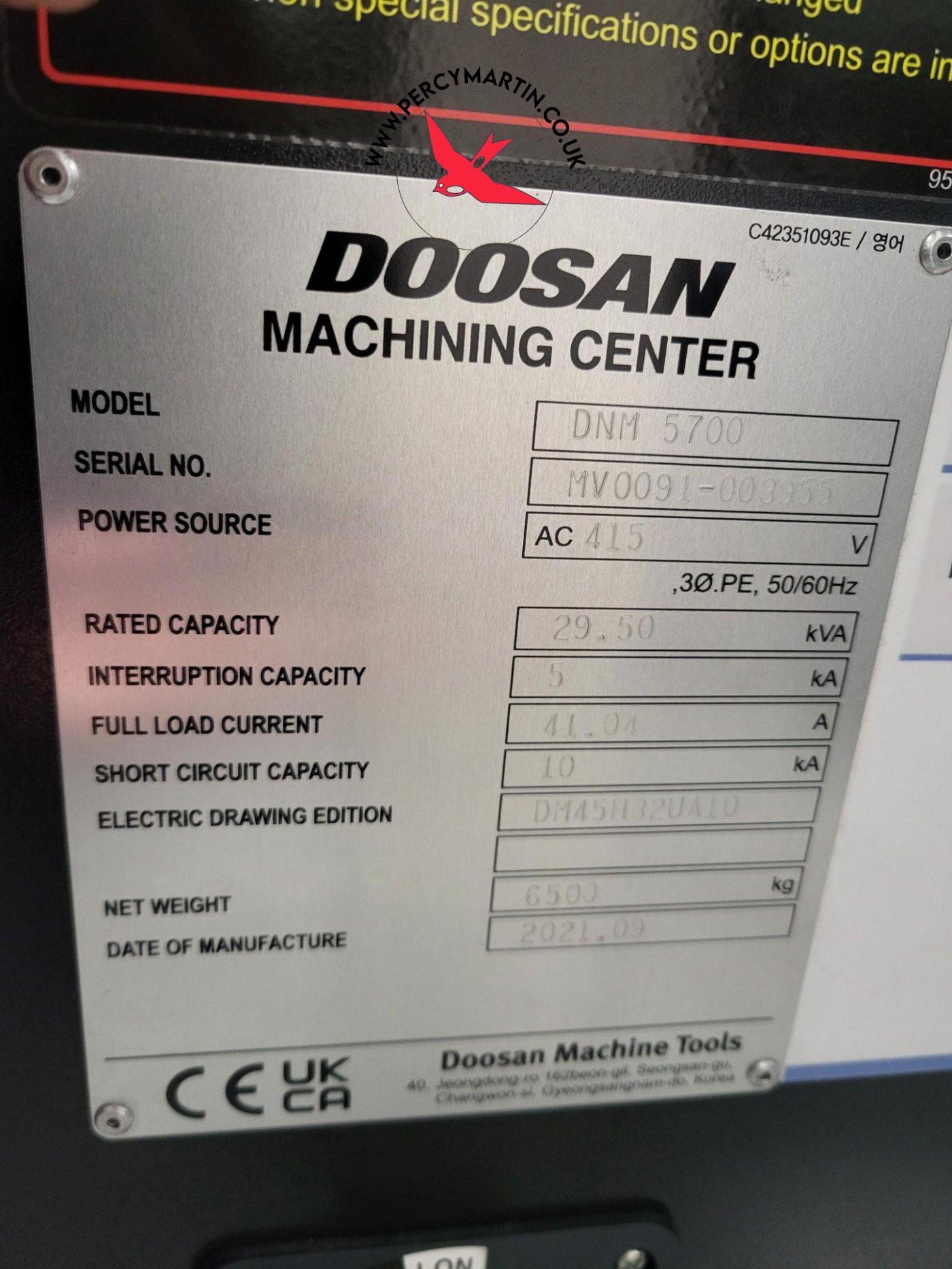

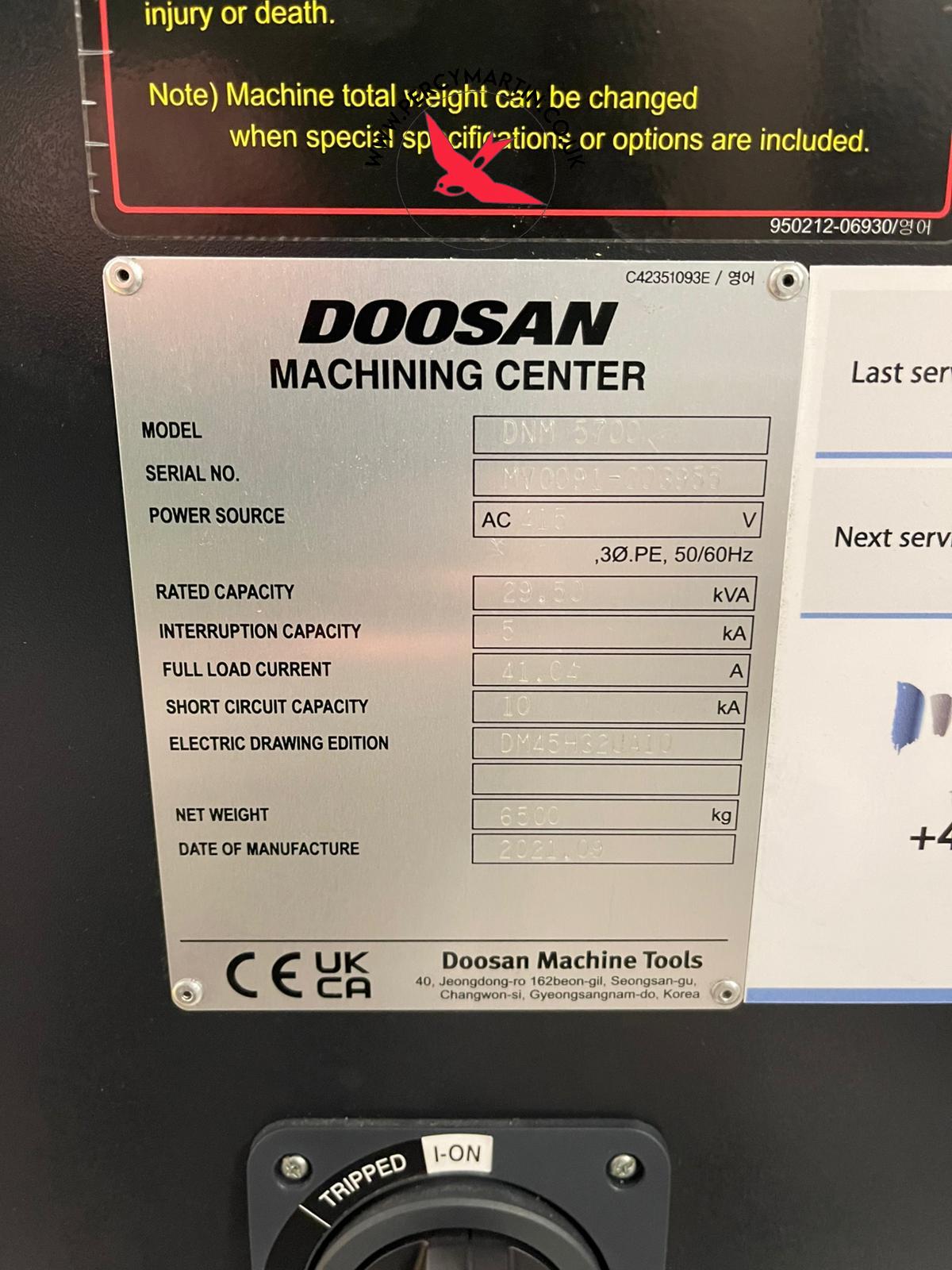

Serial No
MV0091-003955
Price
£POA
Our Reference
PM9769a
Location
Leicester
Doosan DNM5700 2021
Specifications

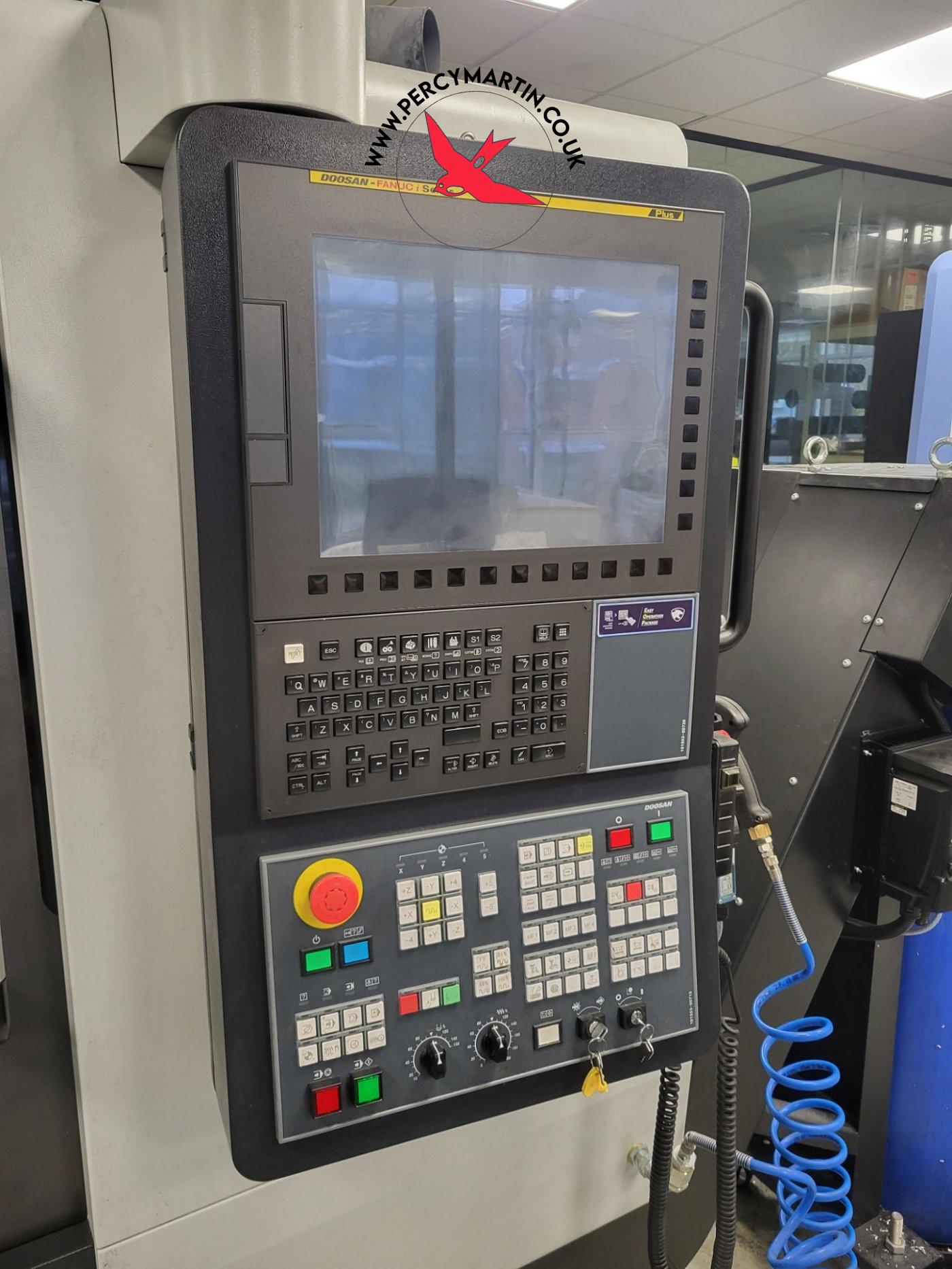

Control
Siemens 828
Machine Dimensions
4155 x 2221 x 2985mm
Machine Weight
6500kg
Maximum Tool Diameter
80mm (125mm with empty adjacent pockets)
Maximum Tool Length
300mm
Maximum Tool Weight
8kg
Maximum workpiece weight
1000kg
Min - Max Height under Spindle
150 - 660mm
Rapid Feedrates
XYZ: 36 x36 x 30m/minute
Spindle Motor Power
18.5kW
Spindle Speed
12000rpm
T- Slots
4 off 18mm

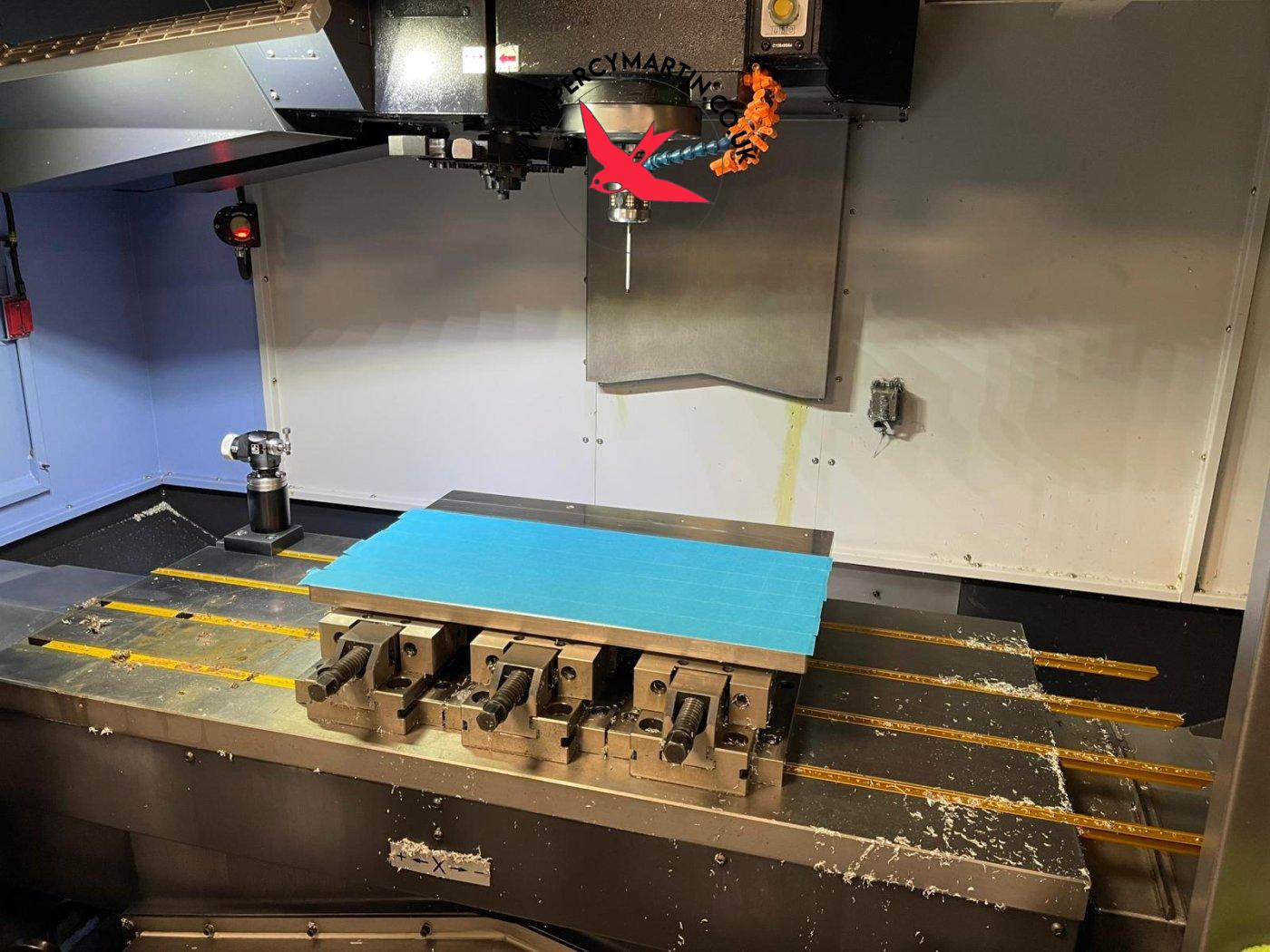

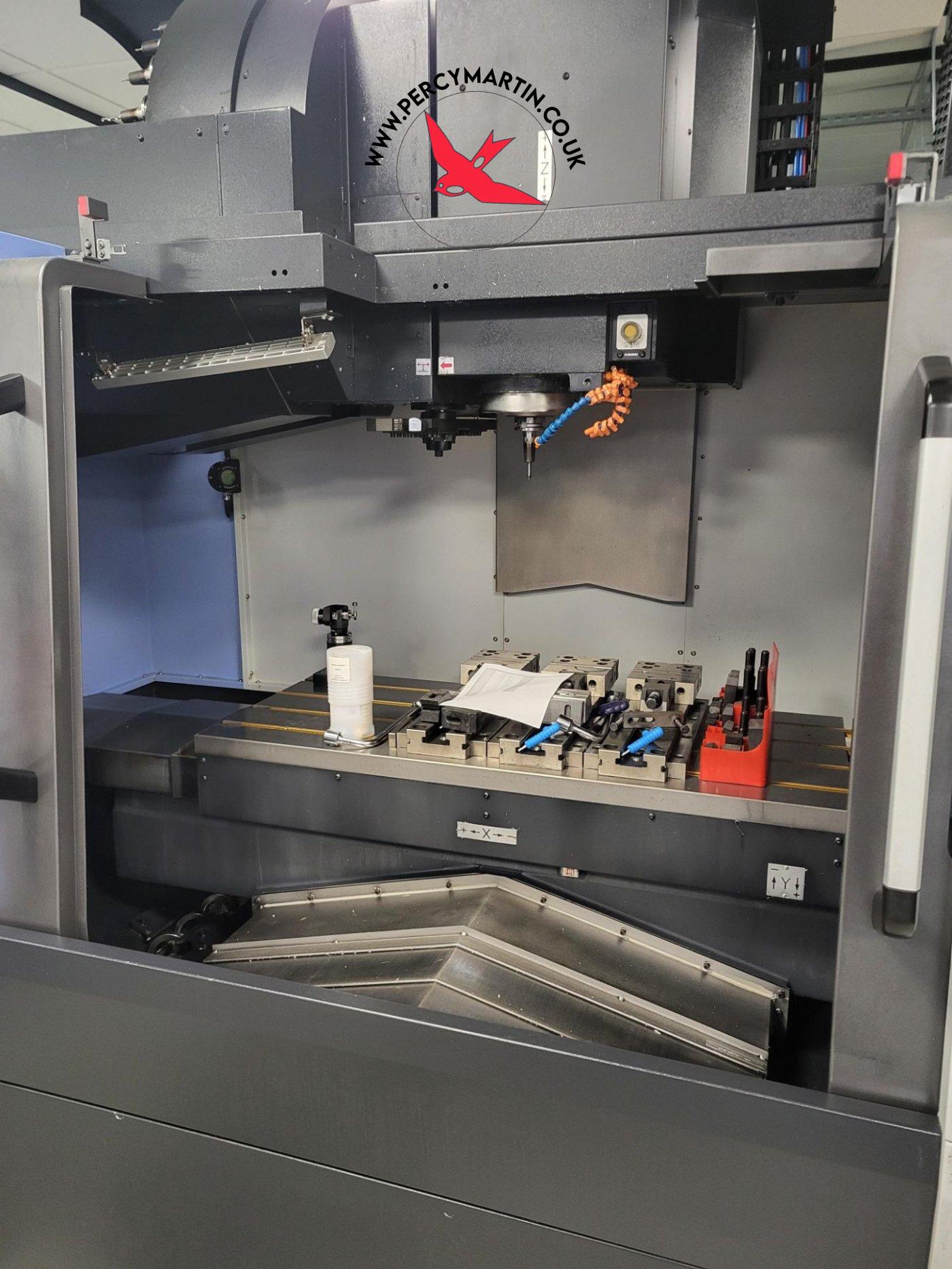

Table Size
1300 x 570mm
Tool Change Capacity
30 Station
Tool Change Time (Chip to Chip)
3.2 seconds
Tool Size
BT40
Traverses XYZ
1050 x 570 x 510mm
