Doosan DNM 650 2013
Coolant , Interlocked guards , Low Volt Light , Manuals , Remote Hand Wheel , Through Spindle Coolant
Doosan DNM 650 2013
Key Features
Type:
All Products
Model:
DNM 650
Make:
Doosan
Year:
2013

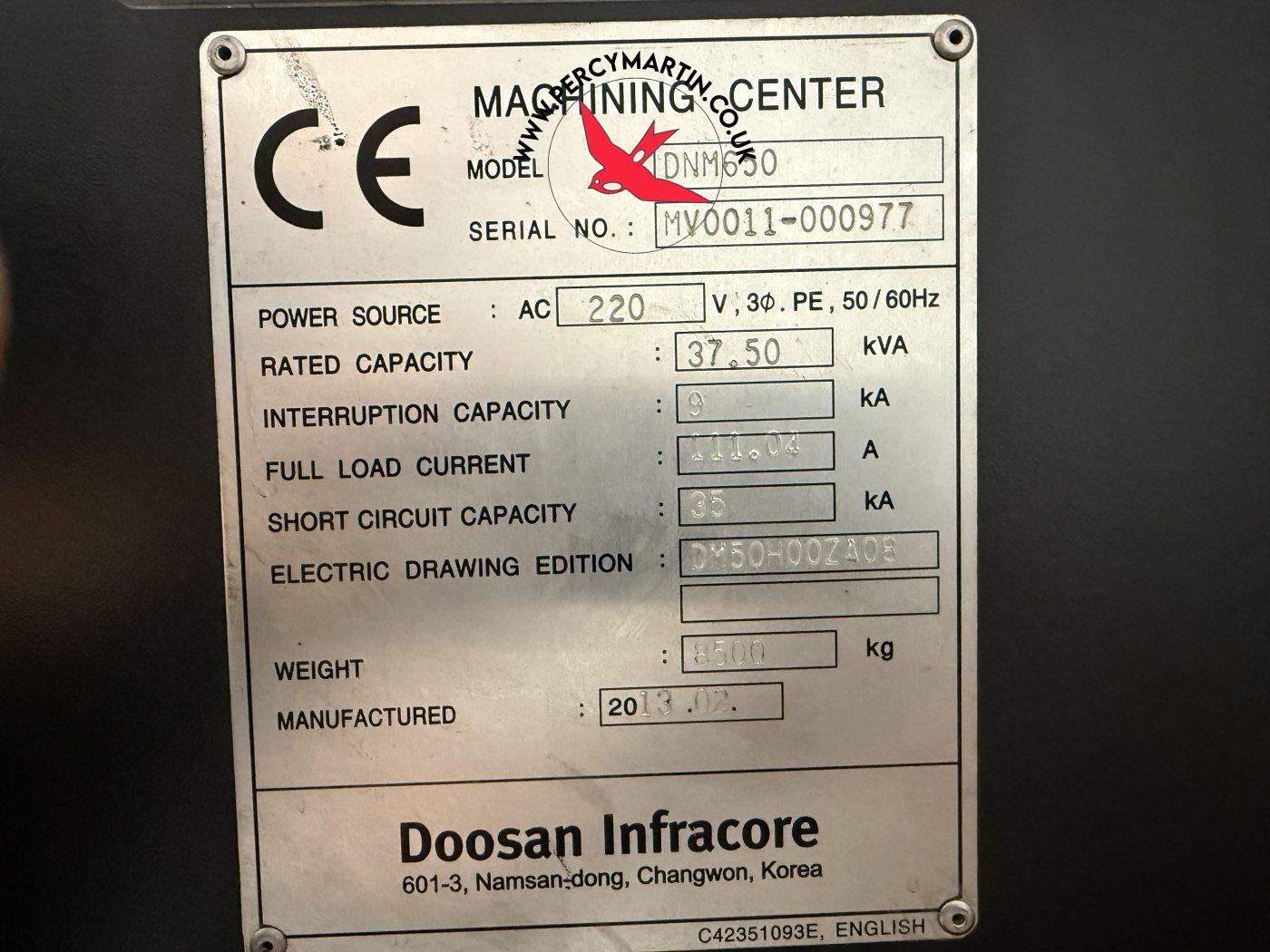

Serial No
MV0011-000977
Price
£POA
Our Reference
PM9608
Location
Leicester
Doosan DNM 650 2013
Specifications

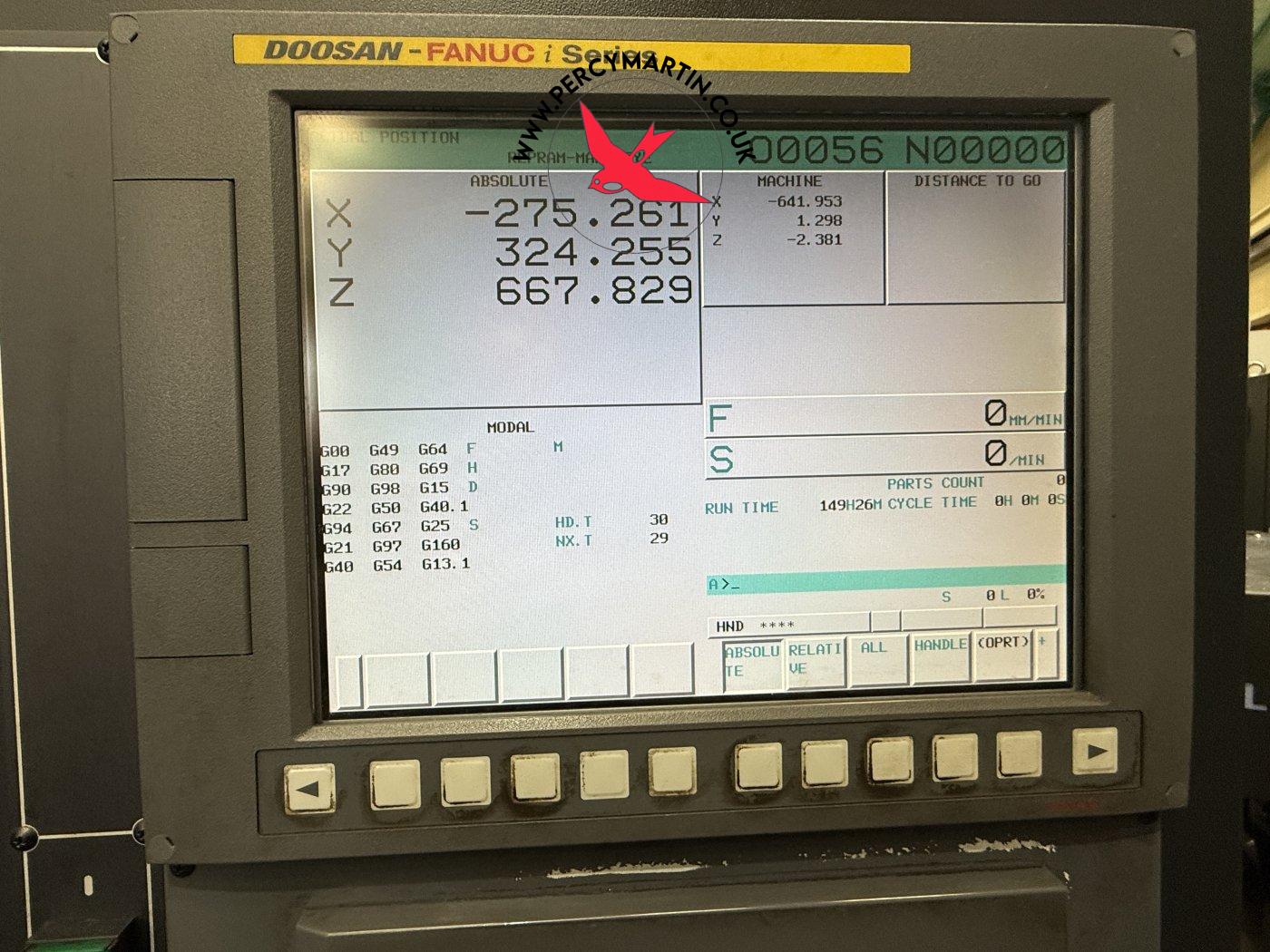

Control
FANUC Oi
Distance from Spindle Centre to Column
747mm
Machine Dimensions
4345 x 2720 x 2815mm
Machine Weight
8500kg
Maximum Tool Diameter
80mm (125mm without adjacent tools)
Maximum Tool Length
300mm
Maximum Tool Weight
8kg
Maximum workpiece weight
1000kg
Min - Max Height under Spindle
150 ~ 775mm
Rapid Feedrates
XYZ: 36 x 36 x 30m/minute
Spindle Centre to Column
747mm
Spindle Motor Power
15kW
Spindle Speed
12000rpm
T- Slots
5 off 18mm (125mm centres)

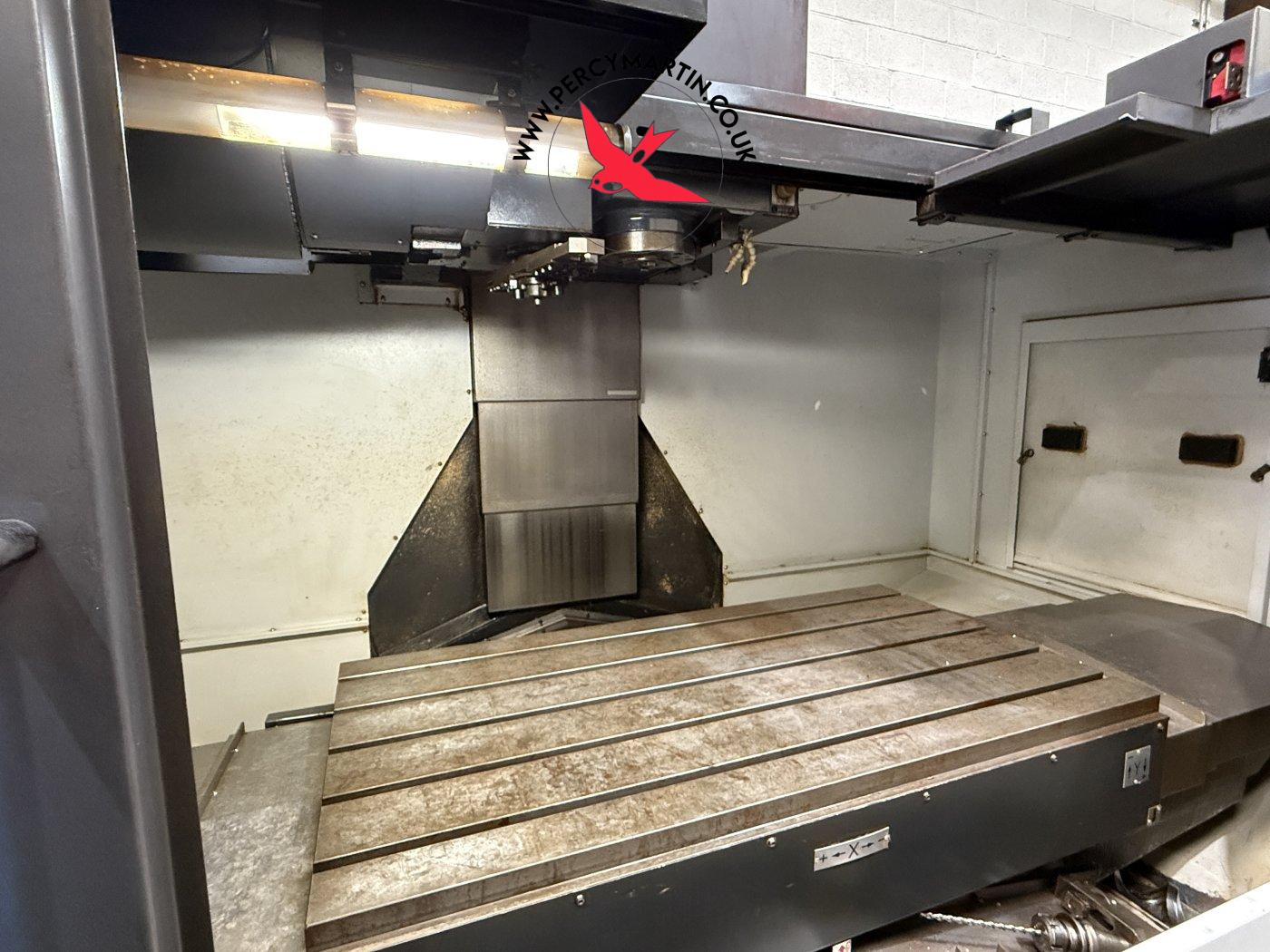

Table Size
1300 x 670mm
Through Spindle Coolant Pressure
70 bar (1000psi)
Tool Change Capacity
30
Tool Change Time (Chip to Chip)
3.7 Seconds
Tool Size
BT40
Traverses XYZ
1270 x 670 x625mm
