All Products
XYZ CT65LTY 2020
3 Jaw Chuck , C axis & Milling , Interlocked guards , Low Volt Light , Parts Conveyor , Remote Hand Wheel , Swarf Conveyor , Tailstock , Tool setter , Y-axis
XYZ CT65LTY 2020
Key Features
Type:
All Products
Model:
CT65LTY
Make:
XYZ
Year:
2020

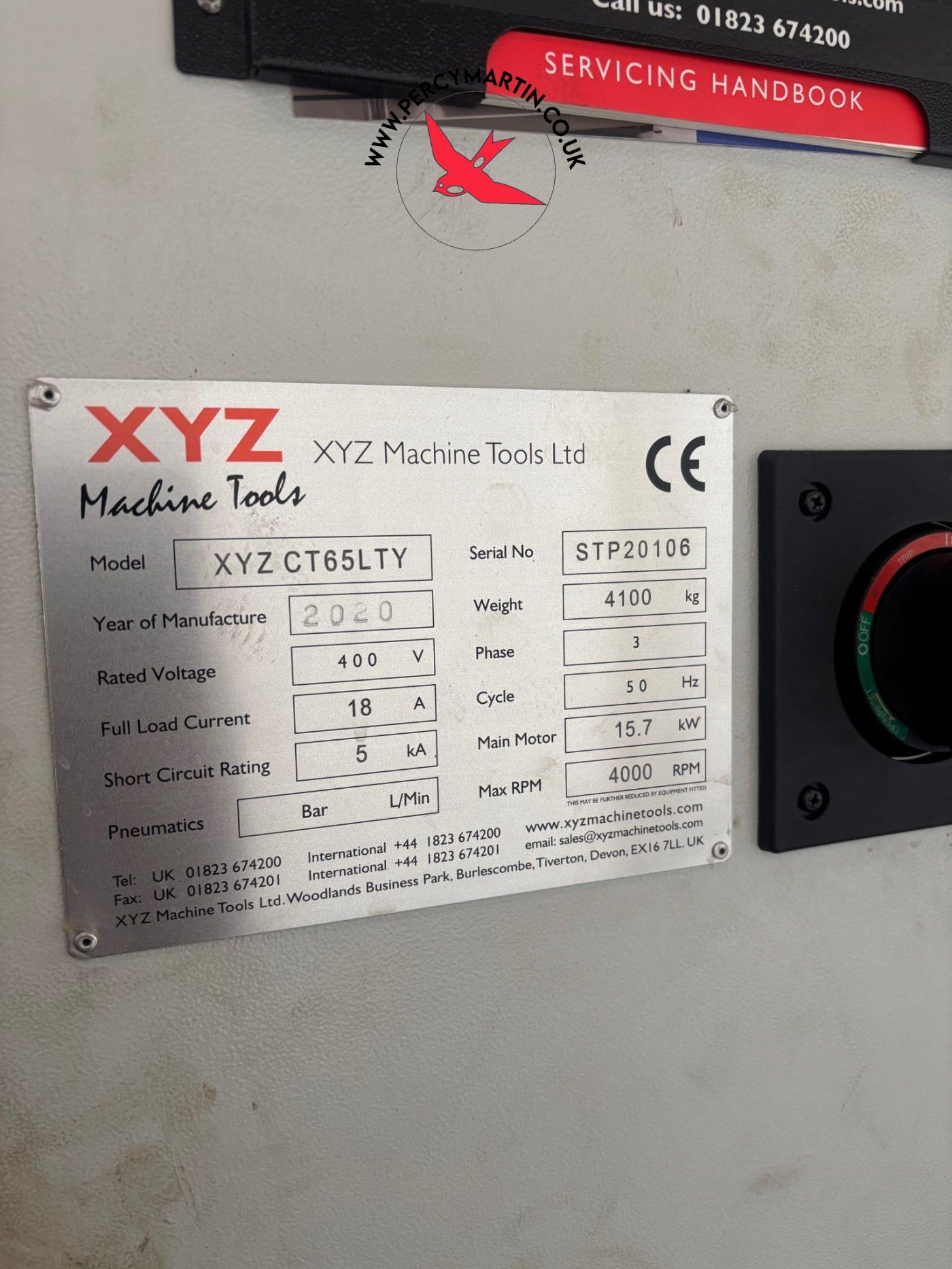

Serial No
STP20106
Price
£POA
Our Reference
PM9652
Location
Leicester
XYZ CT65LTY 2020
Specifications
Bar Capacity
65mm
Boring Bar Holder Diameter
32mm
C axis
0.001 degree
Chuck Size
200mm
Control
Siemens 828D
Machine Dimensions
3250 x 2060 x 2000mm
Machine Weight
4400kg
Maximum Cutting Diameter
220mm
Maximum Cutting Length
490mm
Milling Motor Power
4kW
Milling RPM
4500rpm
Rapid Feedrates
XYZ: 20 x 15 x 20m/minute
Spindle Motor Power
11kW
Spindle Nose
A2-6
Spindle Speed
4000rpm
Swing
400mm
Swing Over Carriage
320mm
Tailstock Quill Diameter
75mm
Tailstock Quill Stroke
120mm
Tailstock Taper
MT #4
Tool Size
20 x 20mm
Tooling Configuration
VDI30
Turret Positions
12 Station
X axis Travel
220mm
Y axis Travel
+/-35mm
Z axis Travel
500mm
XYZ CT65LTY 2020
