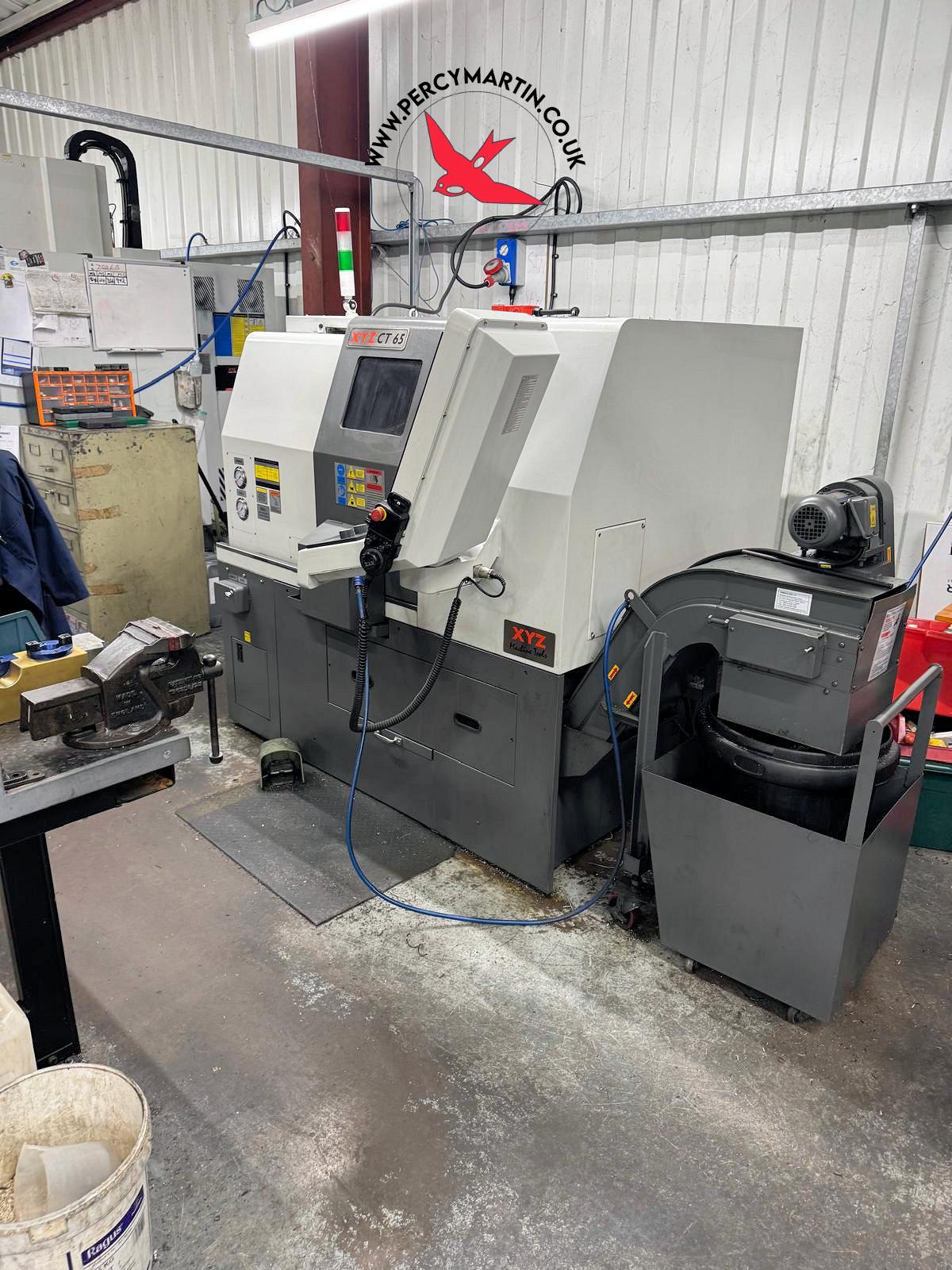

XYZ Compact Turn 65 2019

3 Jaw Chuck , Coolant , Interlocked guards , Low Volt Light , Parts Catcher , Swarf Conveyor , Tailstock , Tool setter
Key Features Gallery Specifications More in Stock Register Interest

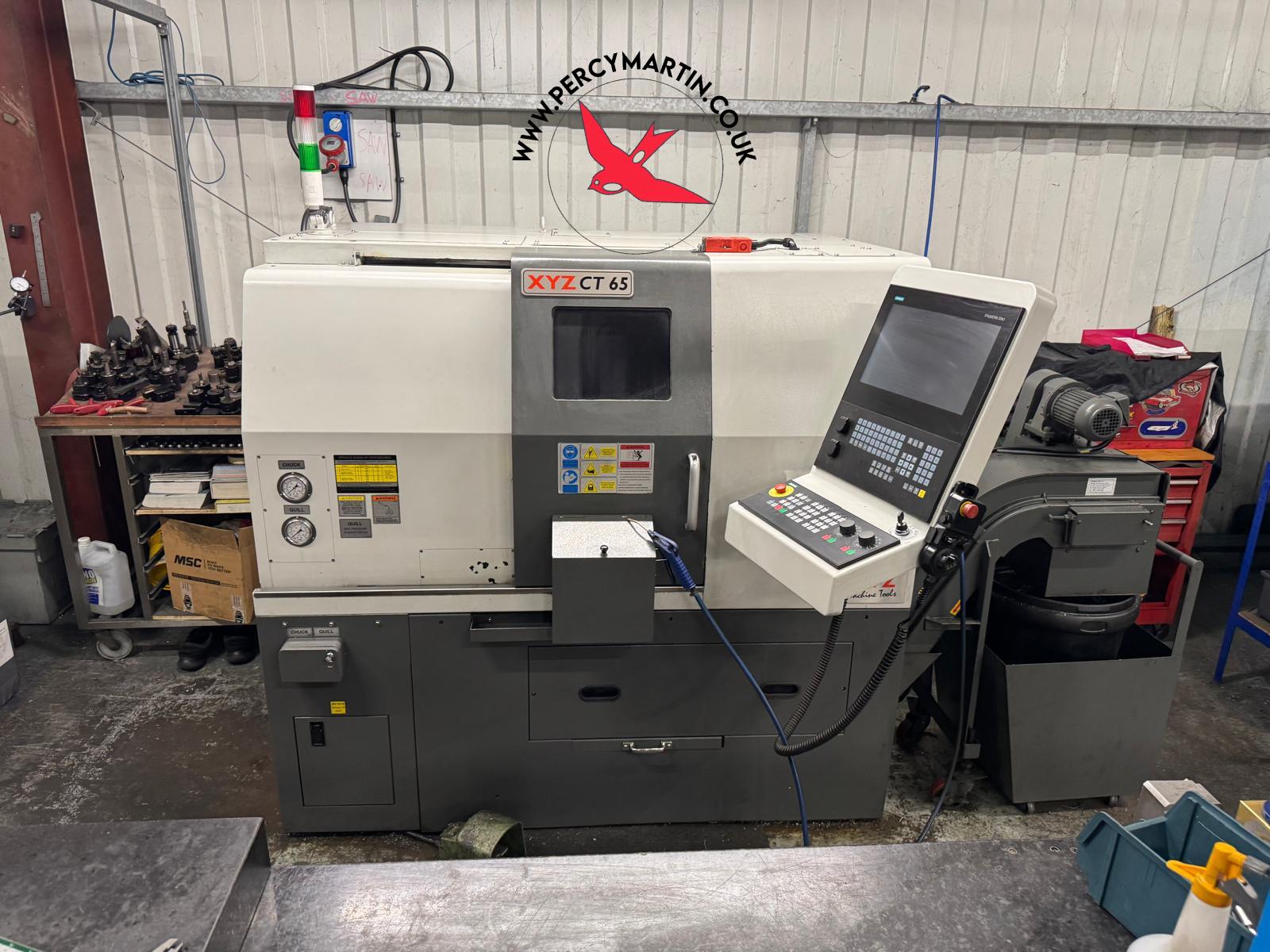

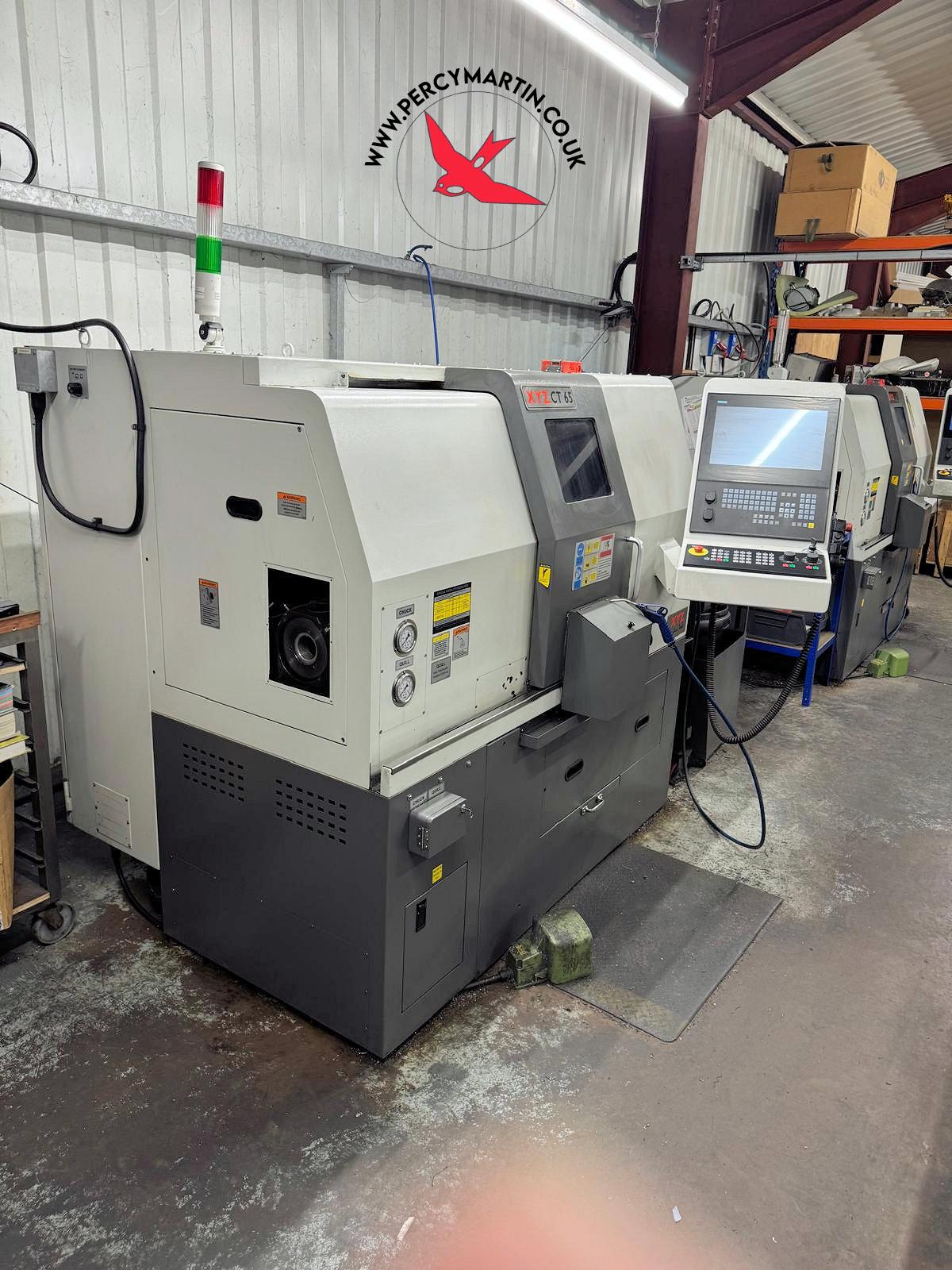

XYZ Compact Turn 65 2019

Key Features

Type:

All Products

Model:

Compact Turn 65

Make:

XYZ

Year:

2019

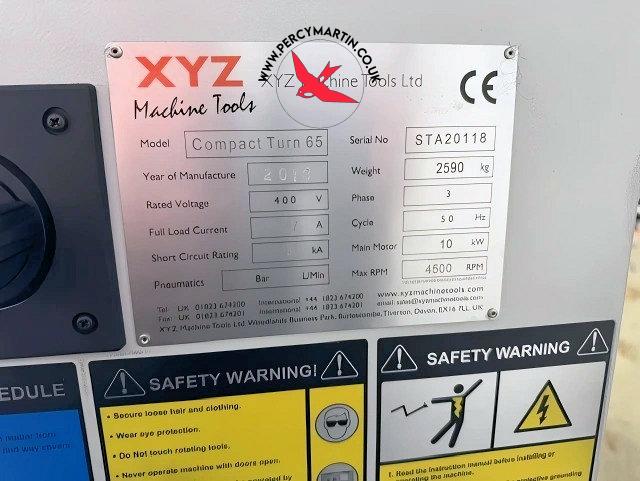

Serial No

STA20118

Price

£POA

Our Reference

PM9802

Location

Leicester

XYZ Compact Turn 65 2019

Specifications

Bar Capacity

65mm

Boring Bar Holder Diameter

32mm

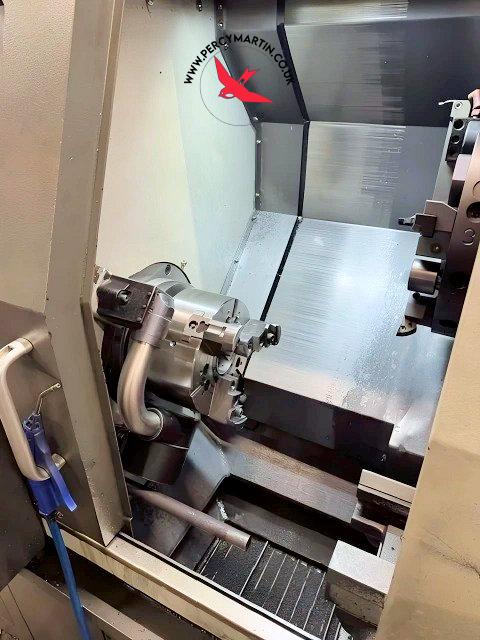

Chuck Size

8" (200mm)

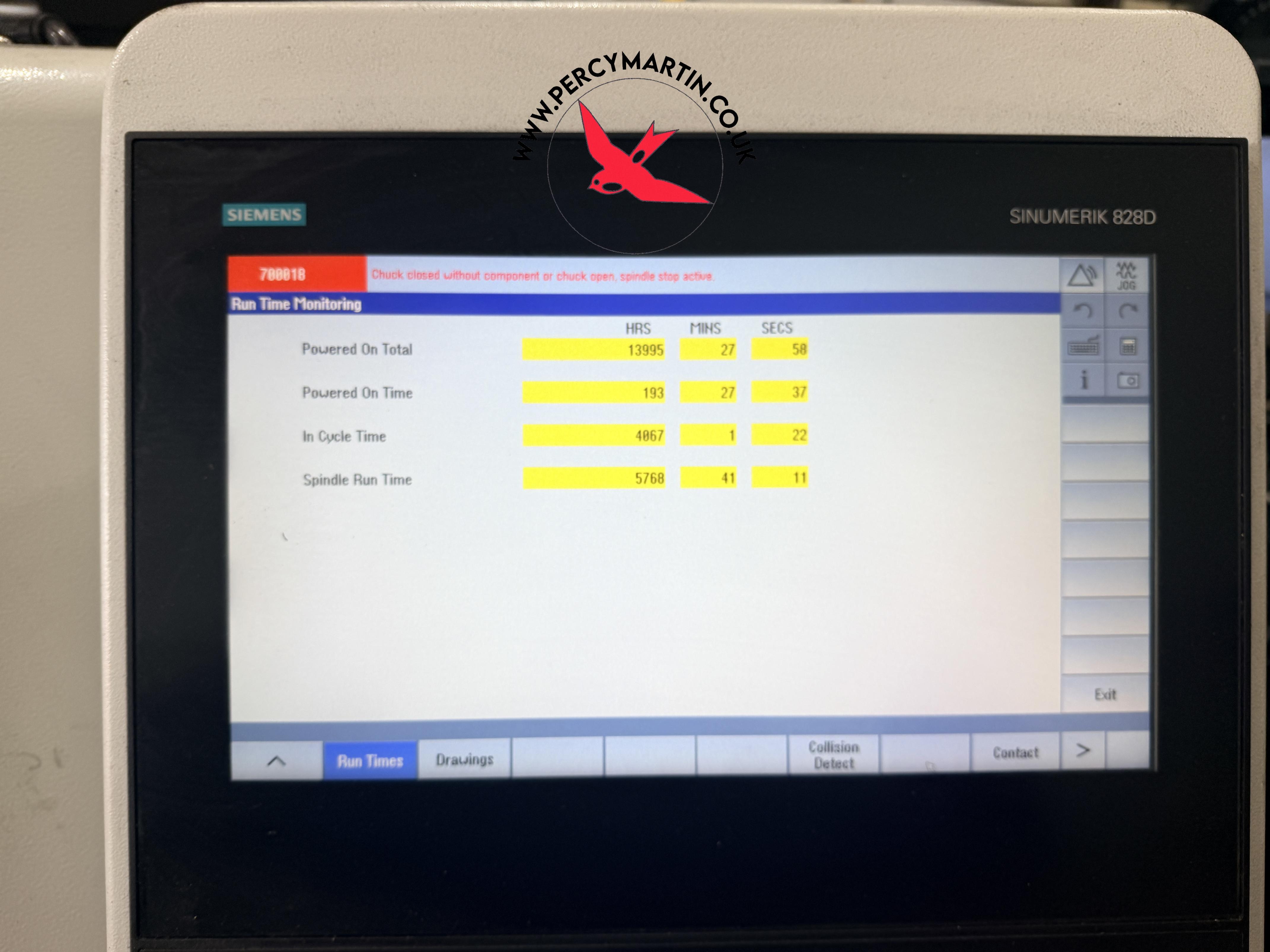

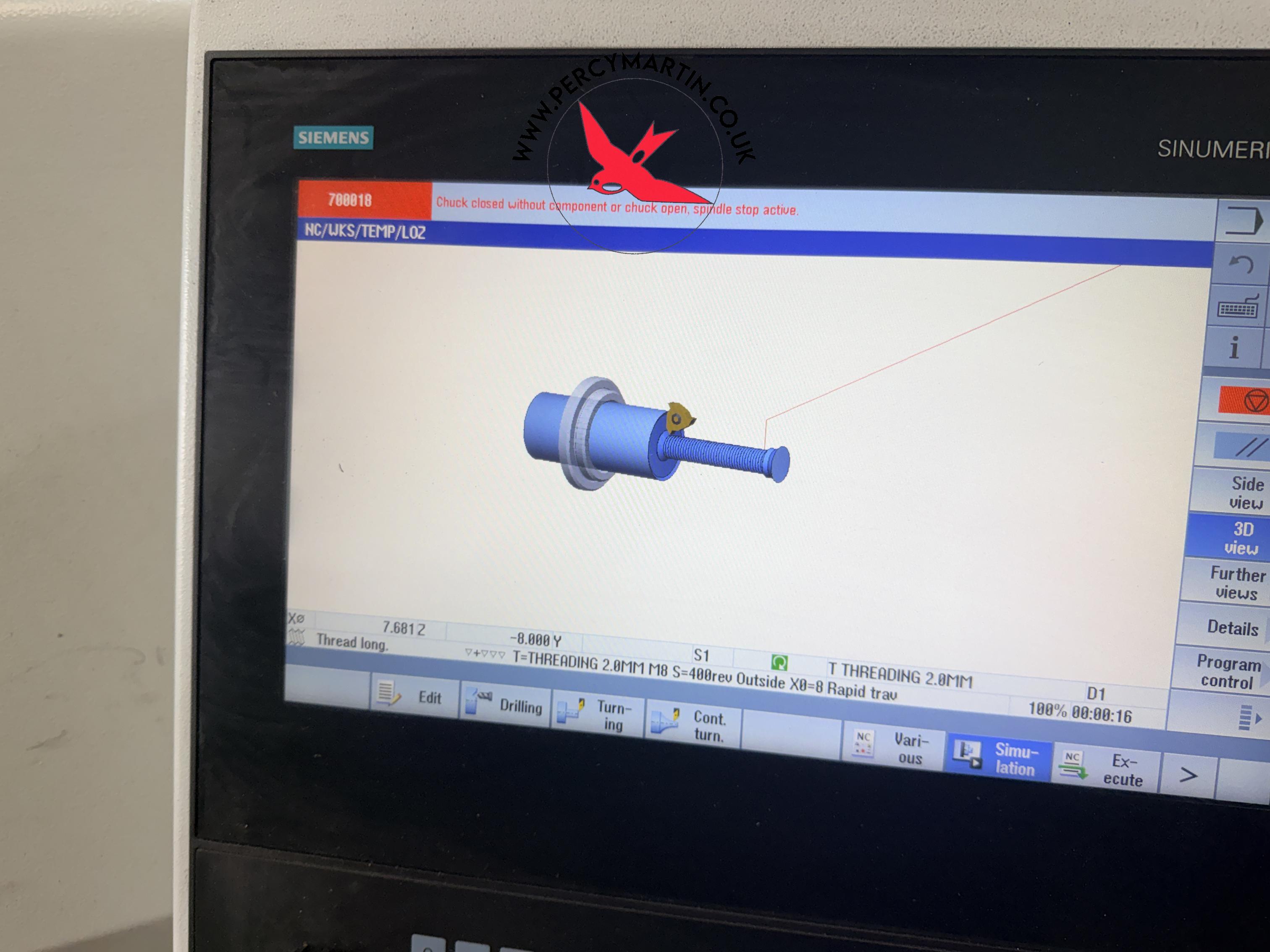

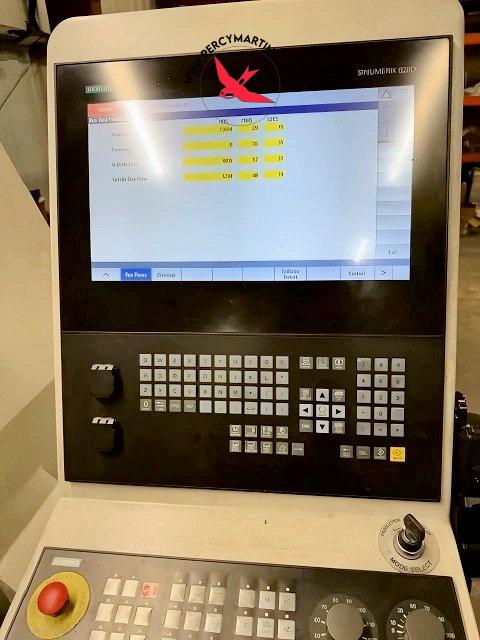

Control

Siemens 828

Machine Dimensions

2620 x 1450 x 1740mm

Maximum Cutting Diameter

220mm

Maximum Cutting Length

260mm

Rapid Feedrates

20m/minute

Spindle Motor Power

17kW

Spindle Nose

A2-6

Spindle Speed

4500rpm

Swing

400mm

Swing Over Carriage

400mm

Tailstock Taper

MT #4

Tool Size

20 x 20mm

Tooling Configuration

VDI30

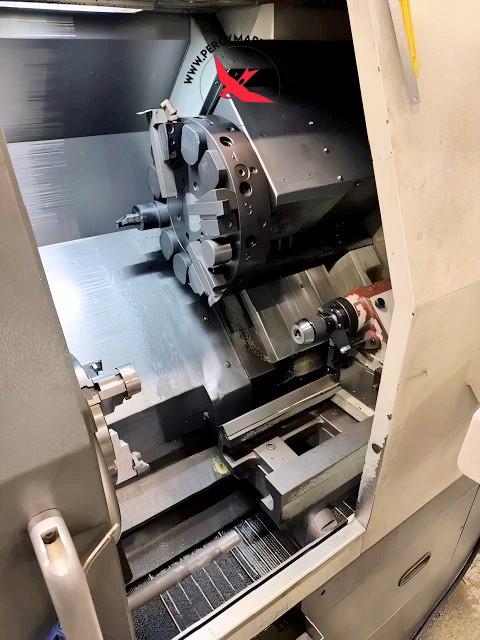

Turret Positions

12 Station

X axis Travel

185mm

Z axis Travel

320mm
