XYZ Compact Turn 52 2008

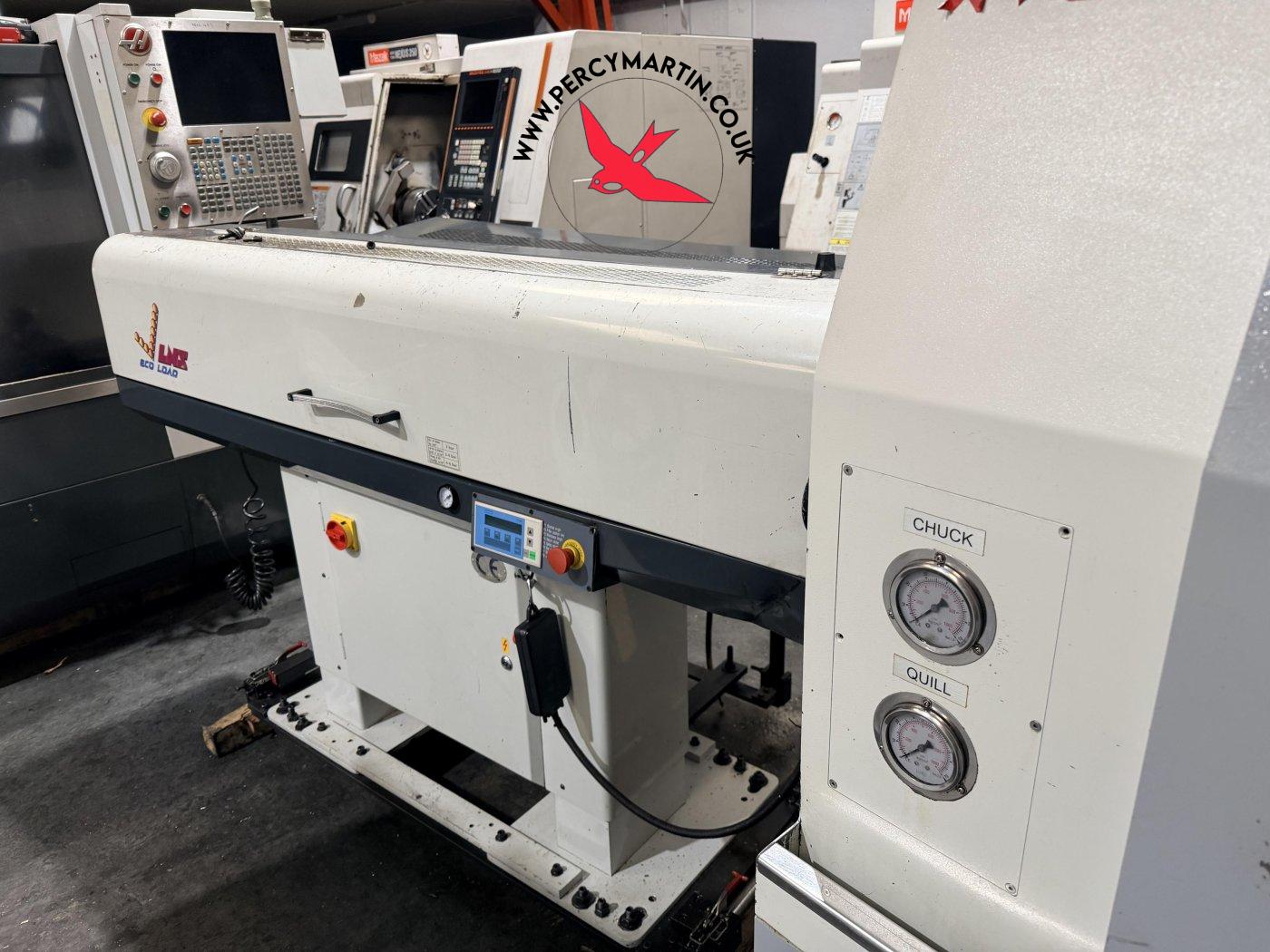

3 Jaw Chuck , Coolant , Interlocked guards , Low Volt Light , Magazine Barfeed , Parts Catcher , Swarf Conveyor , Tailstock , Tool setter
XYZ Compact Turn 52 2008
Key Features
Type:
All Products
Model:
Compact Turn 52
Make:
XYZ
Year:
2008
Serial No
STA00012
Price
£POA
Our Reference
PM9422
Location
Leicester
XYZ Compact Turn 52 2008
Specifications
Bar Capacity
52mm
Chuck Size
150mm (6")

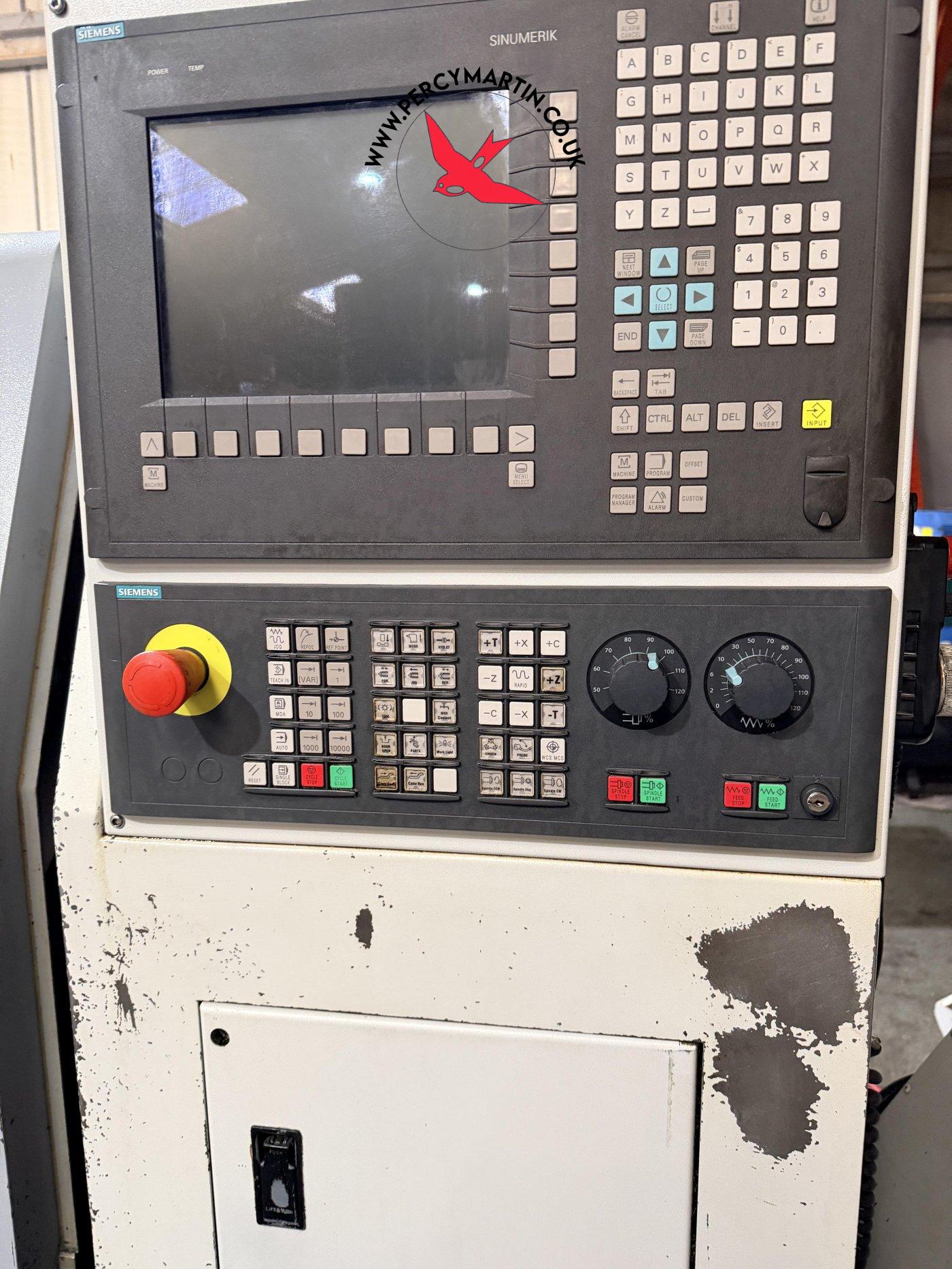

Control
Siemens 810D
Distance Between Centres
280mm
Machine Dimensions
2531 x 1778 x 1720mm
Machine Weight
2590kg
Maximum Cutting Diameter
220mm
Maximum Cutting Length
280mm
Rapid Feedrates
20m/minute
Spindle Motor Power
20Hp
Spindle Nose
A2-5
Spindle Speed
5000rpm
Swing
400mm
Swing Over Carriage
400mm
Tailstock Quill Diameter
60mm
Tailstock Quill Stroke
90mm
Tailstock Taper
MT #4
Tool Size
20 x 20mm
Tooling Configuration
VDI 30
Turret Positions
12
X axis Travel
185mm
Z axis Travel
325mm
