Miyano ABX-64SYY 2022

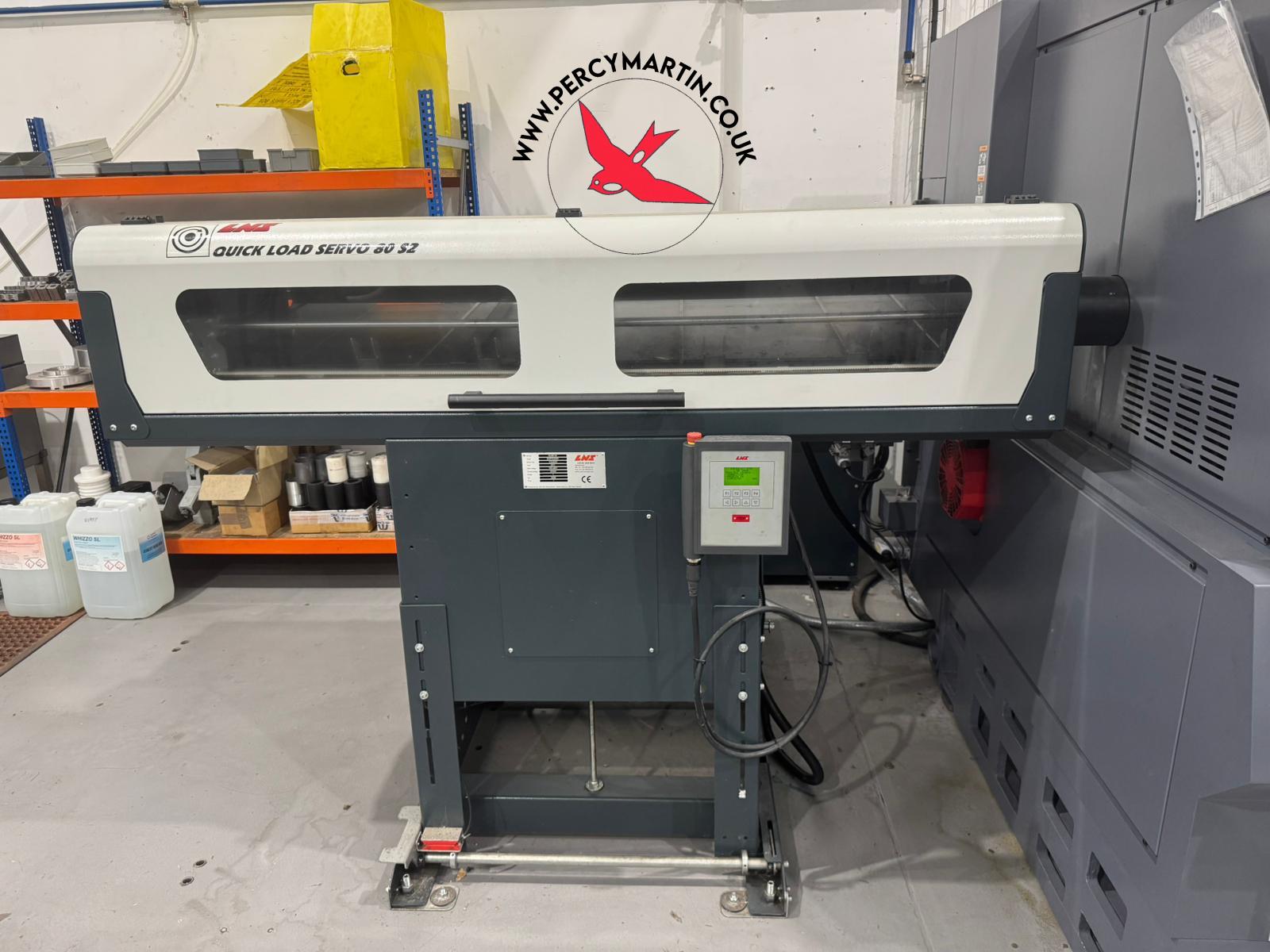

C axis & Milling , C axis on Sub Spindle , Coolant , Low Volt Light , Lower Turret , Magazine Barfeed , Parts Catcher , Parts Conveyor , Sub Spindle , Swarf Conveyor , Tool setter , Twin Spindle , Twin Turret , Y-axis
Miyano ABX-64SYY 2022
Key Features
Type:
All Products
Model:
ABX-64SYY
Make:
Miyano
Year:
2022

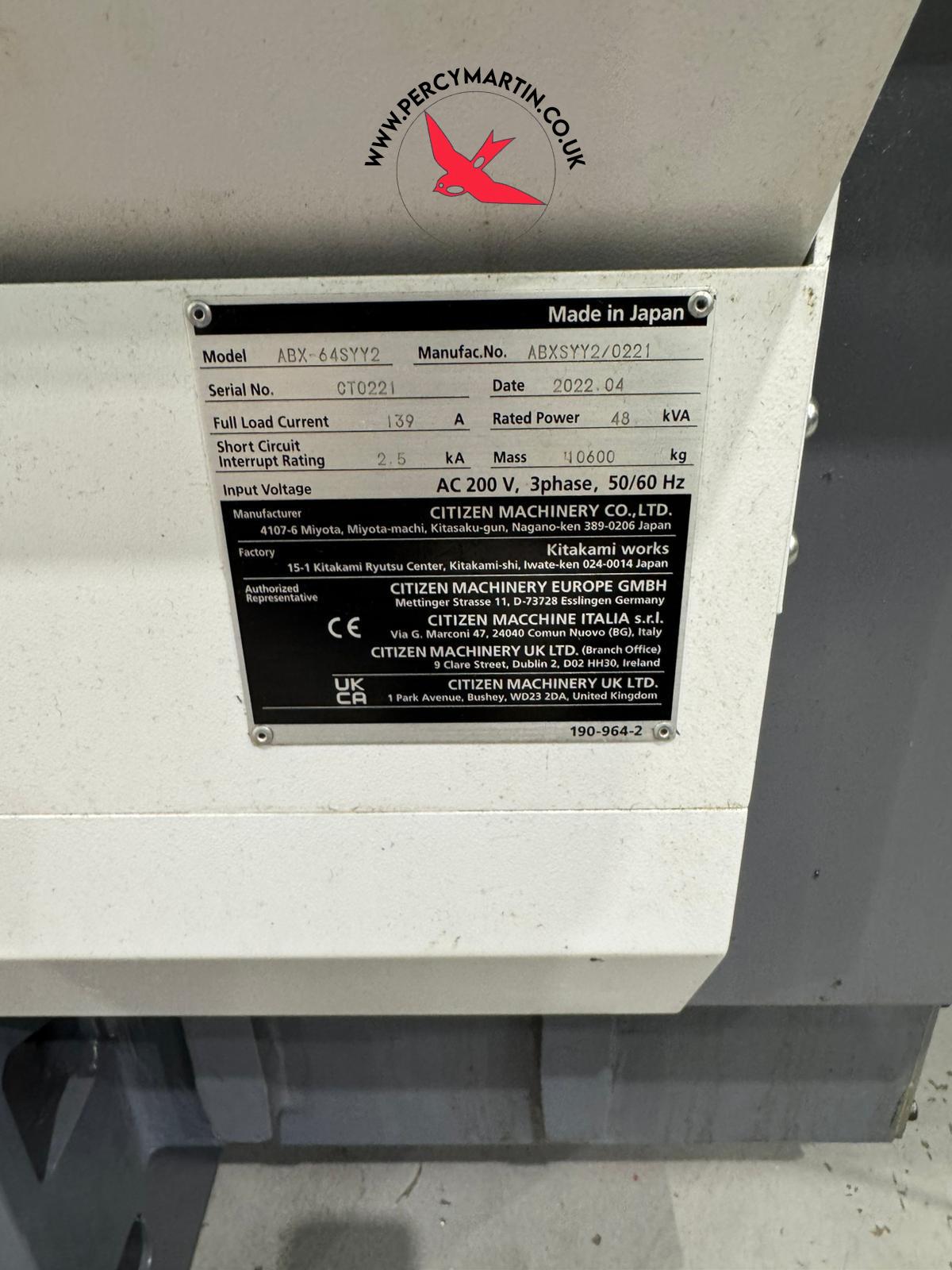

Serial No
CT0221
Price
£POA
Our Reference
Location
Leicester
Miyano ABX-64SYY 2022
Specifications
Bar Capacity
64mm
C axis
0.001 degree
Control
FANUC 31i-B
Distance Between Centres
749mm
Lower Turret
12 Station
Lower Turret Milling Motor
4.5kW
Lower Turret Milling Speed
6000rpm
Machine Dimensions
3290 x2204 x 2222mm
Machine Weight
10600kg
Maximum Cutting Diameter
210mm
Maximum Cutting Length
514mm
Spindle Motor Power
15/11kW
Spindle Speed
4000rpm
Sub Spindle C axis
0.001 degree
Sub Spindle Motor
7.5/5.5kW
Sub Spindle Speed
5000rpm
Upper Turret
12 Station
Upper Turret Milling Motor
4.5kW
Upper Turret Milling Speed
6000rpm
Y axis Travel
80mm
Y2 Axis Travel
80mm
