XYZ 250 TC 2010

3 Jaw Chuck , Parts Catcher , Swarf Conveyor , Tailstock , Tool setter , Tooling

Key Features Gallery Specifications More in Stock Register Interest

XYZ 250 TC 2010

Key Features

Type:

All Products

Model:

250 TC

Make:

XYZ

Year:

2010

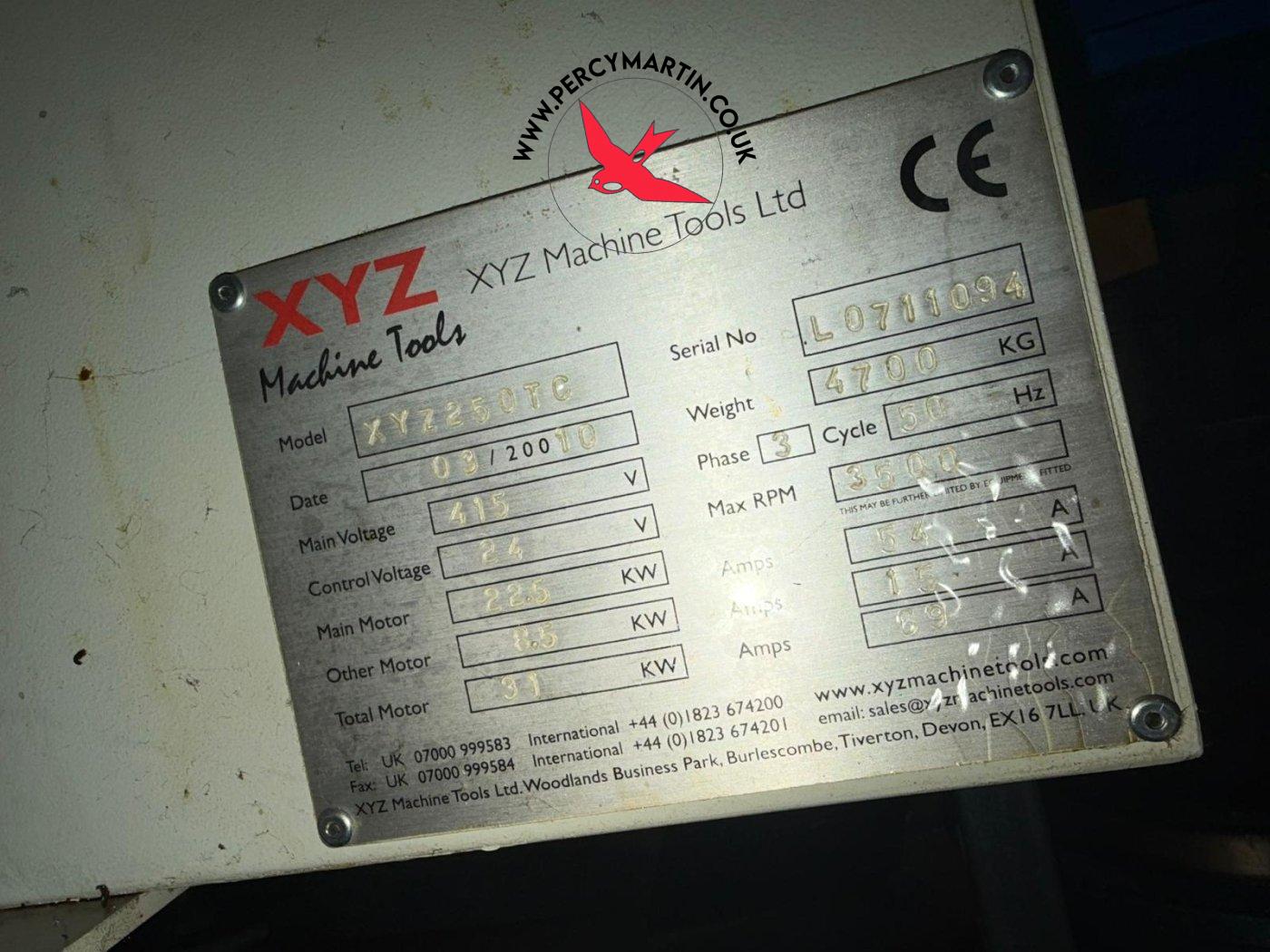

Serial No

L0711094

Price

£POA

Our Reference

PM9749

Location

Leicester

XYZ 250 TC 2010

Specifications

Bar Capacity

77mm

Chuck Size

254mm

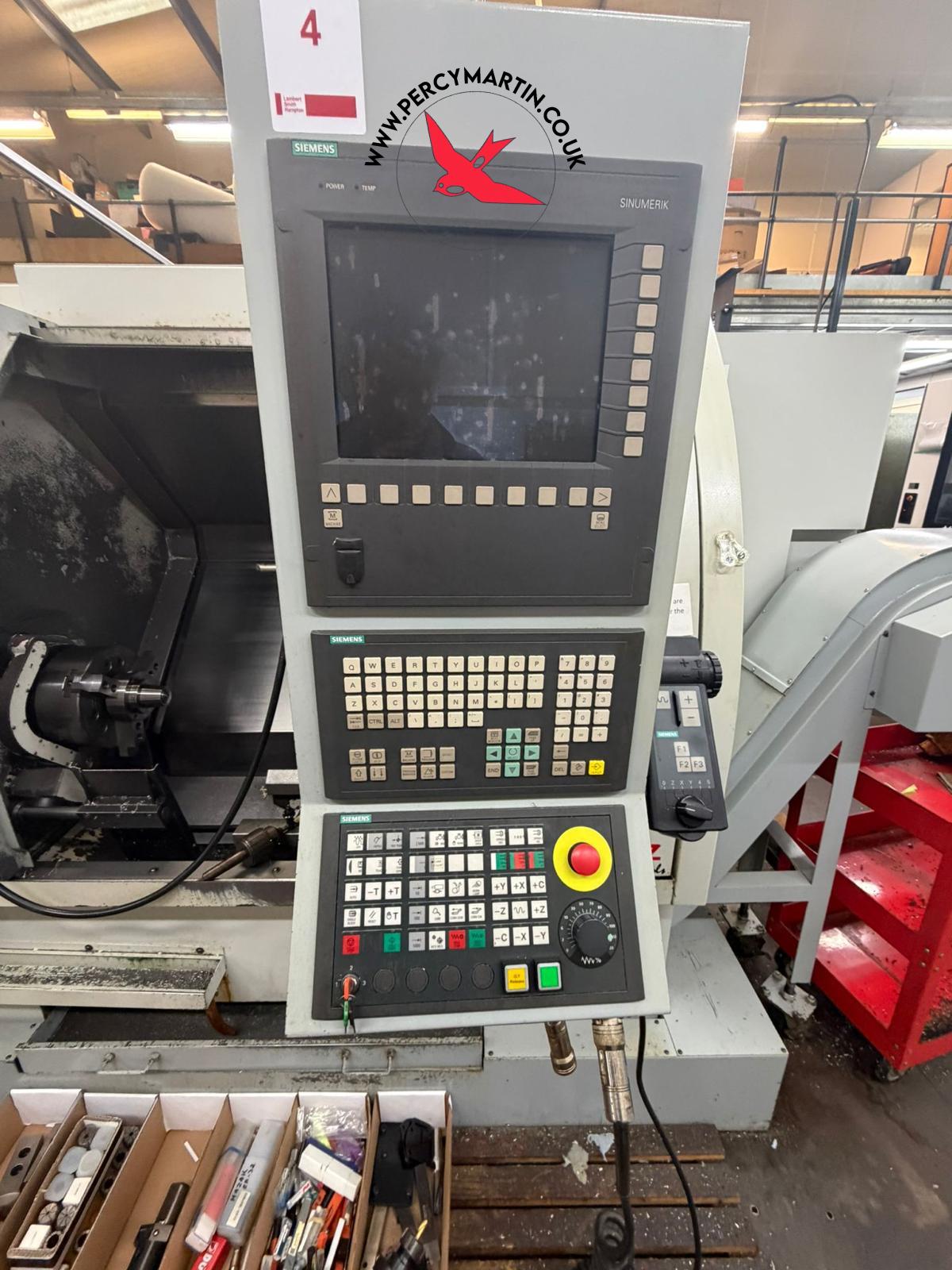

Control

Siemens 810D with Shopturn

Machine Dimensions

3100 x 2200 x 2200mm

Machine Weight

4700kg

Maximum Cutting Diameter

250mm

Rapid Feedrates

XZ: 12 x 20m/minute

Spindle Motor Power

22.5/17kW

Spindle Nose

A2-8

Spindle Speed

3500rpm

Swing

550mm

Swing Over Carriage

330mm

Tailstock Quill Diameter

95mm

Tailstock Quill Stroke

125mm

Tailstock Taper

MT #5

Tooling Configuration

VDI40

Turret Positions

12 Station

X axis Travel

220mm

Z axis Travel

550mm
