XYZ 1060 HS VMC 2013

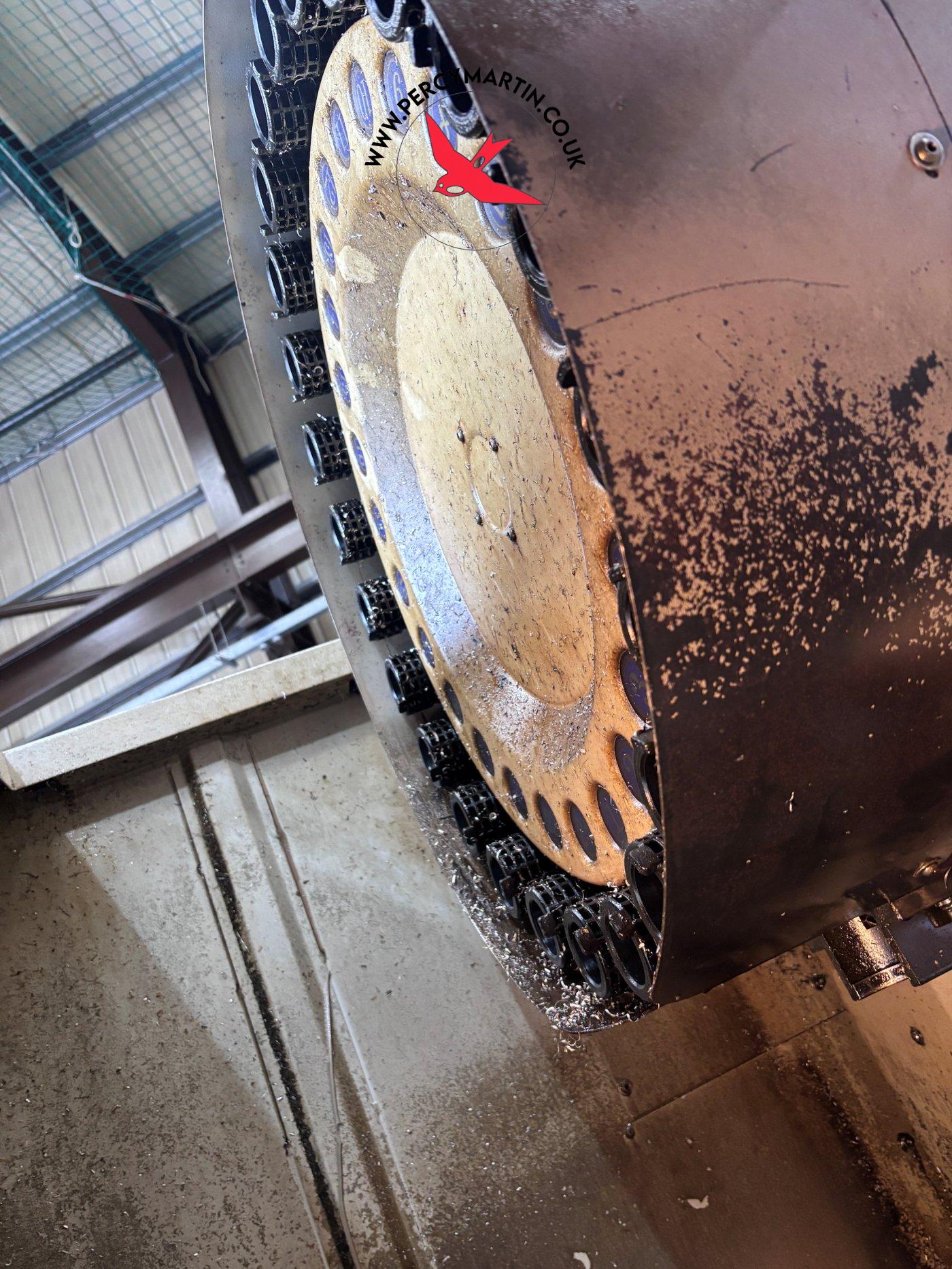

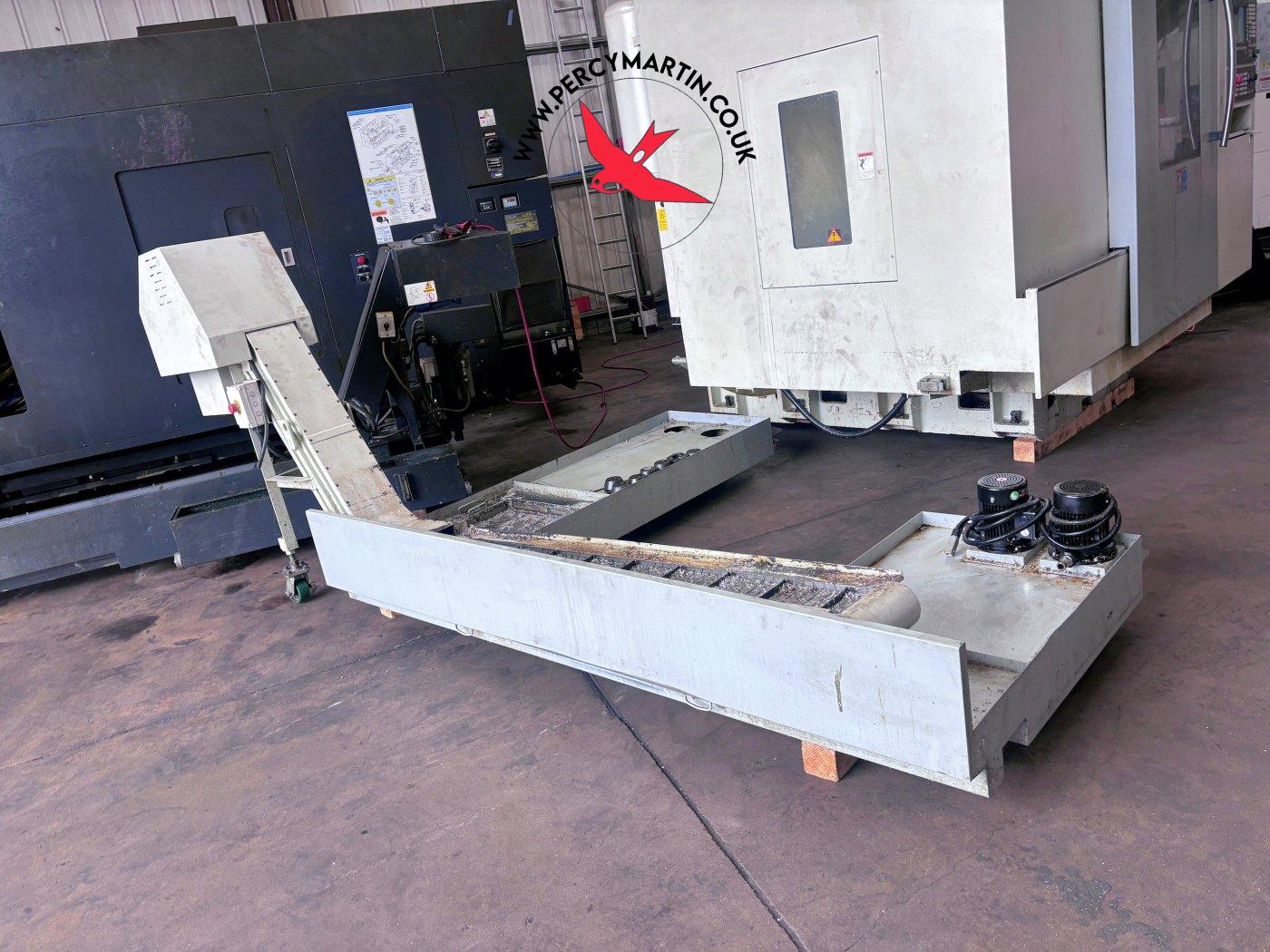

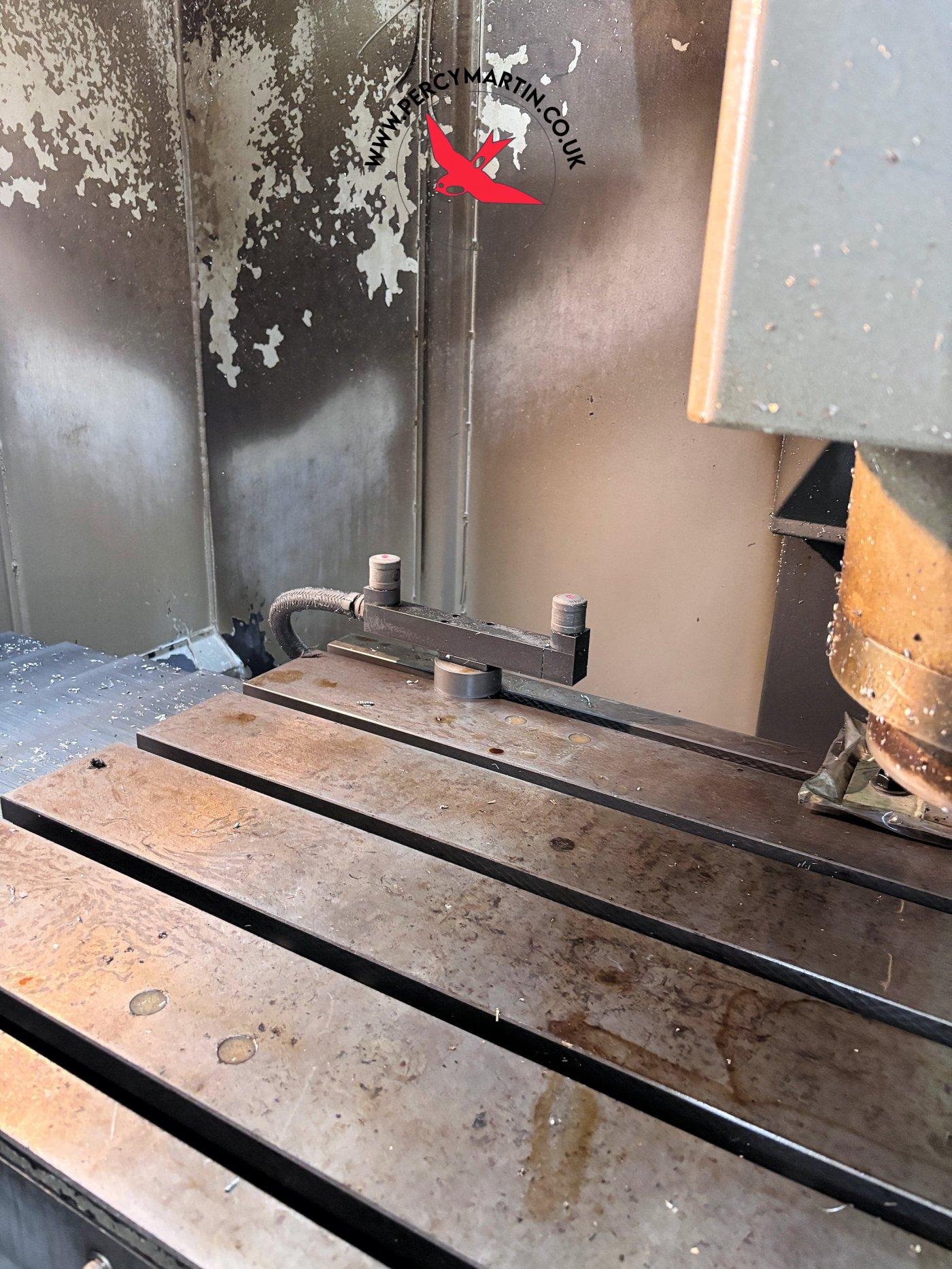

Coolant , Interlocked guards , Low Volt Light , Remote Hand Wheel , Swarf Conveyor , Swing Arm Toolchanger , Through Spindle Coolant , Tool setter , USB Port
XYZ 1060 HS VMC 2013
Key Features
Type:
All Products
Model:
1060 HS VMC
Make:
XYZ
Year:
2013
Serial No
SMK00038
Price
£POA
Our Reference
PM9629
Location
Leicester
XYZ 1060 HS VMC 2013
Specifications
Control

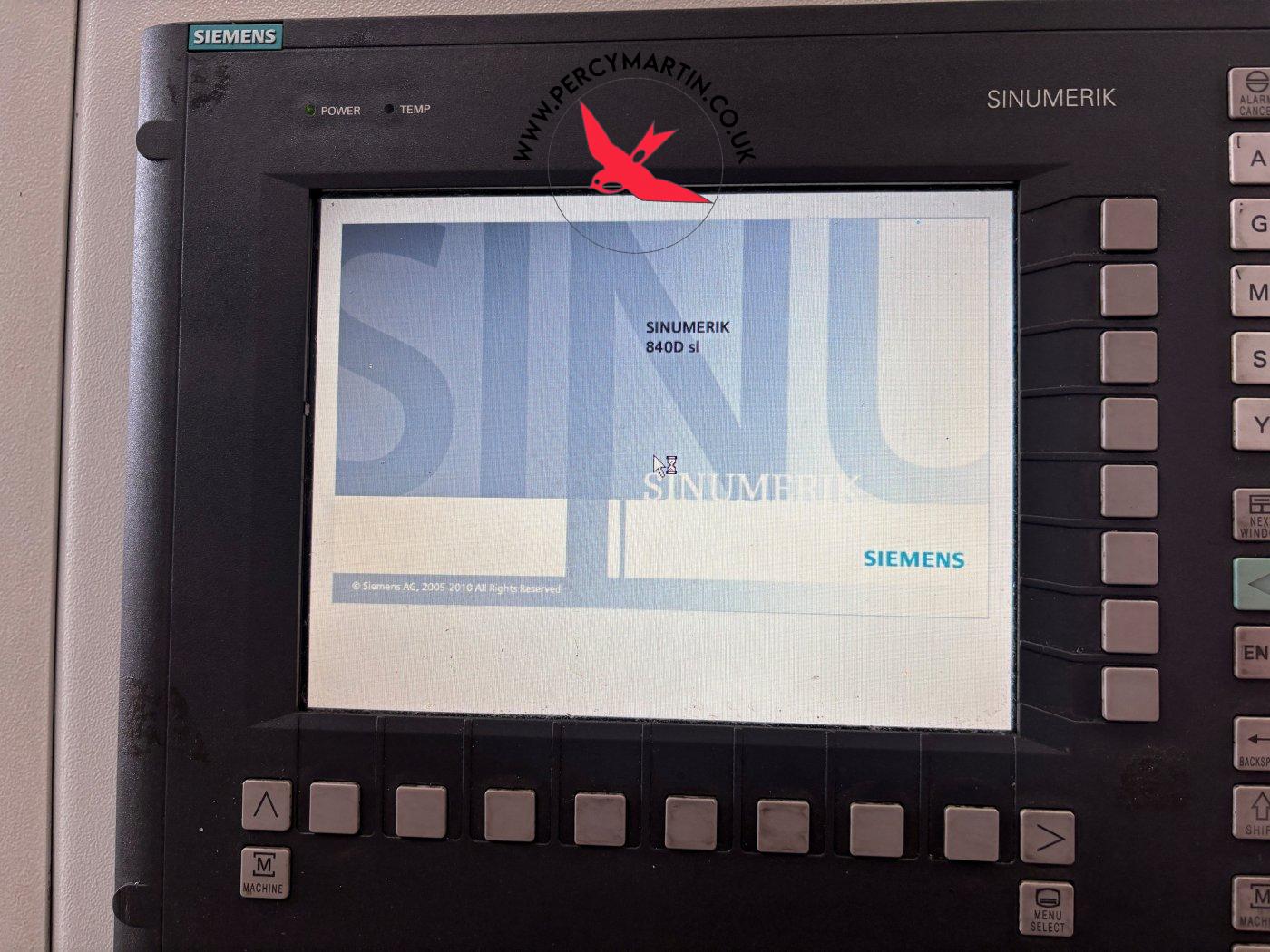

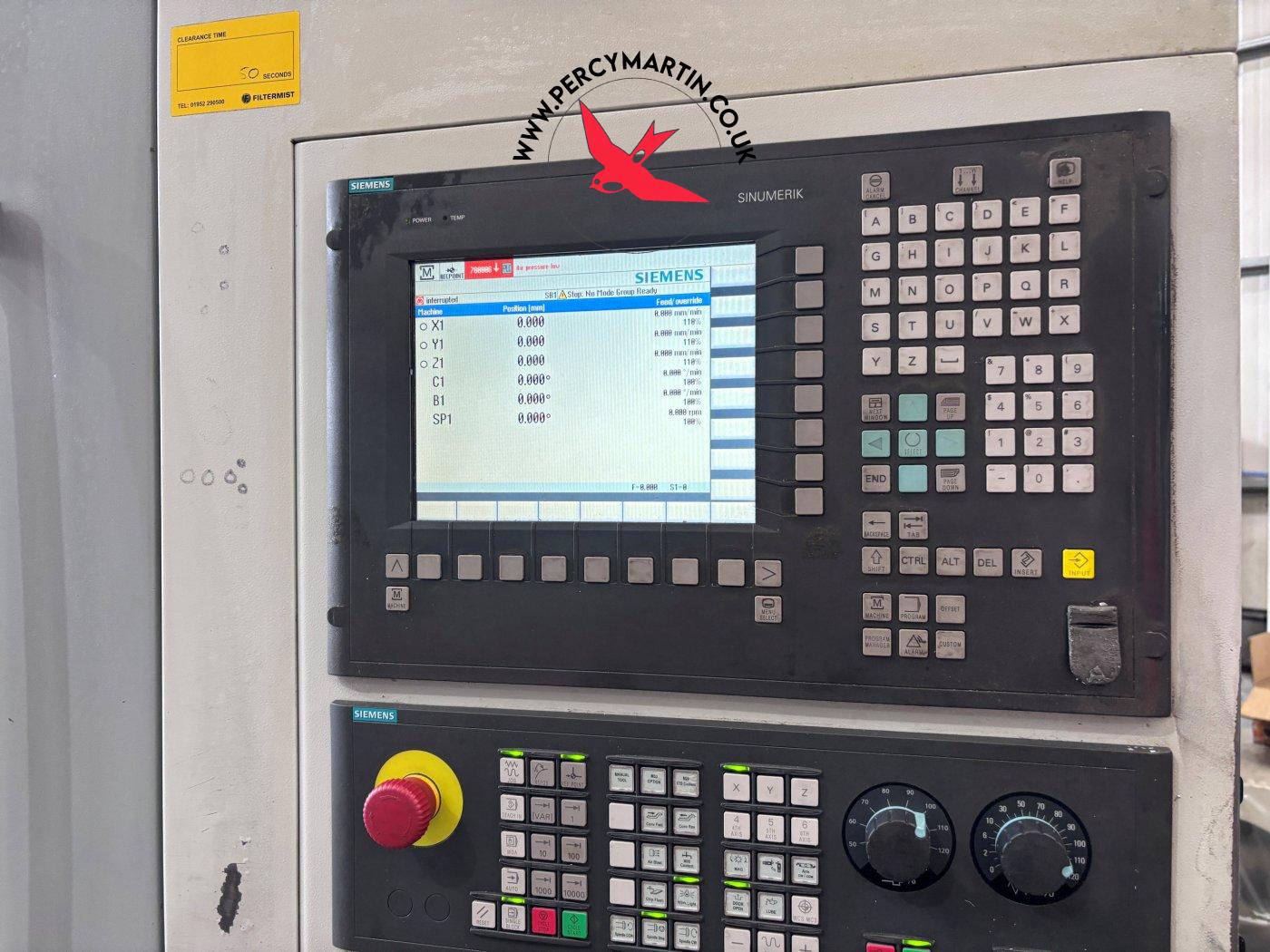

Siemens 840DSL with Shopmill
Distance from Spindle Centre to Column
670mm
Machine Dimensions
2650 x 2750 x 2900mm
Machine Weight
7200kg
Maximum Tool Weight
8kg
Maximum workpiece weight
800kg
Min - Max Height under Spindle
140 – 760mm
Rapid Feedrates
43m/minute
Spindle Motor Power
14.7kW
Spindle Speed
12000rpm
Spindle Taper
BT40
Table Size
1200mm x 600mm
Tool Change Capacity
30
Tool Change Time (Chip to Chip)
3.5 seconds
Traverses XYZ
1020 x 610 x 620mm
XYZ 1060 HS VMC 2013
