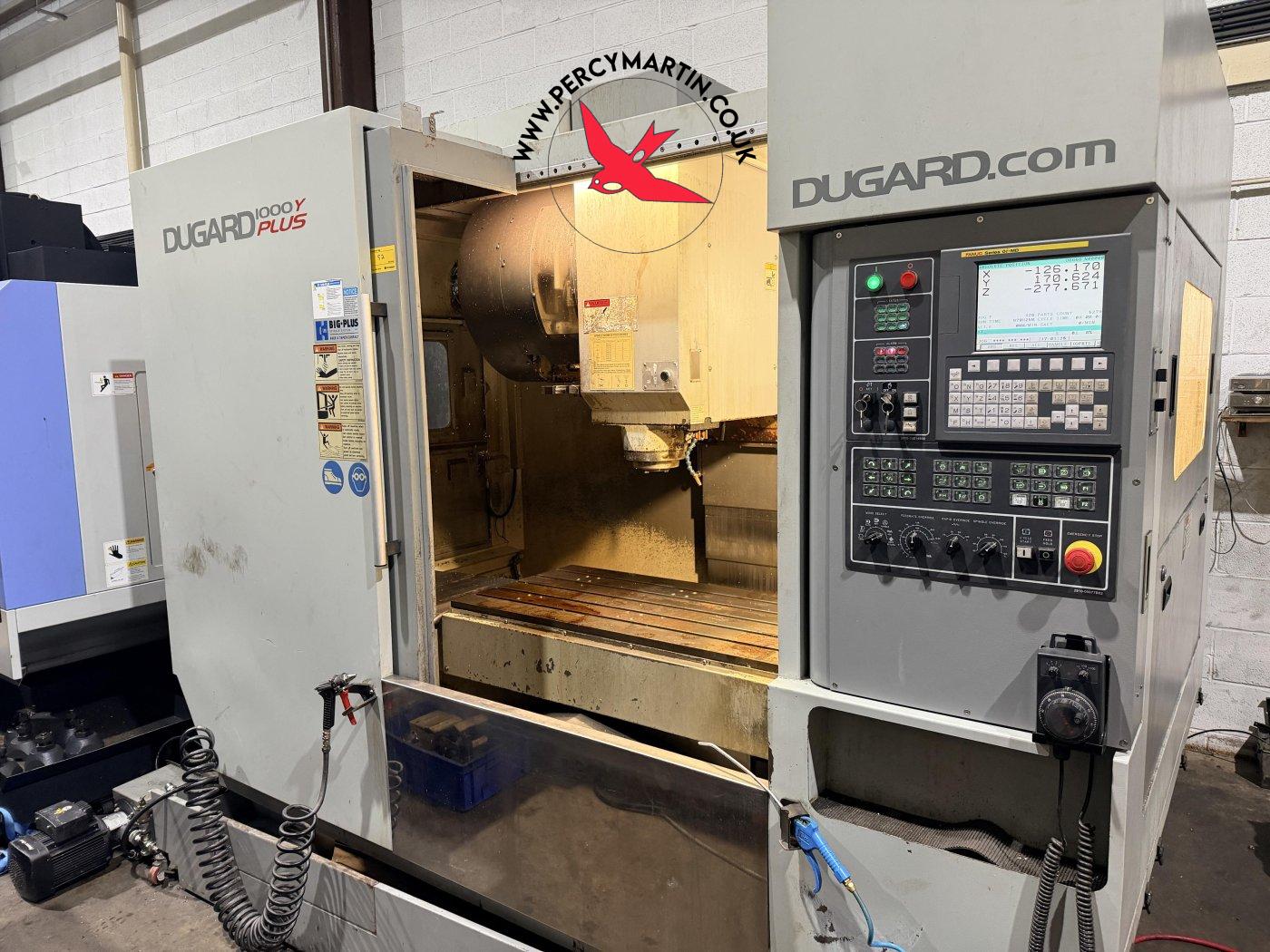

Dugard 1000Y PLUS 2012

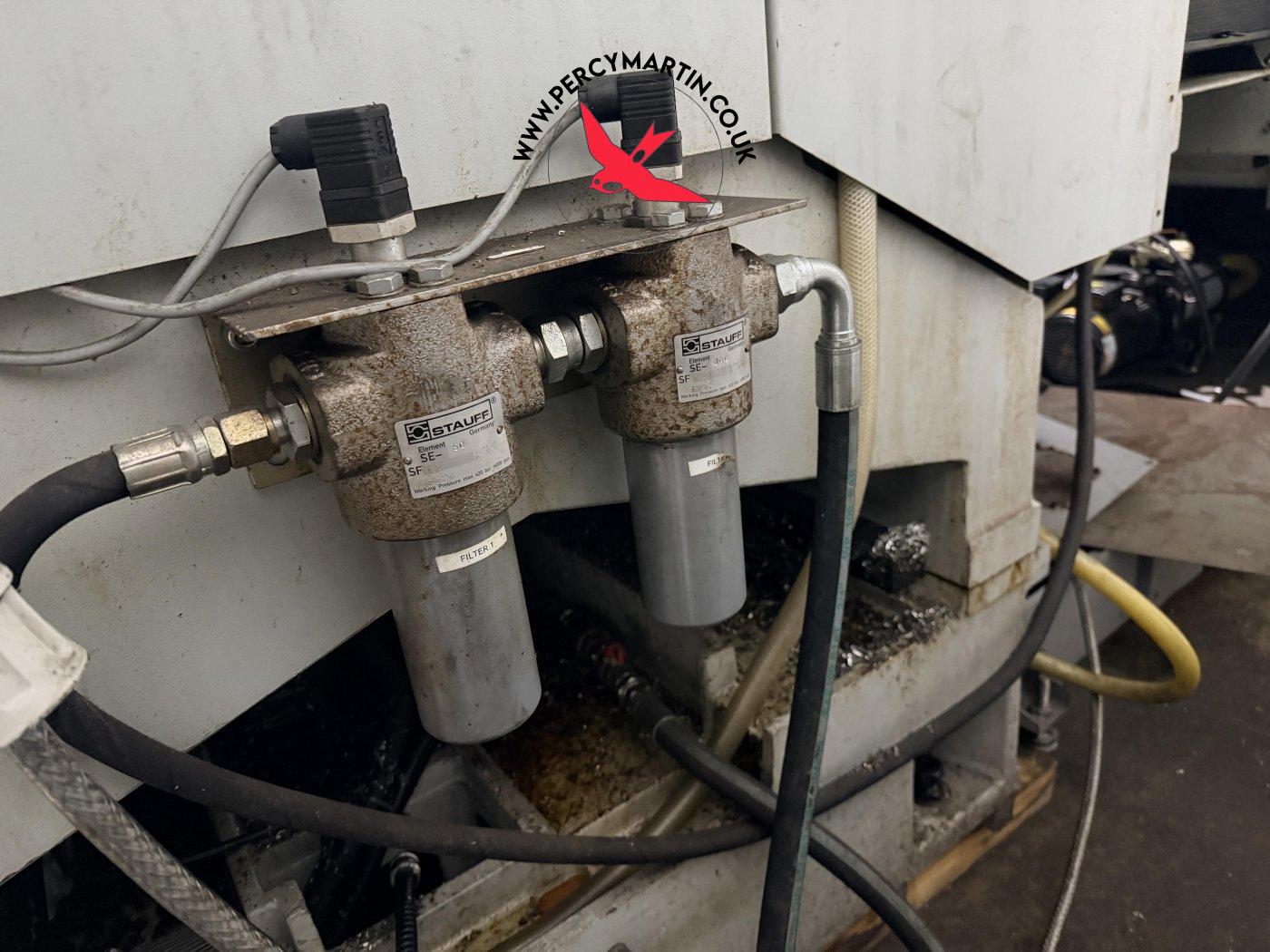

Coolant , Interlocked guards , Low Volt Light , Through Spindle Coolant
Dugard 1000Y PLUS 2012
Key Features
Type:
All Products
Model:
1000Y PLUS
Make:
Dugard
Year:
2012
Serial No
FML118L05
Price
£POA
Our Reference
PM9545
Location
Leicester
Dugard 1000Y PLUS 2012
Specifications

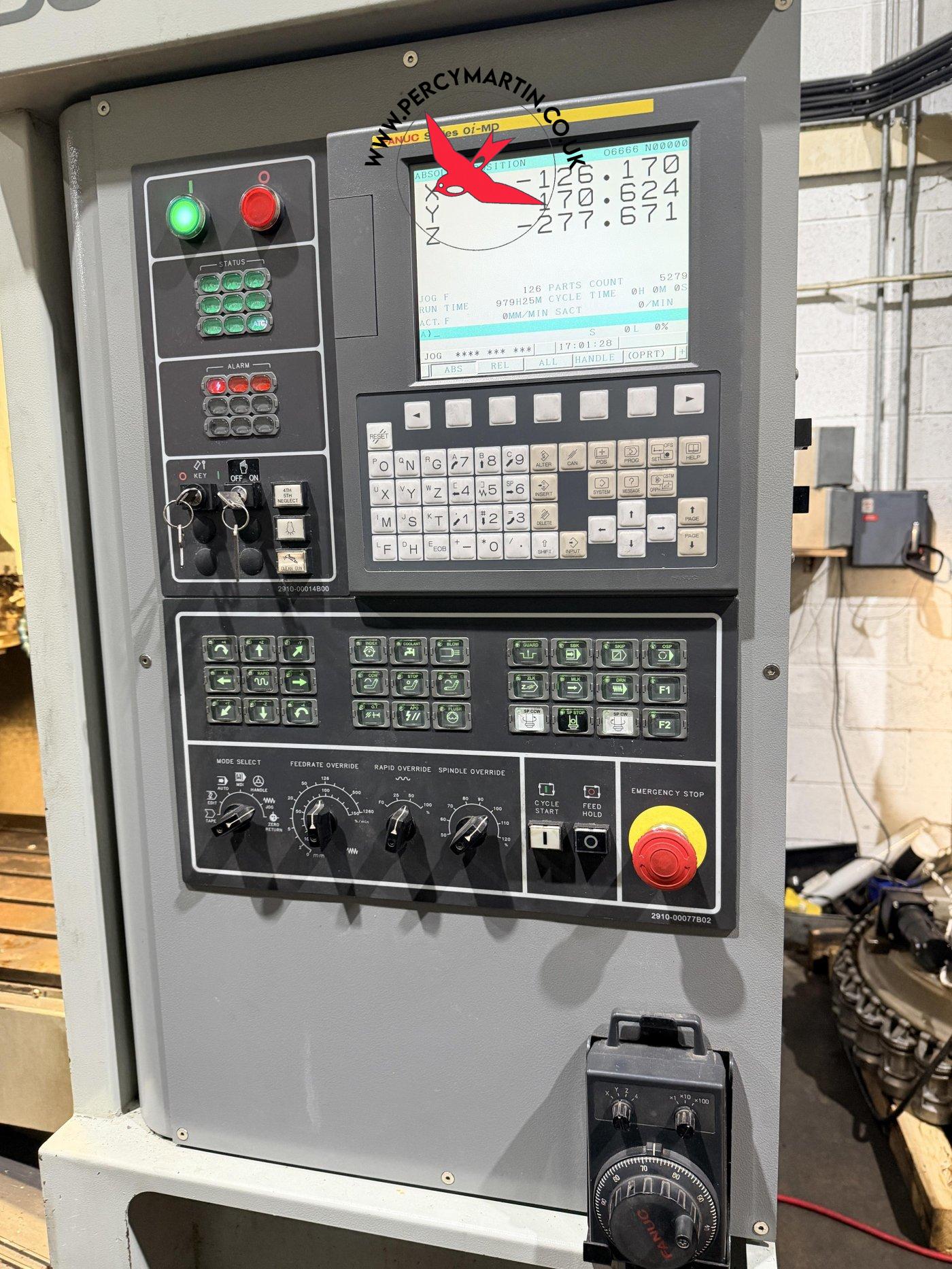

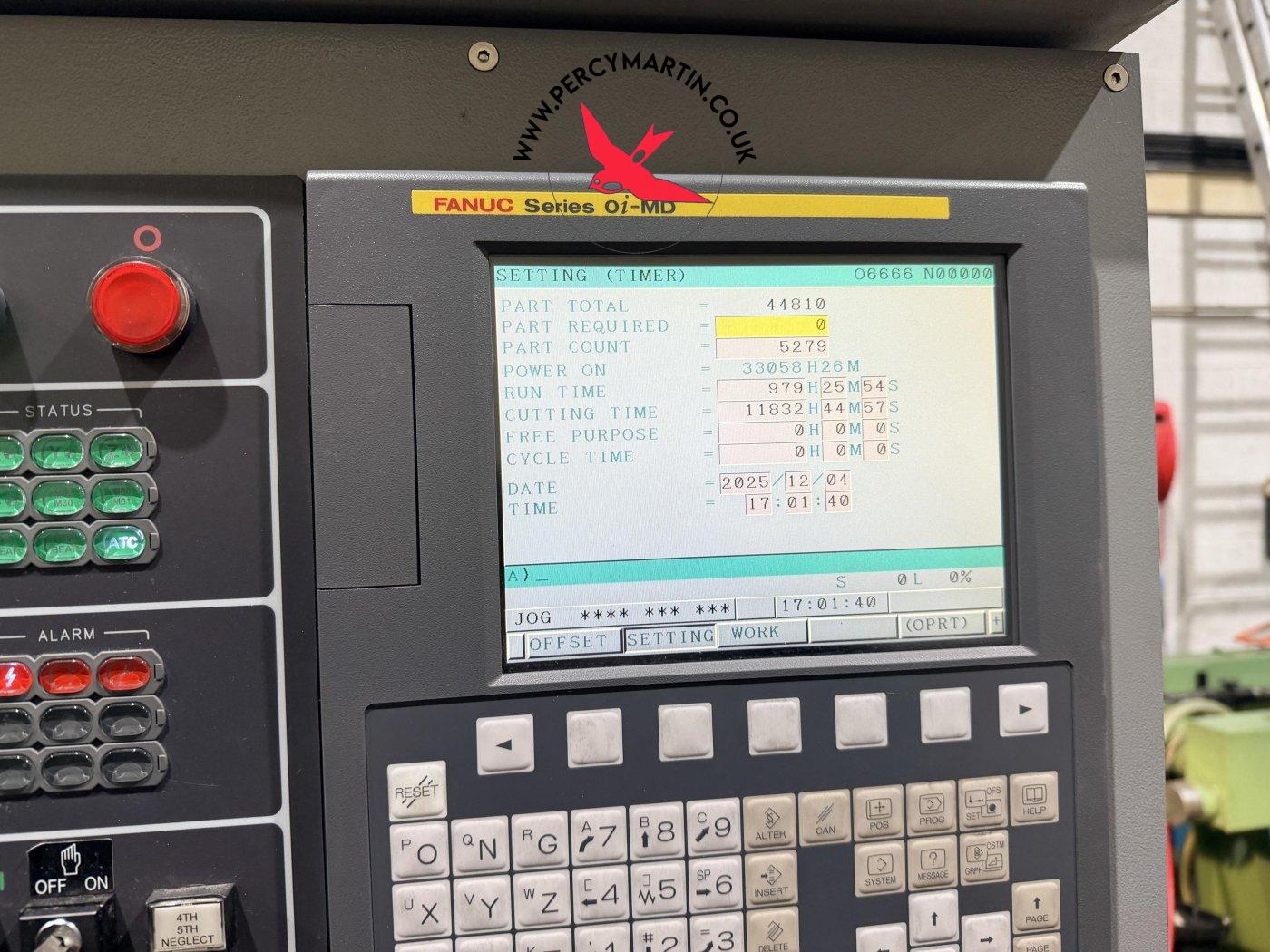

Control
FANUC 0i -MD
Machine Dimensions
2800 x 2080 x 2583mm
Machine Weight
6700kg
Maximum Cutting Feedrate
10m/minute
Maximum Tool Diameter
76mm
Maximum Tool Length
250mm
Maximum Tool Weight
7kg
Maximum workpiece weight
500kg
Min - Max Height under Spindle
130~640mm
Rapid Feedrates
XYZ: 30 x 30 x 24m/minute
Spindle Centre to Column
585mm

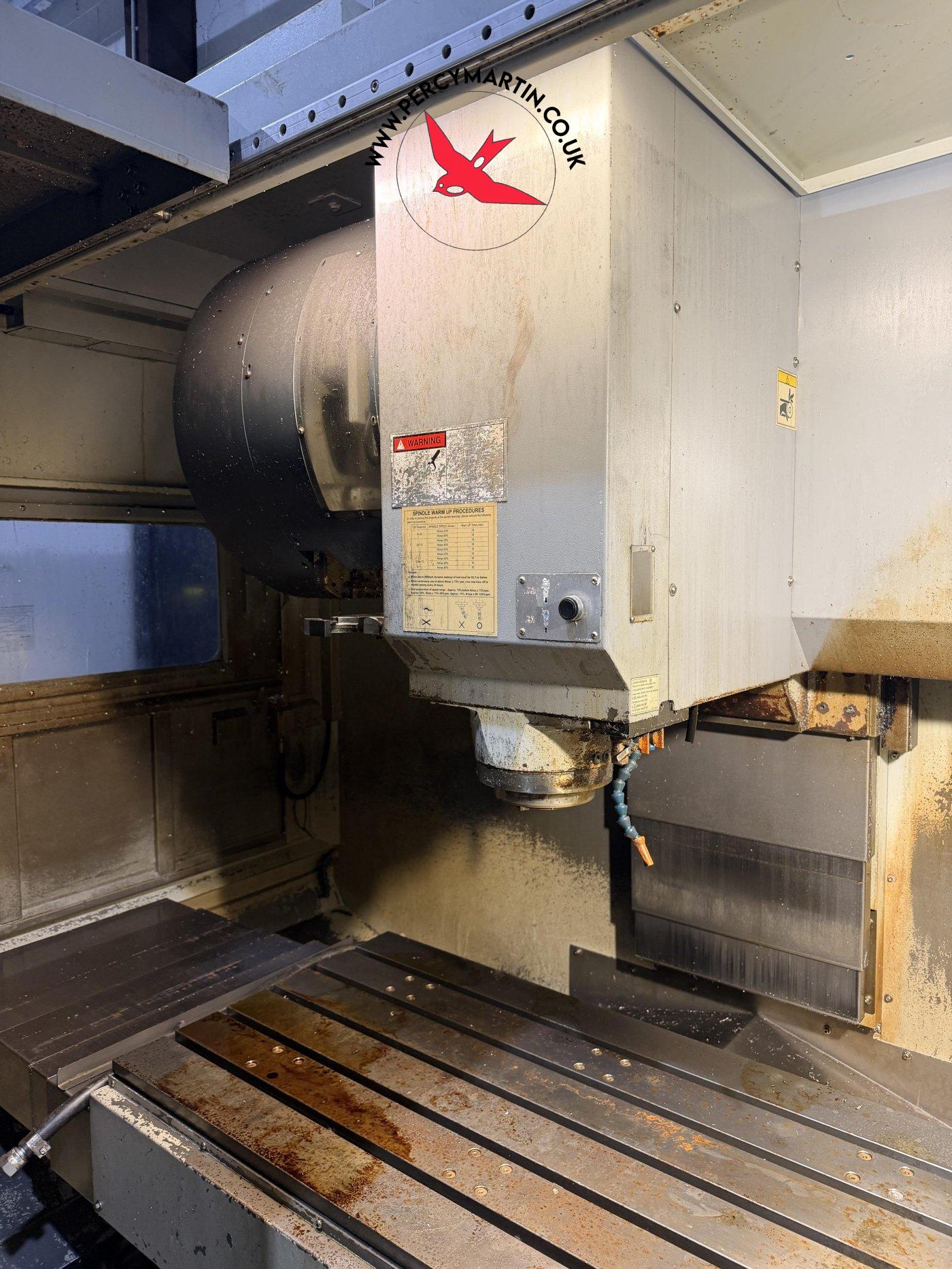

Spindle Speed
10000rpm
T- Slots
5 x 18mm (100mm centres)

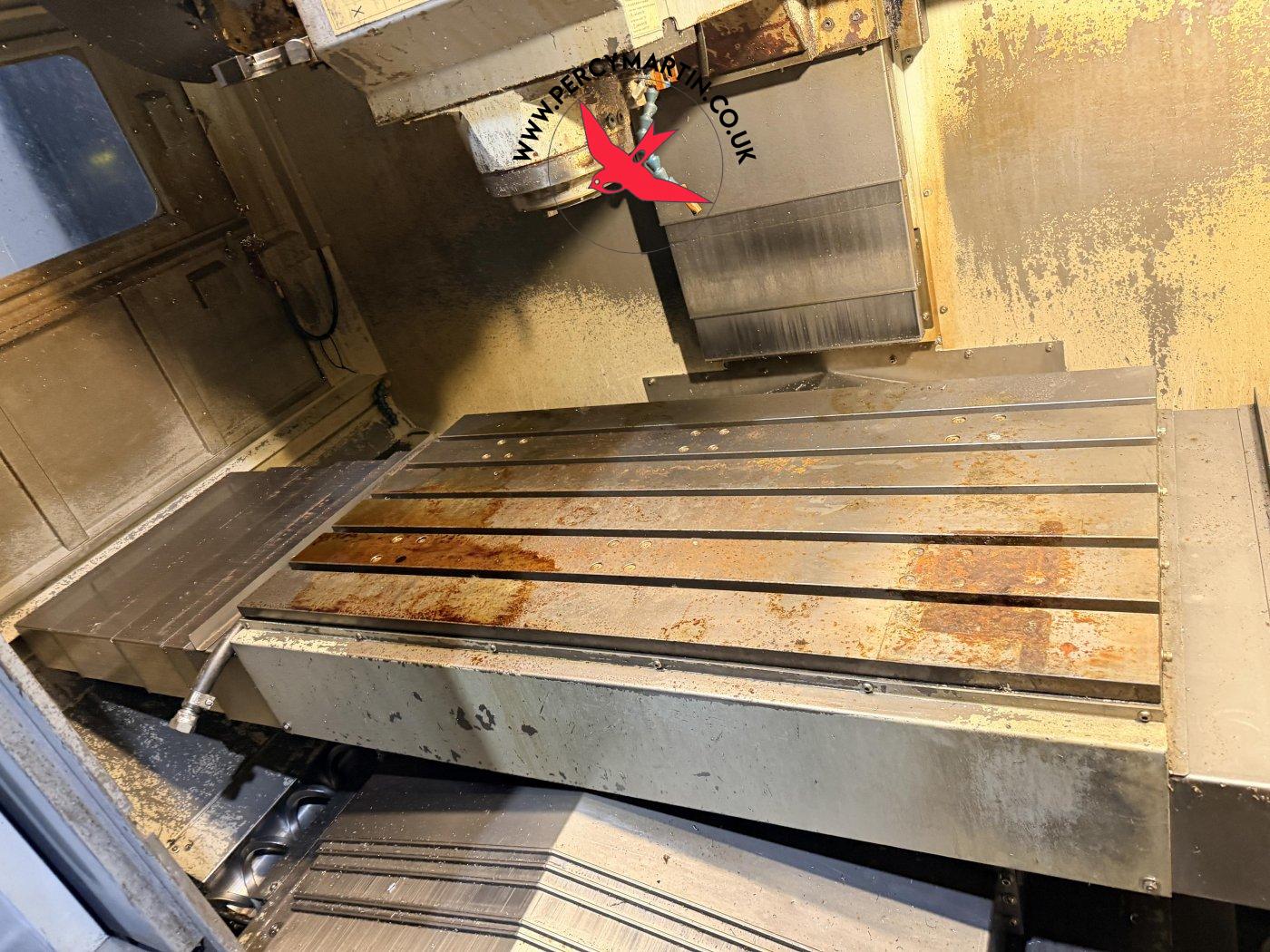

Table Size
1200mm x 600mm
Tool Change Capacity
24 Station
Tool Change Time (Chip to Chip)
1.5 Seconds
Tool Size
BT40 BIG PLUS
Traverses XYZ
1020 x 610 x 510mm
Dugard 1000Y PLUS 2012
