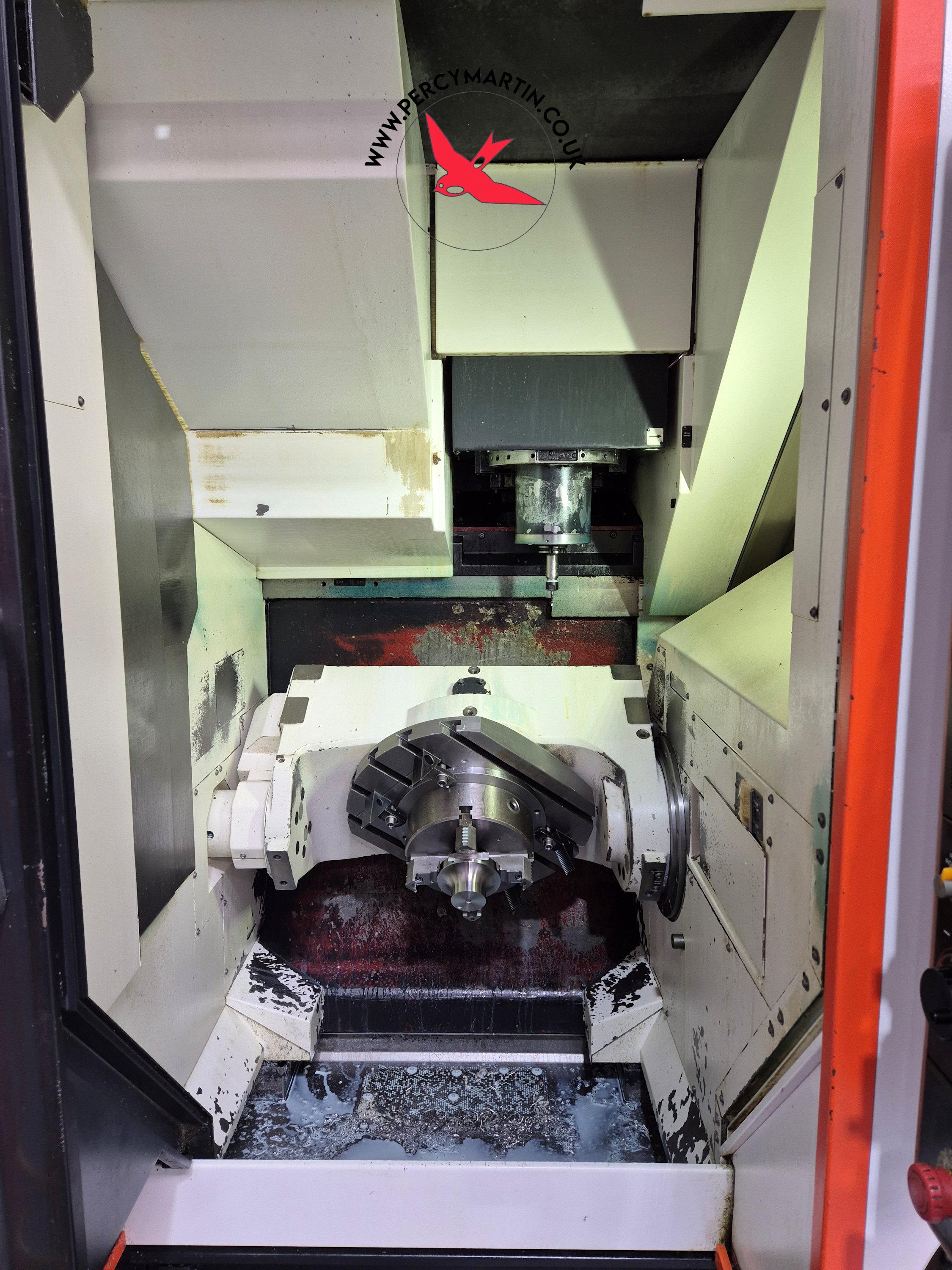

Mazak VARIAXIS i-500 2014
5 axis , A axis , C axis , Coolant , Interlocked guards , Low Volt Light , Manuals , Through Spindle Coolant , Tool setter
Mazak VARIAXIS i-500 2014
Key Features
Type:
5 Axis Machining Centres
Model:
VARIAXIS i-500
Make:
Mazak
Year:
2014

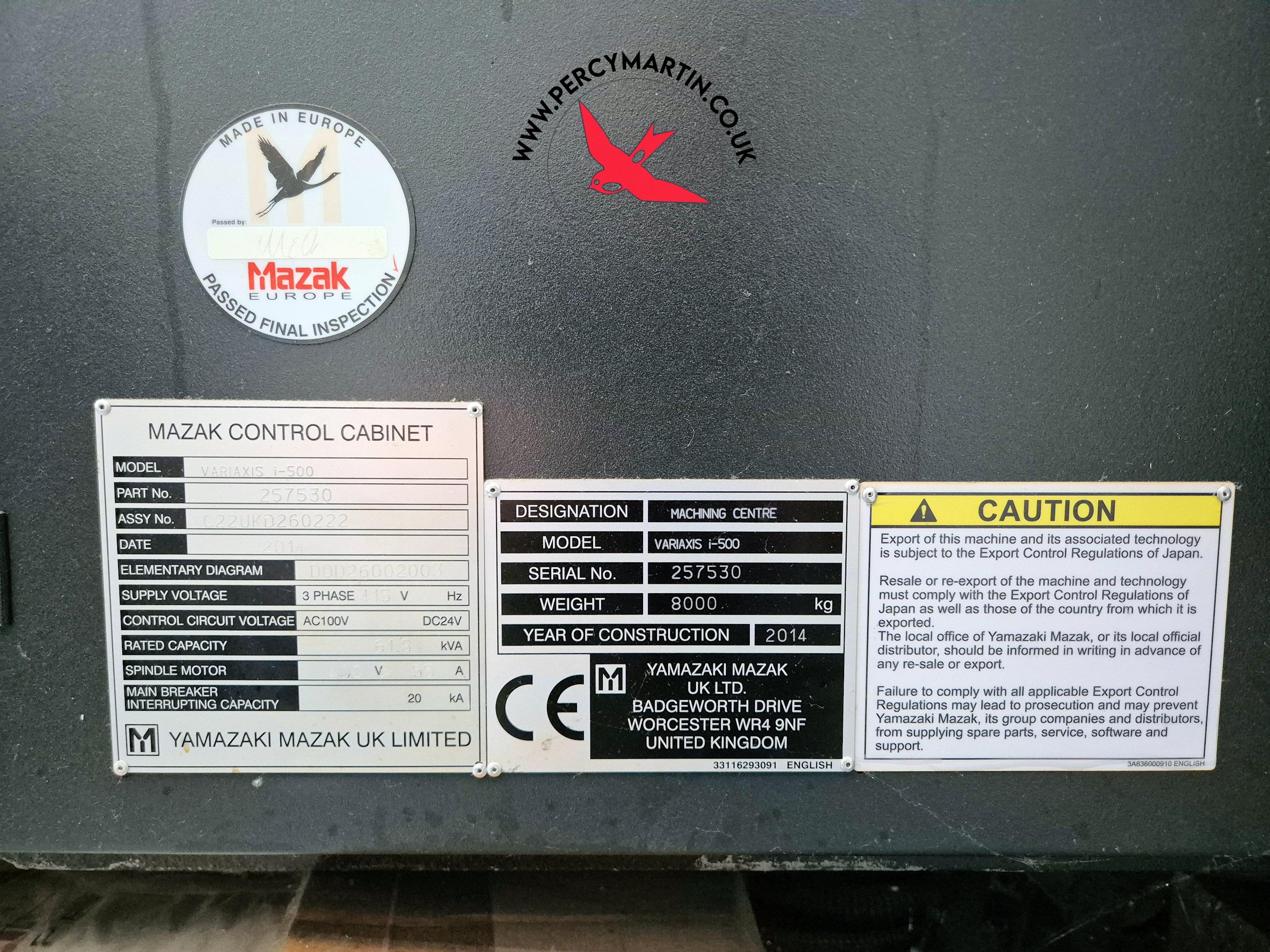

Serial No
257530
Price
£POA
Our Reference
PM9891a
Location
Leicester
Mazak VARIAXIS i-500 2014
Specifications
A axis
-120 ~ +30 degrees (0.0001 degree increment)
C axis
+/-360 degrees (0.0001 degree increment)

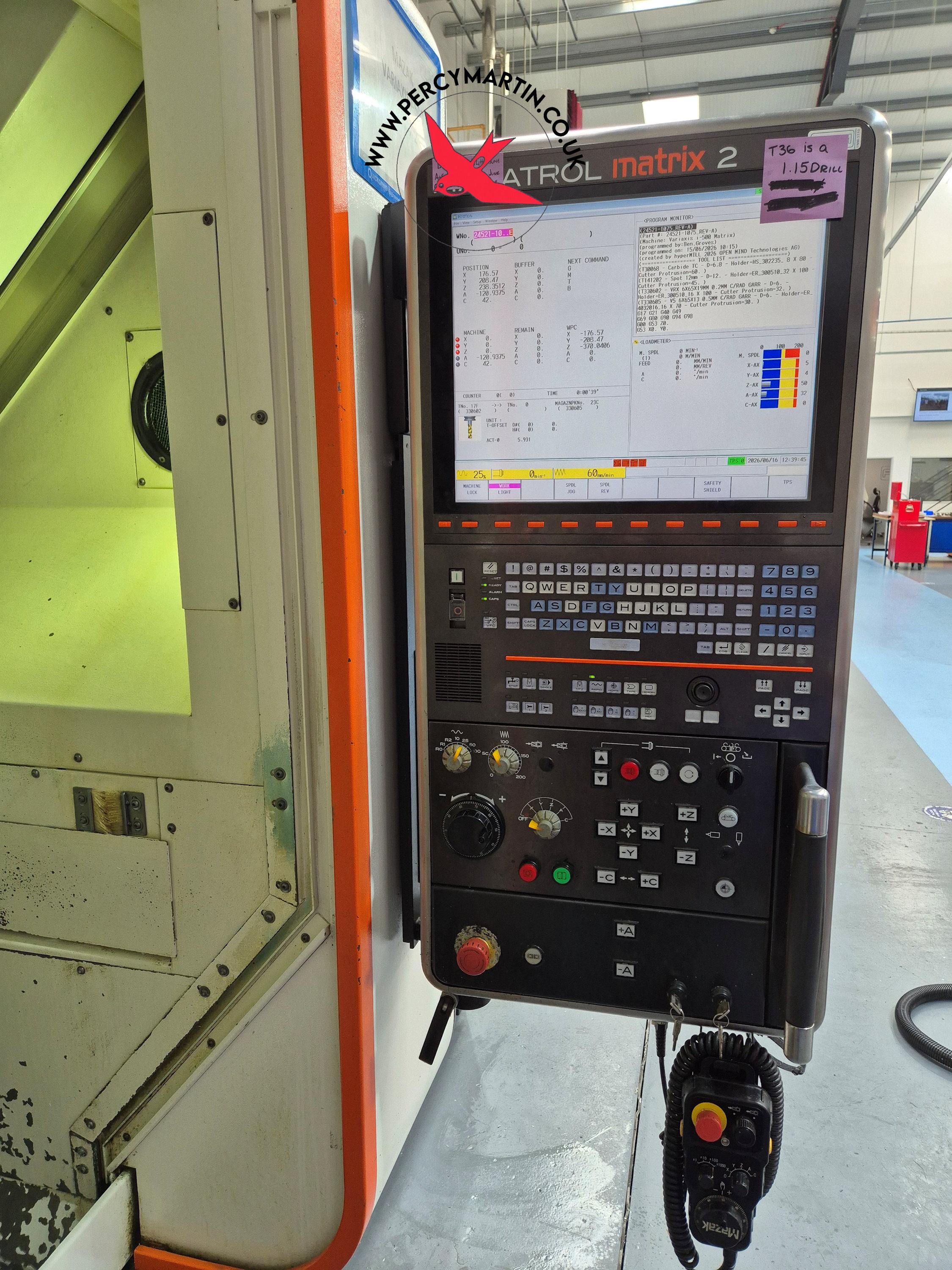

Control
MAZATROL MATRIX 2
Machine Dimensions
3235 x 2400 x 2975mm
Machine Weight
8500kg
Maximum Cutting Feedrate
56m/minute
Maximum Tool Diameter
90mm (130mm if adjacent pocket empty)
Maximum Tool Length
300mm
Maximum Tool Weight
8kg
Maximum Workpiece Size
500 x 350mm
Maximum workpiece weight
300kg
Min - Max Height under Spindle
50 ~ 560 mm
Number of Axis Controlled
5 simultaneous
Rapid Feedrates
XYZAC: 60 x 60 x 56m/minute x 18000 x 18000 degrees/minute
Spindle Motor Power
22kW
Spindle Speed
12000rpm
T- Slots
5 x 18mm
Table Size
500 x 300mm
Tool Change Capacity
30 Station
Tool Change Time (Chip to Chip)
4.5 Seconds
Tool Size
DIN40
Traverses XYZ
350 x 550 x 510mm
