5 Axis Machining Centres
HAAS UMC-500 2020
5 Axis Simultaneous , Coolant , Interlocked guards , Low Volt Light , Remote Hand Wheel , Swarf Conveyor , Tool setter
HAAS UMC-500 2020
Key Features
Type:
5 Axis Machining Centres
Model:
UMC-500
Make:
HAAS
Year:
2020

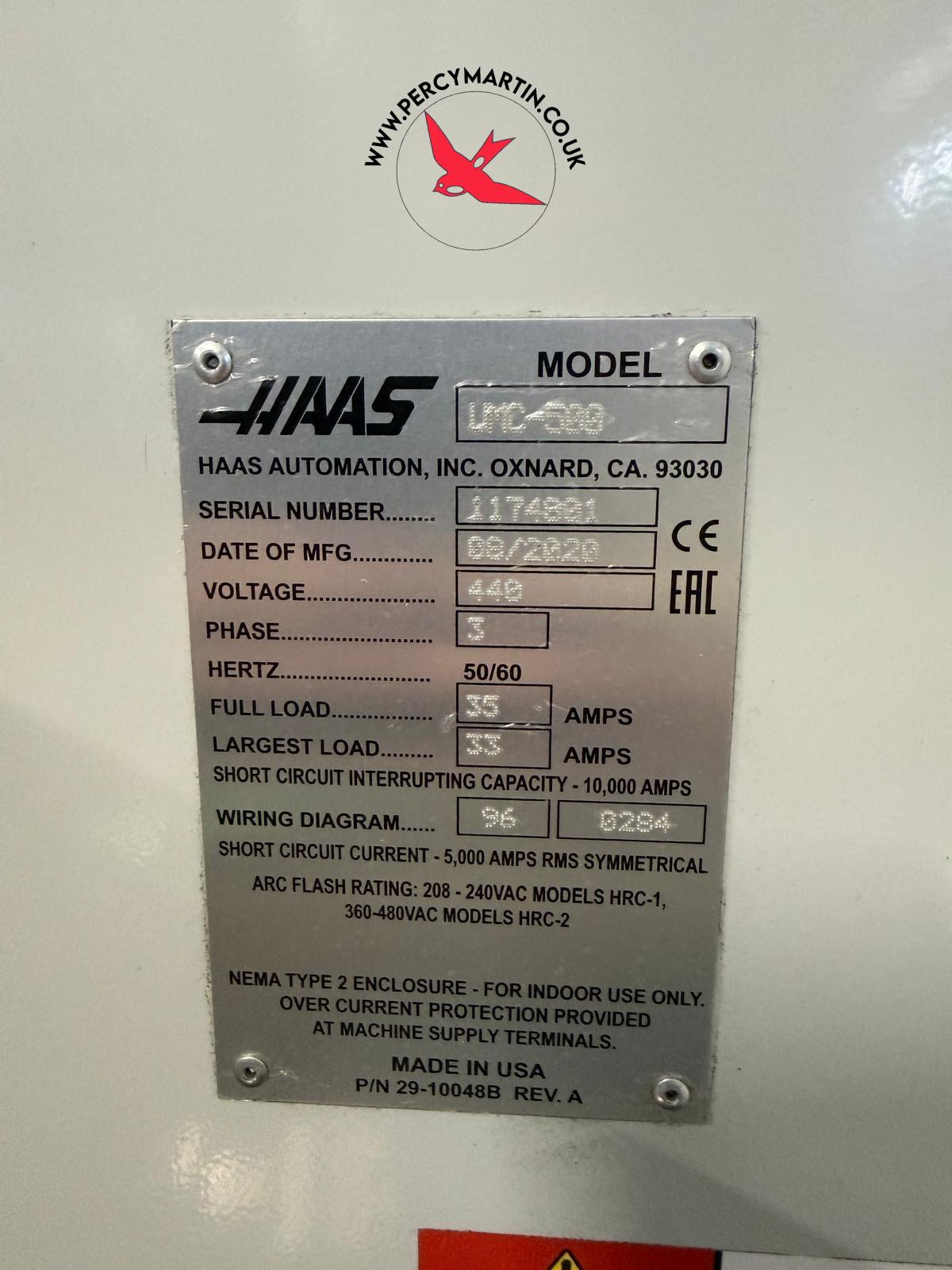

Serial No
1174801
Price
£POA
Our Reference
PM9881
Location
Leicester
HAAS UMC-500 2020
Specifications
B Axis
120 ° to 35- °
B Axis Rapid
50 °/sec
C axis
0.001°
Control
HAAS
Machine Dimensions
3250 x 2490 x 2790mm
Machine Weight
5400kg
Maximum Tool Diameter
64mm
Maximum Tool Diameter with Empty Adjacent Pockets
127mm`
Maximum Tool Length
305mm
Maximum Tool Weight
5.4 kg
Maximum workpiece weight
226kg
Min - Max Height under Spindle
102 - 508mm
Rapid Feedrates
22.9m/minute
Spindle Motor Power
30 Hp
Spindle Speed
8100rpm
Table Size
400mm
Tool Change Capacity
30 Station
Tool Change Time (Chip to Chip)
3.6 seconds
Tool Size
BT40
Traverses XYZ
610 x 406 x 406mm
HAAS UMC-500 2020
