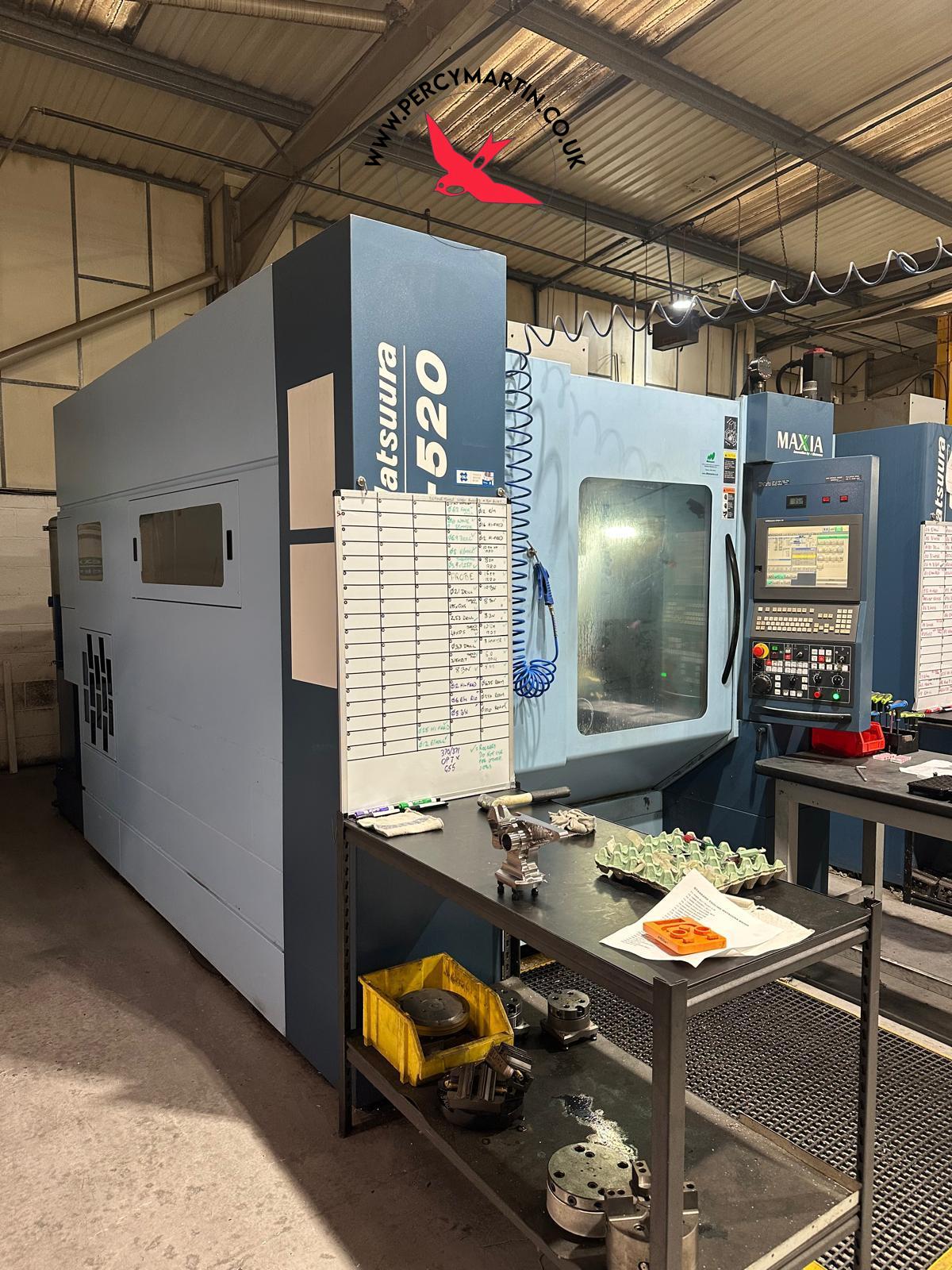

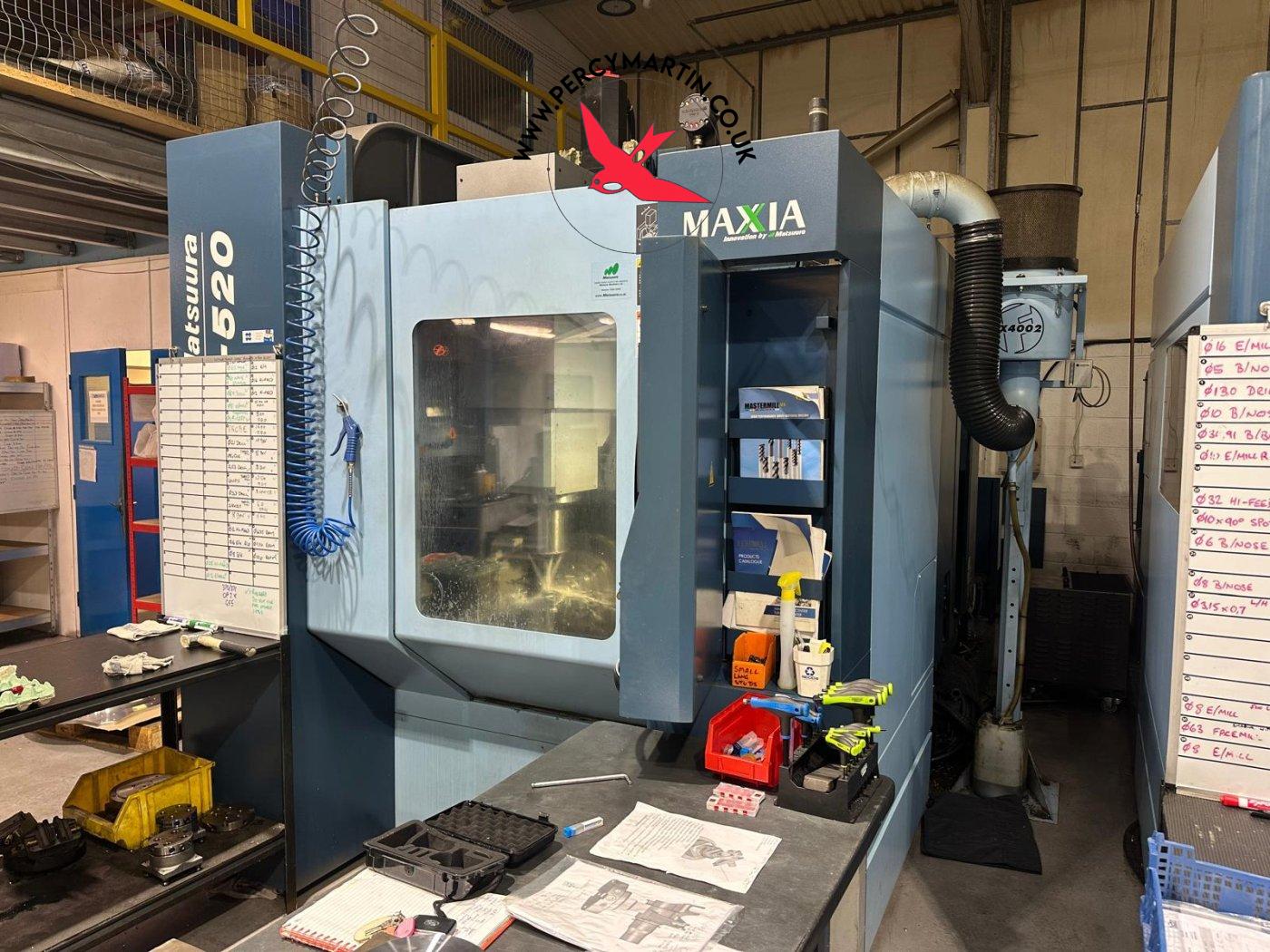

Matsuura MX-520 2015

5 axis , Coolant , Interlocked guards , Low Volt Light , Swarf Conveyor , Through Spindle Coolant
Key Features Gallery Specifications More in Stock Register Interest
Matsuura MX-520 2015

Key Features

Type:

5 Axis Machining Centres

Model:

MX-520

Make:

Matsuura

Year:

2015

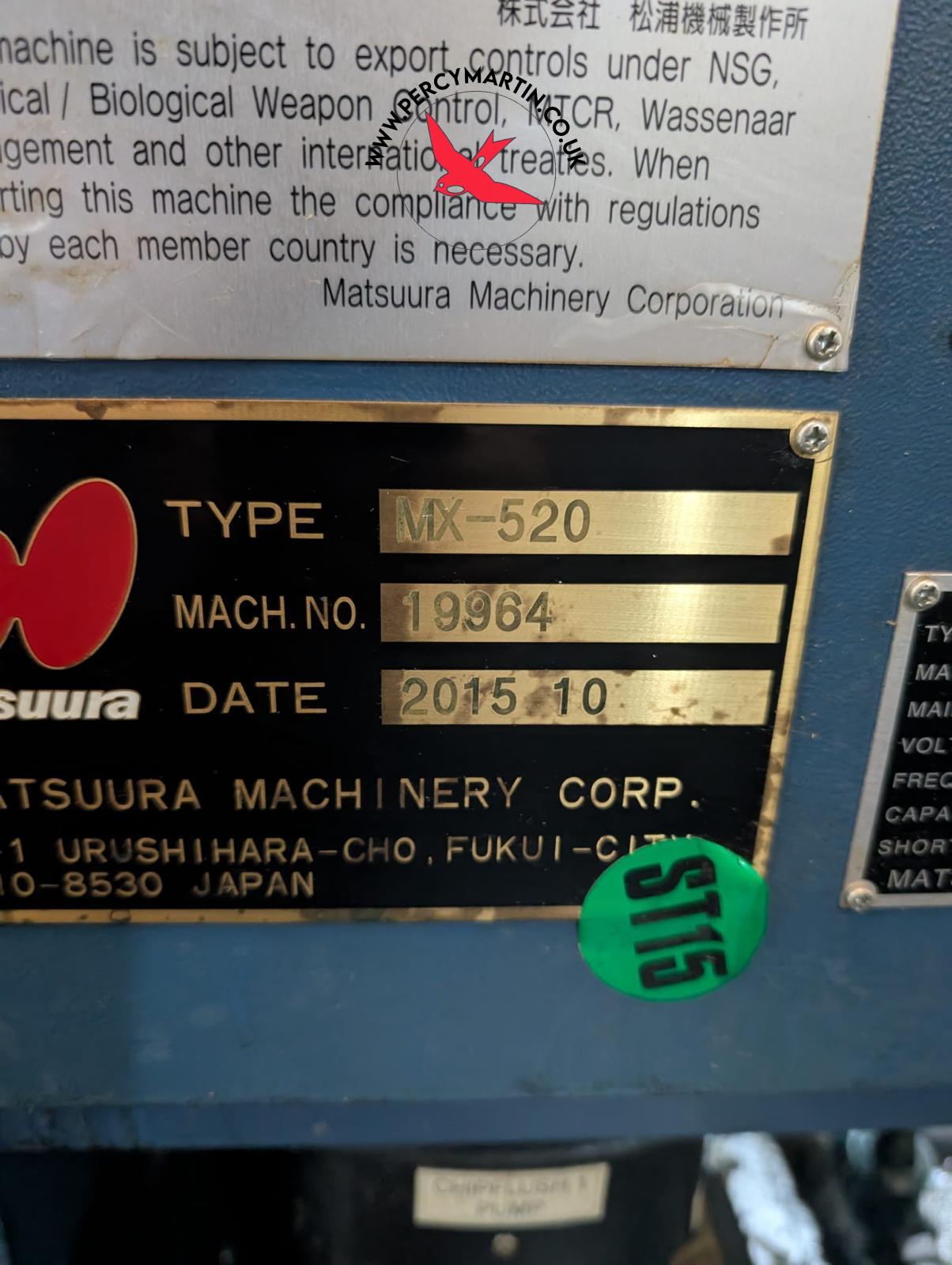

Serial No

19964

Price

£POA

Our Reference

PM9756

Location

Leicester

Matsuura MX-520 2015

Specifications

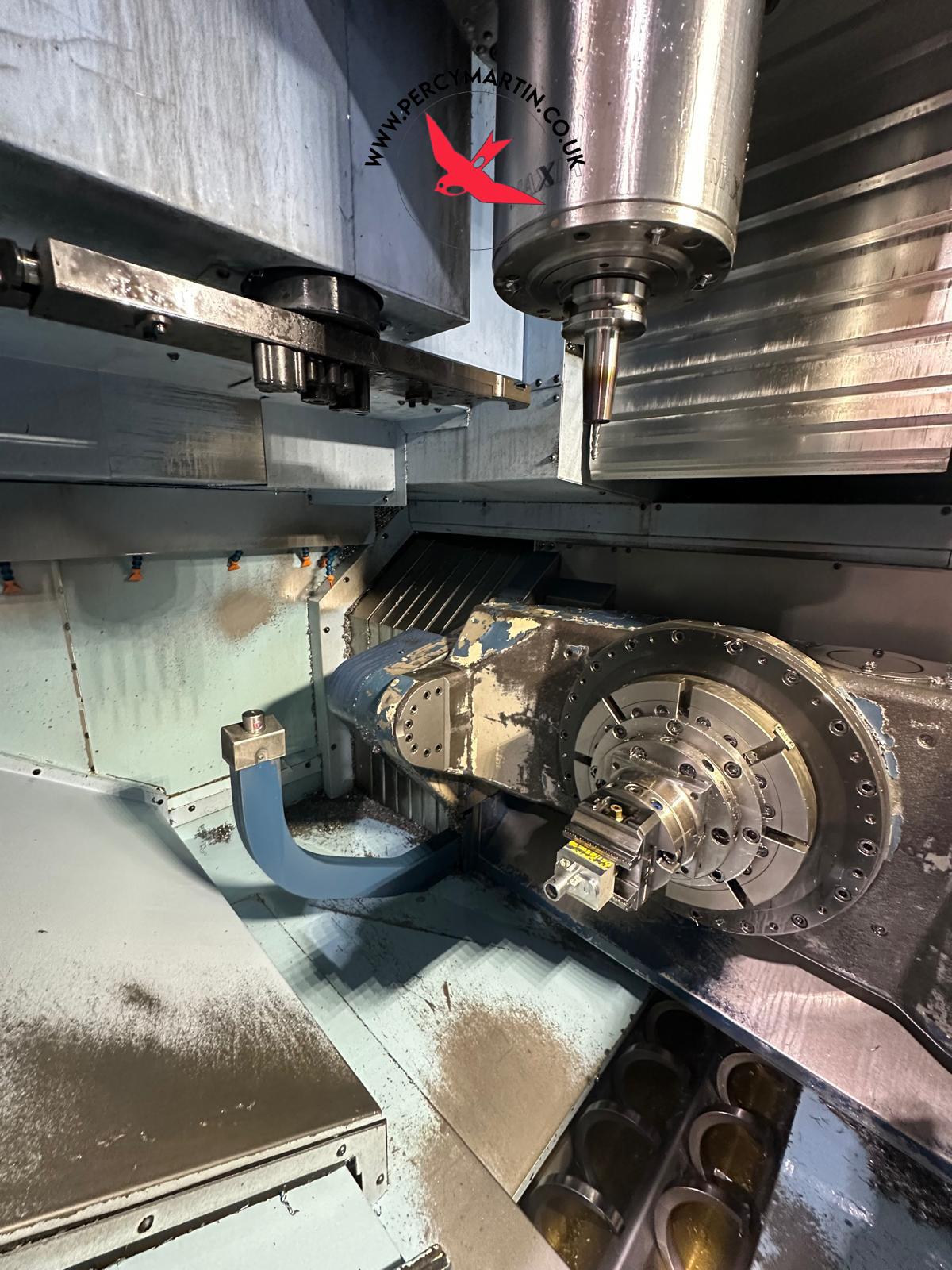

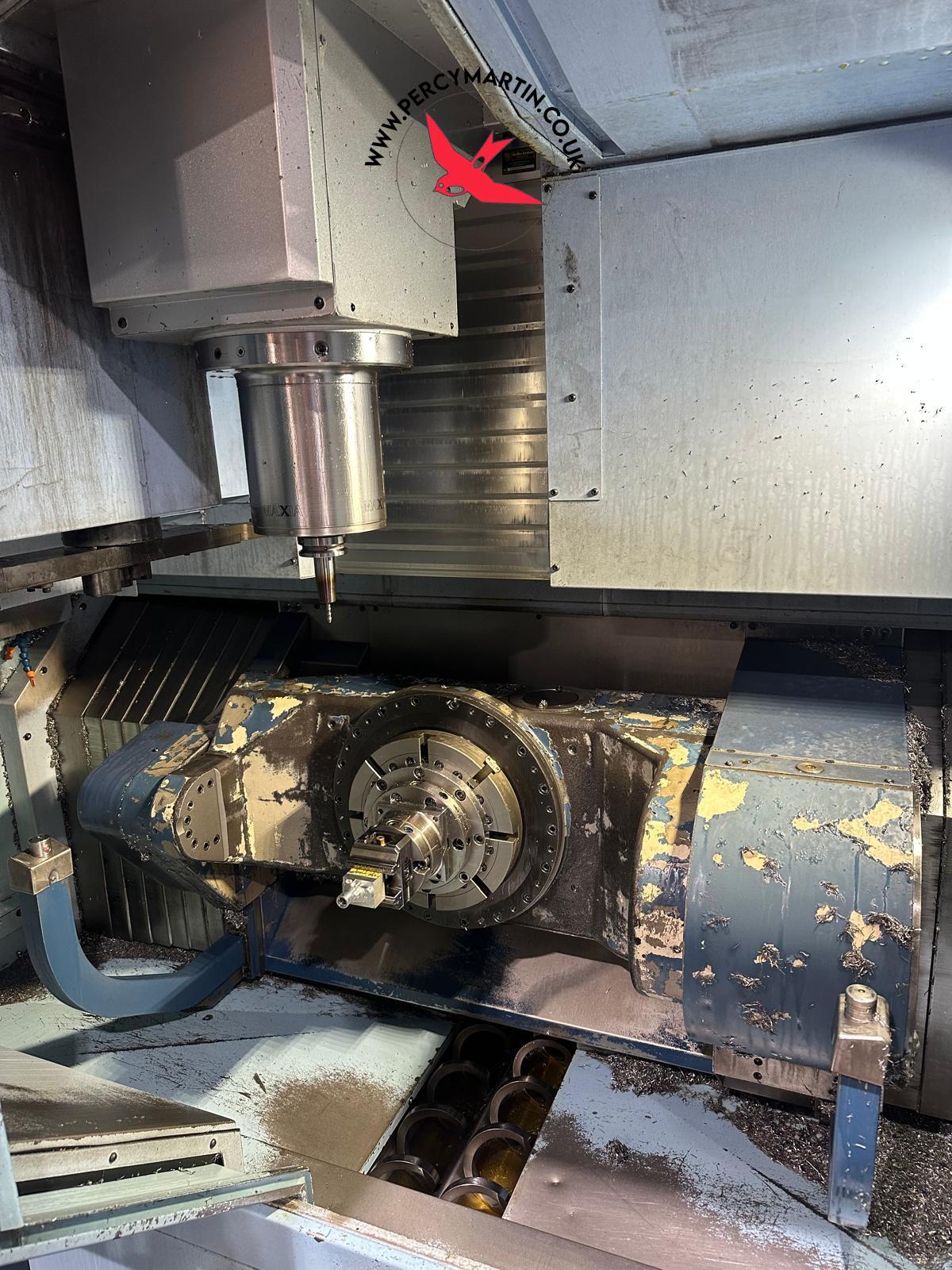

A axis

-125/+10 degrees

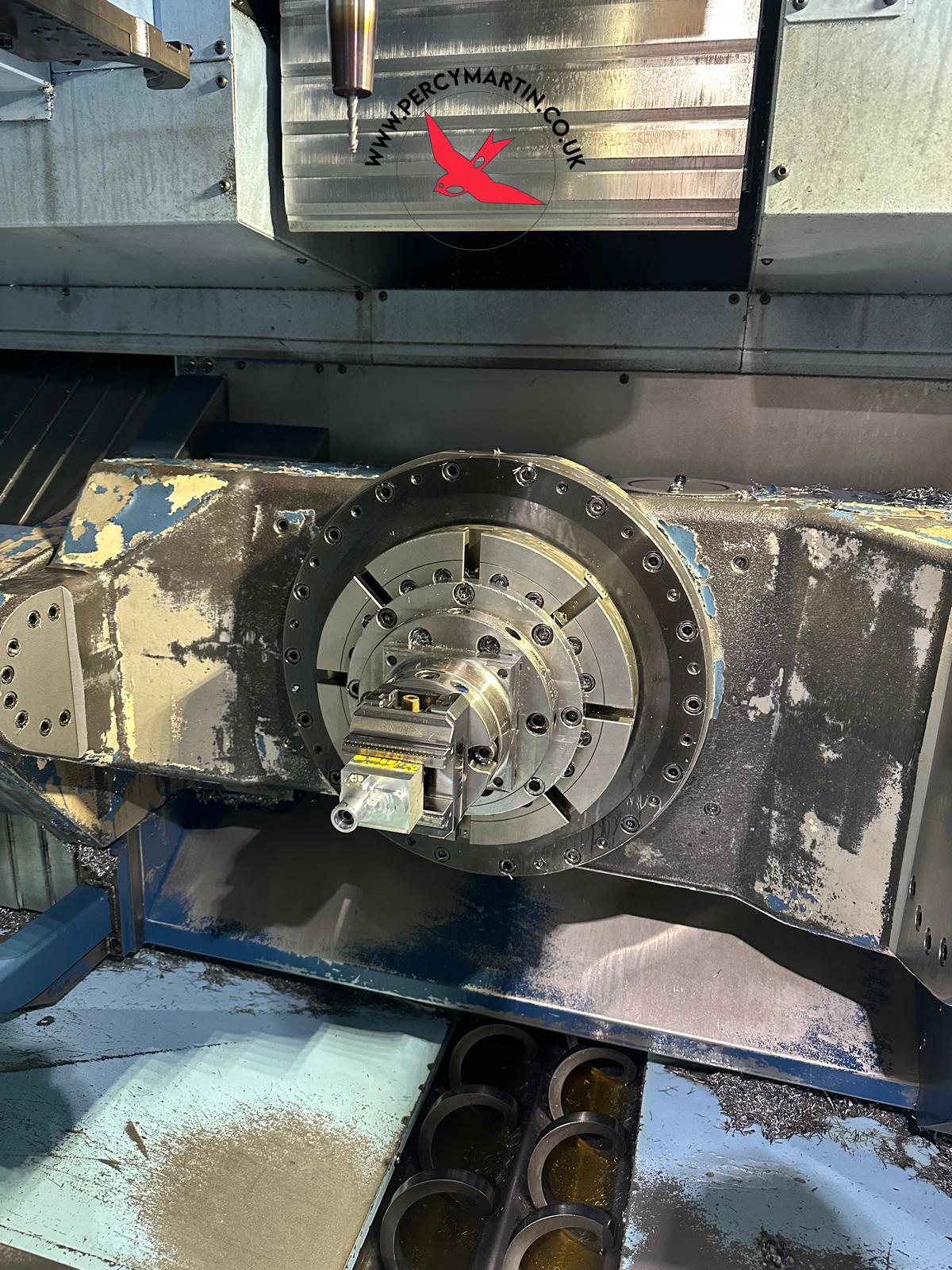

C axis

360゜ (0.001 degree increment)

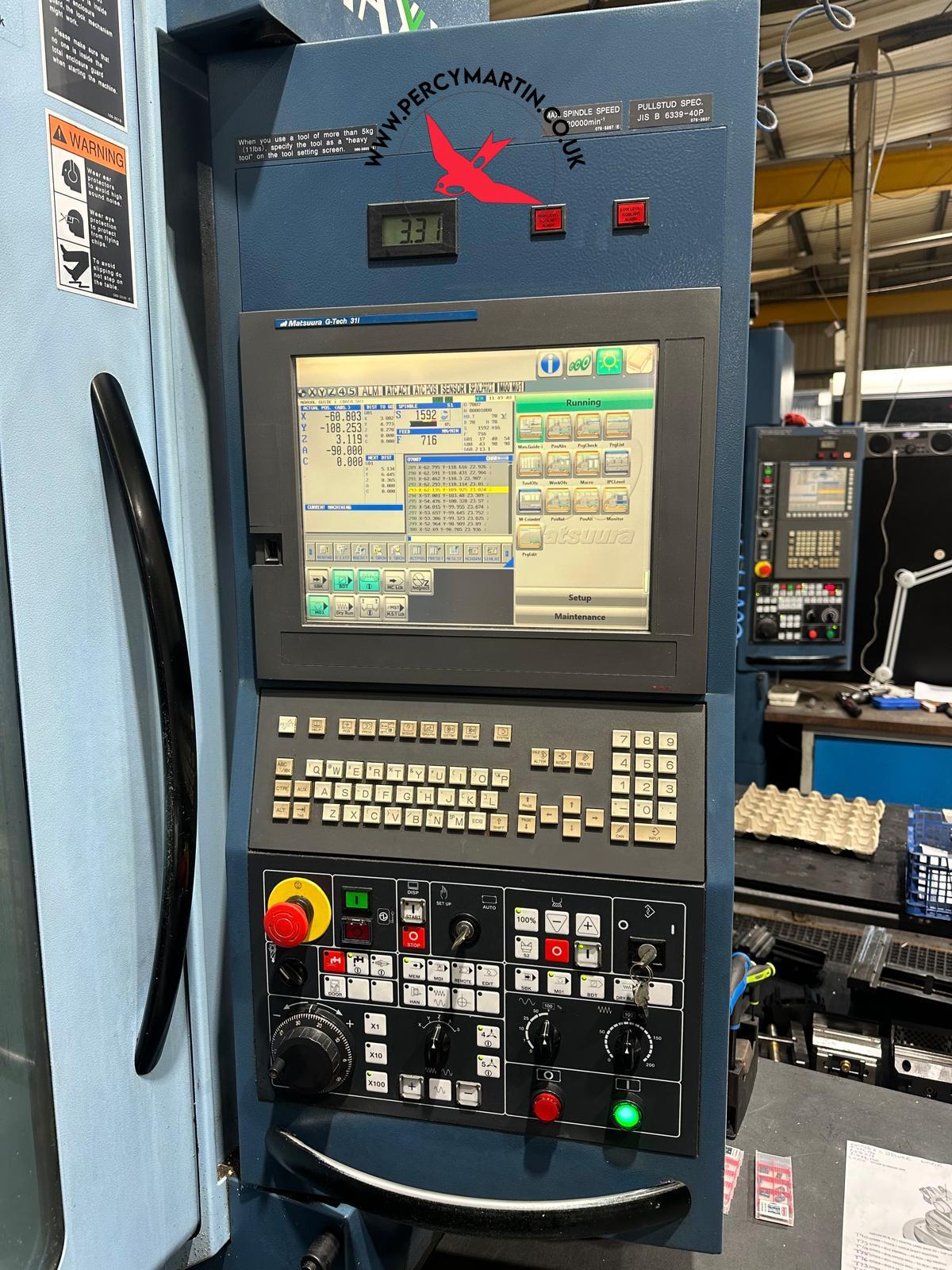

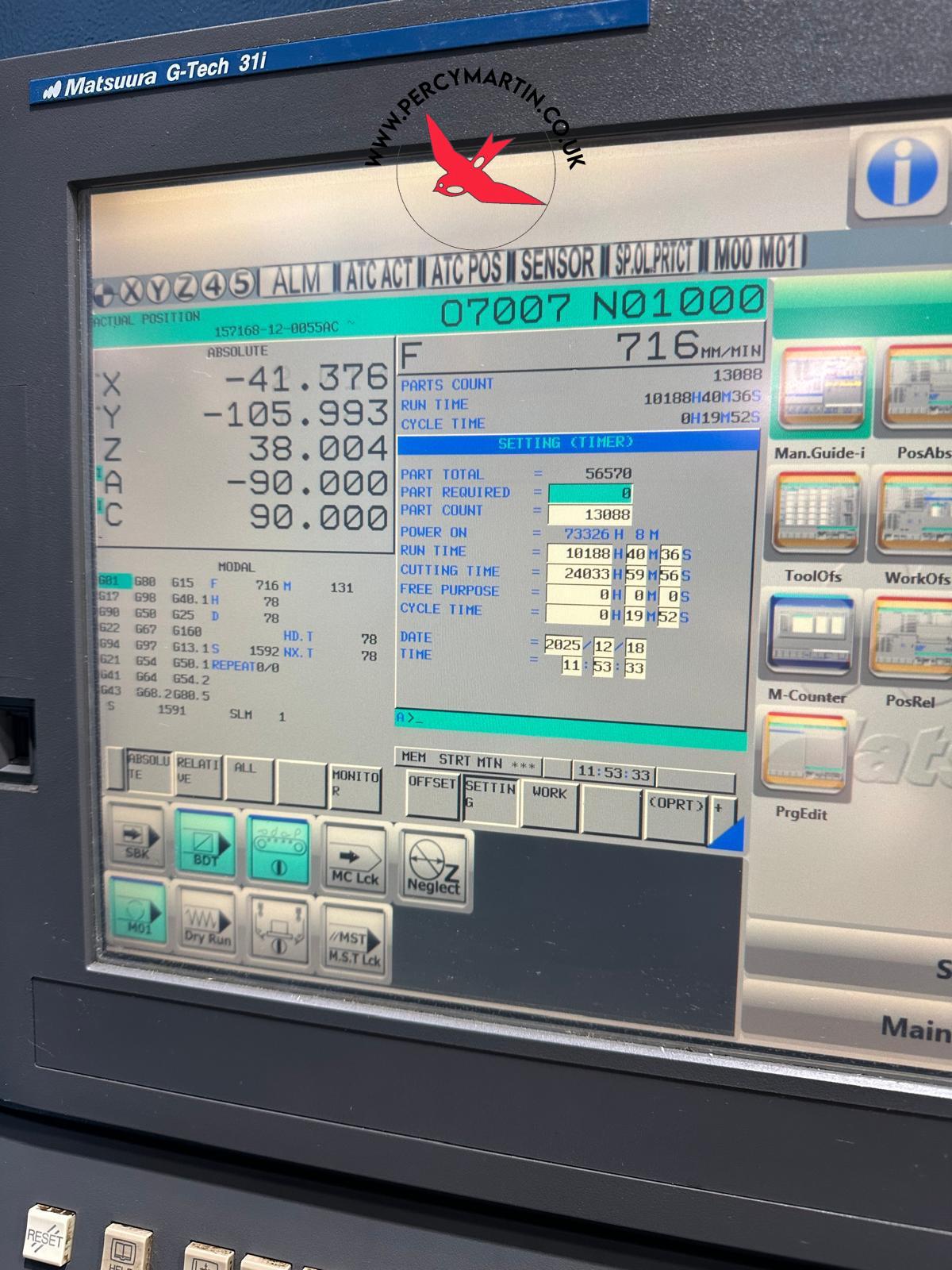

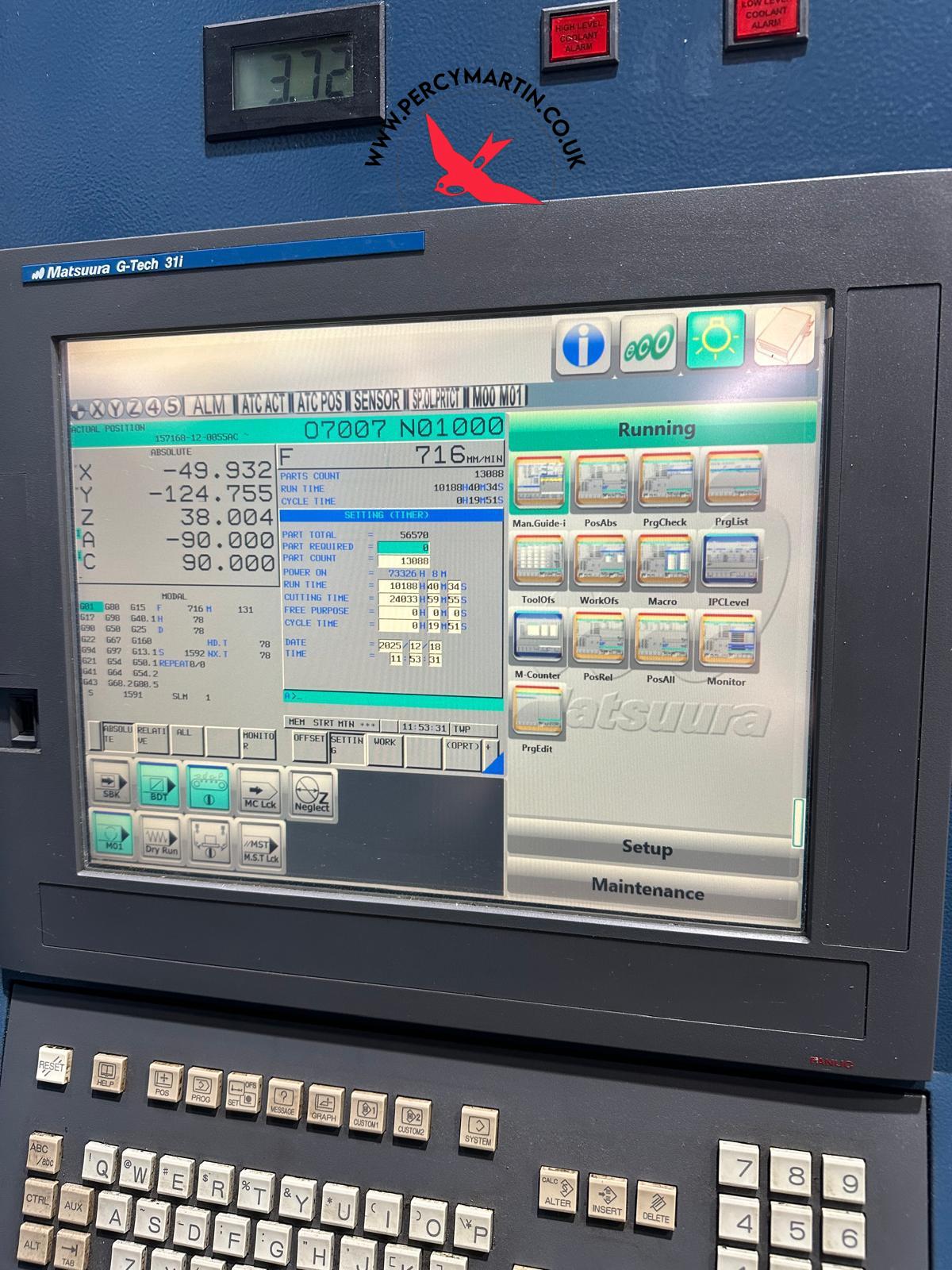

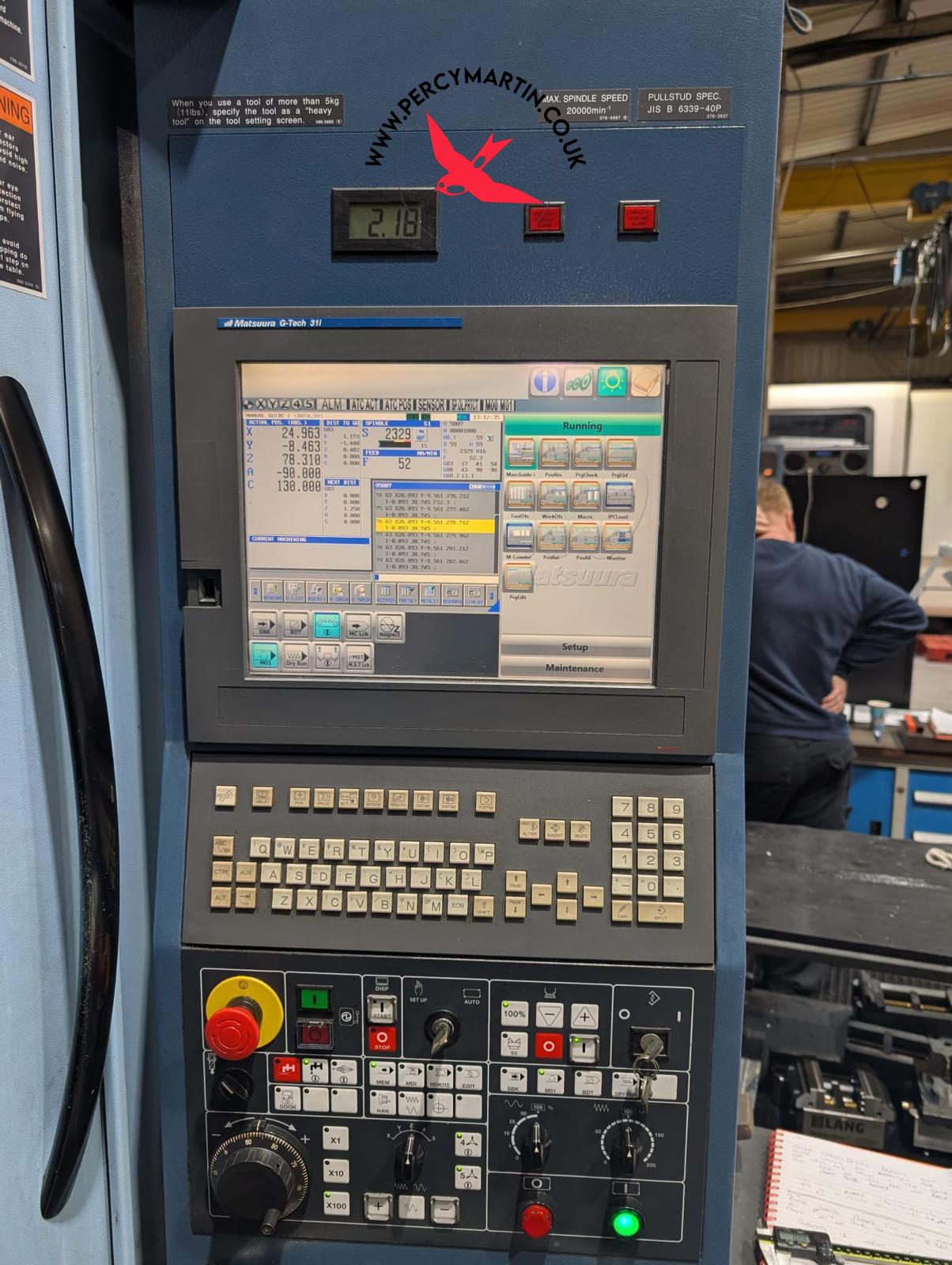

Control

Matsuura FANUC G-Tech 31i

Machine Dimensions

2860 x 3771 x 2879mm

Machine Weight

8850kg

Maximum Cutting Feedrate

40000mm/minute

Maximum Tool Diameter

80mm

Maximum Tool Diameter with Empty Adjacent Pockets

150mm

Maximum Tool Length

300mm

Maximum Tool Weight

10kg

Maximum Workpiece Height

350mm

Maximum Workpiece Size

520mm

Maximum workpiece weight

200kg

Rapid Feedrates

40m/minute

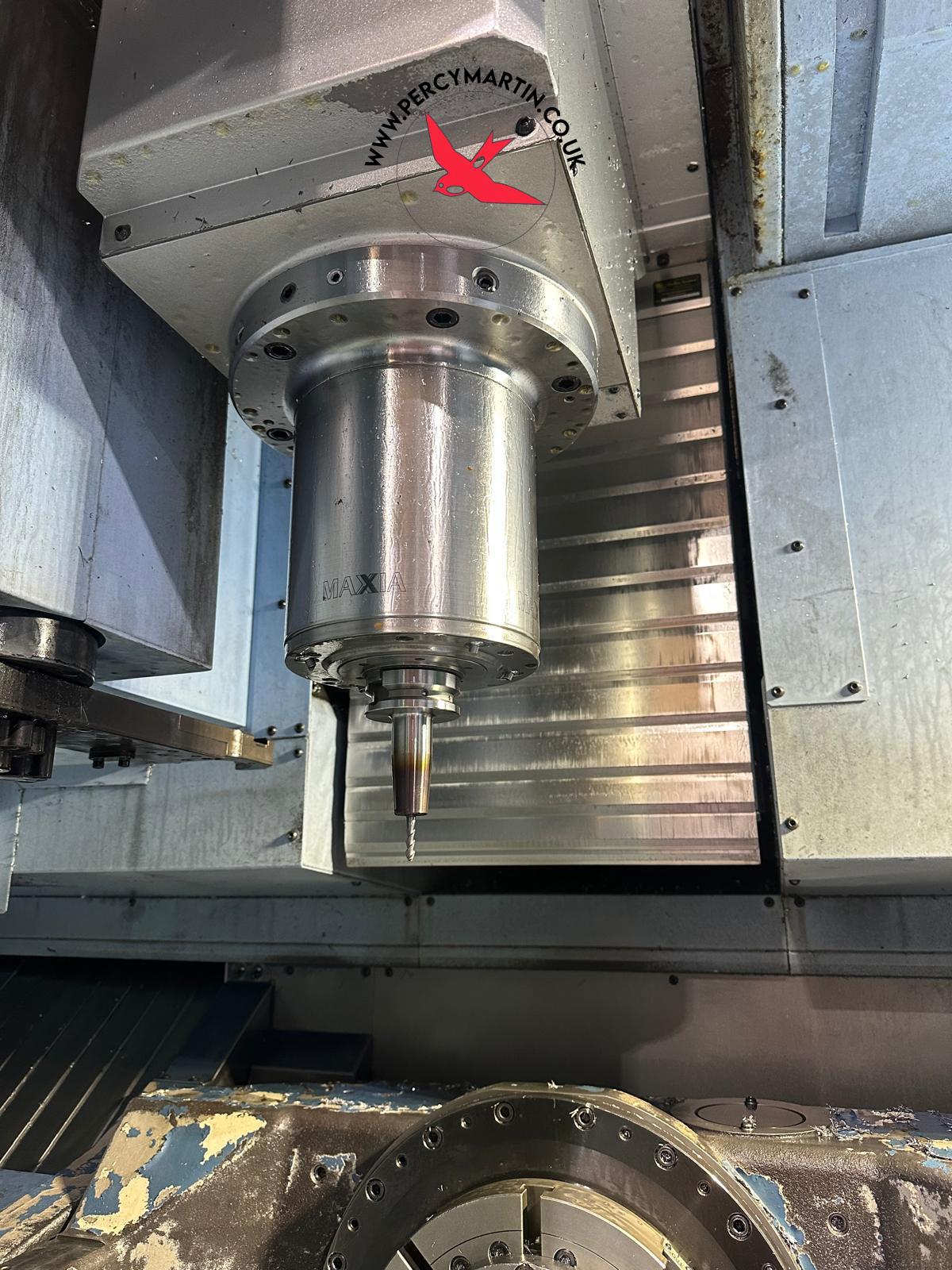

Spindle Motor Power

7.5/11kW

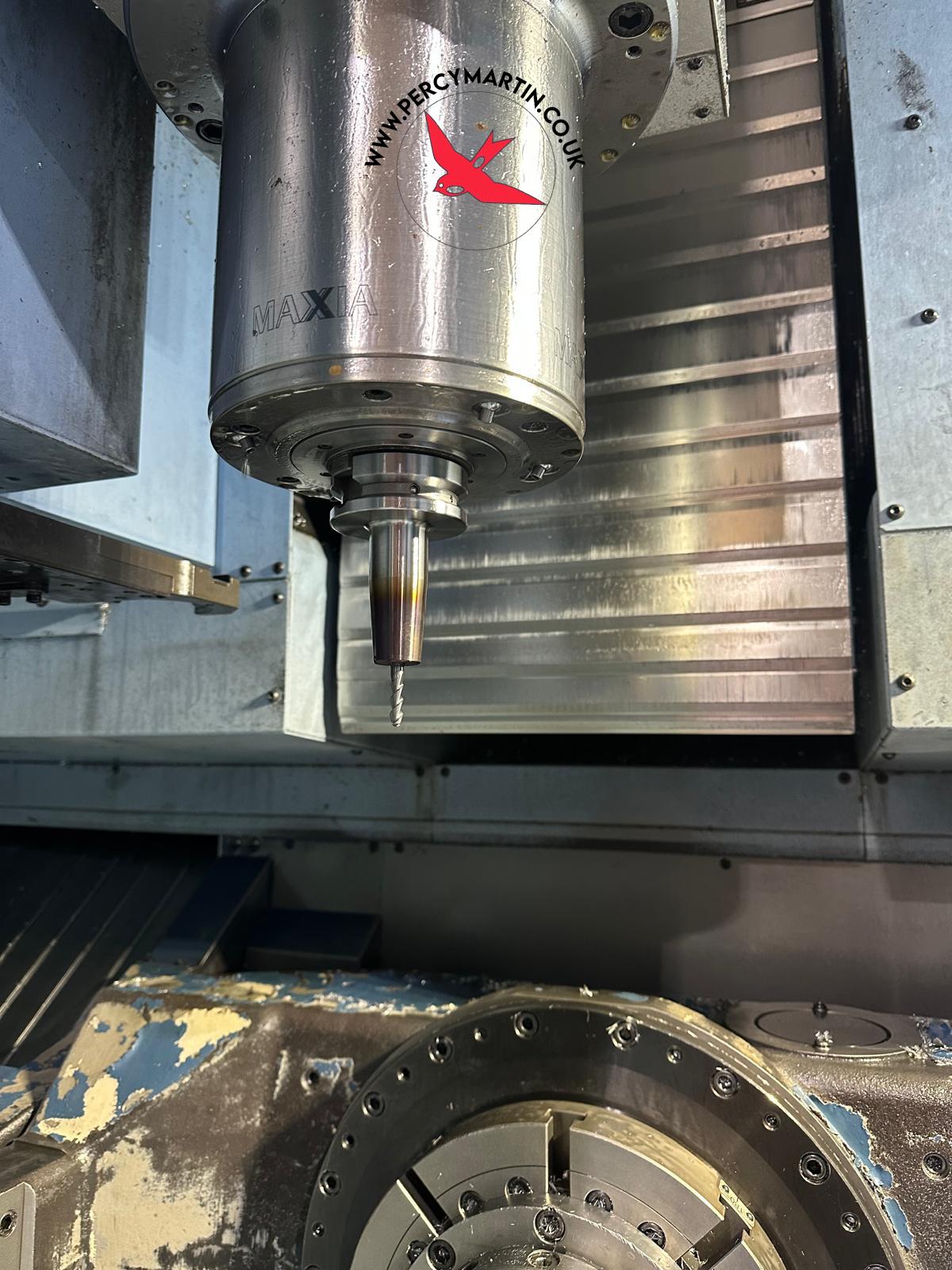

Spindle Speed

20000rpm

Table Size

300mm

Tool Change Capacity

60 Station

Tool Size

BT40

Traverses XYZ

630 x 560 x 510mm
