5 Axis Machining Centres

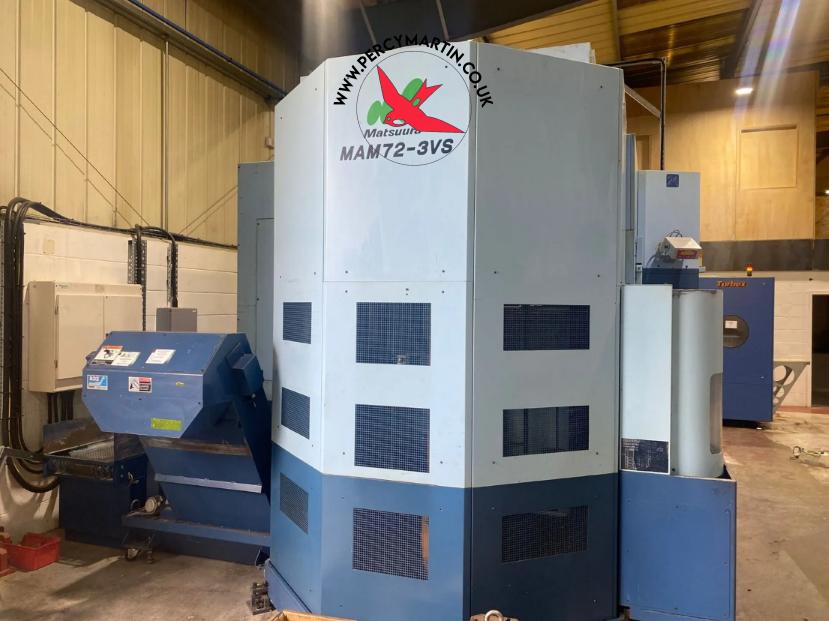

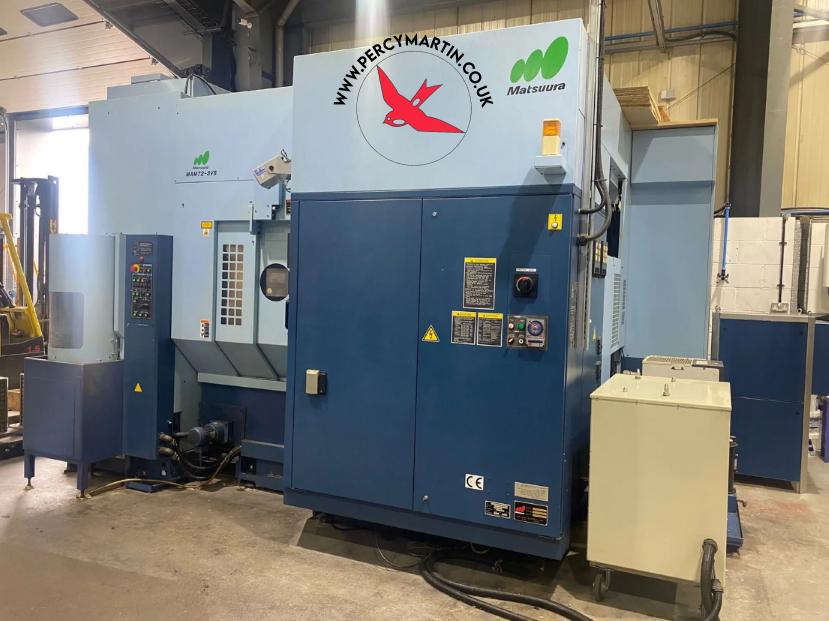

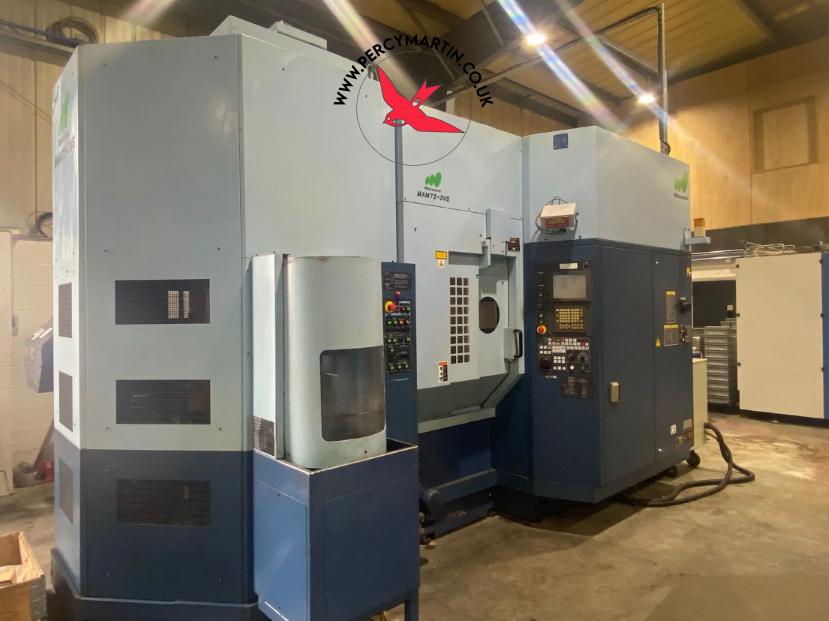

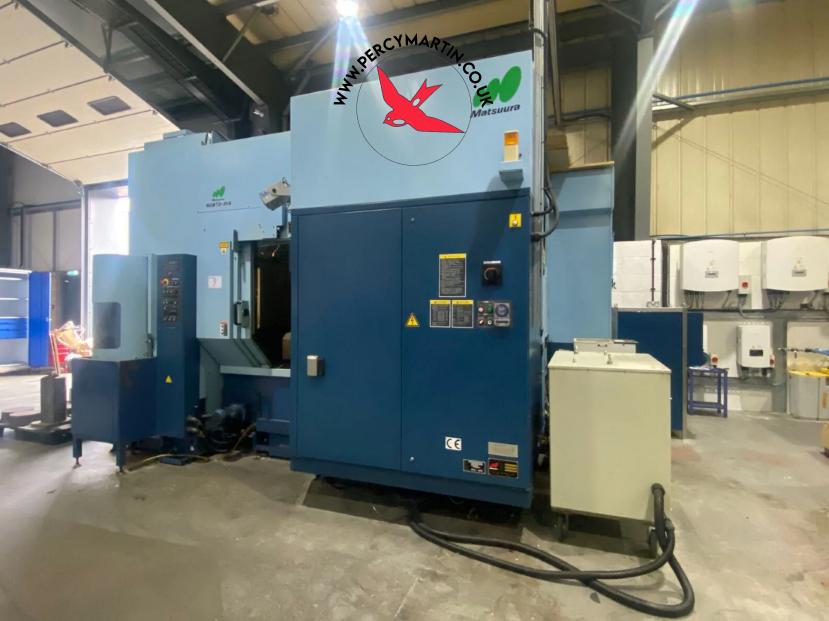

Matsuura MAM72-3VS 2004

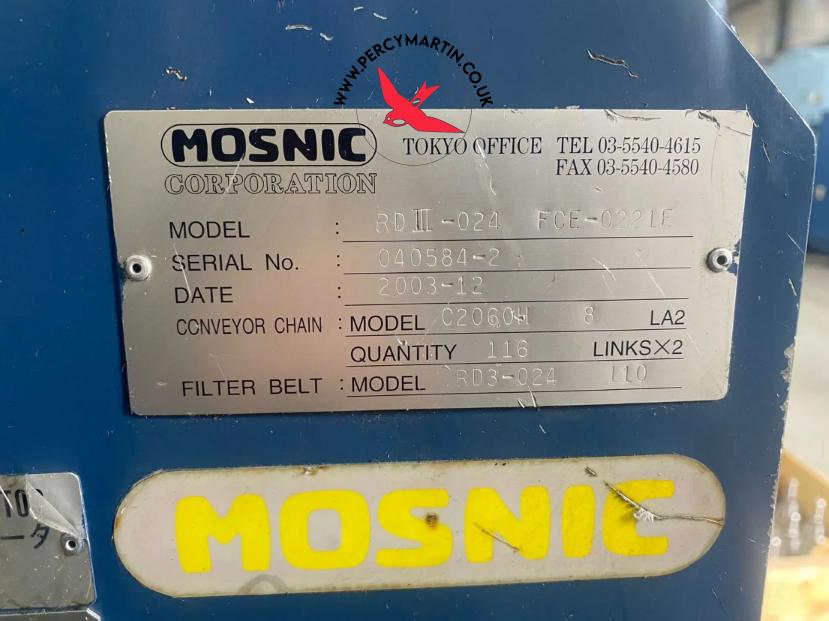

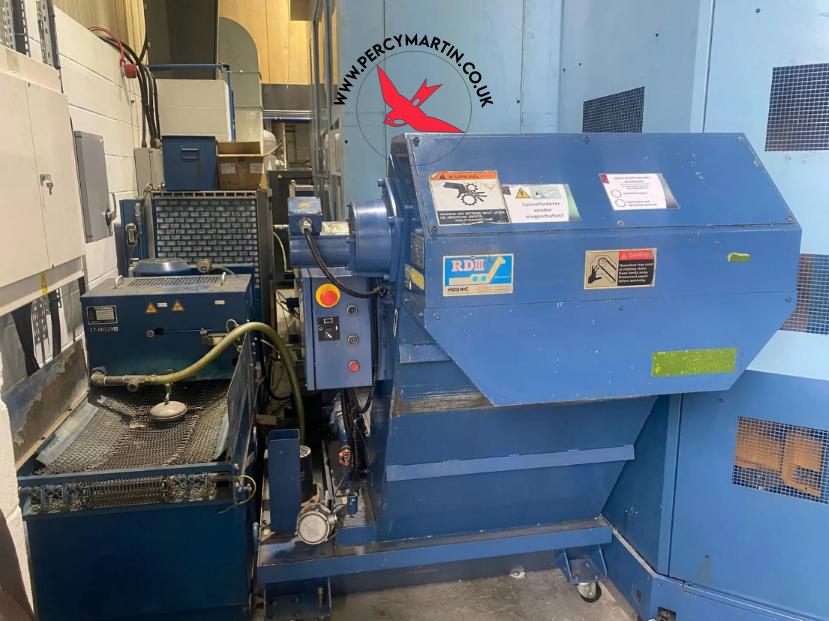

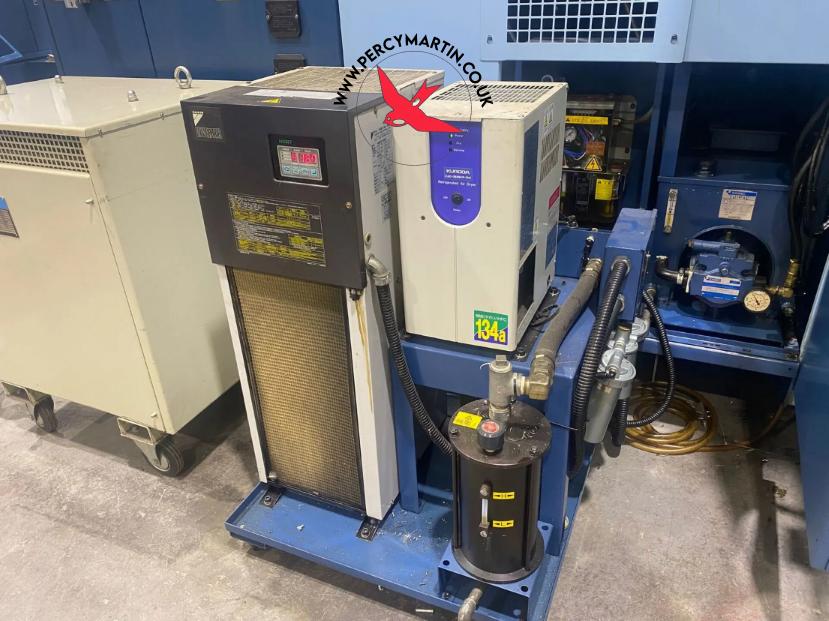

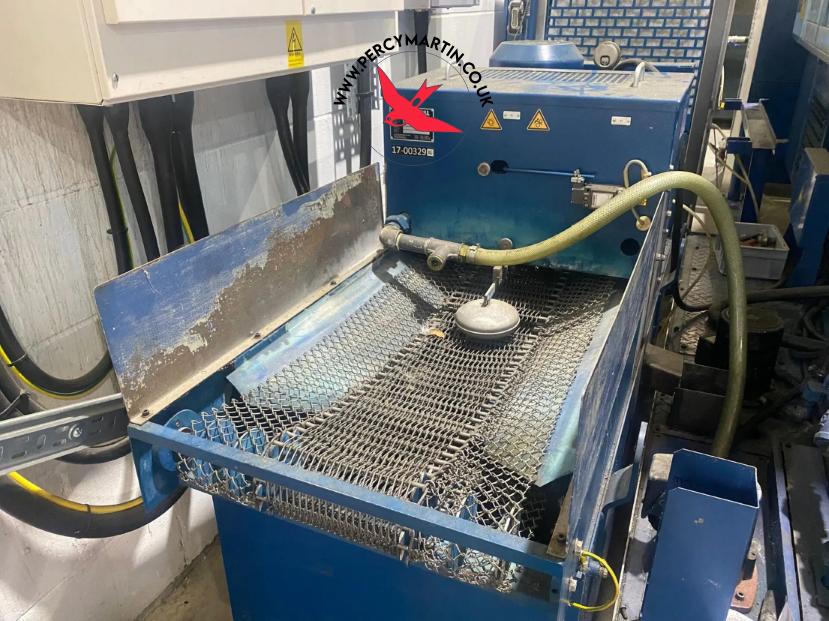

Coolant , Interlocked guards , Low Volt Light , Multi Pallet Machine , Swarf Conveyor , Through Spindle Coolant , Tooling
Key Features Gallery Specifications More in Stock Register Interest
Matsuura MAM72-3VS 2004

Key Features

Type:

5 Axis Machining Centres

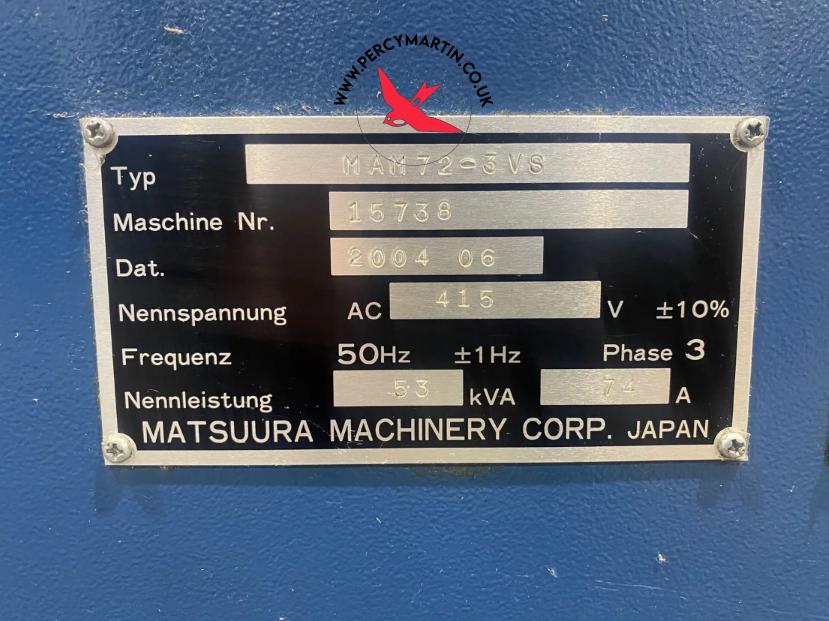

Model:

MAM72-3VS

Make:

Matsuura

Year:

2004

Serial No

15738

Price

£POA

Our Reference

PM8803

Location

Leicester

Matsuura MAM72-3VS 2004

Specifications

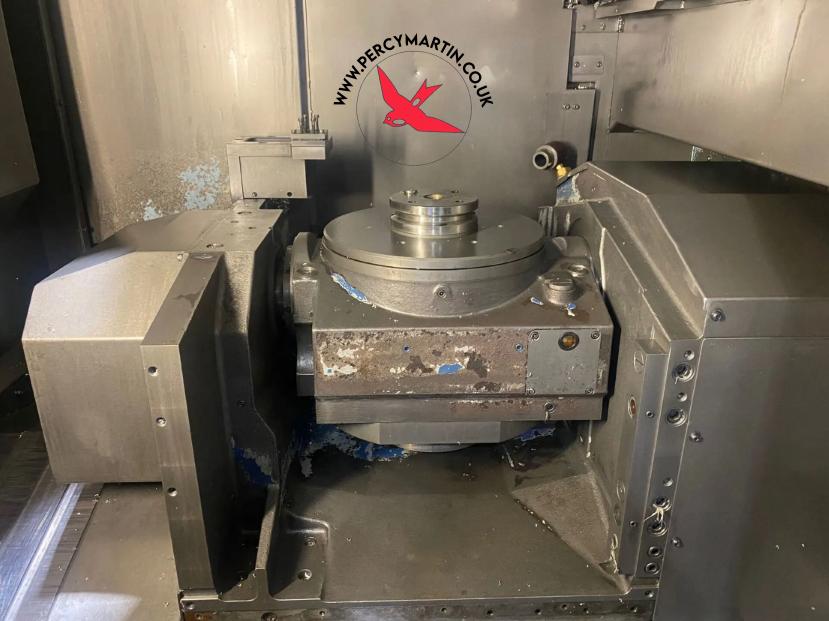

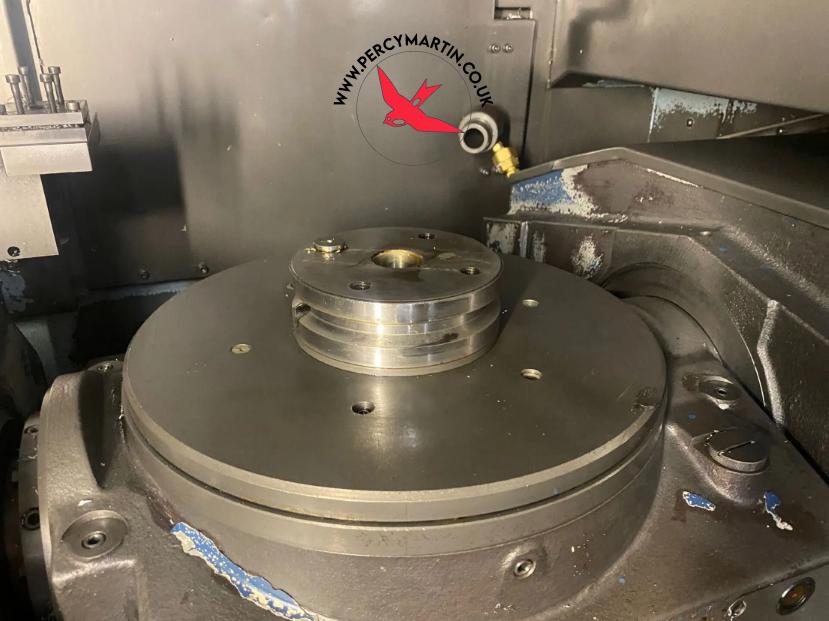

A axis

+65 ~ -110 Degrees

C axis

360゜ (0.001 degree increment)

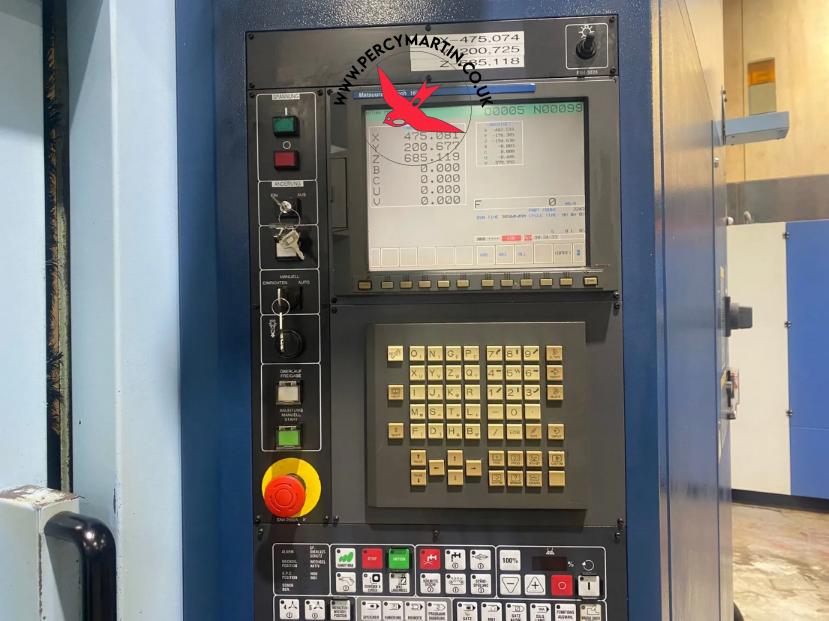

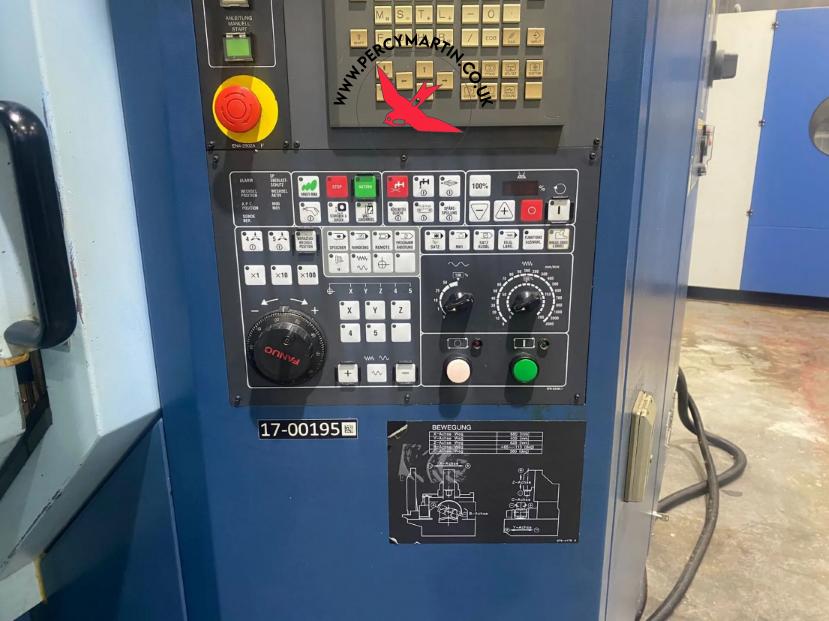

Control

Matsuura G-Tech 16i

Machine Dimensions

4945 x 3655 x 3210mm

Machine Weight

117700kg

Maximum Cutting Feedrate

40000mm/minute

Maximum Tool Diameter

80mm

Maximum Tool Diameter with Empty Adjacent Pockets

150mm

Maximum Tool Length

260mm

Maximum Tool Weight

8kg

Maximum Workpiece Height

250mm

Maximum Workpiece Size

300mm

Maximum workpiece weight

65kg

Min - Max Height under Spindle

60 ~ 685mm

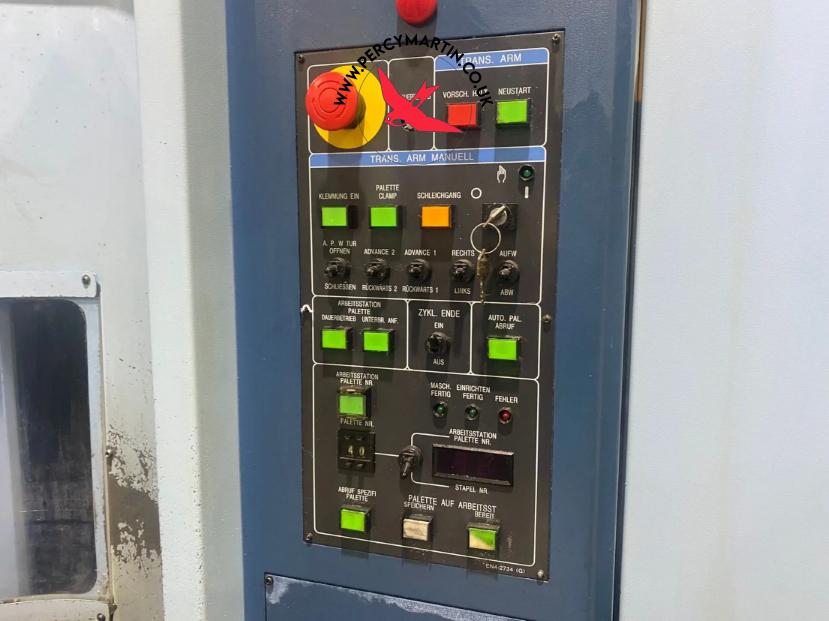

Number of Pallets

40

Pallet Change Time

24 seconds

Pallet Size

130mm

Rapid Feedrates

XYZ: 60m/minute

Spindle Motor Power

7.5/11W

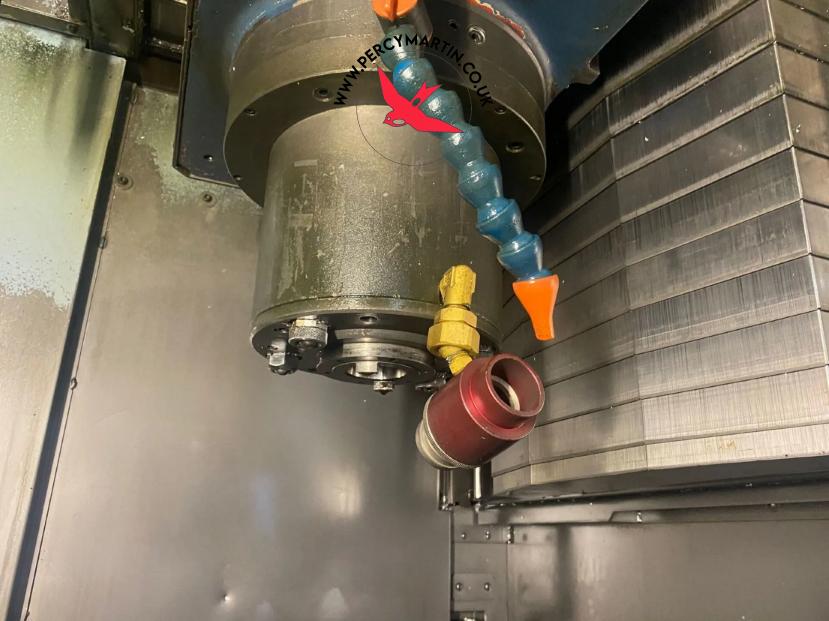

Spindle Speed

12000rpm

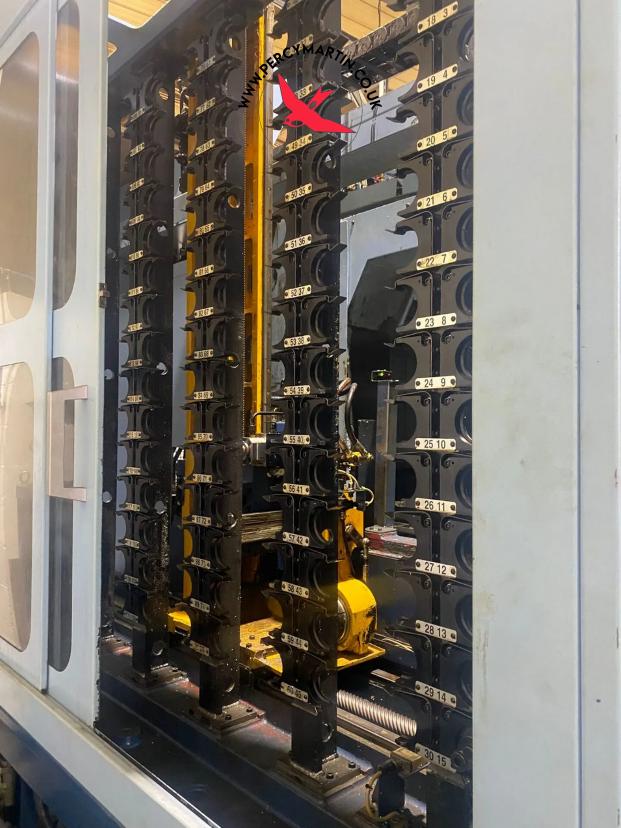

Tool Change Capacity

240 Station

Tool Change Time (Chip to Chip)

5.6 seconds

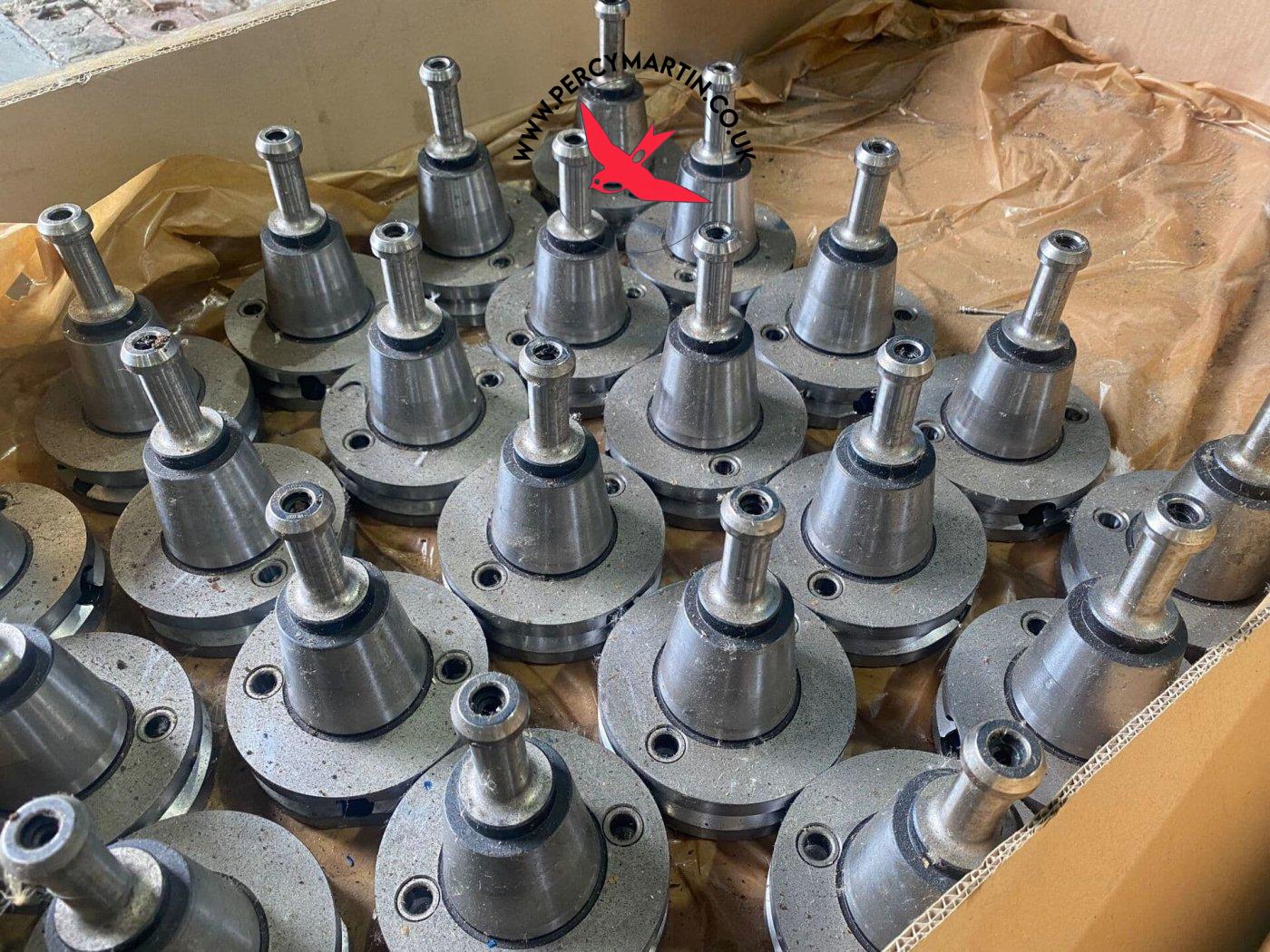

Tool Size

BT40

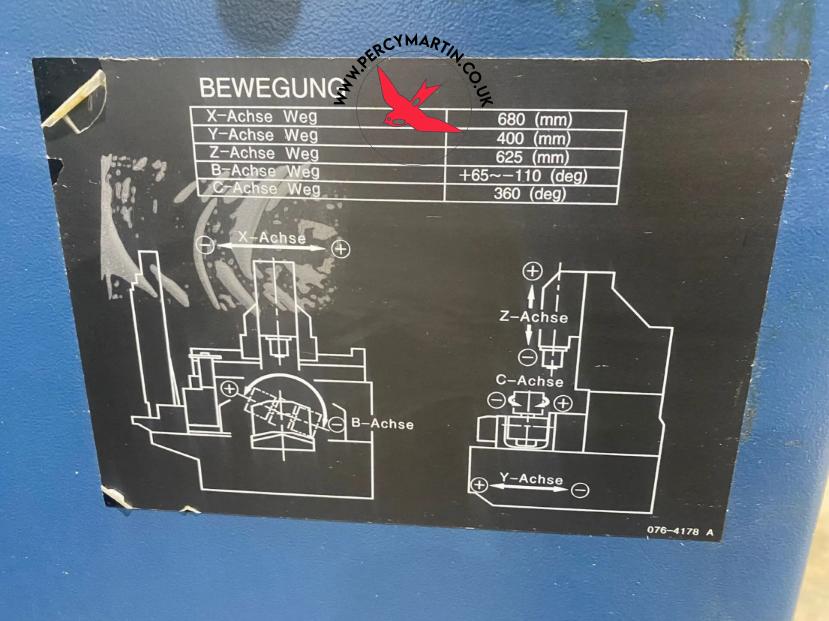

Traverses XYZ

680 x 394 x 625mm
