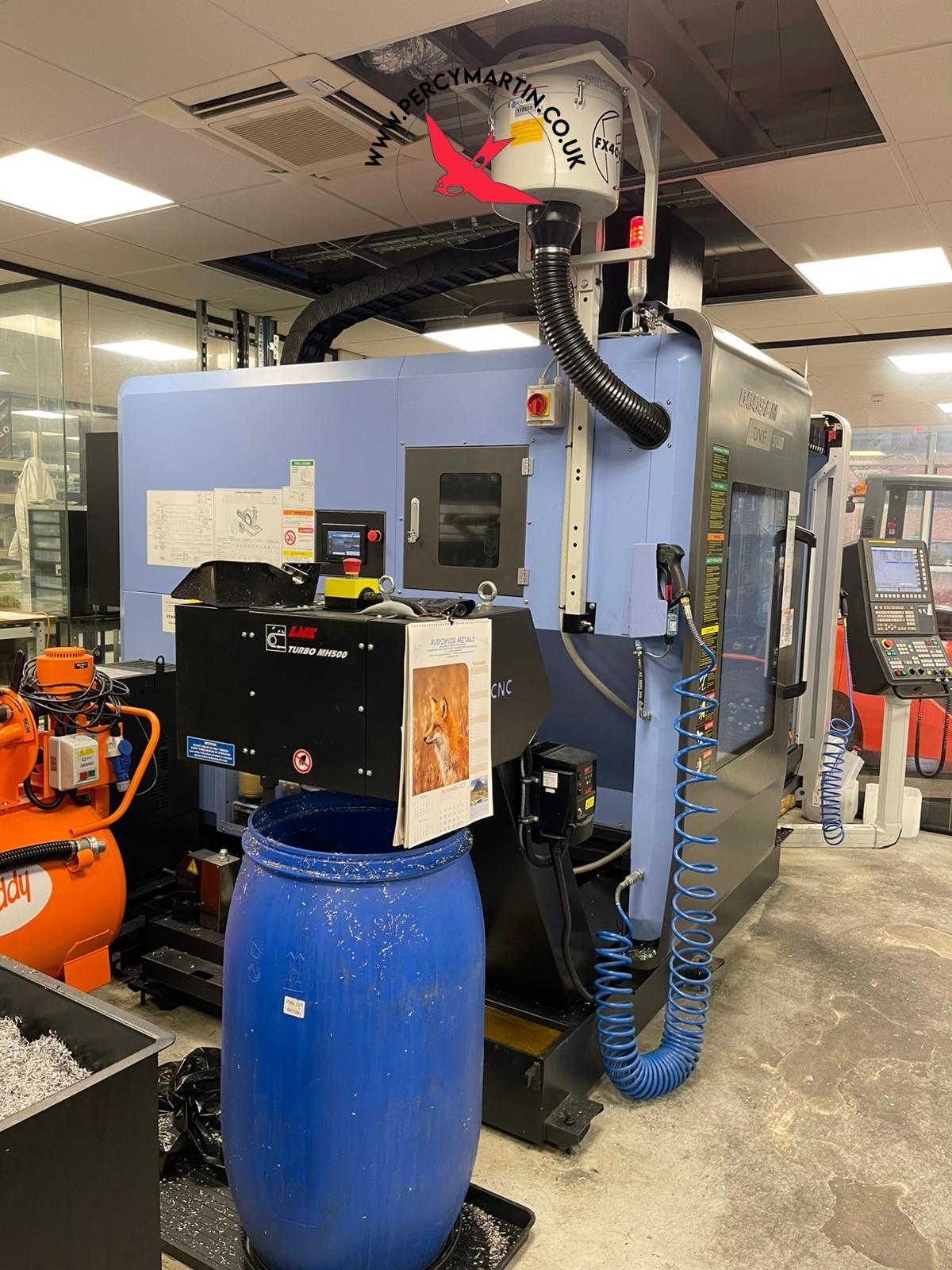

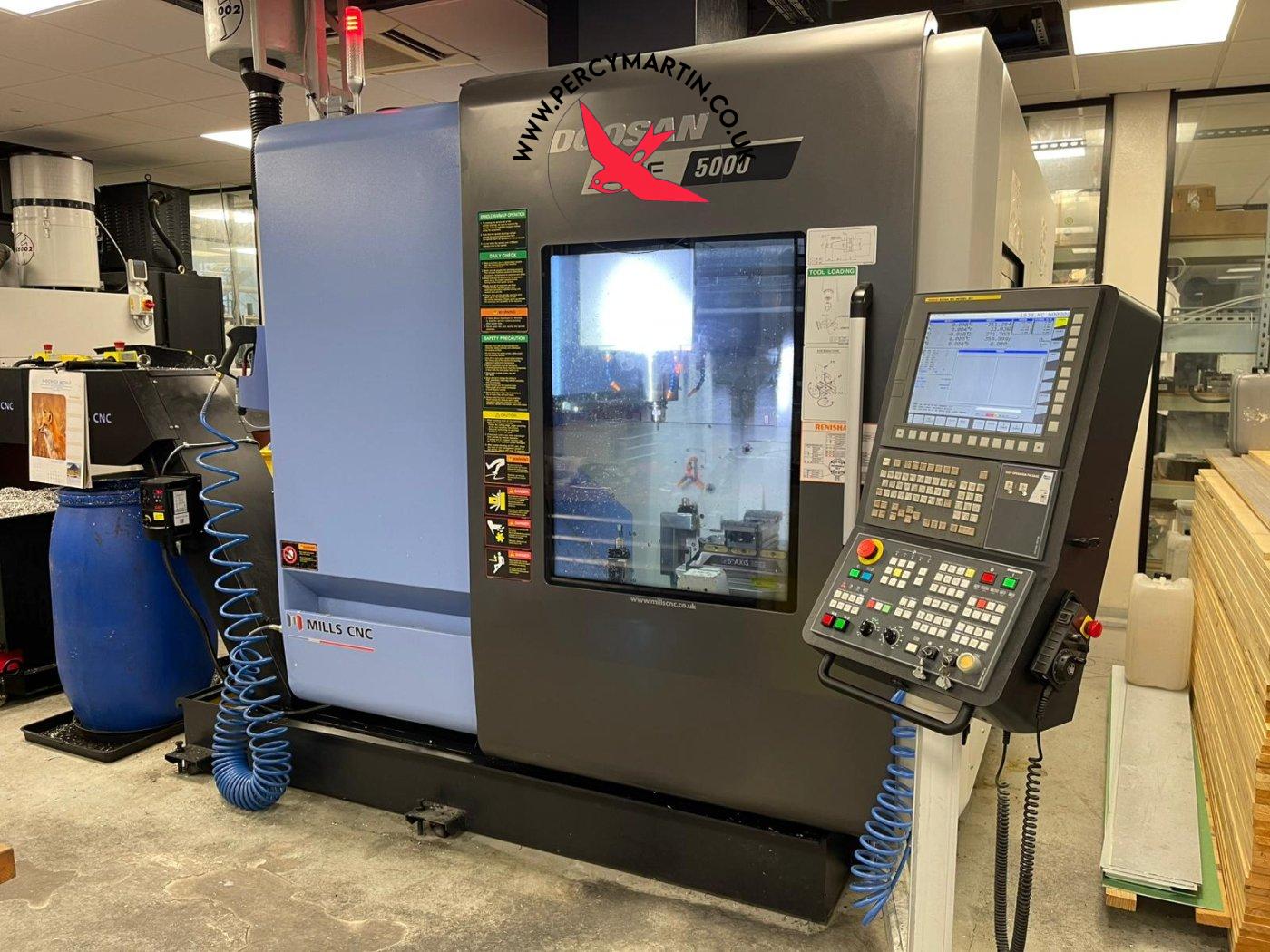

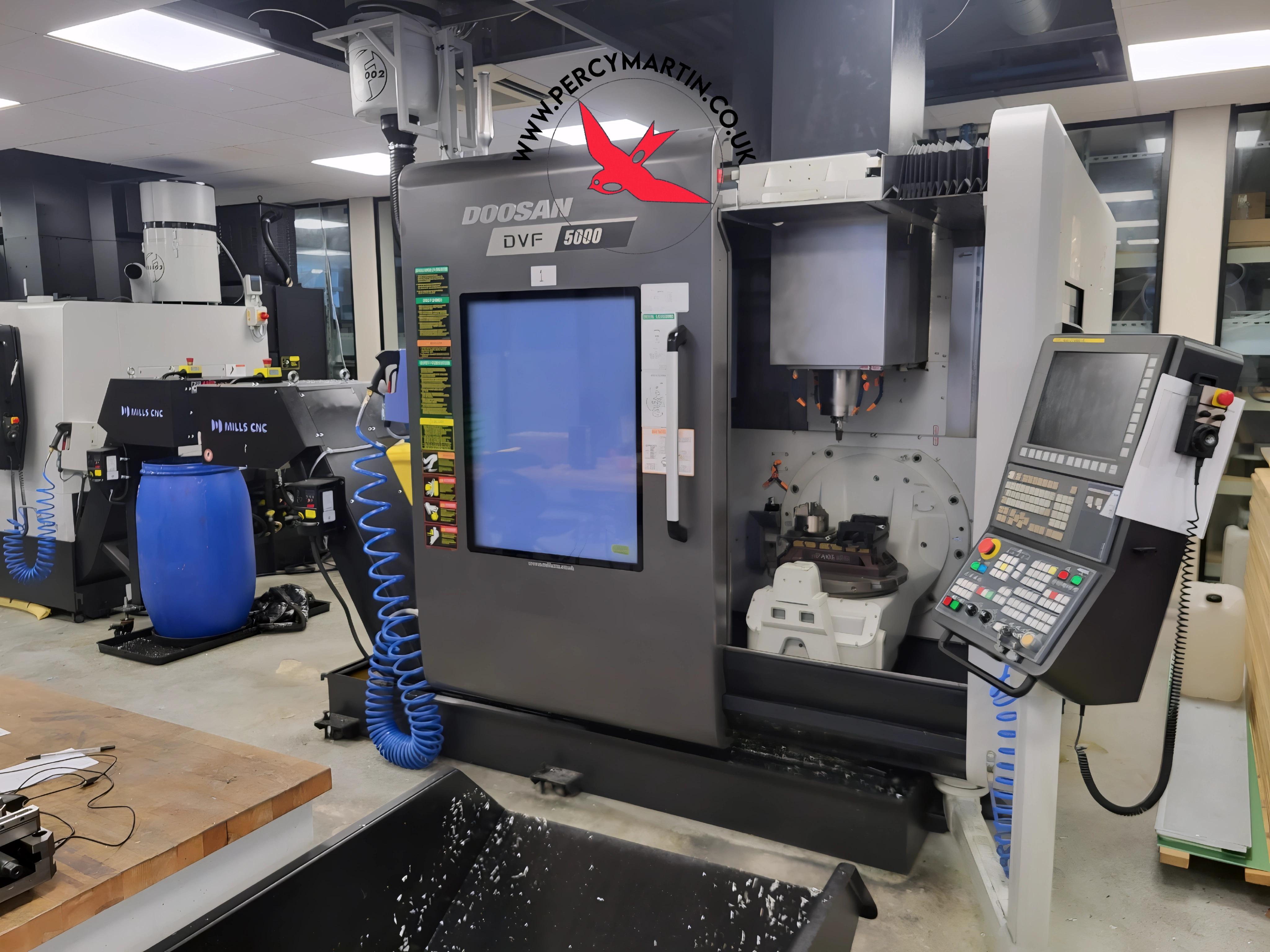

Doosan DVF5000 2021

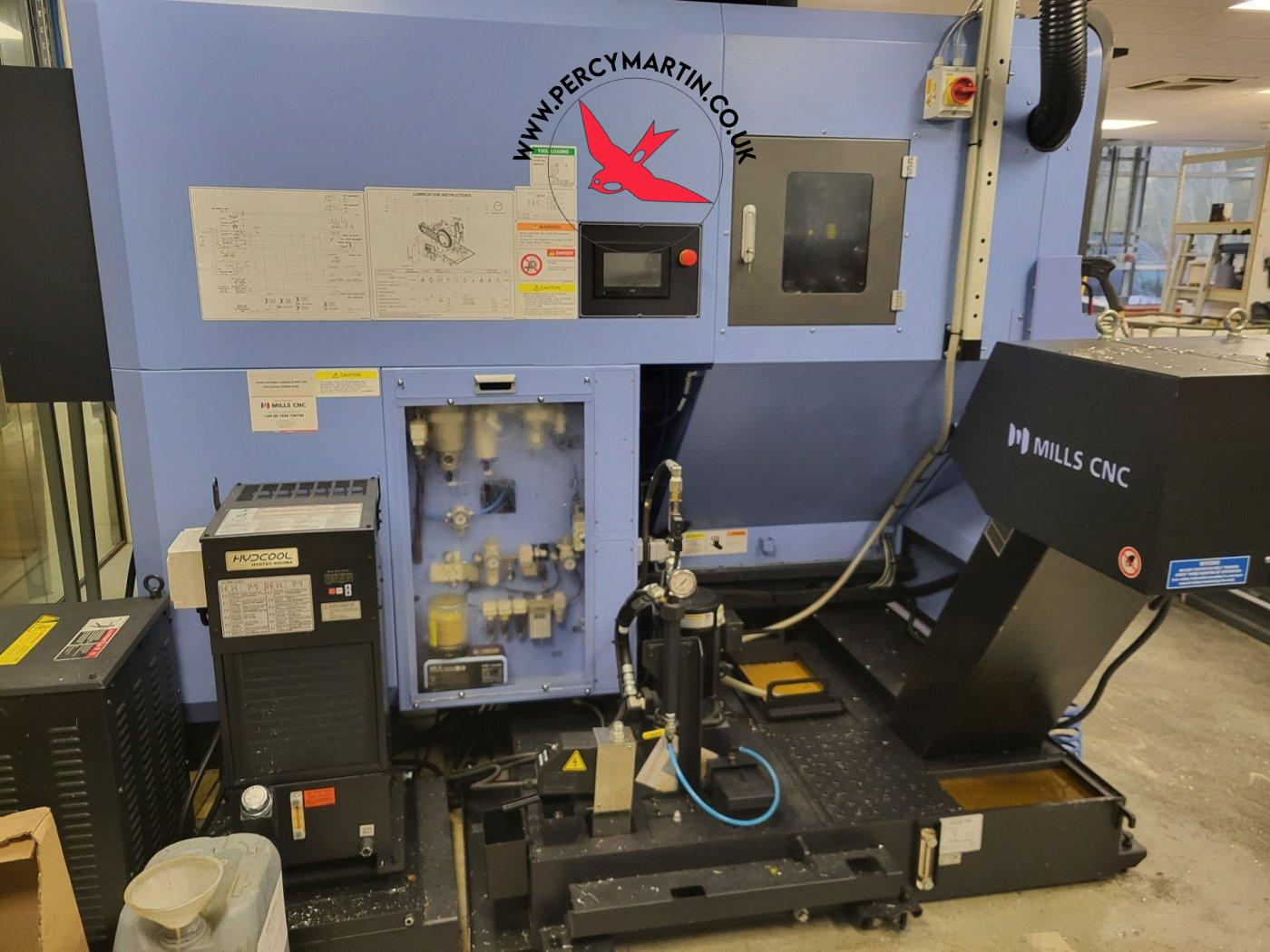

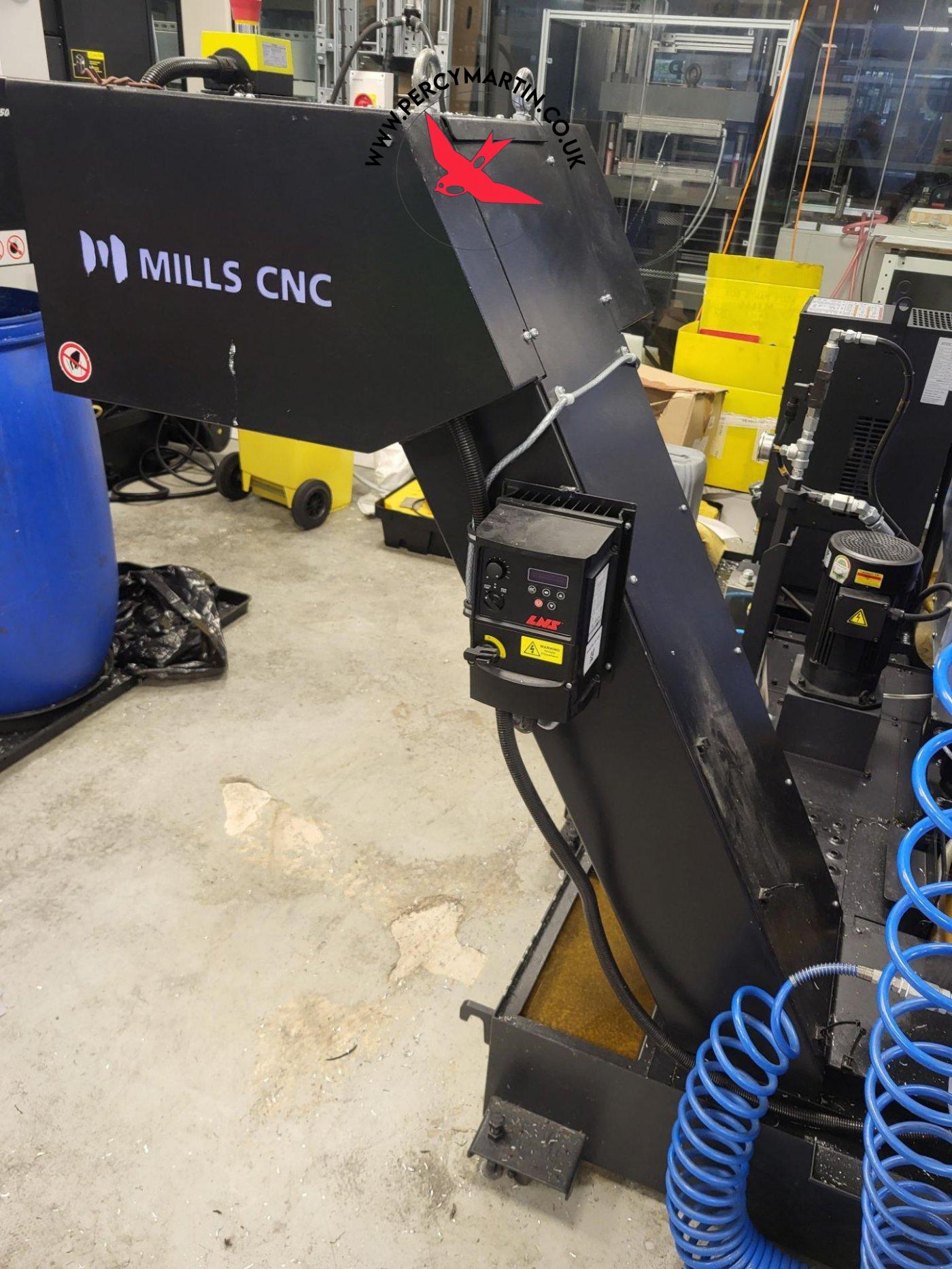

5 Axis Simultaneous , Coolant , Interlocked guards , Low Volt Light , Swarf Conveyor , Through Spindle Coolant , Tool setter
Key Features Gallery Specifications More in Stock Register Interest
Doosan DVF5000 2021

Key Features

Type:

5 Axis Machining Centres

Model:

DVF5000

Make:

Doosan

Year:

2021

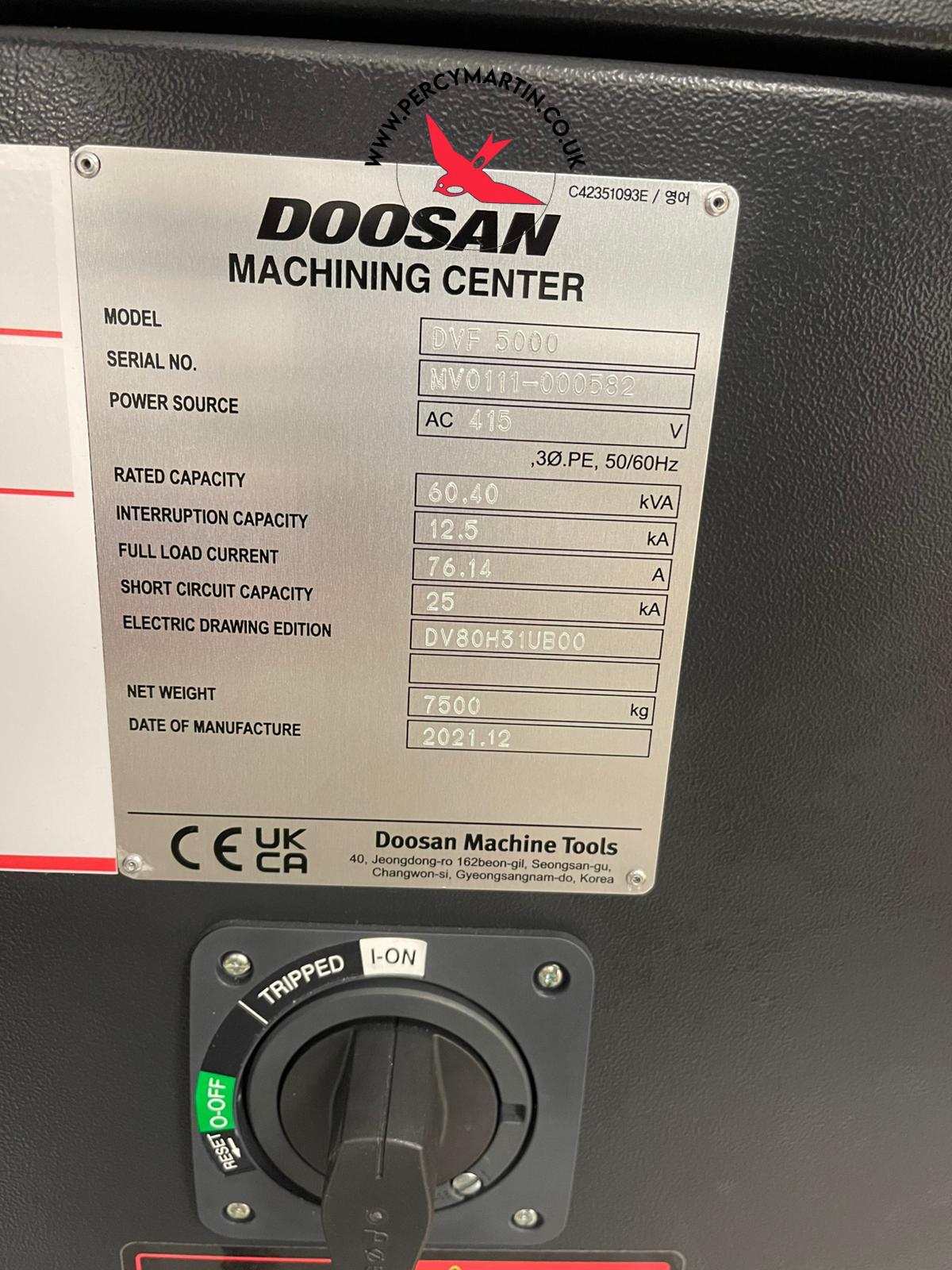

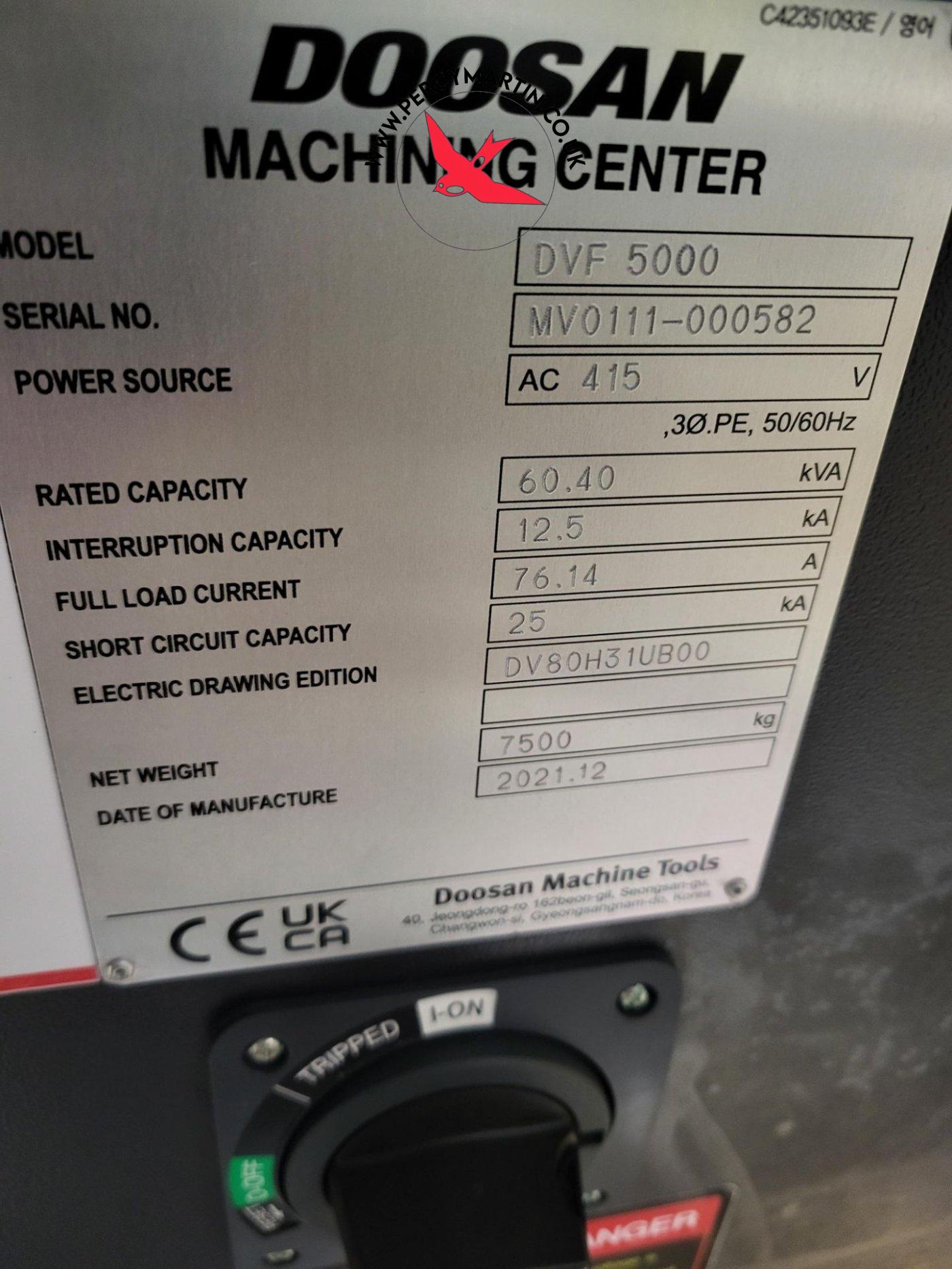

Serial No

MV0111-000582

Price

£POA

Our Reference

PM9769b

Location

Leicester

Doosan DVF5000 2021

Specifications

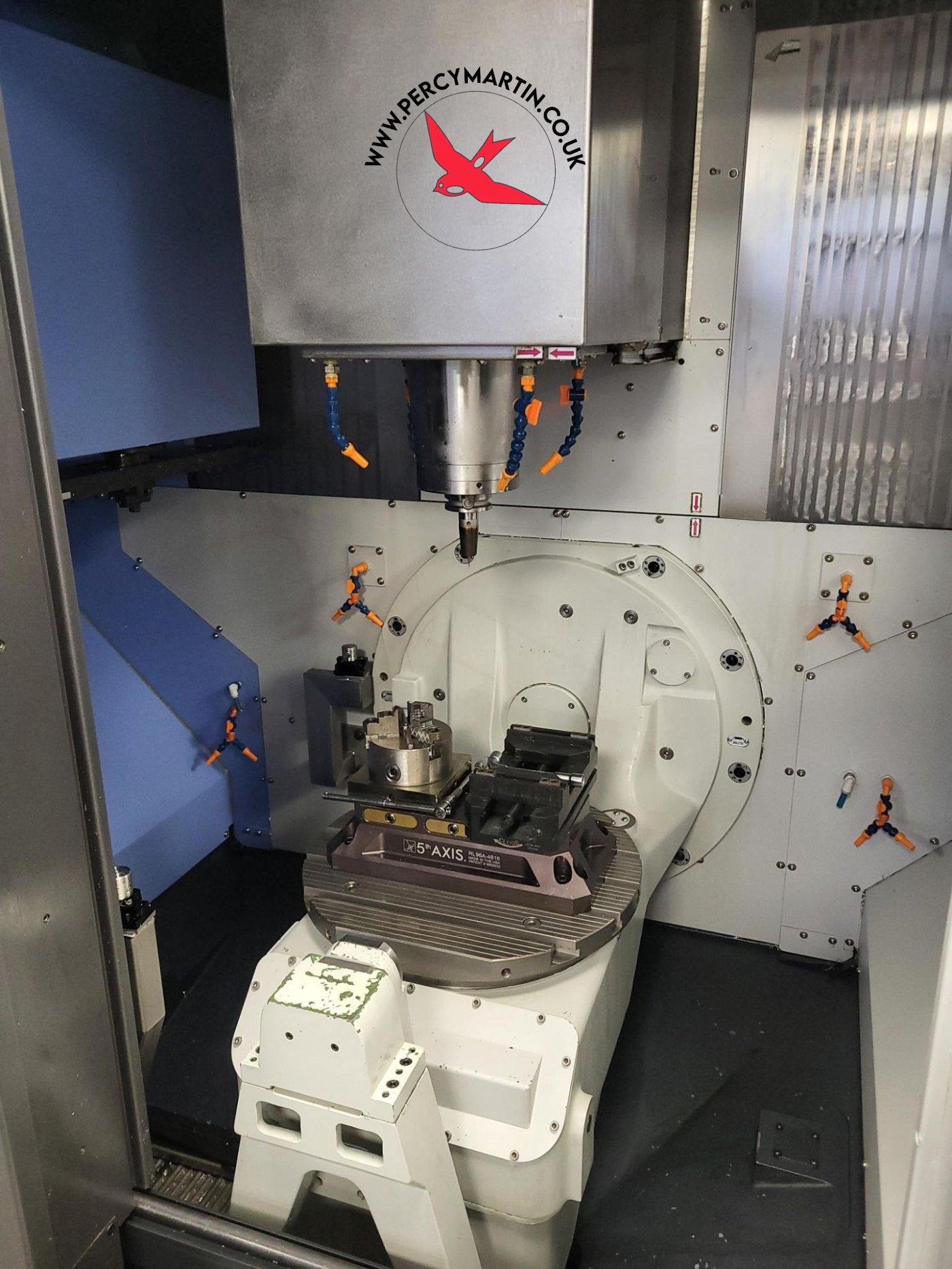

B Axis

-30 ~ +110 degrees

C axis

360 degrees

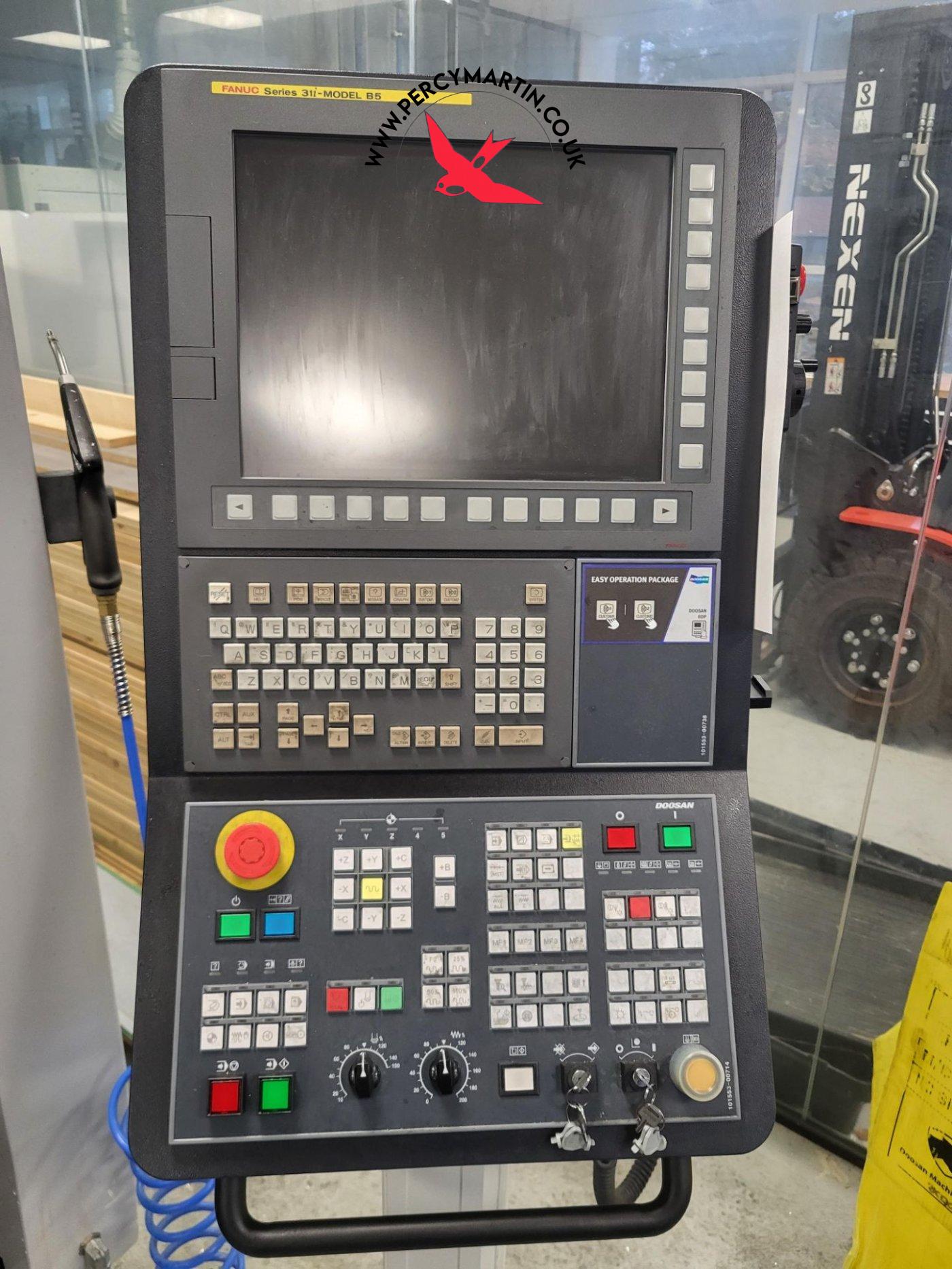

Control

FANUC 31i Model B5

Machine Dimensions

3415 x 2205 x 2890mm

Machine Weight

7500kg

Maximum Tool Diameter

75mm

Maximum Tool Diameter with Empty Adjacent Pockets

125mm

Maximum Tool Length

300mm

Maximum Tool Weight

8kg

Maximum Workpiece Height

450mm

Maximum Workpiece Size

550mm

Maximum workpiece weight

400kg

Min - Max Height under Spindle

150 - 550mm

Rapid Feedrates

40m/minute

Spindle Motor Power

18.5/11kW

Spindle Speed

12000rpm

Table Size

500 x 450mm

Tool Change Capacity

30 Station

Tool Size

BT40

Traverses XYZ

625 x 450 x 400mm
