5 Axis Machining Centres
DMG DMU 50 2019
5 Axis Simultaneous , Coolant , Interlocked guards , Low Volt Light , Multi Pallet Machine , Swarf Conveyor , Through Spindle Coolant
DMG DMU 50 2019
Key Features
Type:
5 Axis Machining Centres
Model:
DMU 50
Make:
DMG
Year:
2019
Serial No
14505773614
Price
£POA
Our Reference
PM9777
Location
Leicester
DMG DMU 50 2019
Specifications
B axis Travel
-35/+110 degrees

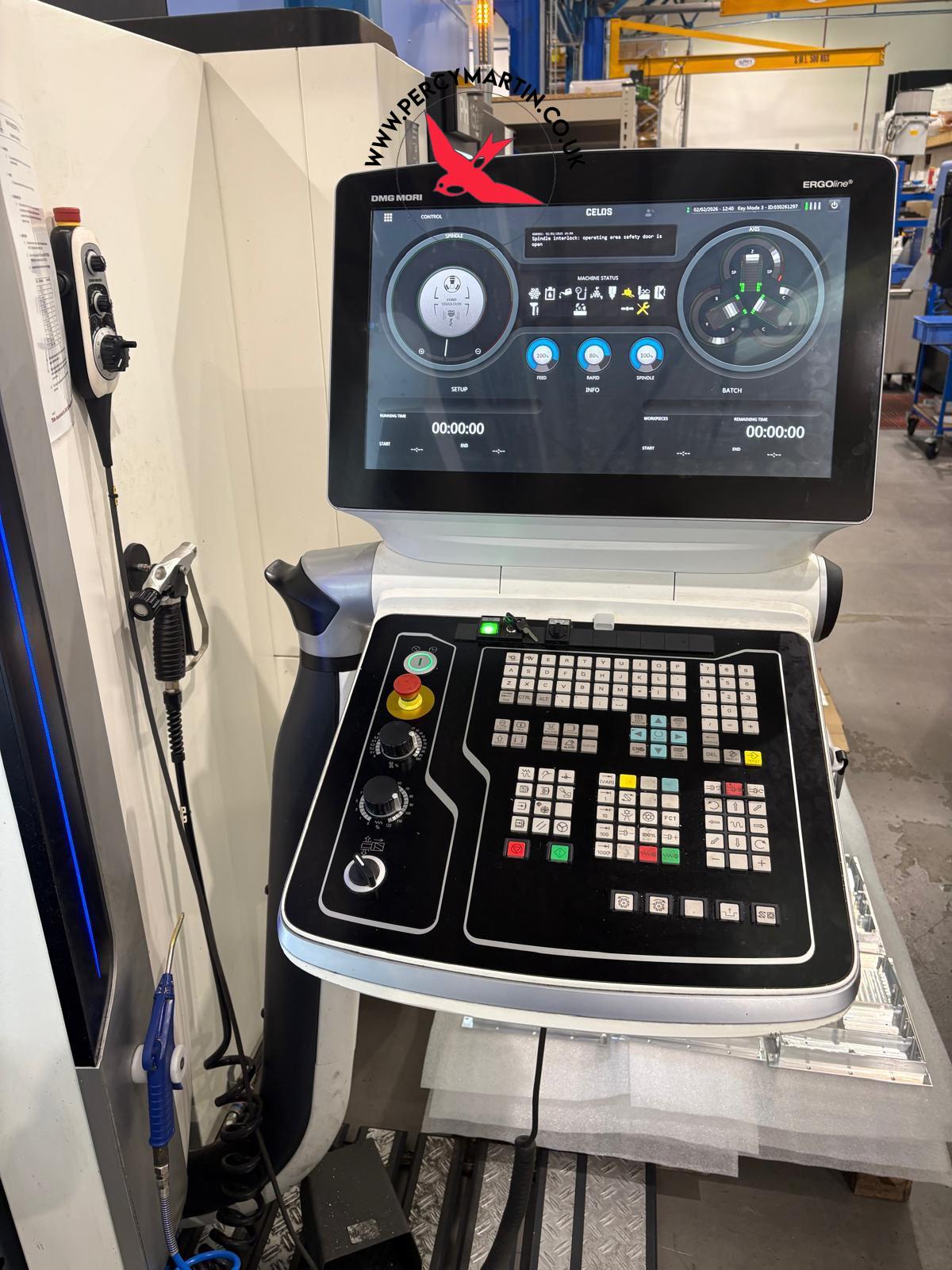

Control
Seimens 840 CELOS Ergoline
Machine Dimensions
3455 x 2997 x 2670mm
Machine Weight
4480kg
Maximum Tool Diameter
80mm
Maximum Tool Diameter with Empty Adjacent Pockets
130mm
Maximum Tool Length
300mm
Maximum Tool Weight
6kg
Maximum Workpiece Size
355mm diameter
Maximum workpiece weight
150kg per pallet
Number of Axis Controlled
5 Simultaneous
Pallet Size
320 x 320mm (Erowa UPC320)
Rapid Feedrates
42m/minute
Spindle Motor Power
21/16kW
Spindle Speed
20000rpm
Table Size
630 x 500mm
Tool Change Capacity
30 Station
Tool Size
HSK A63
Traverses XYZ
650 x 520 x 475mm
DMG DMU 50 2019
