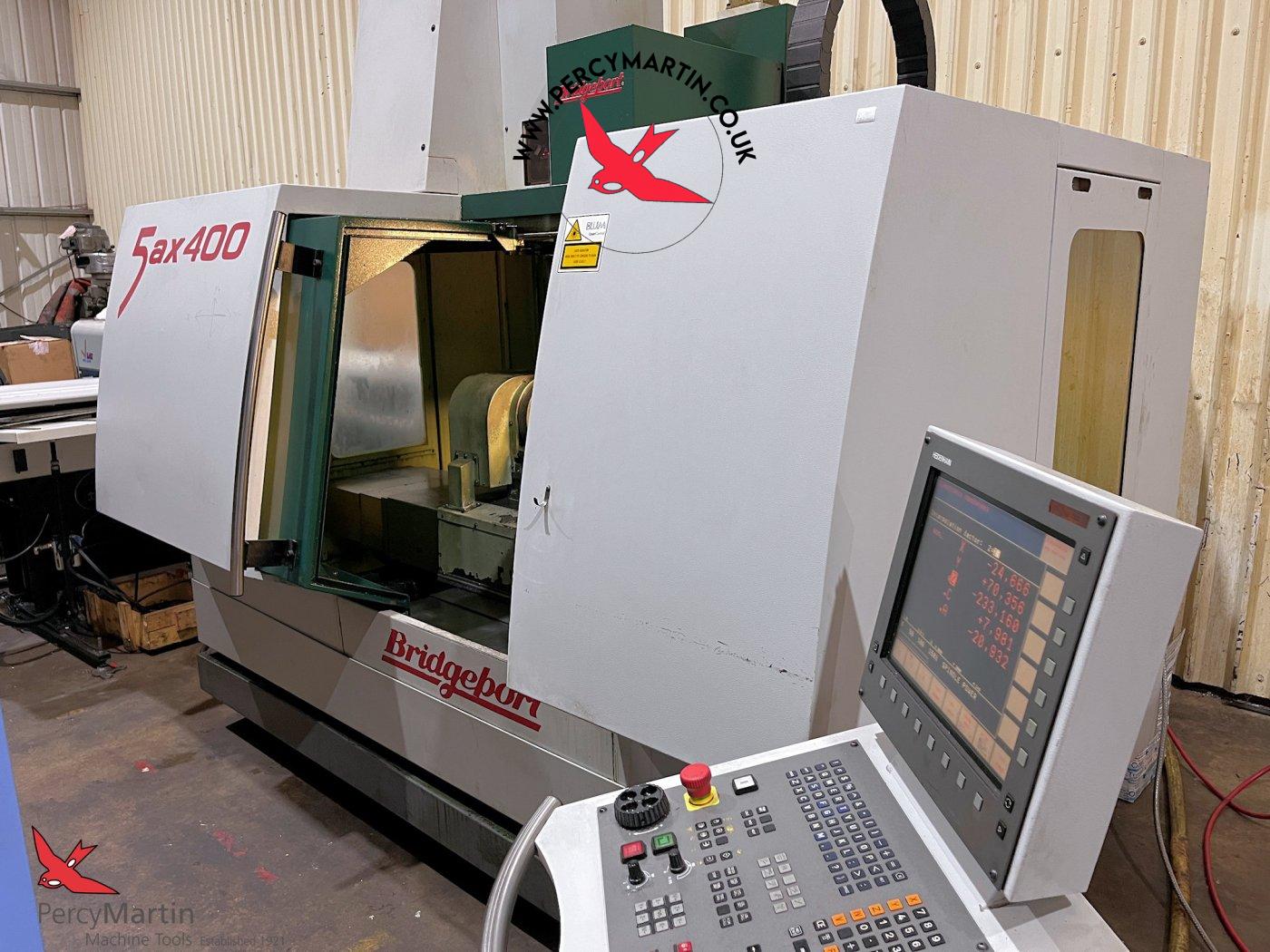

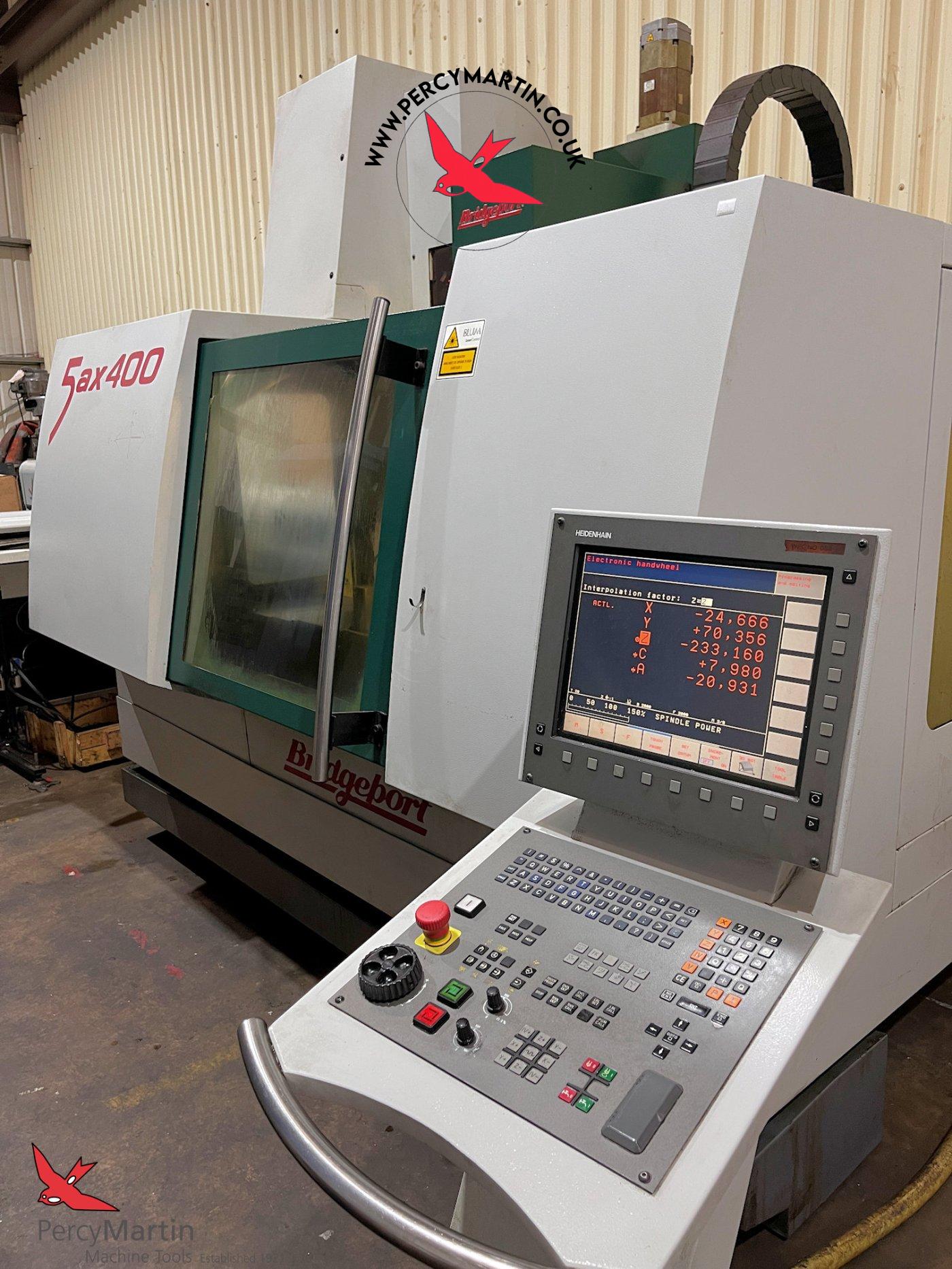

5 Axis Machining Centres

Bridgeport 5AX 400 2003

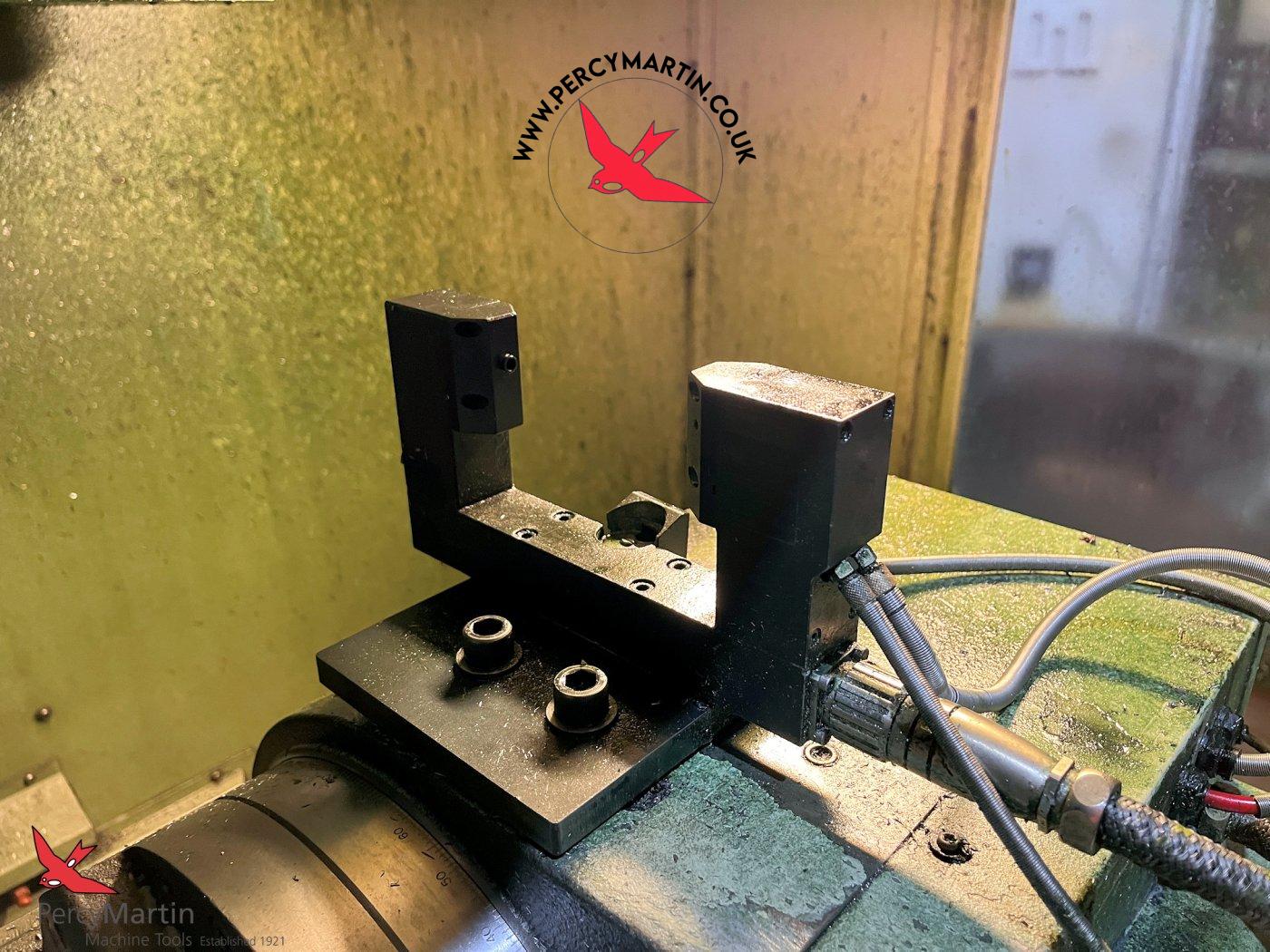

5 axis , Coolant , Interlocked guards , Low Volt Light , Tool setter

Key Features Gallery Specifications More in Stock Register Interest

Bridgeport 5AX 400 2003

Key Features

Type:

5 Axis Machining Centres

Model:

5AX 400

Make:

Bridgeport

Year:

2003

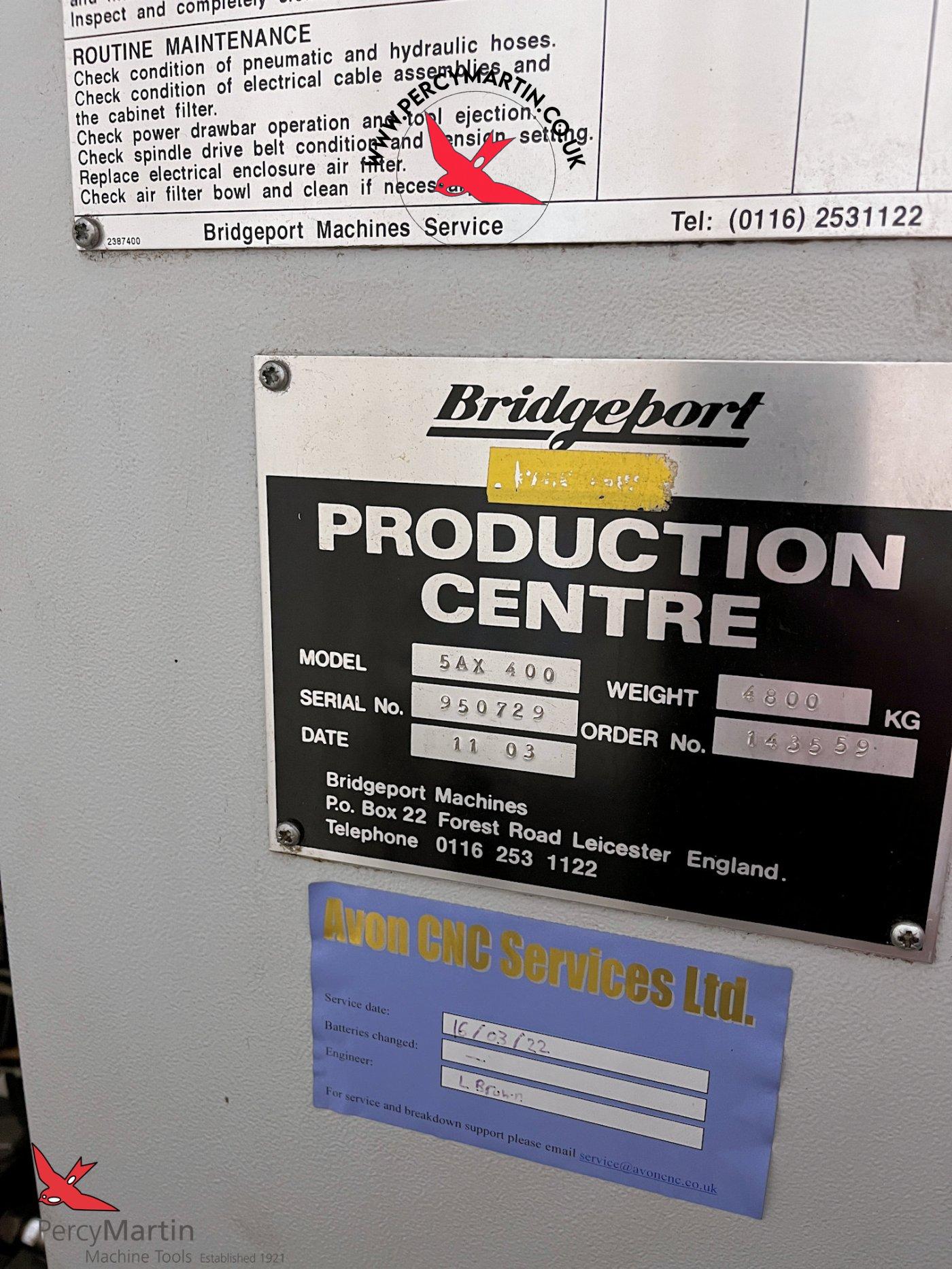

Serial No

950729

Price

£POA

Our Reference

PM8647

Location

Leicester

Bridgeport 5AX 400 2003

Specifications

A axis

+30 ~ -120 degrees (0.001 degree)

C axis

360゜ (0.001 degree increment)

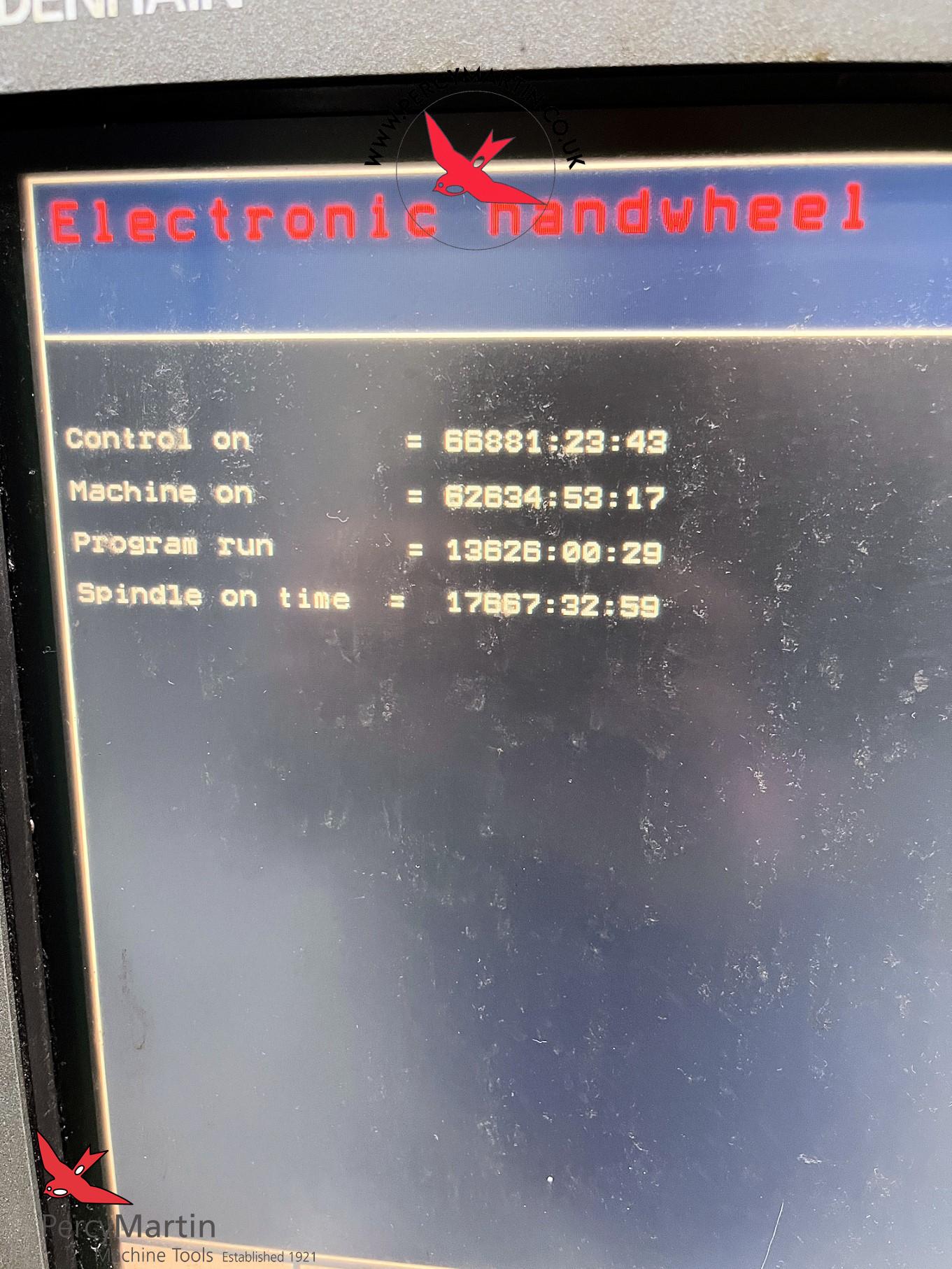

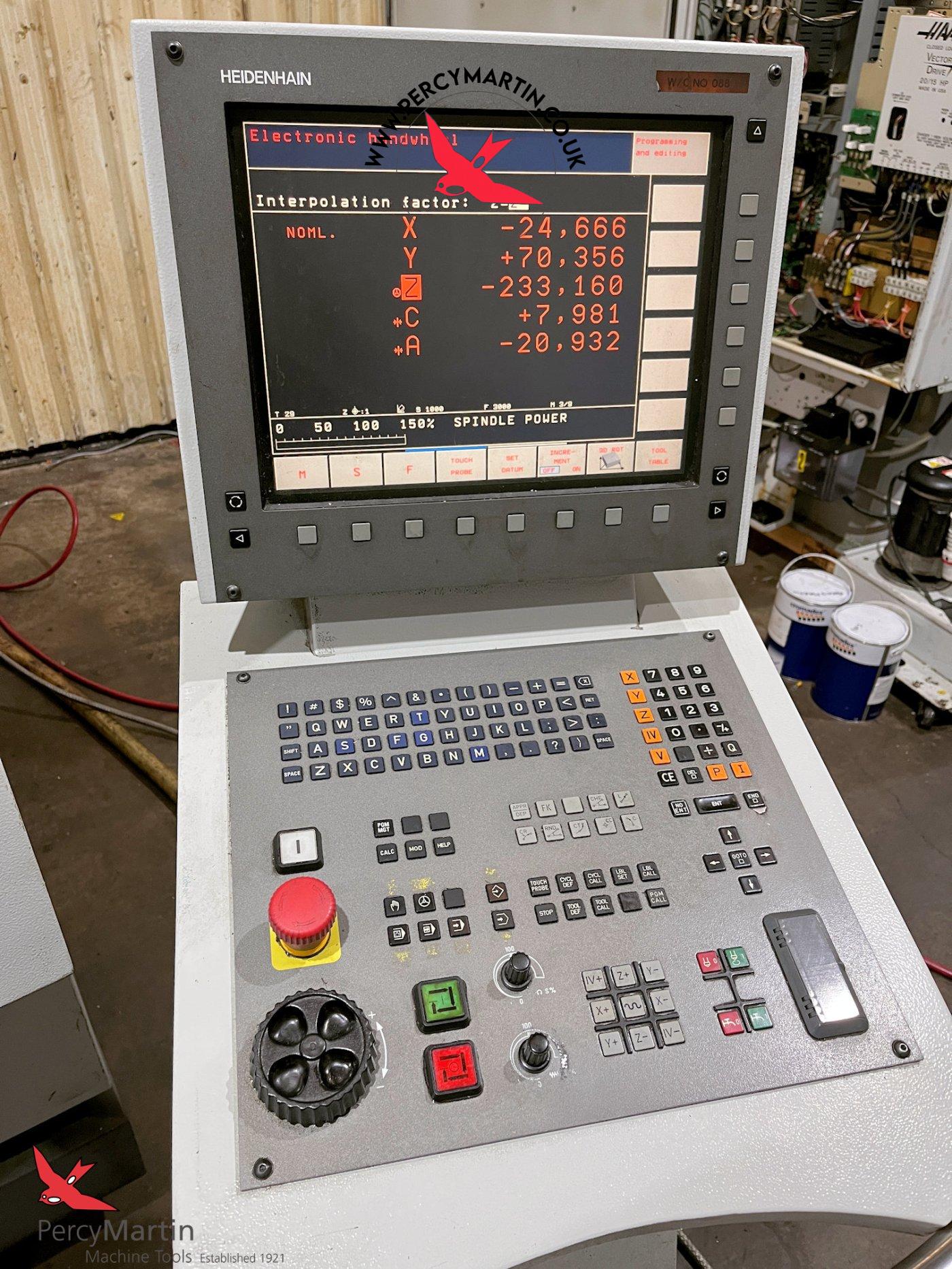

Control

Heidenhain TNC530

Machine Dimensions

2830 x 2617 x 2719mm

Machine Weight

4100kg

Maximum Tool Diameter

80mm

Maximum Tool Length

240mm

Maximum Tool Weight

6kg

Maximum workpiece weight

200kg

Rapid Feedrates

43m/minute

Spindle Motor Power

13kW

Spindle Speed

12000rpm

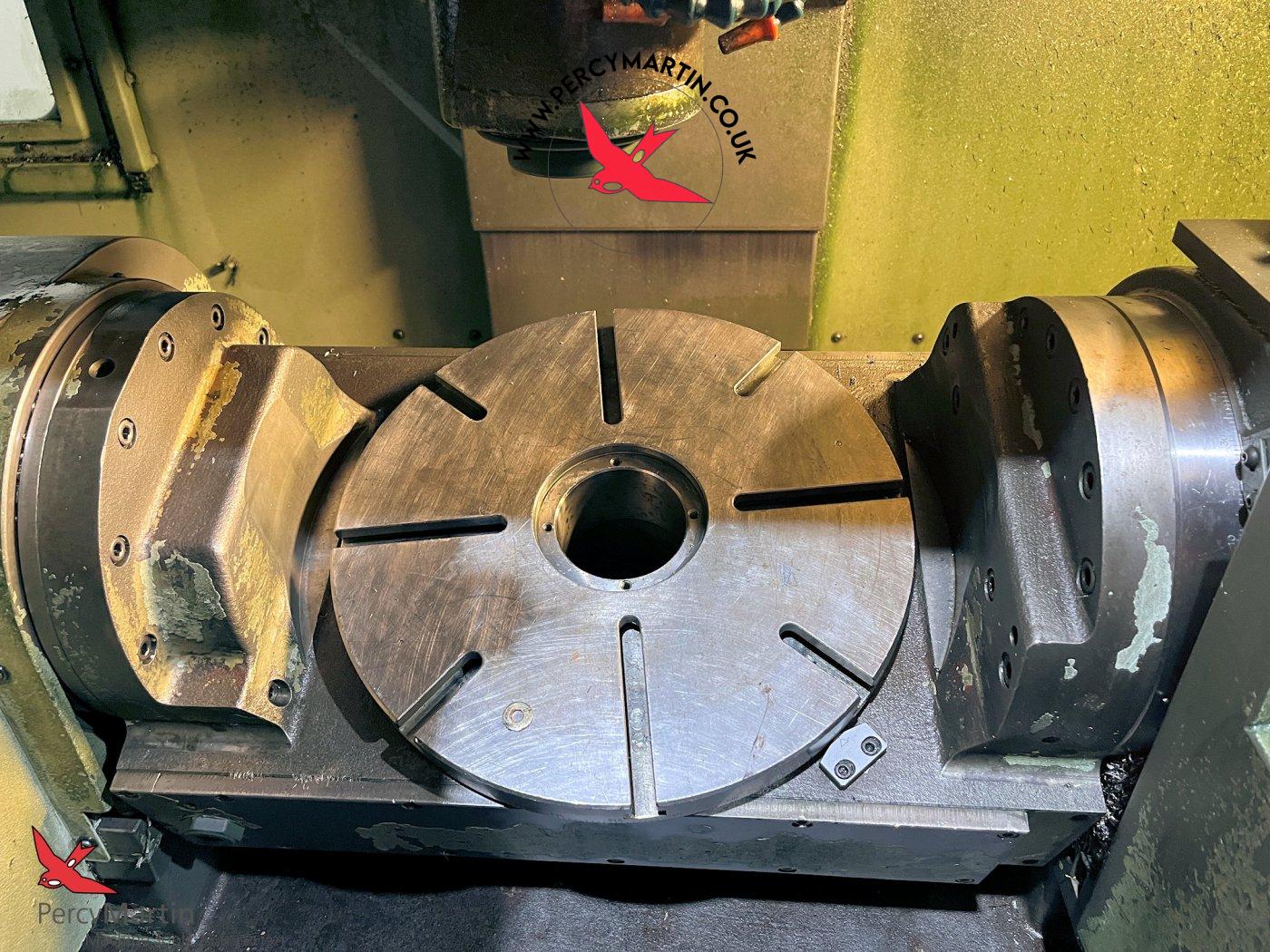

Table Size

350mm diameter

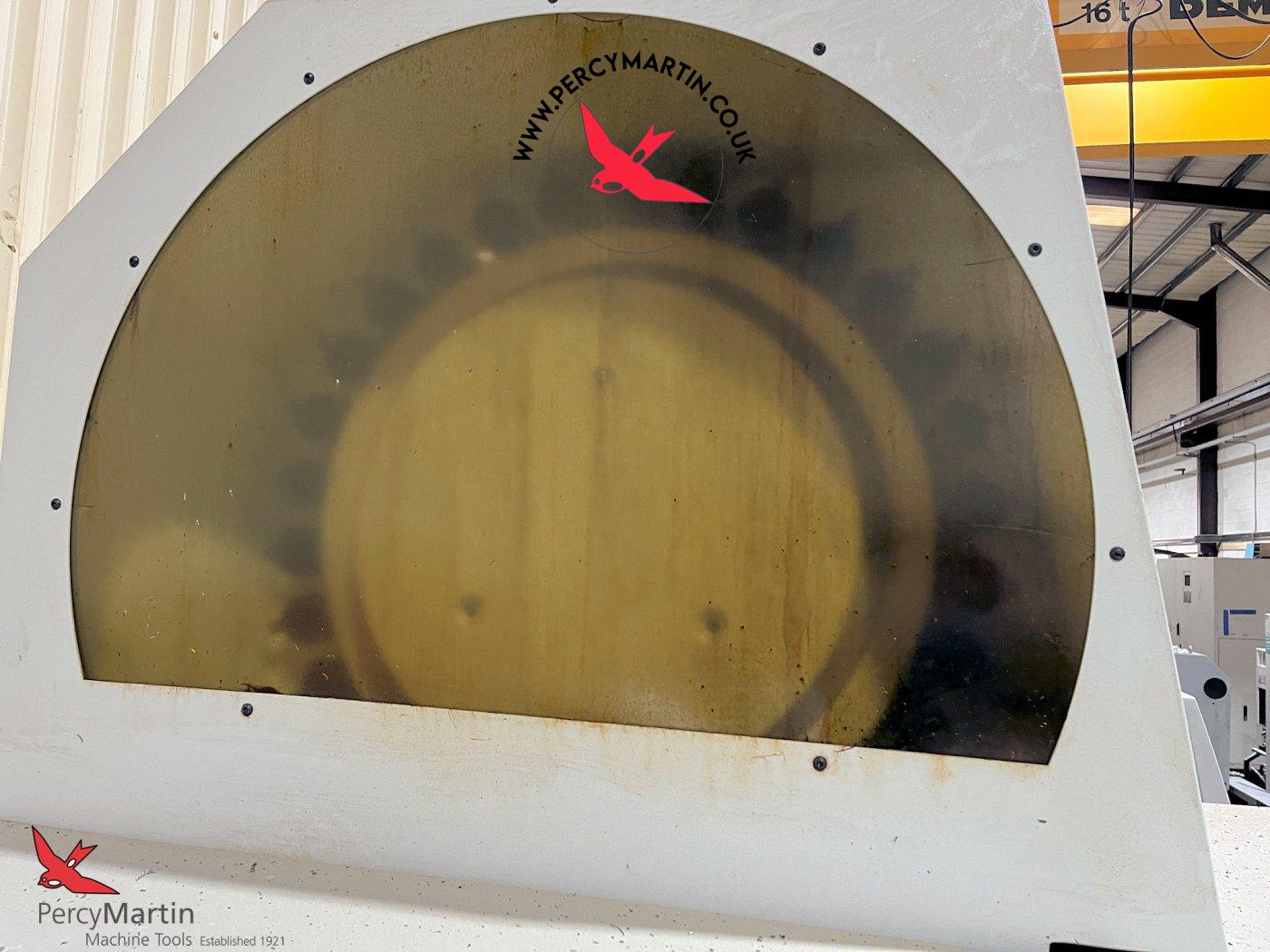

Tool Change Capacity

30 Station

Tool Change Time (Chip to Chip)

4.5 seconds

Tool Size

BT40

Traverses XYZ

810 x 610 x 500mm
